CARBURETOR,4150,650CFM,UNIV,MECHANICAL,ELECTRIC,BLACK,RED

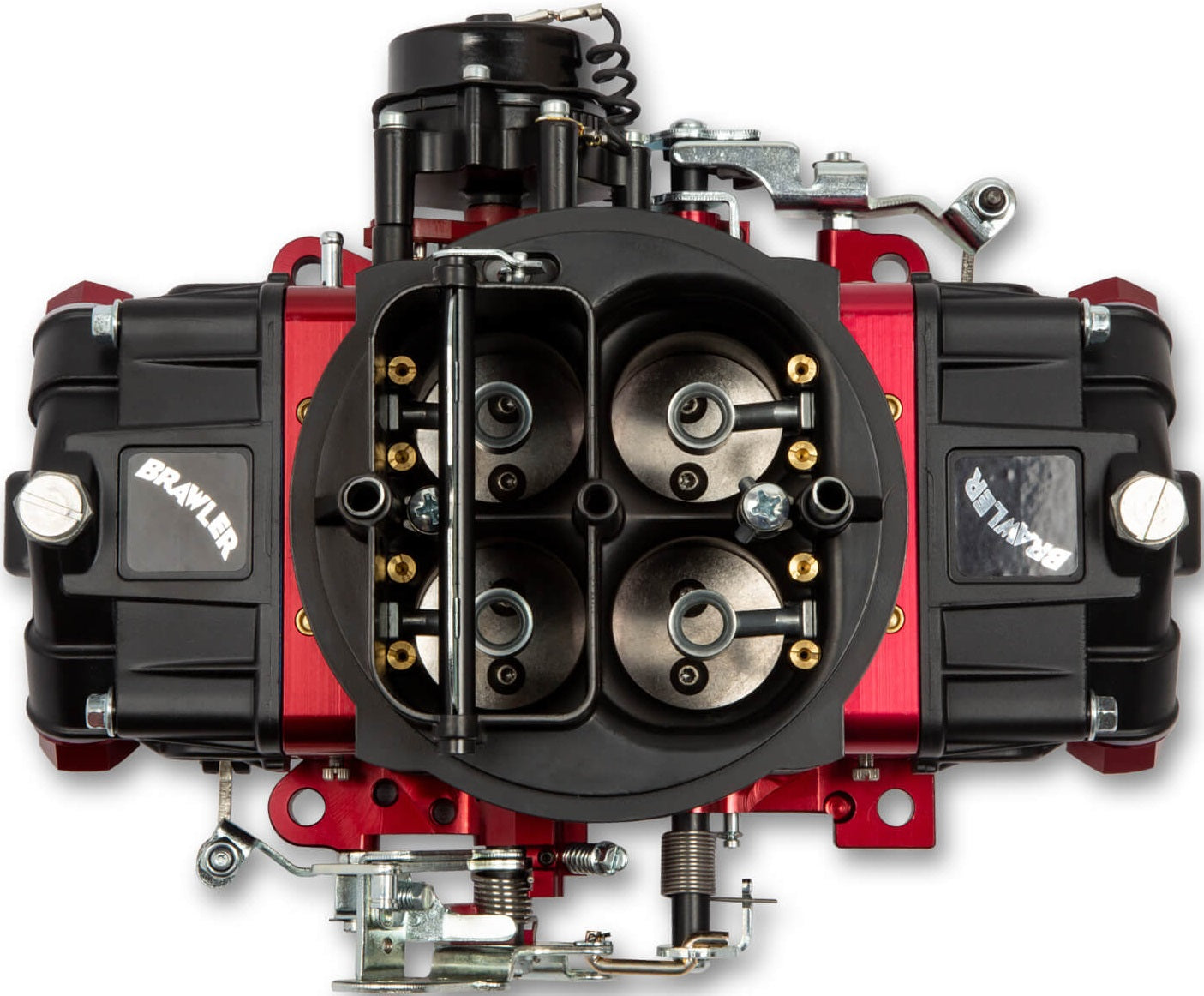

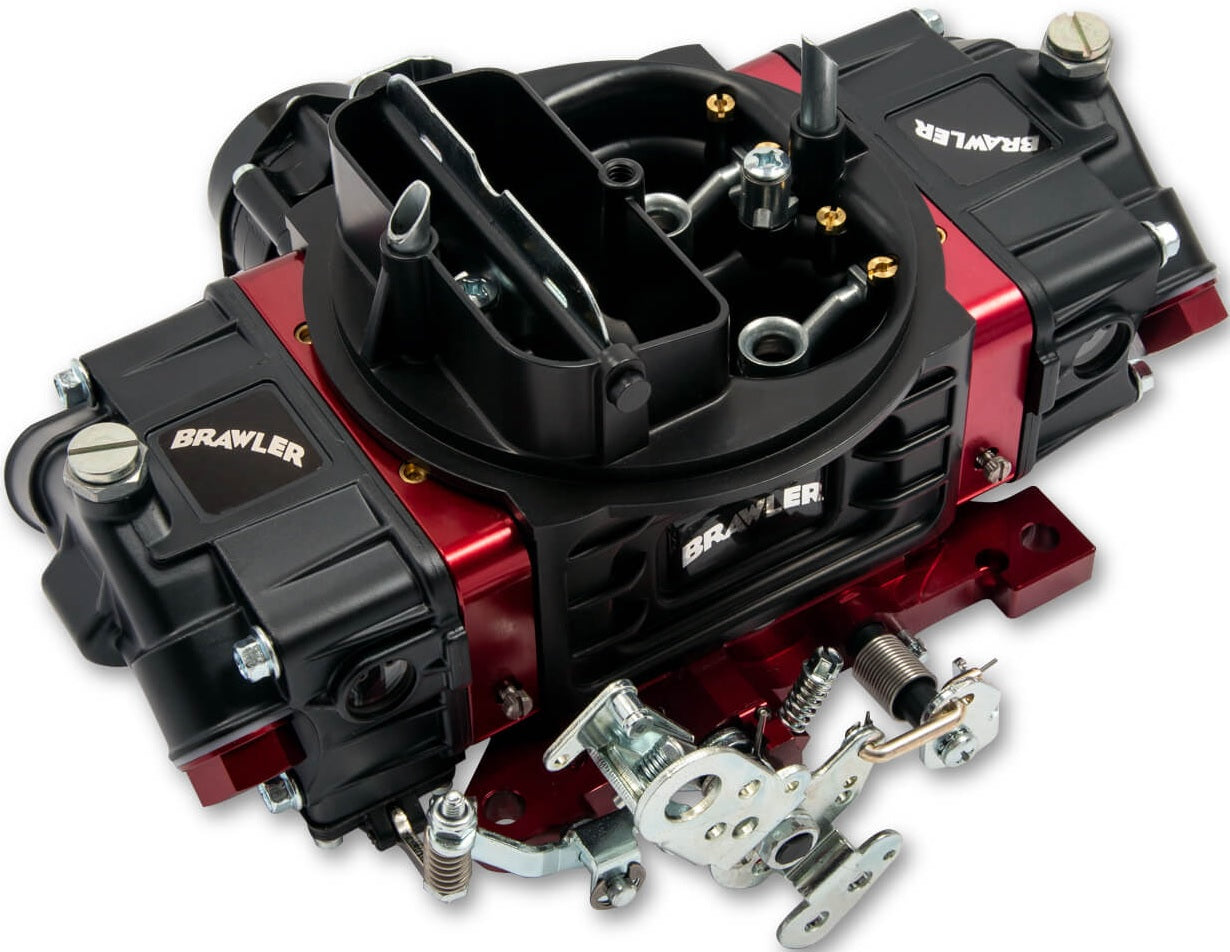

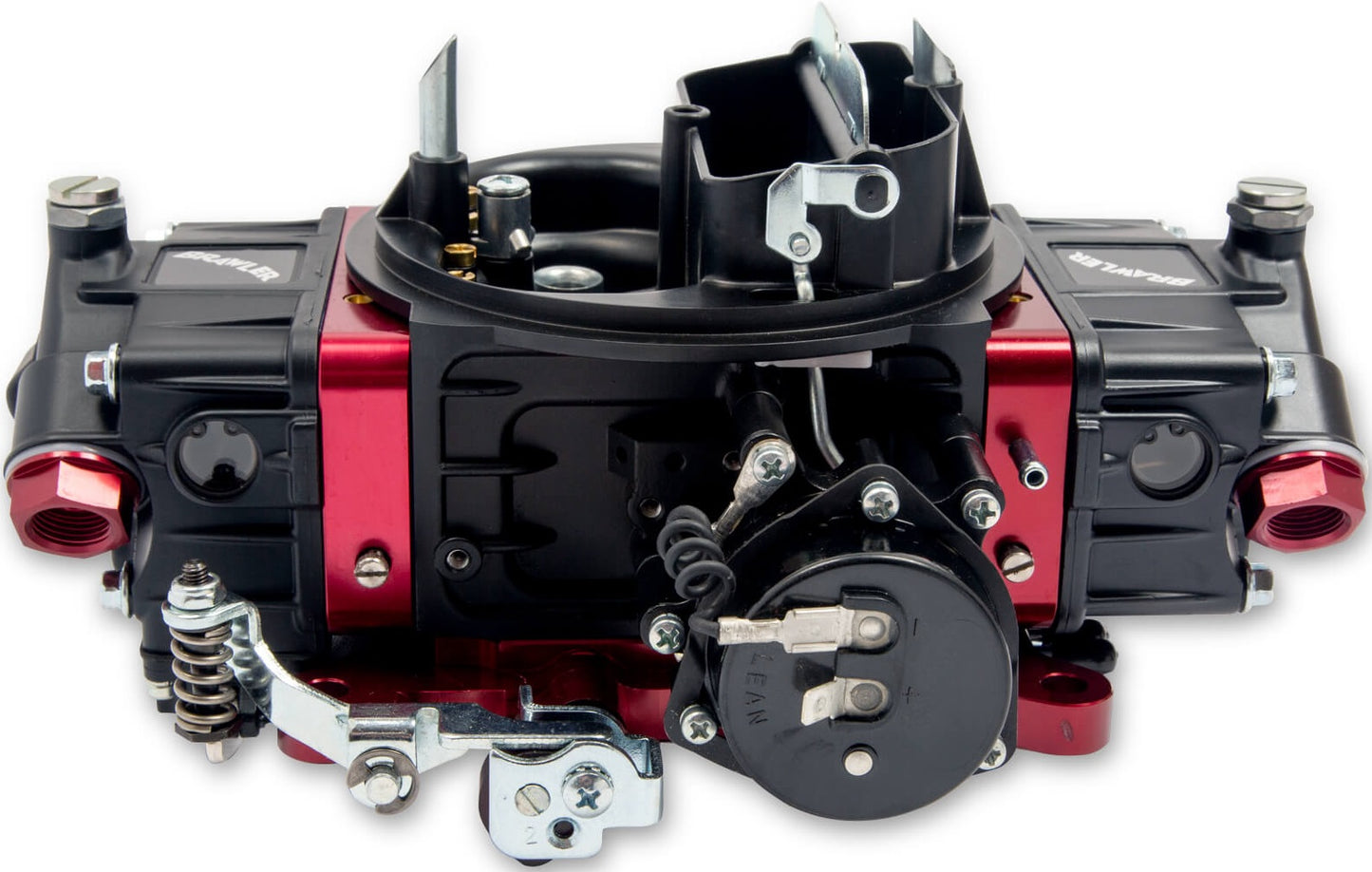

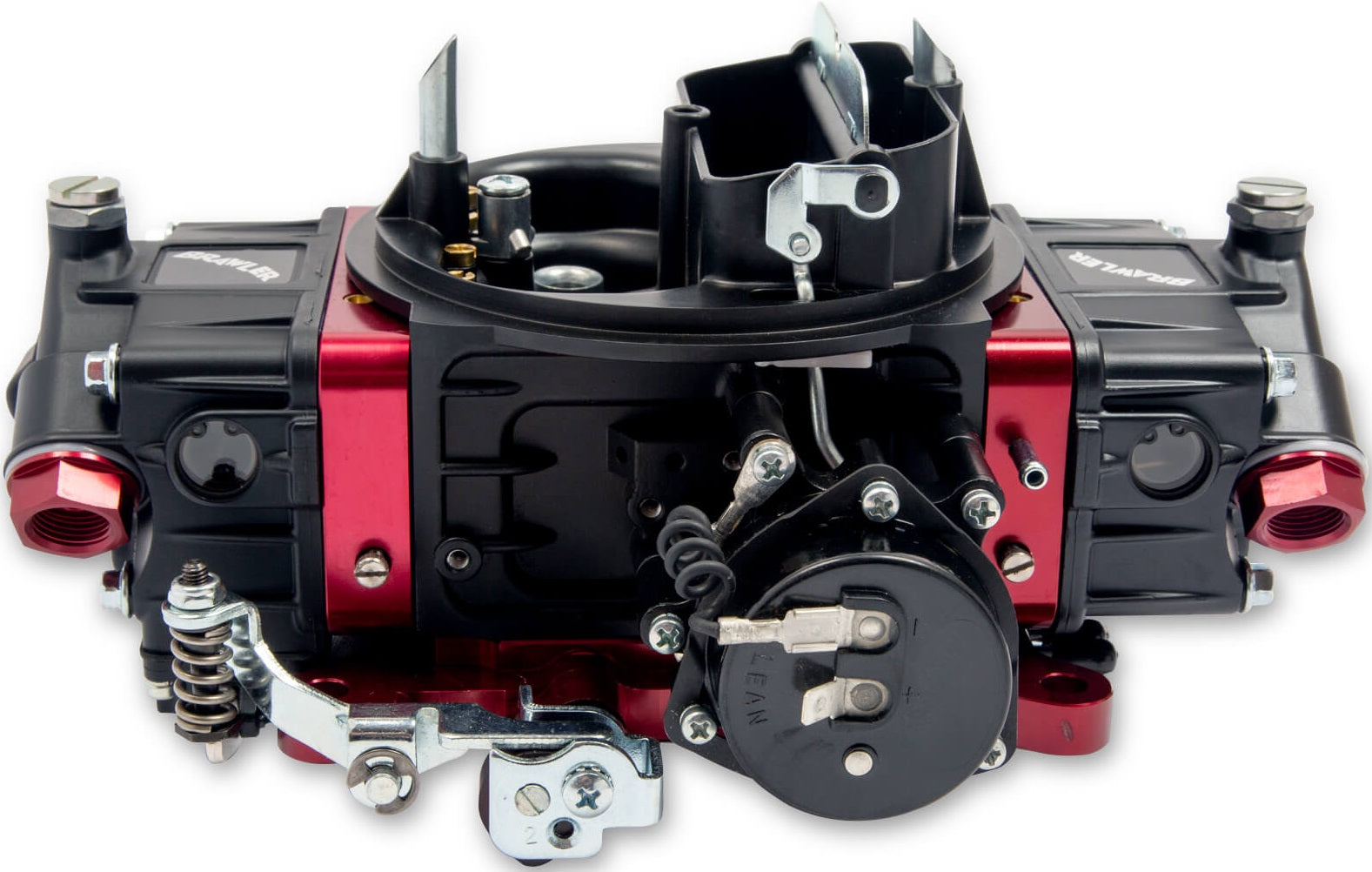

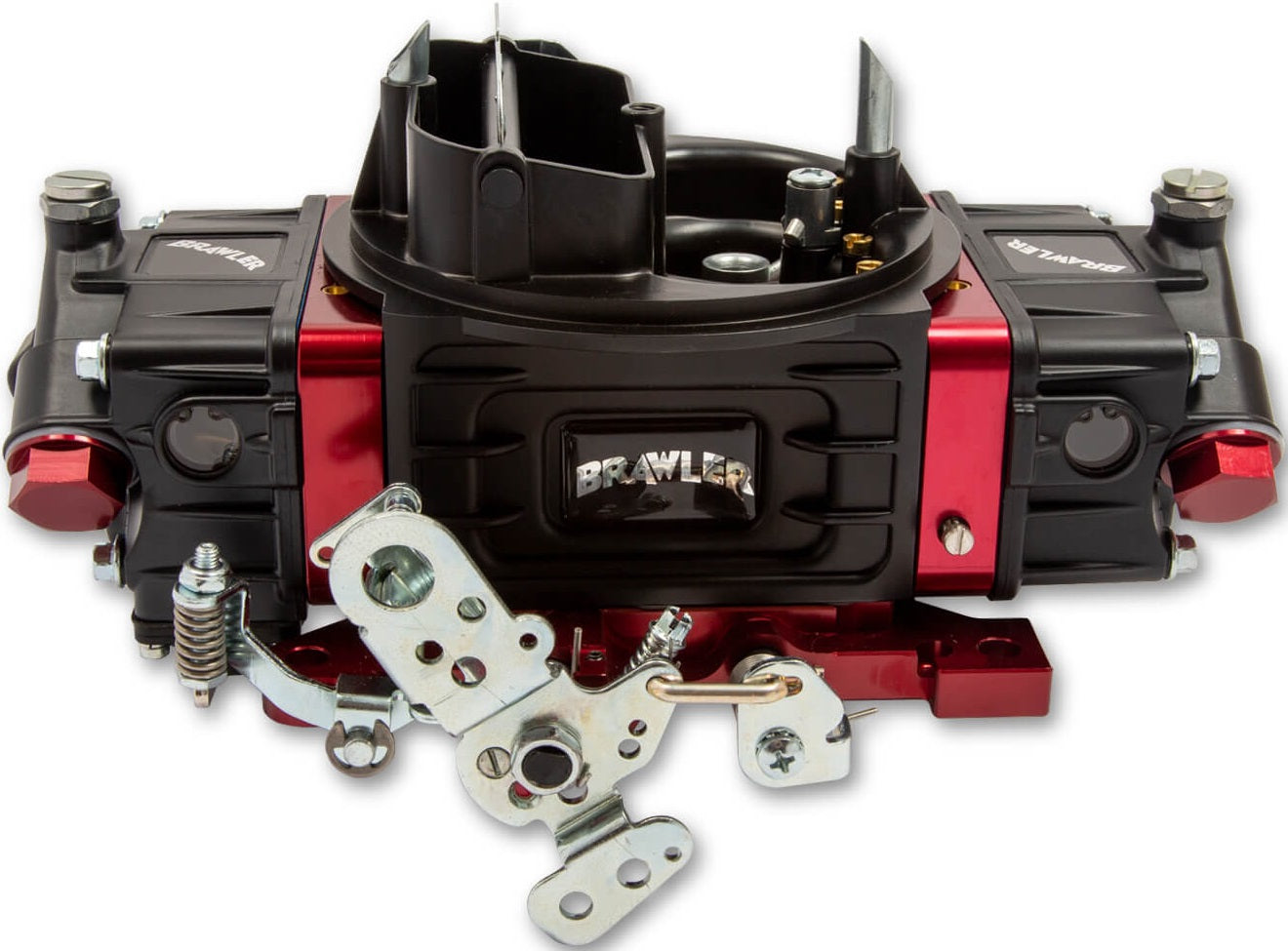

BRAND NEW QUICK FUEL TECHNOLOGY BRAWLER STREET CARBURETOR, MECHANICAL SECONDARIES, 650 CFM, 4150, RED BILLET COLOR

BRAWLER CONTINUES TO LEAD THE PACK WITH THEIR NEWEST FAMILY OF CARBURETORS IN A BLACK WITH RED BILLET COLOR COMBINATION. WHILE THE LOOK IS NEW, THE OUT OF THE BOX PERFORMANCE IS THE SAME THAT YOU HAVE COME TO EXPECT FROM BRAWLER.

BRAWLER STREET CARBURETORS COME WITH RED BILLET METERING BLOCKS WITH THE LATEST TECHNOLOGY IN AIR/FUEL CALIBRATIONS FOR MODERN STREET OR RACE ENGINE DEMANDS. THEY ALSO COME WITH RED BILLET THROTTLE BODIES FOR SUPERIOR DURABILITY AND THROTTLE SHAFT STABILITY.

BRAWLER STREET MODELS OFFER ALL OF THE OPTIONS AND TUNABILITY THAT YOU WOULD FIND FROM MORE EXPENSIVE CARBURETORS IN THE MARKET, INCLUDING AN ELECTRIC CHOKE, A BEAUTIFUL FINISH, AND 4-CORNER IDLE ADJUSTMENT ON ALL MECHANICAL SECONDARY MODELS.

NOTE: THIS MODEL OF CARBURETOR HAS THE SQUARE BORE FLANGE BOLT PATTERN. IT CAN REPLACE HOLLEY, EDELBROCK, CARTER AFB & AUTOLITE STYLE CARBURETORS WITH 5 3/16" X 5 5/8" BOLT PATTERN. IF YOU HAVE A SPREADBORE STYLE INTAKE MANIFOLD, YOU WILL NEED AN ADAPTER TO INSTALL THIS CARBURETOR. SIMILAR TO THE MR. GASKET #1932.

FEATURES:

• DUAL INLET FUEL BOWLS WITH SIGHT GLASS WINDOWS FOR SAFE AND EASY FLOAT ADJUSTMENTS
• RED BILLET METERING BLOCKS AND THROTTLE BODIES WITH PRECISION THROTTLE SHAFTS TO ENSURE LONG TERM PERFORMANCE
• CHANGEABLE IDLE AND HIGH SPEED AIR BLEEDS FOR EASY TUNING ALONG WITH 4-CORNER IDLE ADJUSTMENT ON MECHANICAL SECONDARY MODELS
• BLACK COATED FINISH WITH RED BILLET METERING BLOCKS AND THROTTLE BODY

SPECS:

• BARRELS: 4
• BILLET COLOR: RED
• BOOSTER: DOWN LEG
• CFM: 680
• CHOKE: ELECTRIC
• CIRCUIT: 2
• FINISH: BLACK
• FUEL: GASOLINE
• FUEL INLET: DUAL
• FUEL SYSTEM: CARBURETED
• HIGH SPEED AIR BLEED: 31:31
• IDLE AIR BLEED SIZE: 71:71
• MARINE USE: NO
• MATERIAL: ALUMINUM
• MODEL: BRAWLER STREET
• PRIMARY MAIN JET: 70
• PRIMARY POWER VALVE: 6.5
• PRIMARY PUMP NOZZLE SIZE: 31
• PRIMARY VENTURII SIZE: 1.300"
• PRODUCT TYPE: CARBURETOR
• SECONDARIES: MECHANICAL
• SECONDARY MAIN JET: 76
• SECONDARY VENTURII SIZE: 1.300"
• SUPERCHARGED APPLICATION: NO
• THROTTLE BORE: 1 11/16"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CARBURETOR HERE.
