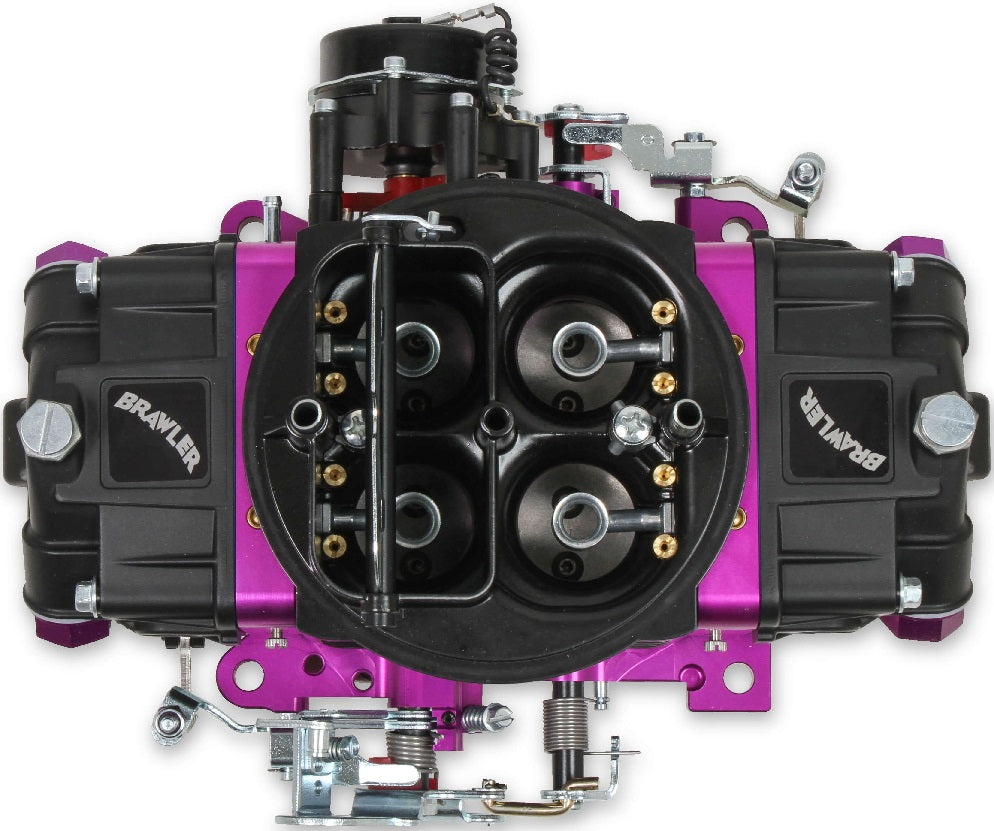

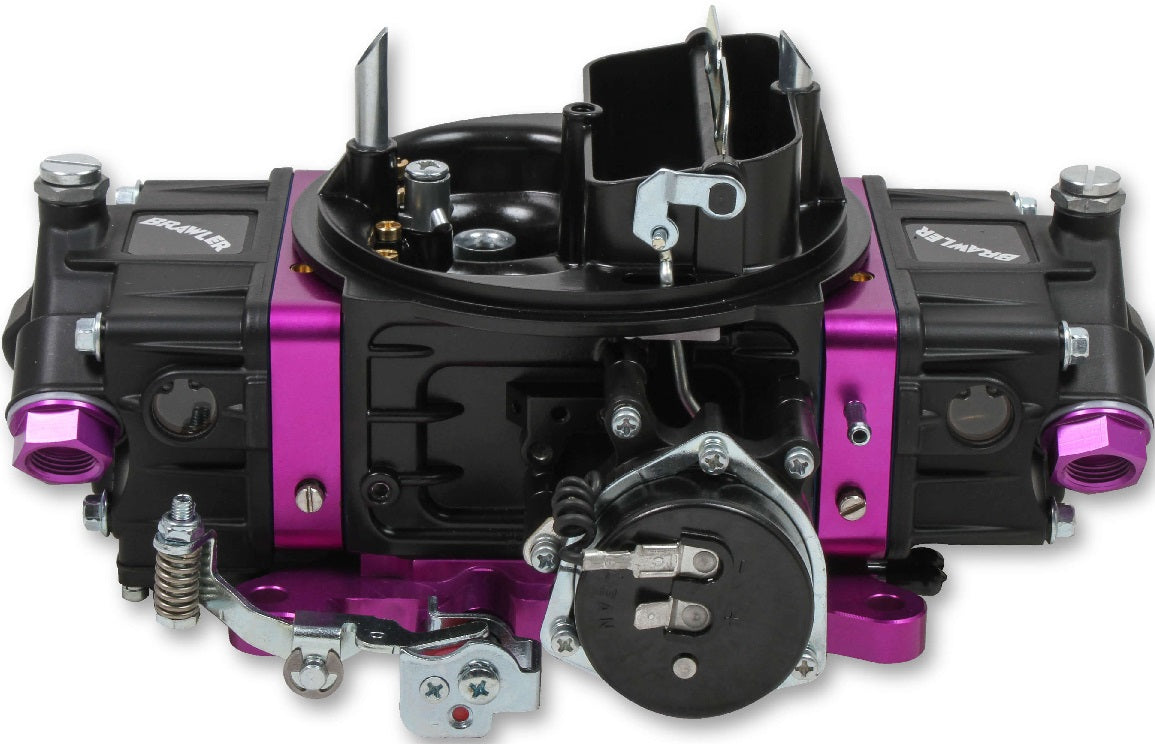

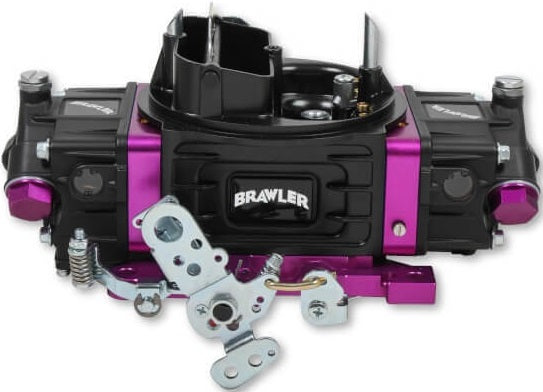

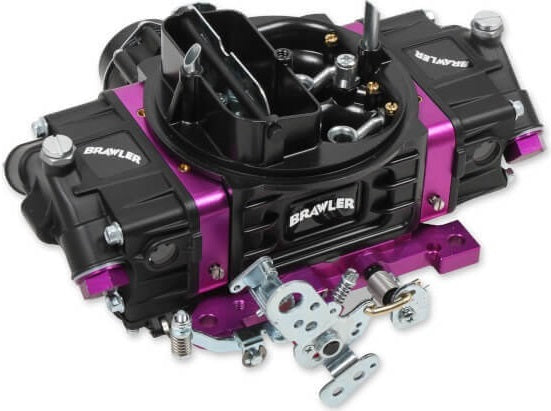

CARBURETOR,4150,750CFM,UNIV,MECHANICAL,ELECTRIC,BLACK,PURPLE

BRAND NEW QUICK FUEL TECHNOLOGY BRAWLER STREET CARBURETOR, MECHANICAL SECONDARIES, 750 CFM, 4150, PURPLE BILLET COLOR

BRAWLER CONTINUES TO LEAD THE PACK WITH THEIR NEWEST FAMILY OF CARBURETORS. BRAWLER CARBURETORS ARE PRECISION MACHINED AND HAND-ASSEMBLED BY CRAFTSMAN RIGHT HERE IN THE USA. THE BRAWLER FAMILY OF CARBURETORS INCLUDE MODELS FOR YOUR DAILY DRIVER TO YOUR RACE CAR. THESE CARBURETORS WORK HARD JUST AS THEIR NAME IMPLIES- JUST RAW BARE KNUCKLED PERFORMANCE THAT YOU CAN RELY ON.

BRAWLERS COME WITH THE LATEST TECHNOLOGY IN AIR/FUEL CALIBRATIONS FOR MODERN STREET OR RACE ENGINE DEMANDS. THE BRAWLER FAMILY OF CARBURETORS ARE ALL MADE FROM LIGHT-WEIGHT ALUMINUM COMPONENTS, WITH THIS MODEL COMING WITH MECHANICAL SECONDARIES. THEY OFFER ALL THE TUNABILITY THAT YOU WOULD FIND FROM MORE EXPENSIVE CARBURETORS IN THE MARKET.

NOTE: THIS MODEL OF CARBURETOR HAS THE SQUARE BORE FLANGE BOLT PATTERN. IT CAN REPLACE HOLLEY, EDELBROCK, CARTER AFB & AUTOLITE STYLE CARBURETORS WITH 5 3/16" X 5 5/8" BOLT PATTERN. IF YOU HAVE A SPREADBORE STYLE INTAKE MANIFOLD, YOU WILL NEED AN ADAPTER TO INSTALL THIS CARBURETOR. SIMILAR TO THE MR. GASKET #1932.

FEATURES:

• LATEST TECHNOLOGY IN AIR/FUEL CALIBRATIONS FOR STREET OR RACE ENGINE DEMANDS
• MECHANICAL SECONDARIES
• DUAL INLET FUEL BOWLS WITH SIGHT GLASS WINDOWS FOR SAFE AND EASY FLOAT ADJUSTMENTS
• CHANGEABLE IDLE AND HIGH SPEED AIR BLEEDS FOR EASY TUNING ALONG WITH 4-CORNER IDLE ADJUSTMENT ON MECHANICAL SECONDARY MODELS
• PERFORMANCE MODELS INCLUDE BILLET METERING BLOCKS AND THROTTLE BODIES WITH PRECISION THROTTLE SHAFTS TO ENSURE LONG TERM PERFORMANCE

SPECS:

• BARRELS: 4
• BILLET COLOR: PURPLE
• BOOSTER: DOWN LEG
• CFM: 750
• CHOKE: ELECTRIC
• CIRCUIT: 2
• FINISH: BLACK
• FUEL: GASOLINE
• FUEL INLET: DUAL
• FUEL SYSTEM: CARBURETED
• HIGH SPEED AIR BLEED: 31
• IDLE AIR BLEED SIZE: 70
• MARINE USE: NO
• MATERIAL: ALUMINUM
• MODEL: BRAWLER STREET
• PRIMARY MAIN JET: 74
• PRIMARY POWER VALVE: 6.5
• PRIMARY PUMP NOZZLE SIZE: 31
• PRIMARY VENTURII SIZE: 1.380"
• PRODUCT TYPE: CARBURETOR
• SECONDARIES: MECHANICAL
• SECONDARY MAIN JET: 80
• SECONDARY VENTURII SIZE: 1.380"
• SUPERCHARGED APPLICATION: NO
• THROTTLE BORE: 1 11/16"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CARBURETOR HERE.
