CARBURETOR,4150,850CFM,RACE,MECHANICAL,BLACK,PURPLE

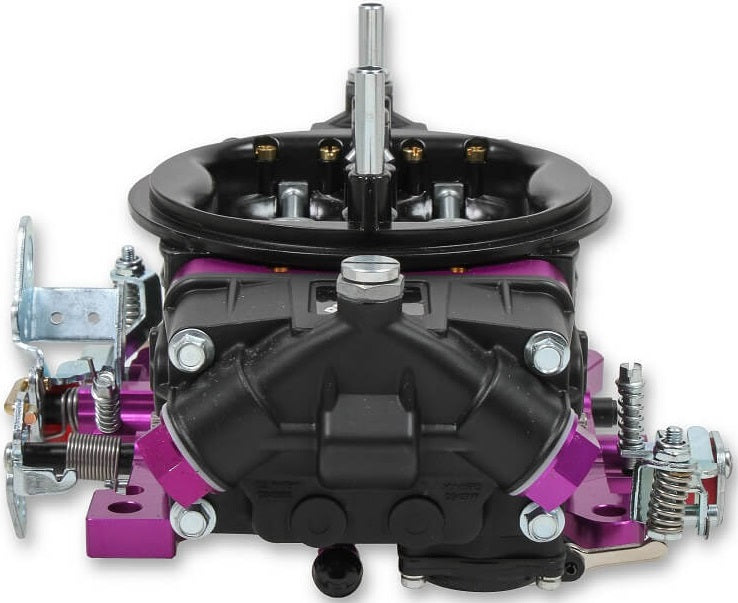

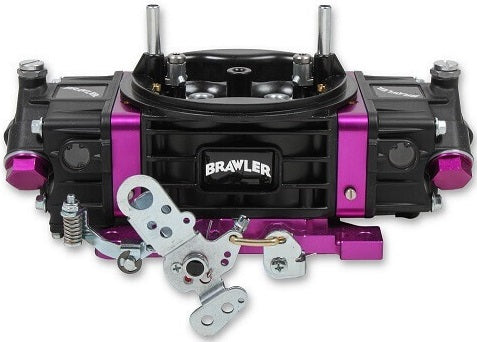

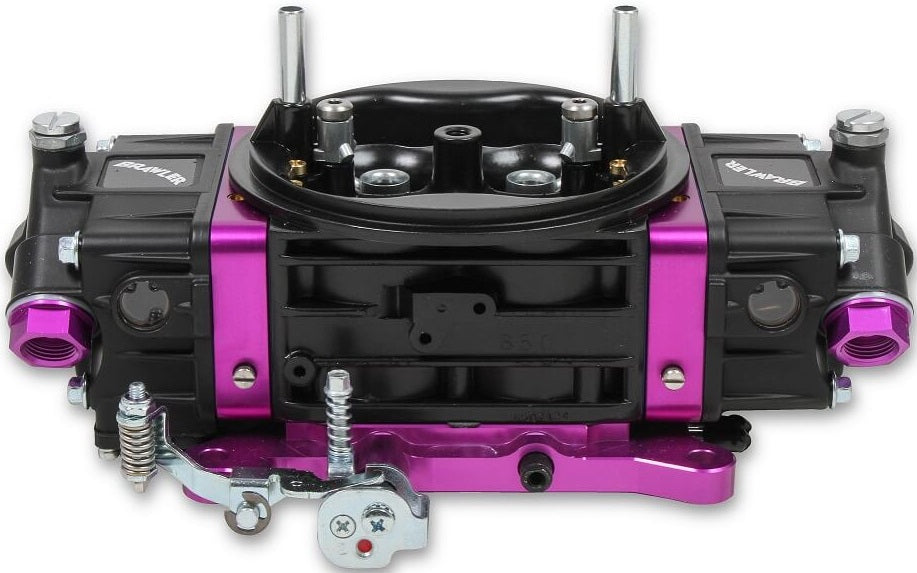

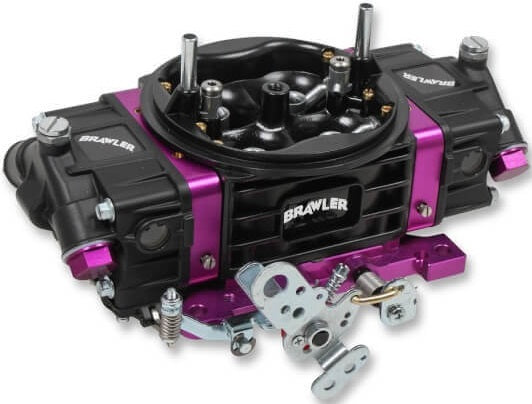

BRAND NEW QUICK FUEL TECHNOLOGY BRAWLER RACE CARBURETOR, MECHANICAL SECONDARIES, 850 CFM, 4150, PURPLE BILLET COLOR

THESE CARBURETORS ARE THE SECOND PHASE OF NEW CARBURETORS BUILD ON THE SUCCESS OF THE ORIGINALS BY ADDING MORE CFM SIZES & BLACK COATED FINISH. BRAWLERS COME WITH THE LATEST TECHNOLOGY IN AIR/FUEL CALIBRATIONS FOR MODERN STREET OR RACE ENGINE DEMANDS. MADE FROM LIGHT-WEIGHT ALUMINUM COMPONENTS & OFFER ALL THE TUNABILITY THAT YOU WOULD FIND FROM MORE EXPENSIVE CARBURETORS IN THE MARKET.

NOTE: THIS MODEL OF CARBURETOR HAS THE SQUARE BORE FLANGE BOLT PATTERN. REPLACES HOLLEY, EDELBROCK, CARTER AFB & AUTOLITE STYLE CARBURETORS WITH 5 3/16" X 5 5/8" BOLT PATTERN. IF YOU HAVE A SPREADBORE STYLE INTAKE MANIFOLD, YOU WILL NEED AN ADAPTER TO INSTALL THIS CARBURETOR. SIMILAR TO THE MR. GASKET #1932.

FEATURES:

• THE LATEST TECHNOLOGY IN AIR/FUEL CALIBRATIONS FOR STREET OR RACE ENGINE DEMANDS MECHANICAL SECONDARIES
• DUAL INLET FUEL BOWLS WITH SIGHT GLASS WINDOWS FOR SAFE & EASY FLOAT ADJUSTMENTS
• CHANGEABLE IDLE & HIGH SPEED AIR BLEEDS FOR EASY TUNING ALONG WITH 4-CORNER IDLE ADJUSTMENT ON MECHANICAL SECONDARY MODELS
• PERFORMANCE MODELS INCLUDE BILLET METERING BLOCKS & THROTTLE BODIES WITH PRECISION THROTTLE SHAFTS TO ENSURE LONG TERM PERFORMANCE
• BLACK COATED FINISH FOR CORROSION PROTECTION & GOOD LOOKS

SPECS:

• BARRELS: 4
• BILLET COLOR: PURPLE
• BOOSTER: DOWN LEG
• CARBURETOR USE: PERFORMANCE & RACE
• CFM: 850
• CHOKE: NONE
• CIRCUIT: 2
• FINISH: BLACK
• FUEL: GAS
• FUEL INLET: DUAL
• FUEL SYSTEM: CARBURETED
• HIGH SPEED AIR BLEED: 33
• IDLE AIR BLEED SIZE: 73
• MARINE USE: NO
• MATERIAL: ALUMINUM
• MODEL: BRAWLER RACE
• PRIMARY MAIN JET: 76
• PRIMARY POWER VALVE: 4.5
• PRIMARY PUMP NOZZLE SIZE: 33
• PRODUCT TYPE: CARBURETOR
• SECONDARIES: MECHANICAL
• SECONDARY MAIN JET: 84
• SUPERCHARGED APPLICATION: NO
• THROTTLE BORE: 1.75

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CARBURETOR HERE.
