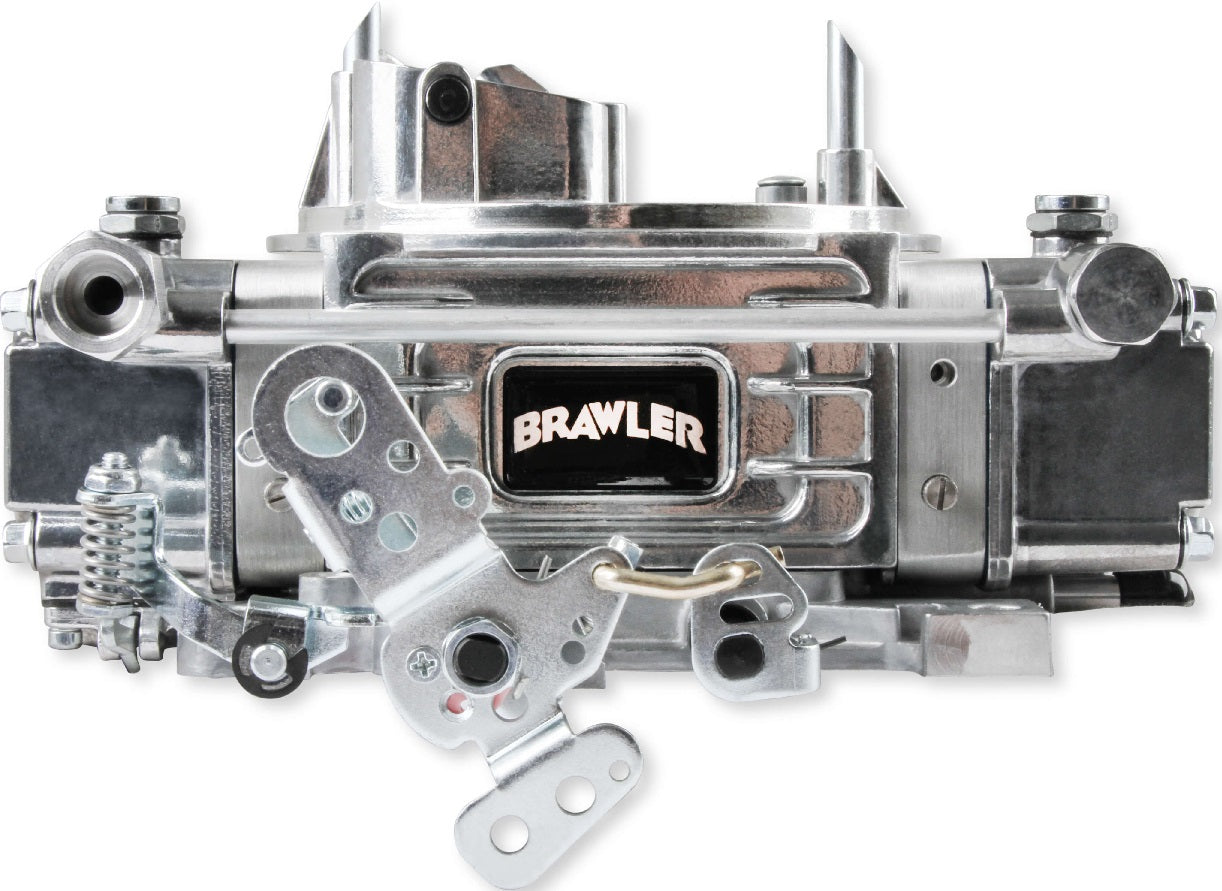

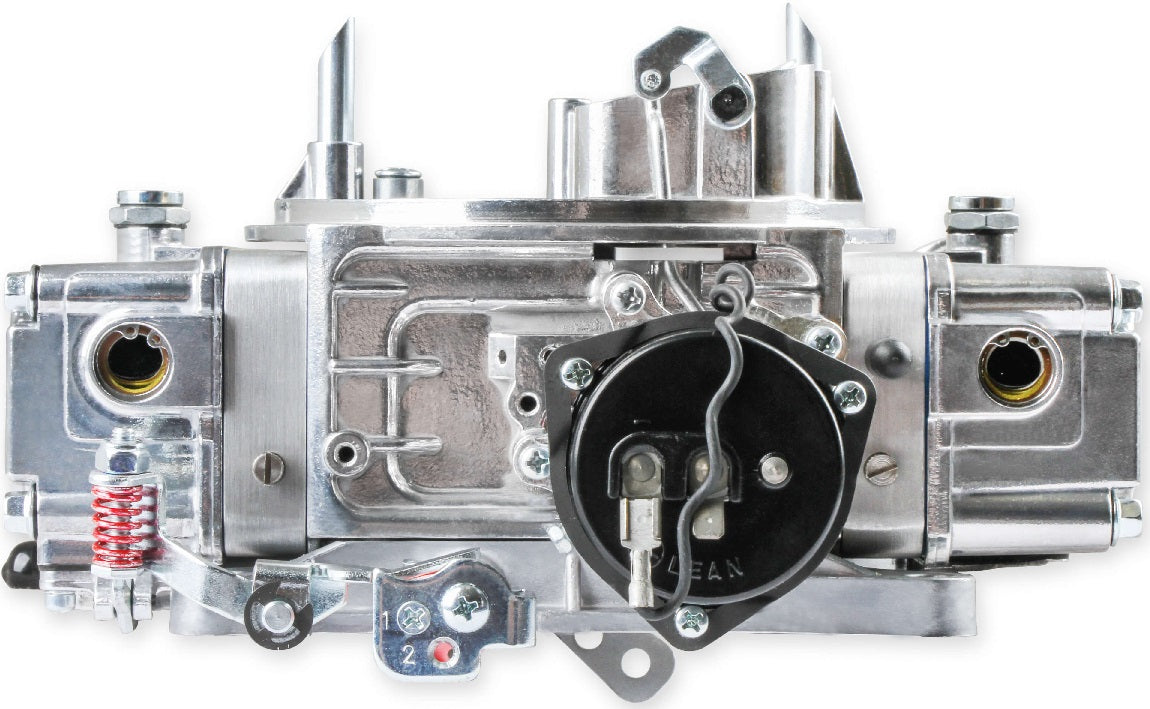

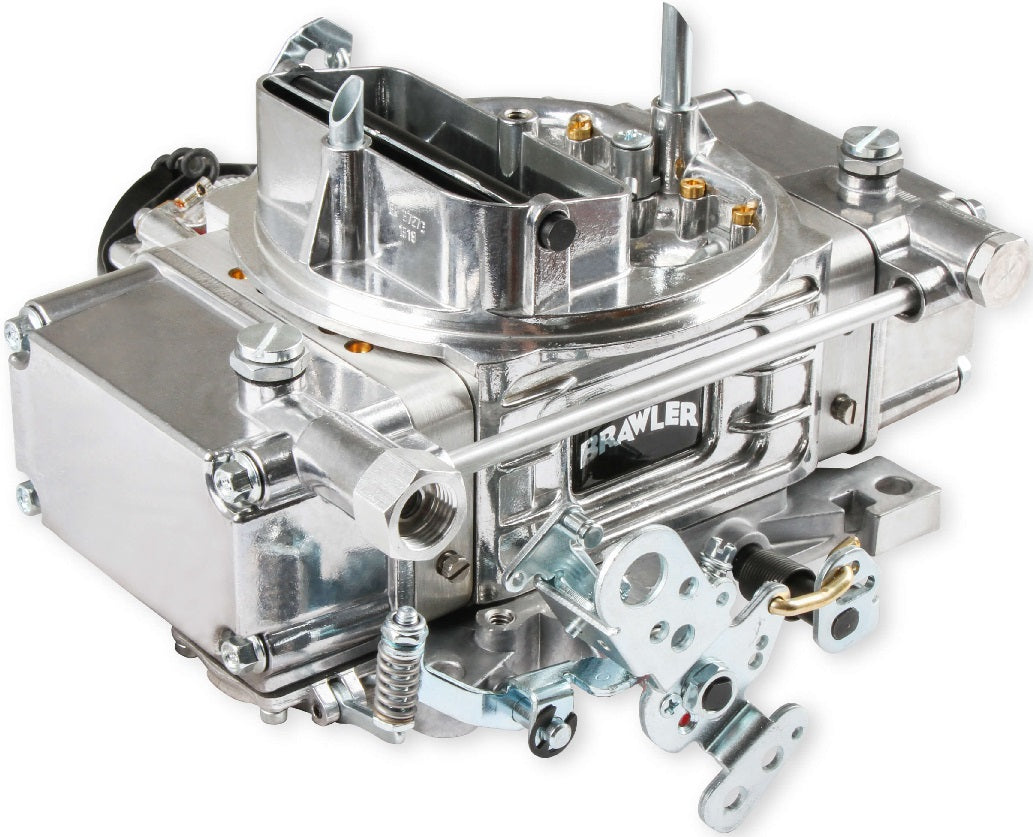

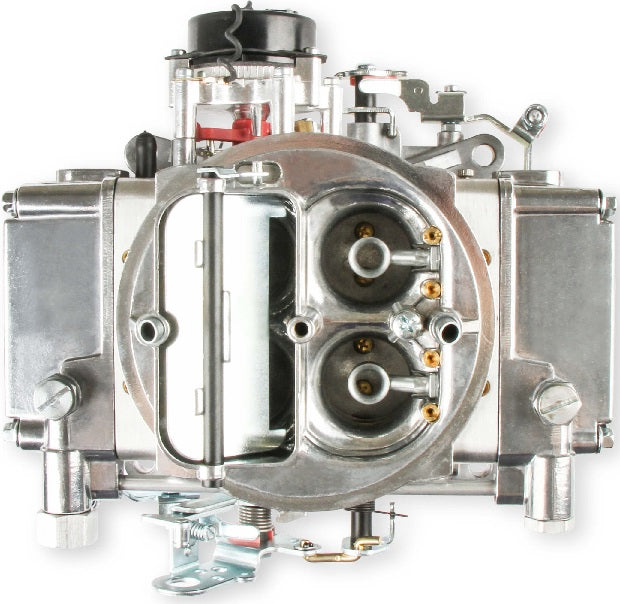

CARBURETOR,4150,650CFM,UNIV,MECHANICAL,ELECTRIC CHOKE

BRAND NEW HOLLEY QUICK FUEL 650 CFM BRAWLER DIECAST CARBURETOR, SHINY FINISH, MECHANICAL SECONDARIES, ELECTRIC CHOKE, COMPATIBLE WITH GASOLINE

BRAWLER DIE-CAST CARBURETORS ARE NOW AVAILABLE IN A SIDE HUNG BOWL DESIGN. WITH A SIMPLER ONE-FUEL LINE CONNECTION, THESE NEW CARBURETORS ARE A PERFECT FIT FOR BOLT ON STREET PERFORMANCE. THE CARBURETORS ARE EQUIPPED WITH UNIVERSAL THROTTLE LEVERS TO ACCOMMODATE FORD A/T KICKDOWN, GM 700 R4 MOUNTING HOLES, AND ABILITY TO MOUNT BRACKETS FOR CHRYSLER VEHICLES.

BRAWLER DIECAST CARBURETORS ARE MACHINED AND ASSEMBLED BY CRAFTSMAN RIGHT HERE IN THE USA. THESE CARBURETORS WORK HARD JUST AS THEIR NAME IMPLIES- JUST RAW BARE KNUCKLED PERFORMANCE THAT YOU CAN RELY ON. DO NOT LET THE BUDGET-FRIENDLY PRICE FOOL YOU, THE BRAWLER DEVELOPMENT FOCUSED ON THE PERFORMANCE YOU WANT AND NOT THE PRETTY BOX THAT IT COMES IN. BRAWLERS COME WITH THE LATEST TECHNOLOGY IN AIR-FUEL CALIBRATIONS FOR MODERN DAY STREET ENGINE DEMANDS. THE BRAWLER FAMILY OF DIECAST CARBURETORS ARE ALL MADE FROM LIGHT-WEIGHT DIECAST ALUMINUM COMPONENTS. THEY OFFER ALL THE TUNABILITY AND OPTIONS THAT YOU WOULD FIND FROM MORE EXPENSIVE CARBURETORS IN THE MARKET.

NOTE: THIS MODEL OF CARBURETOR HAS THE SQUARE BORE FLANGE BOLT PATTERN. IT CAN REPLACE HOLLEY, EDELBROCK, CARTER AFB & AUTOLITE STYLE CARBURETORS WITH 5 3/16" X 5 5/8" BOLT PATTERN. IF YOU HAVE A SPREADBORE STYLE INTAKE MANIFOLD, YOU WILL NEED AN ADAPTER TO INSTALL THIS CARBURETOR. SIMILAR TO THE MR. GASKET #1932.

FEATURES:

• PERFORMANCE UPGRADE FOR STOCK TO MILDLY MODIFIED V-8 ENGINES
• CALIBRATED FOR EXCELLENT STREET PERFORMANCE RIGHT OUT OF THE BOX
• SINGLE FEED FUEL INLET FOR EASY INSTALLATION
• INTEGRATED 700R4/200R4 TRANSMISSION KICK DOWN CABLE MOUNTING
• CHANGEABLE AIR BLEEDS
• ADJUSTABLE NEEDLE & SEATS

SPECS:

• BARRELS: 4
• BOOSTER: DOWN LEG
• BRAND: BRAWLER
• CFM: 650
• CHOKE: ELECTRIC
• CIRCUIT: 2
• CONDITION: NEW
• EMISSION CODE: 3
• FINISH: SHINY
• FUEL: GASOLINE
• FUEL INLET: SINGLE
• FUEL SYSTEM: CARBURETED
• HIGH SPEED AIR BLEED: 28:28
• IDLE AIR BLEED SIZE: 70:70
• MARINE USE: NO
• MATERIAL: ALUMINUM
• MODEL: BRAWLER DIECAST
• PRIMARY MAIN JET: 70
• PRIMARY POWER VALVE: 6.5
• PRIMARY PUMP NOZZLE SIZE: 31
• PRIMARY VENTURII SIZE: 1.300"
• PRODUCT TYPE: CARBURETOR
• SECONDARIES: MECHANICAL
• SECONDARY MAIN JET: 74
• SECONDARY VENTURII SIZE: 1.300"
• SUPERCHARGED APPLICATION: NO
• THROTTLE BORE: 1-11/16"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CARBURETOR HERE.
