CARBURETOR,4150,850CFM,UNIV,MECHANICAL,ELECTRIC CHOKE

CARBURETOR,4150,850CFM,UNIV,MECHANICAL,ELECTRIC CHOKE

QFT BR-67259

$609.95
$609.95
View full details

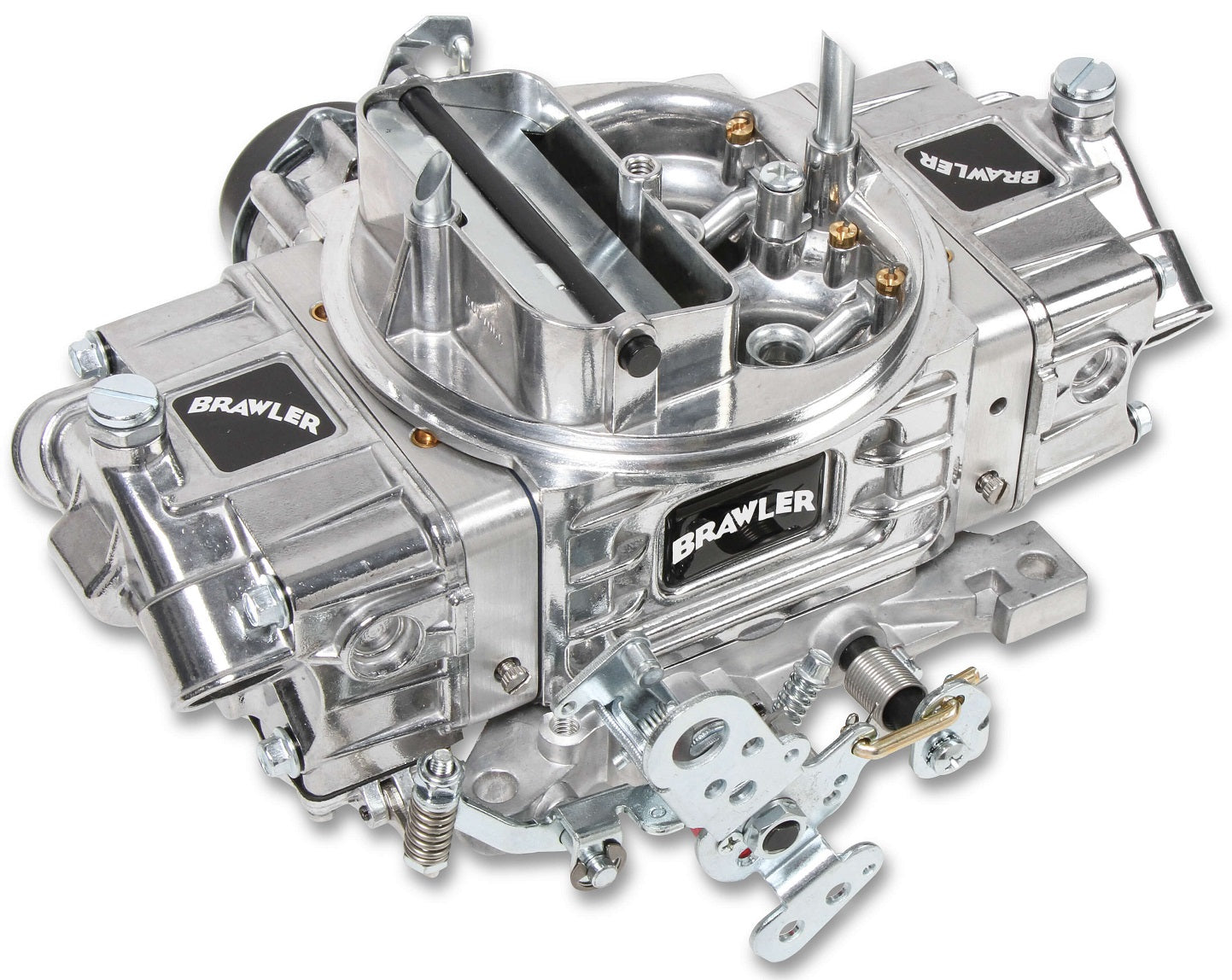

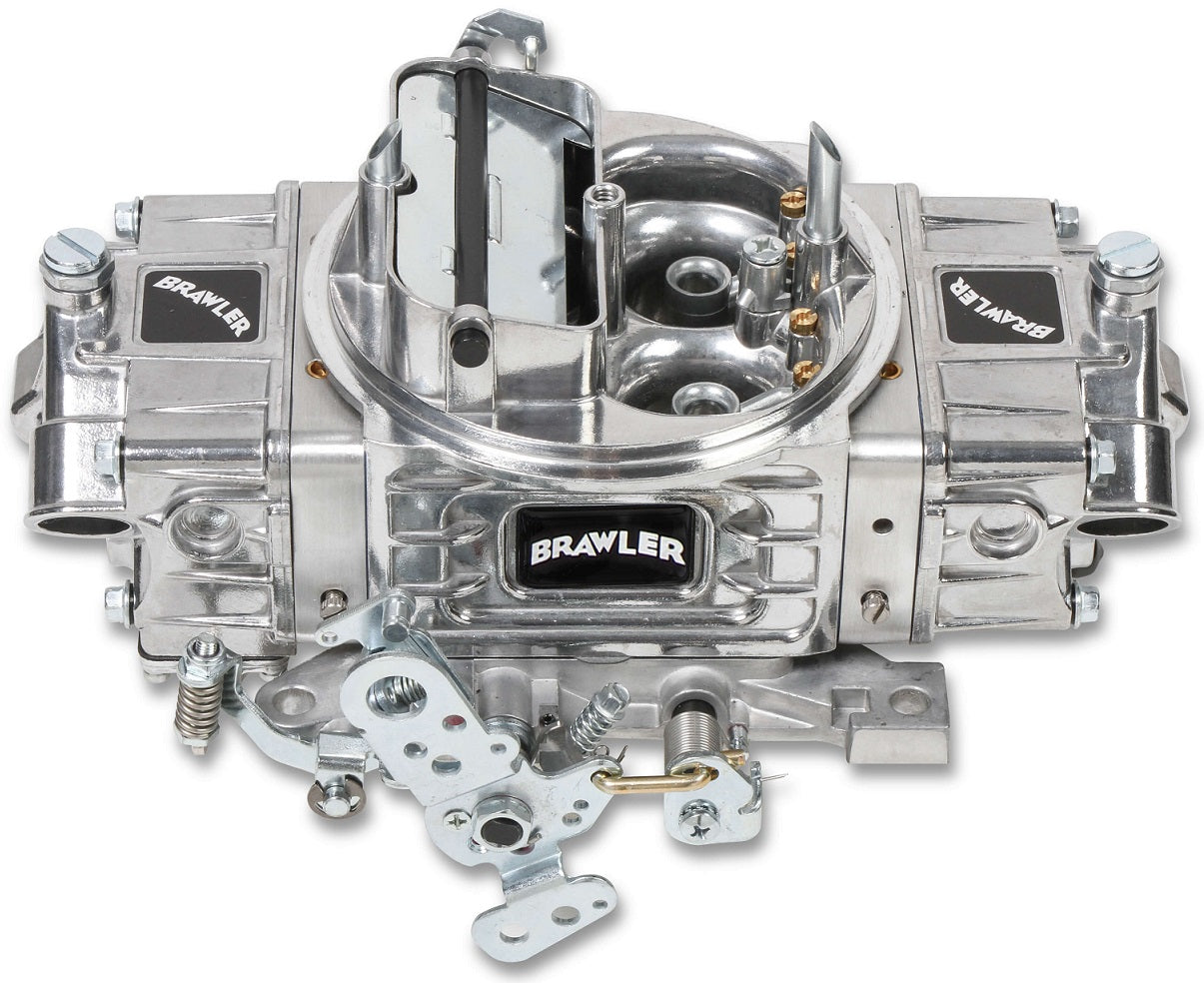

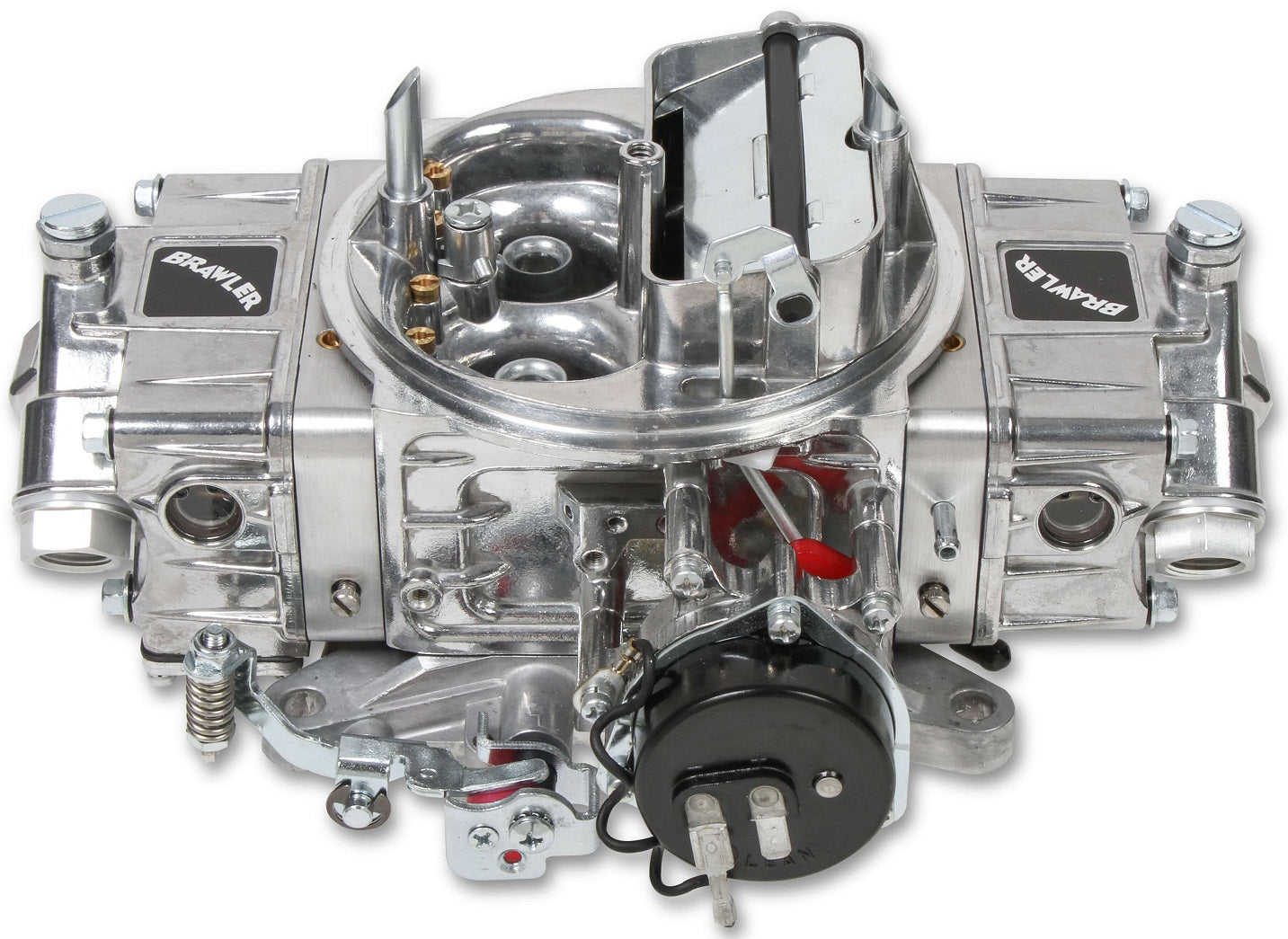

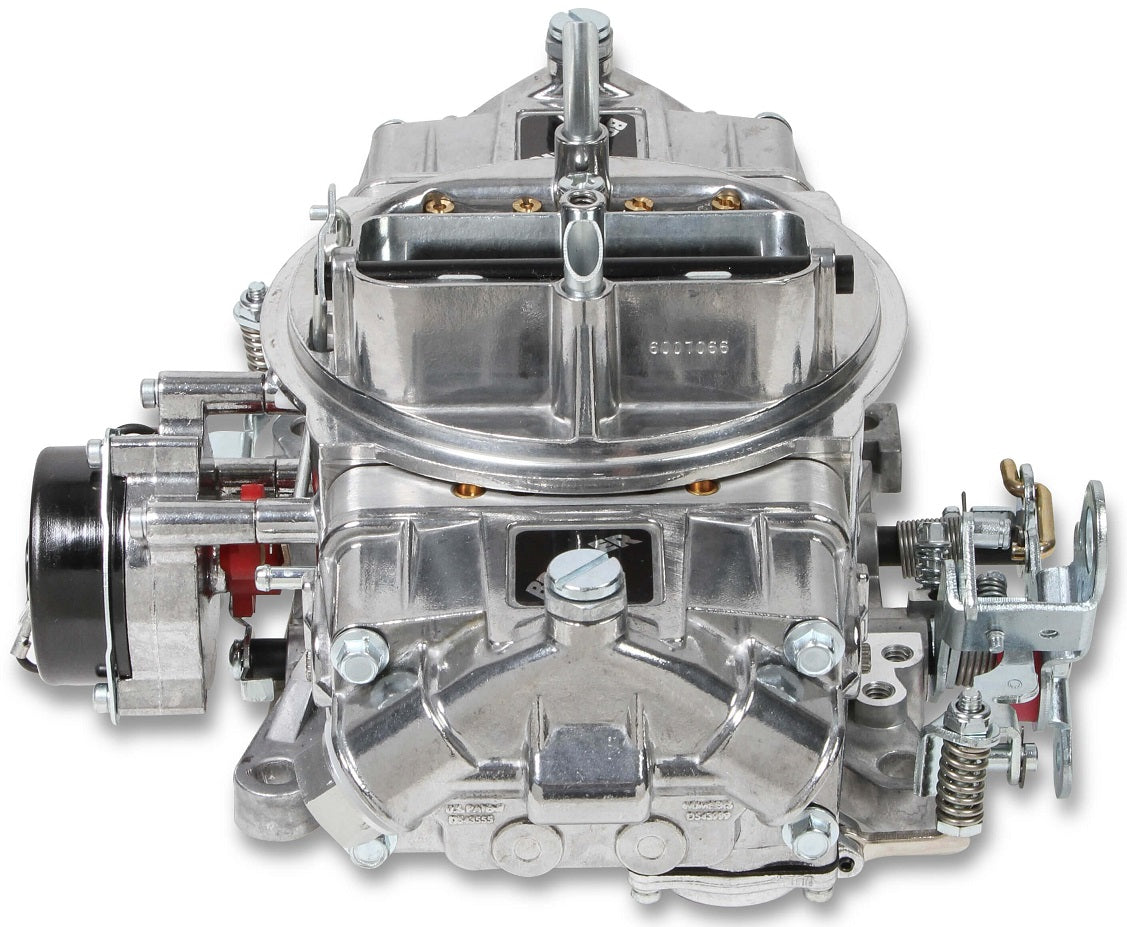

BRAND NEW HOLLEY QUICK FUEL 850 CFM BRAWLER DIECAST CARBURETOR, VACUUM SECONDARY, ELECTRIC CHOKE, MODEL # 4150

BRAWLER CARBURETORS ARE PRECISION MACHINED AND HAND ASSEMBLED BY CRAFTSMAN RIGHT HERE IN THE USA. THE BRAWLER FAMILY OF CARBURETORS INCLUDE MODELS FOR YOUR DAILY DRIVER TO YOUR RACE CAR. THESE CARBURETORS WORK HARD JUST AS THEIR NAME IMPLIES - JUST RAW BARE KNUCKLED PERFORMANCE THAT YOU CAN RELY ON. DO NOT LET THE BUDGET-FRIENDLY PRICE FOOL YOU, THE BRAWLER DEVELOPMENT FOCUSED ON THE PERFORMANCE YOU WANT AND NOT THE PRETTY BOX THAT IT COMES IN. BRAWLERS COME WITH THE LATEST TECHNOLOGY IN AIR/FUEL CALIBRATIONS FOR CURRENT DAY STREET OR RACE ENGINE DEMANDS.

NOTE: THIS MODEL OF CARBURETOR HAS THE SQUARE BORE FLANGE BOLT PATTERN. IT CAN REPLACE HOLLEY, EDELBROCK, CARTER AFB, AND AUTOLITE STYLE CARBURETORS WITH 5 3/16" X 5 5/8" BOLT PATTERN. IF YOU HAVE A SPREADBORE STYLE INTAKE MANIFOLD, YOU WILL NEED AN ADAPTER TO INSTALL THIS CARBURETOR. SIMILAR TO THE MR. GASKET #1932.

FEATURES:

  • THE LATEST TECHNOLOGY IN AIR/FUEL CALIBRATIONS FOR STREET OR RACE ENGINE DEMANDS
  • AVAILABLE IN BOTH VACUUM AND MECHANICAL SECONDARY VERSIONS TO MEET YOUR NEEDS
  • ALL MODELS HAVE DUAL INLET FUEL BOWLS WITH SIGHT GLASS WINDOWS FOR SAFE AND EASY FLOAT ADJUSTMENTS
  • CHANGEABLE IDLE AND HIGH SPEED AIR BLEEDS FOR EASY TUNING ALONG WITH FOUR-CORNER IDLE ADJUSTMENT ON MECHANICAL SECONDARY MODELS
  • PERFORMANCE MODELS INCLUDE BILLET METERING BLOCKS AND THROTTLE BODIES WITH PRECISION THROTTLE SHAFTS TO ENSURE LONG TERM PERFORMANCE

SPECS:

  • BARRELS: 4
  • BILLET COLOR: DIECAST - NO BILLET
  • BOOSTER: STRAIGHT
  • BRAND: BRAWLER
  • CFM: 850
  • CHOKE: ELECTRIC
  • CIRCUIT: 2
  • EMISSION CODE: 3
  • FINISH: SHINY
  • FUEL: GASOLINE
  • FUEL INLET: DUAL
  • FUEL SYSTEM: CARBURETED
  • HIGH SPEED AIR BLEED: 28
  • IDLE AIR BLEED SIZE: 70
  • MATERIAL: ALUMINUM
  • MODEL: BRAWLER DIECAST
  • PRIMARY MAIN JET: 80
  • PRIMARY POWER VALVE: 6.5
  • PRIMARY PUMP NOZZLE SIZE: 35
  • PRIMARY VENTURII SIZE: 1.570"
  • PRODUCT TYPE: CARBURETOR
  • SECONDARIES: MECHANICAL
  • SECONDARY MAIN JET: 86
  • SECONDARY VENTURII SIZE: 1.570"
  • SUPERCHARGED APPLICATION: NO
  • THROTTLE BORE: 1 3/4"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CARBURETOR HERE.
