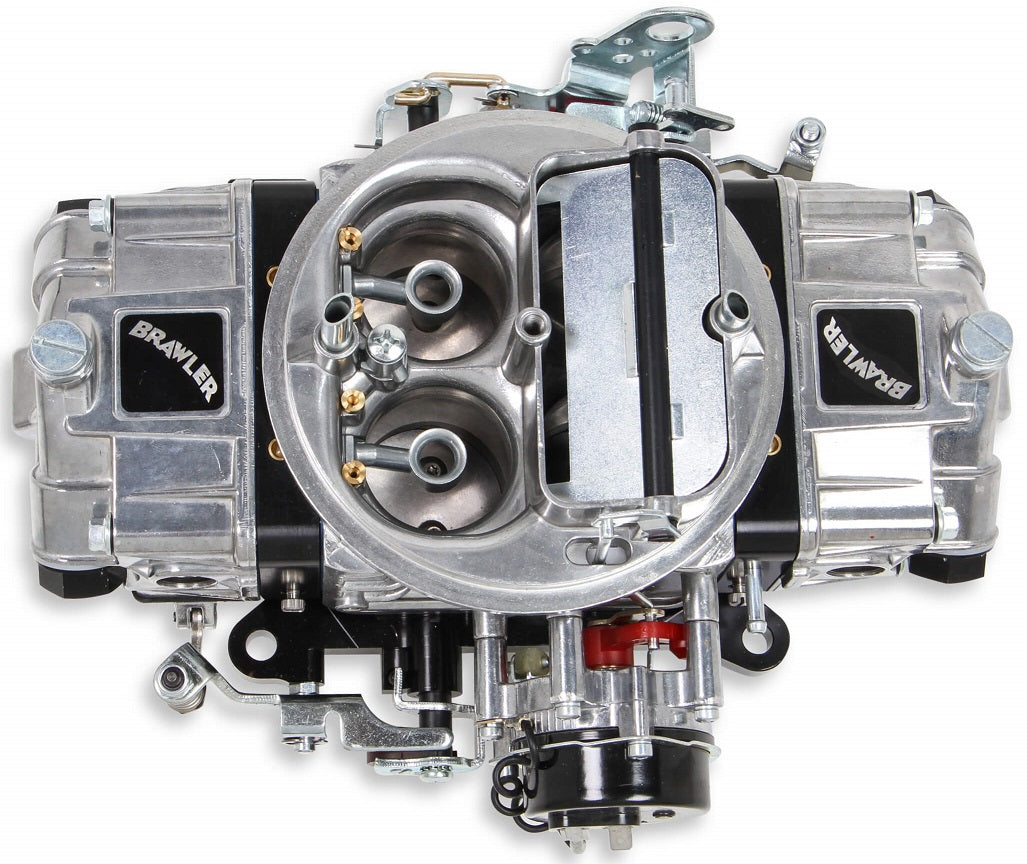

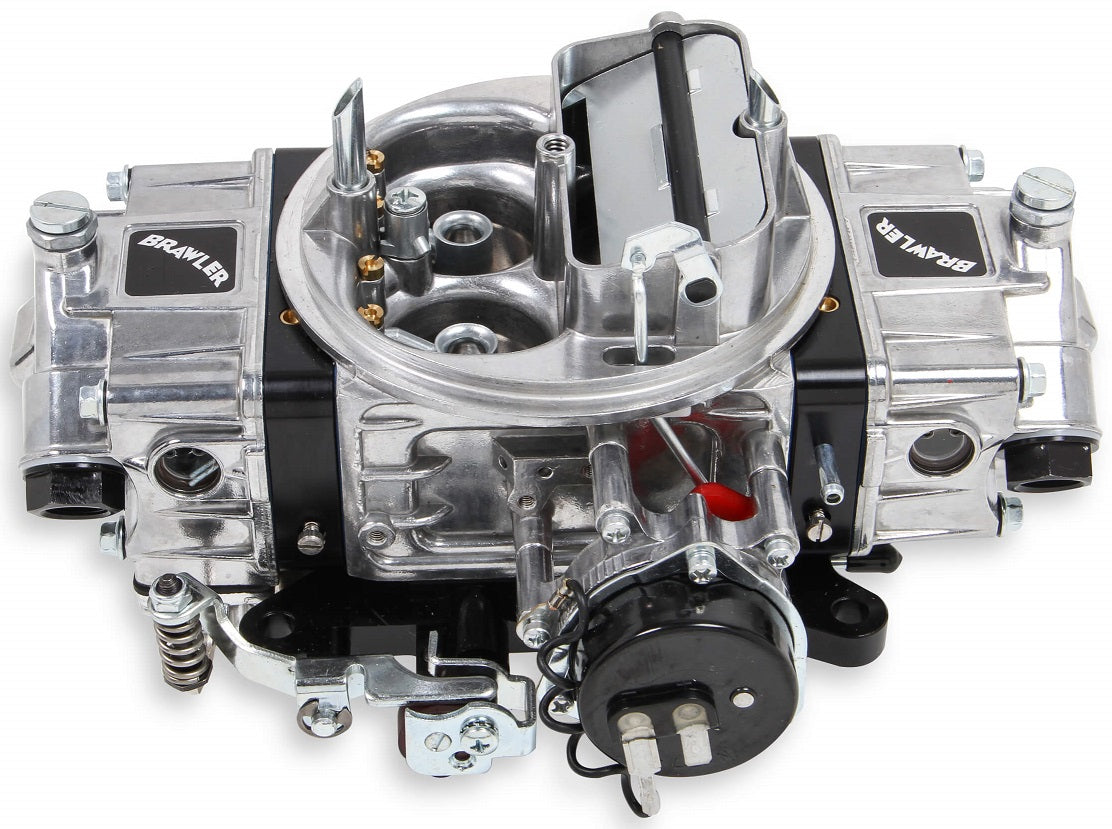

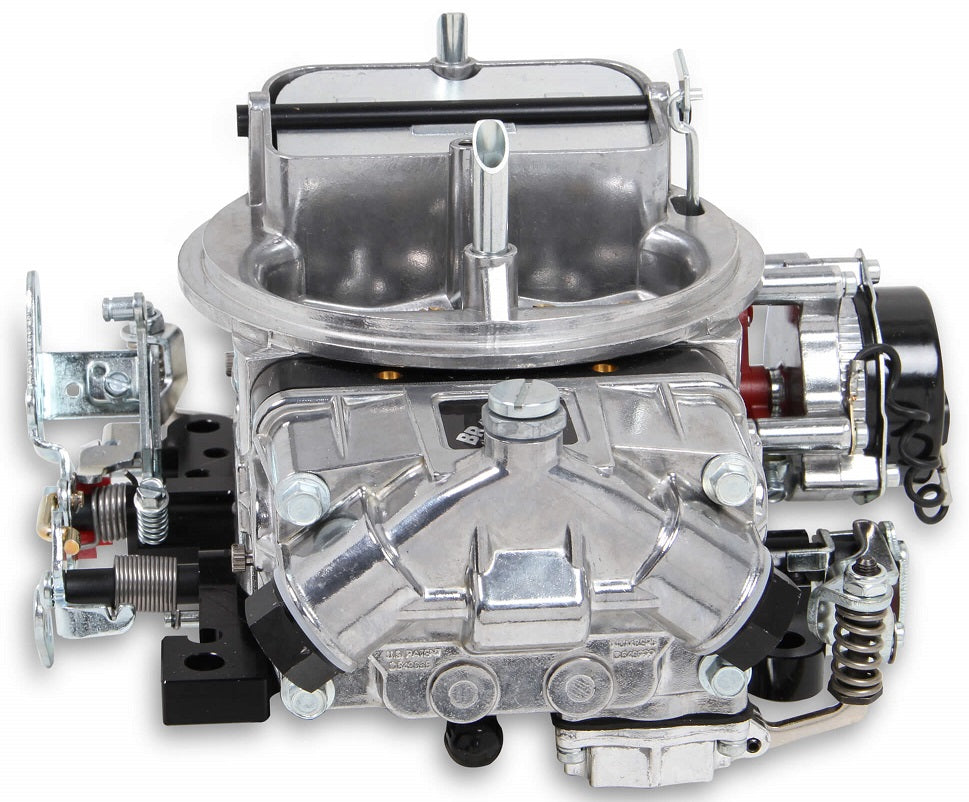

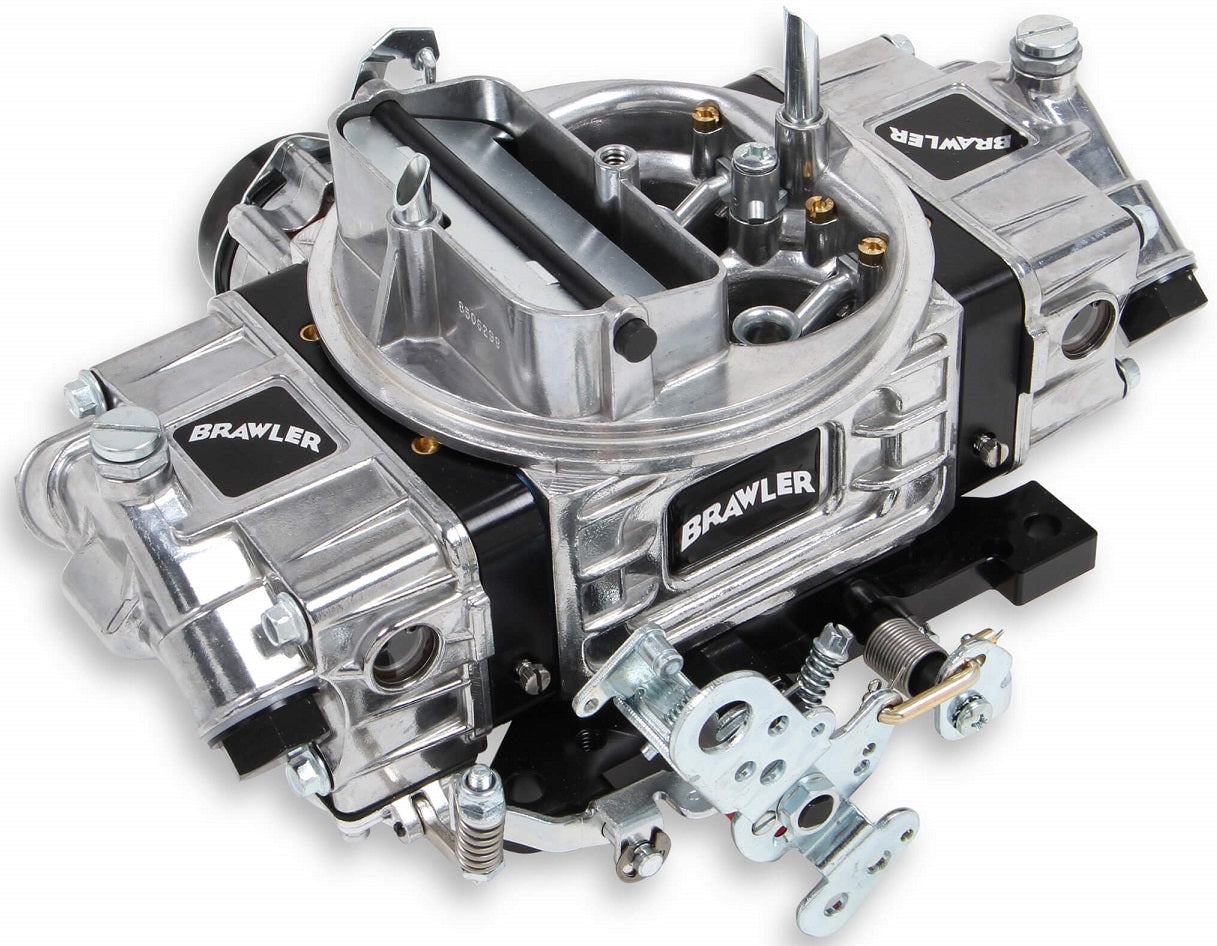

CARBURETOR,4150,750CFM,UNIV,MECHANICAL,ELECTRIC CHOKE

BRAND NEW QUICK FUEL 750 CFM BRAWLER STREET CARBURETOR WITH VACUUM SECONDARIES, MECHANICAL CHOKE, 4150 MODEL

BRAWLER STREET CARBURETORS ARE MACHINED AND ASSEMBLED BY CRAFTSMAN RIGHT HERE IN THE USA. THESE CARBURETORS WORK HARD JUST AS THEIR NAME IMPLIES- JUST RAW BARE KNUCKLED PERFORMANCE THAT YOU CAN RELY ON. DO NOT LET THE BUDGET-FRIENDLY PRICE FOOL YOU, THE BRAWLER DEVELOPMENT FOCUSED ON THE PERFORMANCE YOU WANT AND NOT THE PRETTY BOX THAT IT COMES IN. BRAWLER STREET CARBURETORS COME WITH BLACK BILLET METERING BLOCKS WITH THE LATEST TECHNOLOGY IN AIR/FUEL CALIBRATIONS FOR MODERN STREET OR RACE ENGINE DEMANDS. THEY ALSO COME WITH BLACK BILLET THROTTLE BODIES FOR SUPERIOR DURABILITY AND THROTTLE SHAFT STABILITY. BRAWLER STREET MODELS OFFER ALL OF THE OPTIONS AND TUNABILITY THAT YOU WOULD FIND FROM MORE EXPENSIVE CARBURETORS IN THE MARKET, INCLUDING AN ELECTRIC CHOKE AND A BEAUTIFUL FINISH.

NOTE: THIS MODEL OF CARBURETOR HAS THE SQUARE BORE FLANGE BOLT PATTERN. IT CAN REPLACE HOLLEY, EDELBROCK, CARTER AFB, AND AUTOLITE STYLE CARBURETORS WITH 5 3/16" X 5 5/8" BOLT PATTERN. IF YOU HAVE A SPREADBORE STYLE INTAKE MANIFOLD, YOU WILL NEED AN ADAPTER TO INSTALL THIS CARBURETOR. SIMILAR TO THE MR. GASKET #1932.

FEATURES:

• BRAWLER STREET MODELS INCLUDE BLACK BILLET METERING BLOCKS AND THROTTLE BODIES WITH PRECISION THROTTLE SHAFTS TO ENSURE LONG TERM PERFORMANCE

SPECS:

• BARRELS: 4
• BILLET COLOR: BLACK
• BOOSTER: DOWN LEG
• BRAND: BRAWLER
• CFM: 750
• CHOKE: ELECTRIC
• CIRCUIT: 2
• EMISSION CODE: 3
• FINISH: POLISHED
• FUEL: GASOLINE
• FUEL INLET: DUAL
• FUEL SYSTEM: CARBURETED
• HIGH SPEED AIR BLEED: 31;31
• IDLE AIR BLEED SIZE: 70;70
• MATERIAL: ALUMINUM
• MODEL: BRAWLER STREET
• PRIMARY MAIN JET: 72
• SECONDARY MAIN JET: 80
• PRIMARY POWER VALVE: 6.5
• PRIMARY PUMP NOZZLE SIZE: 31
• PRIMARY VENTURII SIZE: 1.380"
• SECONDARY VENTURII SIZE: 1.380"
• PRODUCT TYPE: 4150 MODEL CARBURETOR
• SECONDARIES: MECHANICAL
• SUPERCHARGED APPLICATION: NO
• THROTTLE BORE: 1 11/16"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CARBURETOR HERE.
