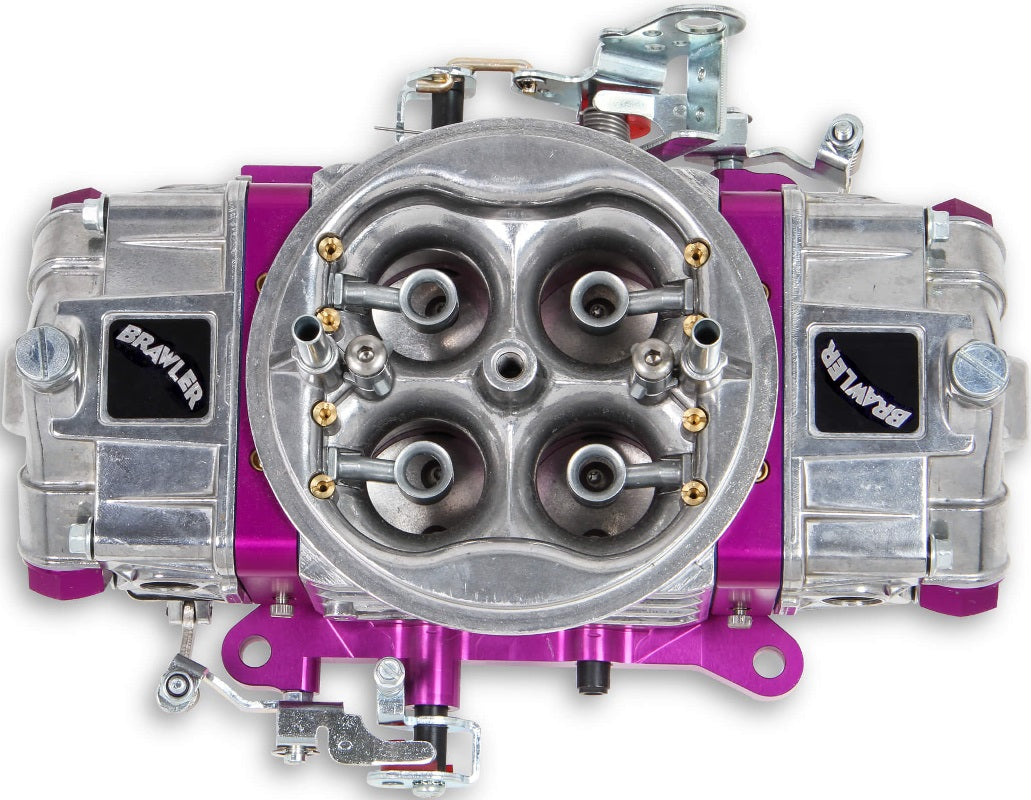

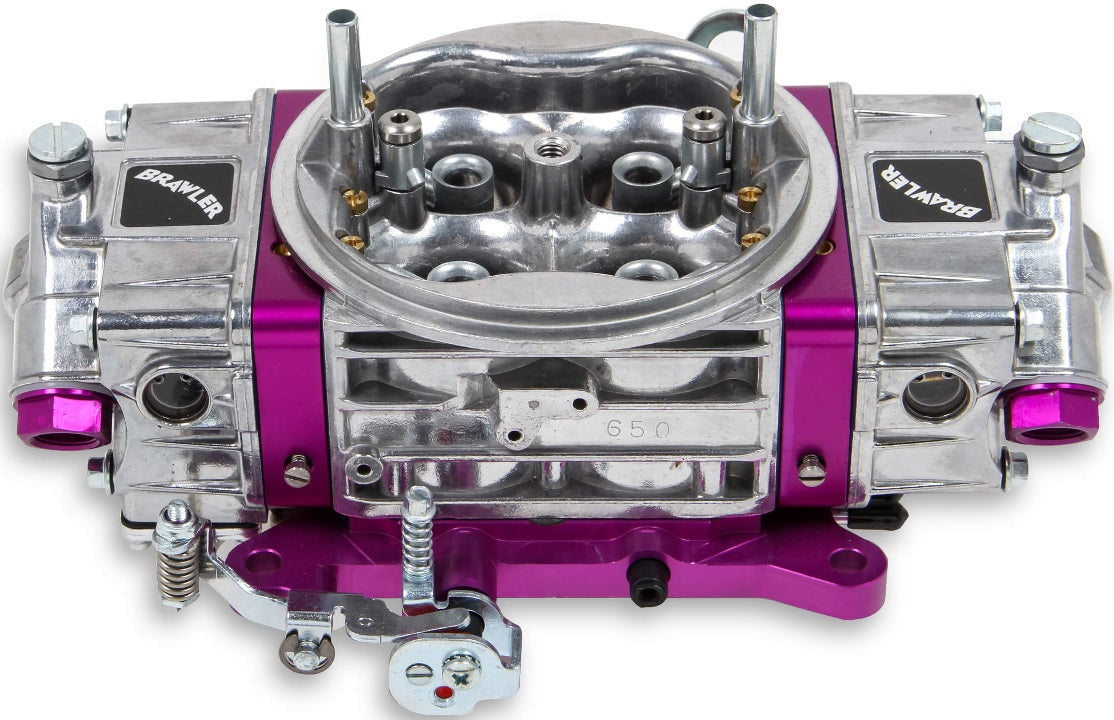

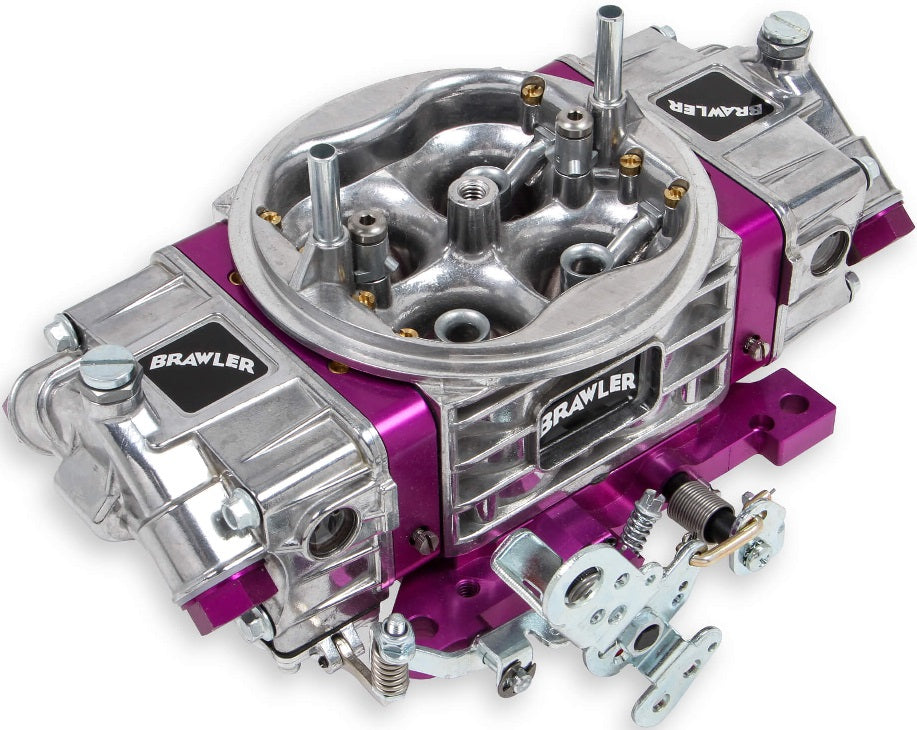

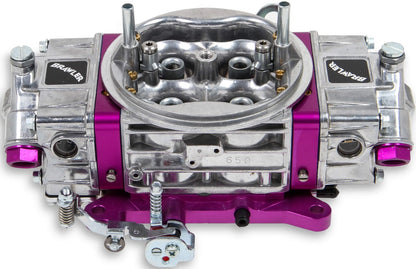

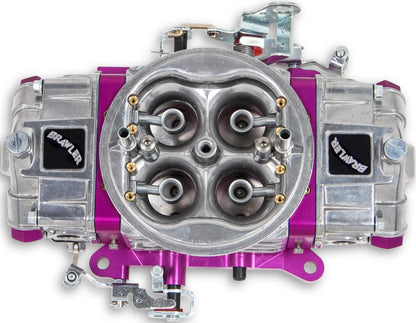

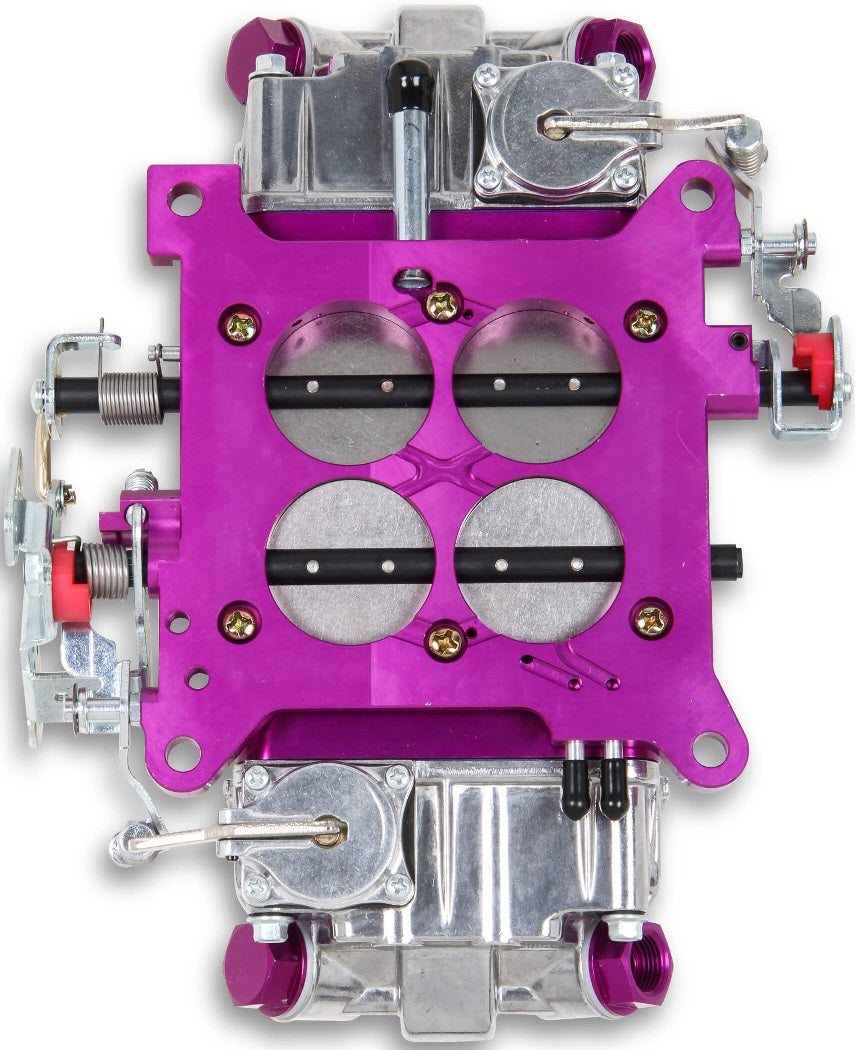

CARBURETOR,4150,650CFM,RACE,MECHANICAL,POL/PURPLE

CARBURETOR,4150,650CFM,RACE,MECHANICAL,POL/PURPLE

QFT BR-67199

$659.95
$659.95
View full details

BRAND NEW HOLLEY QUICK FUEL BRAWLER RACE CARBURETOR, PURPLE BILLET, 650 CFM, MECHANICAL SECONDARIES, COMPATIBLE WITH 4150 MODELS

BRAWLER PERFORMANCE DEVELOPMENT STARTED WITH A HIGH FLOWING DIECAST ALUMINUM MAIN BODY & ADDED PURPLE BILLET ALUMINUM METERING BLOCKS WITH THE LATEST TECHNOLOGY IN AIR/FUEL CALIBRATIONS FOR MODERN RACE ENGINE DEMANDS.

THEY COME WITH PURPLE BILLET ALUMINUM THROTTLE BODIES FOR SUPERIOR DURABILITY & THROTTLE SHAFT STABILITY. BRAWLER RACE MODELS OFFER ALL OF THE OPTIONS & TUNABILITY THAT YOU WOULD FIND FROM MORE EXPENSIVE CARBURETORS IN THE MARKET, INCLUDING CHANGEABLE IDLE & HIGH SPEED AIR BLEEDS AS WELL AS FOUR-CORNER IDLE ADJUSTMENT ON ALL MECHANICAL SECONDARY MODELS.

NOTE: NOTE: THIS MODEL OF CARBURETOR HAS THE SQUARE BORE FLANGE BOLT PATTERN. IT CAN REPLACE HOLLEY, EDELBROCK, CARTER AFB & AUTOLITE STYLE CARBURETORS WITH 5 3/16" X 5 5/8" BOLT PATTERN. IF YOU HAVE A SPREADBORE STYLE INTAKE MANIFOLD, YOU WILL NEED AN ADAPTER TO INSTALL THIS CARBURETOR. SIMILAR TO THE MR. GASKET #1932.

FEATURES

  • CHANGEABLE IDLE & HIGH SPEED AIR BLEEDS FOR EASY TUNING ALONG WITH 4-CORNER IDLE ADJUSTMENT ON ALL MODELS
  • BRAWLER RACE MODELS INCLUDE PURPLE BILLET METERING BLOCKS & THROTTLE BODIES WITH PRECISION THROTTLE SHAFTS TO ENSURE LONG TERM PERFORMANCE

SPECS:

  • BARRELS: 4
  • BILLET COLOR: PURPLE
  • BOOSTER: DOWN LEG
  • BRAND: BRAWLER
  • CARBURETOR USE: PERFORMANCE & RACE
  • CFM: 650
  • CHOKE: NONE
  • CIRCUIT: 2
  • FINISH: SHINY
  • FUEL: GASOLINE
  • FUEL INLET: DUAL
  • FUEL SYSTEM: CARBURETED
  • HIGH SPEED AIR BLEED: 31:31
  • IDLE AIR BLEED SIZE: 73:73
  • MARINE USE: NO
  • MATERIAL: ALUMINUM
  • MODEL: BRAWLER RACE
  • PRIMARY MAIN JET: 68
  • PRIMARY POWER VALVE: 4.5
  • PRIMARY PUMP NOZZLE SIZE: 31
  • PRIMARY VENTURII SIZE: 1.300"
  • PRODUCT TYPE: CARBURETOR
  • SECONDARIES: MECHANICAL
  • SECONDARY MAIN JET: 76
  • SECONDARY PUMP NOZZLE SIZE: 31
  • SECONDARY VENTURII SIZE: 1.300"
  • SUPERCHARGED APPLICATION: NO
  • THROTTLE BORE: 1-11/16"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CARBURETOR HERE.
