REGULATOR,FUEL PRESSURE,4.5>9 PSI

BRAND NEW HOLLEY QUICK FUEL PRESSURE REGULATOR, NATURAL CAST BODY WITH BLACK POWDER COATED TOP, 4.5 - 9 PSI, COMPATIBLE WITH GASOLINE

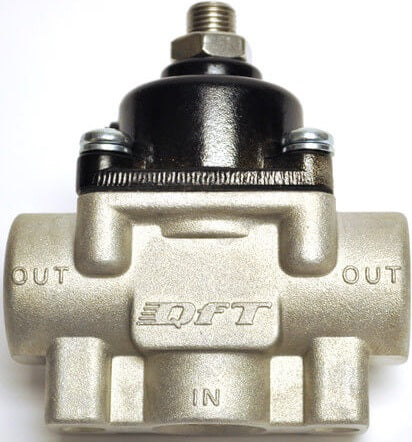

NEW QUICK FUEL PRESSURE REGULATOR CAST BODY WITH POWDER COATED BLACK TOP. FEATURES 30CC DIAPHRAGM AND MOUNTING BRACKET WITH HARDWARE. 3/8" NPT PORTS (SINGLE INLET, DUAL OUTLET).

NOTE: INTEGRAL COMPONENT OF THE COMPLETE HOOKER SWAP SYSTEM FOR THIS APPLICATION. COMPONENT FEATURES UNIQUE GEOMETRY THAT IS NOT COMPATIBLE FOR USE WITH ANY OTHER BRAND OF ENGINE MOUNTING COMPONENTS.

FEATURES:

• SUPPORTS 4-BARREL GAS ENGINES UP TO 600 HP
• DESIGNED TO OPERATE WITHIN 4.5 - 9 PSI RANGE; PRESET AT 7 PSI
• .250" (1/4") RESTRICTION
• INCLUDES MOUNTING BRACKET & 1/8" NPT PORT FOR MANIFOLD REFERENCE
• BOOST REFERENCE 1-1

SPECS:

• BRAND: QUICK FUEL
• COLOR: NATURAL CAST BODY WITH BLACK POWDER COATED TOP
• FUEL TYPE: GASOLINE
• MATERIAL: ALUMINUM
• PRODUCT TYPE: FUEL PRESSURE REGULATOR

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS FUEL PRESSURE REGULATOR HERE.
