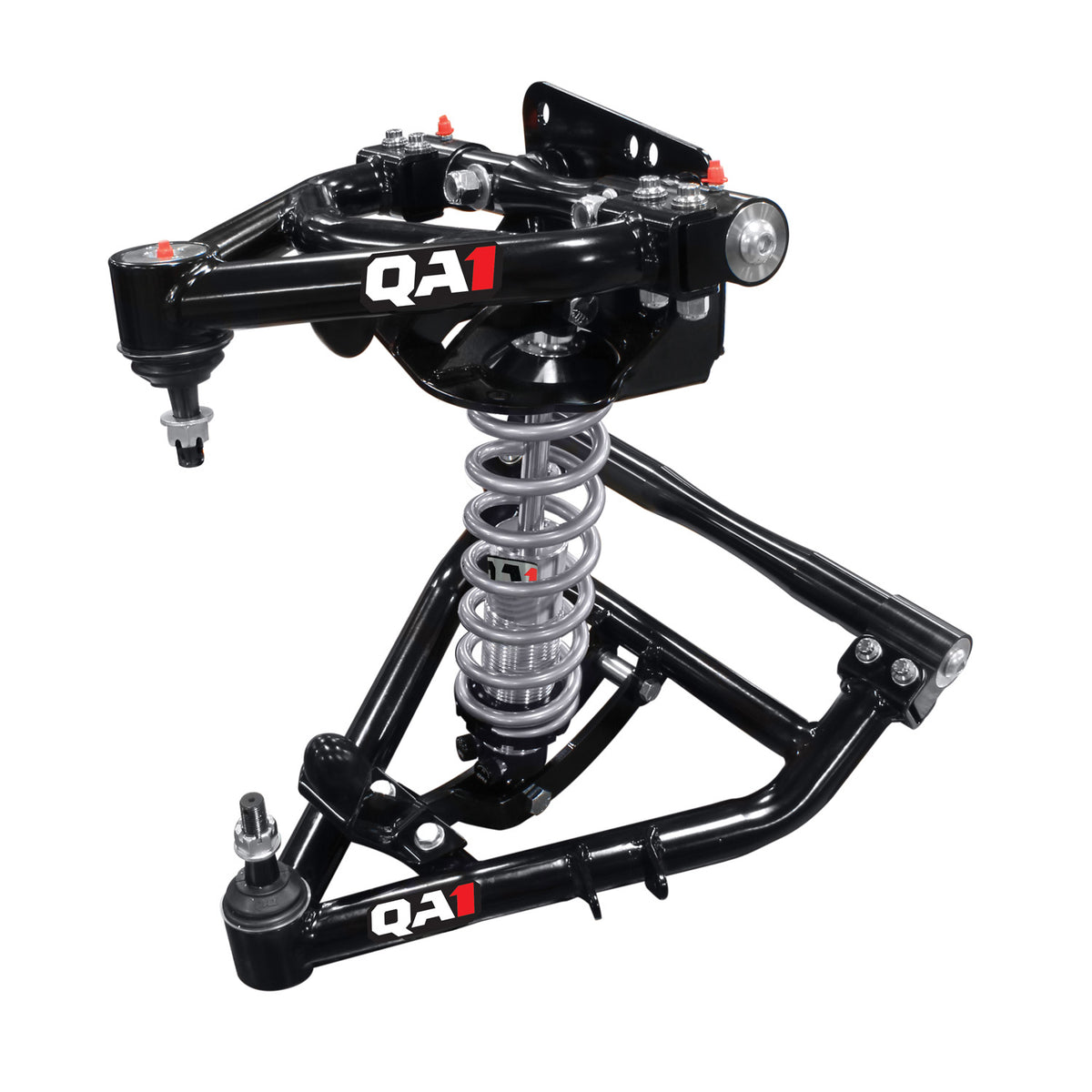

FRONT COIL-OVER SUSPENSION SYSTEM,S-ADJ,63-87 C10,SGL ADJ 750 LB SPRINGS

Brand New QA1 Front Coilover System, Single Adjustable, Compatible with 1963-1987 GM Trucks (Part #52611-S750).

Upgrade the front suspension of your 1963-1987 Chevy C10 with the QA1 Front Coilover System. Designed to work with the factory chassis, this complete system combines tubular upper and lower control arms, single-adjustable coilovers, and 750 lb/in springs to deliver improved handling, easy suspension tuning, and an adjustable lowered stance.

GET THE STANCE YOU WANT: Lower your C10 without being locked into a fixed ride height. Fully threaded coilover shock bodies provide up to 3" of adjustable front drop, making it easy to fine-tune your truck's stance. Pair the system with compatible 2" drop spindles to achieve up to 5" of total front drop for an even more aggressive look.

IMPROVE HANDLING AND STABILITY: QA1 tubular upper and lower control arms feature performance-focused suspension geometry with increased caster capability. The additional caster helps improve straight-line stability, steering feel, and responsiveness, giving your classic C10 a more confident, modern feel behind the wheel.

DIAL IN YOUR RIDE: QA1 single-adjustable coilovers make it easy to tune your truck's ride and handling. A simple turn of the adjustment dial changes compression and rebound together, allowing you to choose a softer setting for comfortable cruising or a firmer setting for more responsive handling.

MATCH YOUR TRUCK'S SETUP: This system features 750 lb/in coilover springs, providing an option for matching the front suspension to your truck's weight, configuration, and intended use. Combined with QA1's adjustable shocks, the system gives you the flexibility to fine-tune suspension performance around how you use your C10.

BOLT-ON PERFORMANCE: Get the benefits of a modern coilover suspension while retaining your factory chassis. The system includes tubular upper and lower control arms, single-adjustable coilover shocks, springs, upper mounting brackets, and installation hardware for a straightforward front suspension upgrade.

Compatible with:

• Chevrolet:
  • 1970-1972 Blazer 2WD
  • 1963-1967 C10 Panel 2WD
  • 1963-1986 C10 Pickup 2WD
  • 1967-1986 C10 Suburban 2WD
  • 1987 R10 2WD
  • 1987-1991 R10 Suburban 2WD
• GMC:
  • 1963-1986 C15/C1500 2WD
  • 1967-1986 C15/C1500 Suburban 2WD
  • 1970-1972 Jimmy 2WD
  • 1987 R1500 2WD
  • 1987-1991 R1500 Suburban 2WD

Fitment Notes:

• Must use spindles compatible with 1973-1987 C10 ball joints
• Compatible with 2" drop spindles for up to 5" of total front drop

Features:

• Provides up to 3" of adjustable front drop
• Achieve up to 5" of total front drop with compatible 2" drop spindles
• Converts the factory front suspension to adjustable coilovers
• Tubular upper and lower control arms
• Performance-focused suspension geometry
• Increased caster capability for improved stability and steering feel
• Single-adjustable QA1 coilover shocks
• Compression and rebound adjusted together
• 750 lb/in coilover springs
• Improves handling, ride quality, and suspension control
• Retains the factory chassis
• Includes upper mounting brackets and installation hardware

You can view and download the instruction booklet here.
