STARTER,VINTAGE TORQUE FORD FLATHEAD
STARTER,VINTAGE TORQUE FORD FLATHEAD
SKU:PMM 92507RT
Yes, we have this item in stock and ready to ship immediately!
Couldn't load pickup availability

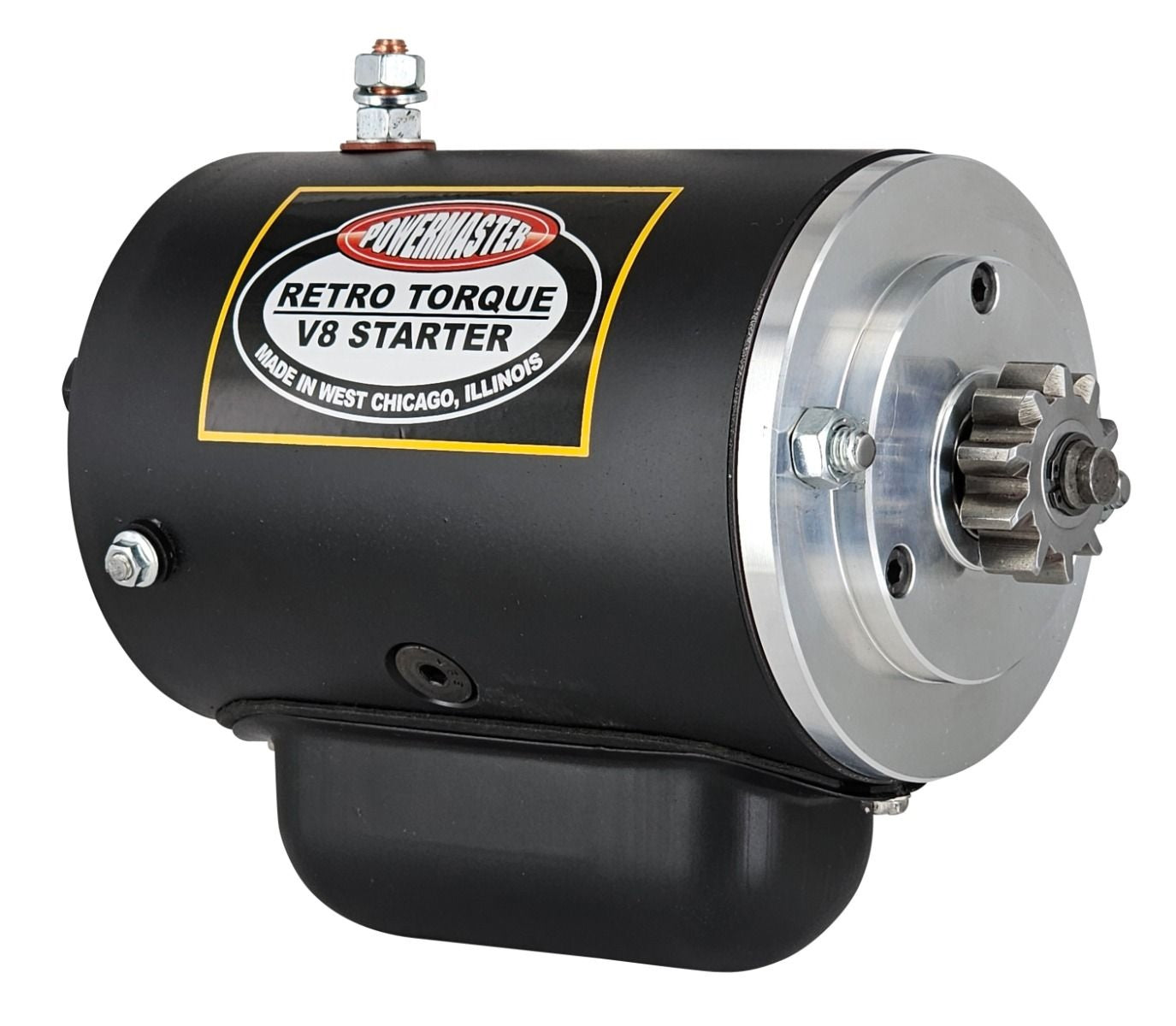

Brand New Powermaster Ford Flathead Vintage Look Hi-Torque Starter (Part #92507RT).
The new Retro Torque Flathead starter was designed with factory looks, but packs the torque and reliability of a modern gear reduction starter. The original Flathead design pulled the pinion gear into the ring gear while the Retro Torque pushes the pinion into the ring gear. Not only does this reduce the travel and improve engagement on the untouched side of the ring gear, it is also more efficient for the pinon gear to retract. Flathead styling, modern internals and increased reliability!
Note: 12V Negative ground only. Not for use with French Block. Gear has 10 teeth.
Applications:
- 1932-1951 Flathead Ford V8
- 1952-1953 Flathead Ford V8 with Manual transmission & OE Steel Flywheel
Features:
- Unique “push” style pinion meshes with the front side of the ring gear for improved cranking and release
- Proven 1.4Kw motor and 6:1 gear reduction delivers up to 160 ft-lbs of torque
- Weighs less than 11 pounds with twice the cranking torque of the original
- Replaces our original “pull” style PN 92507 Vintage Torque Flathead Starter
Specs:
- Max Compression Ratio: 11:1
- Torque Output: 160 lb/ft
- Gear Reduction: 6:1
- Horsepower: 1.7 HP
- Wattage: 1.4 kw
- Starter Series: Vintage Torque
- Starter Rotation: CW
- Tooth Count: 10T
