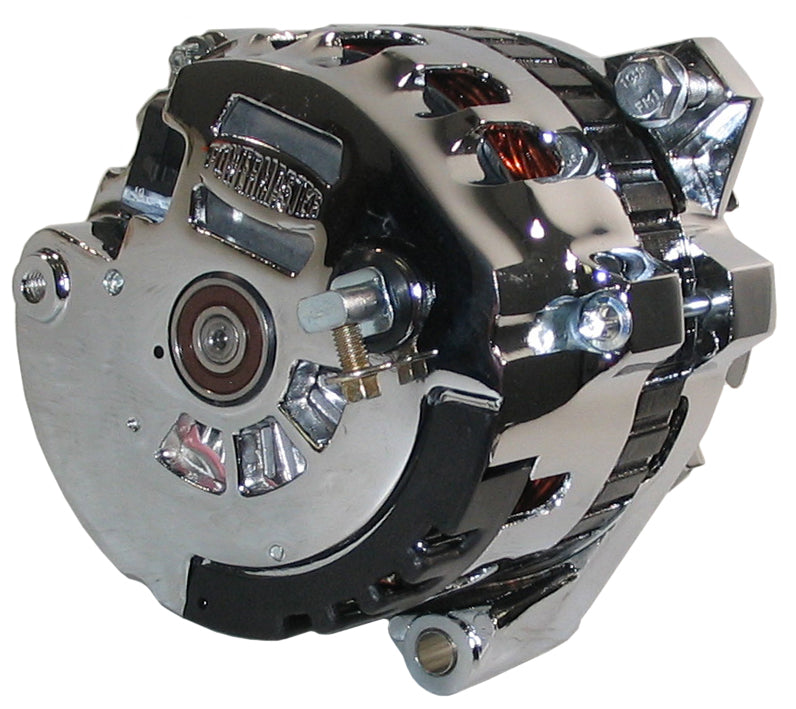

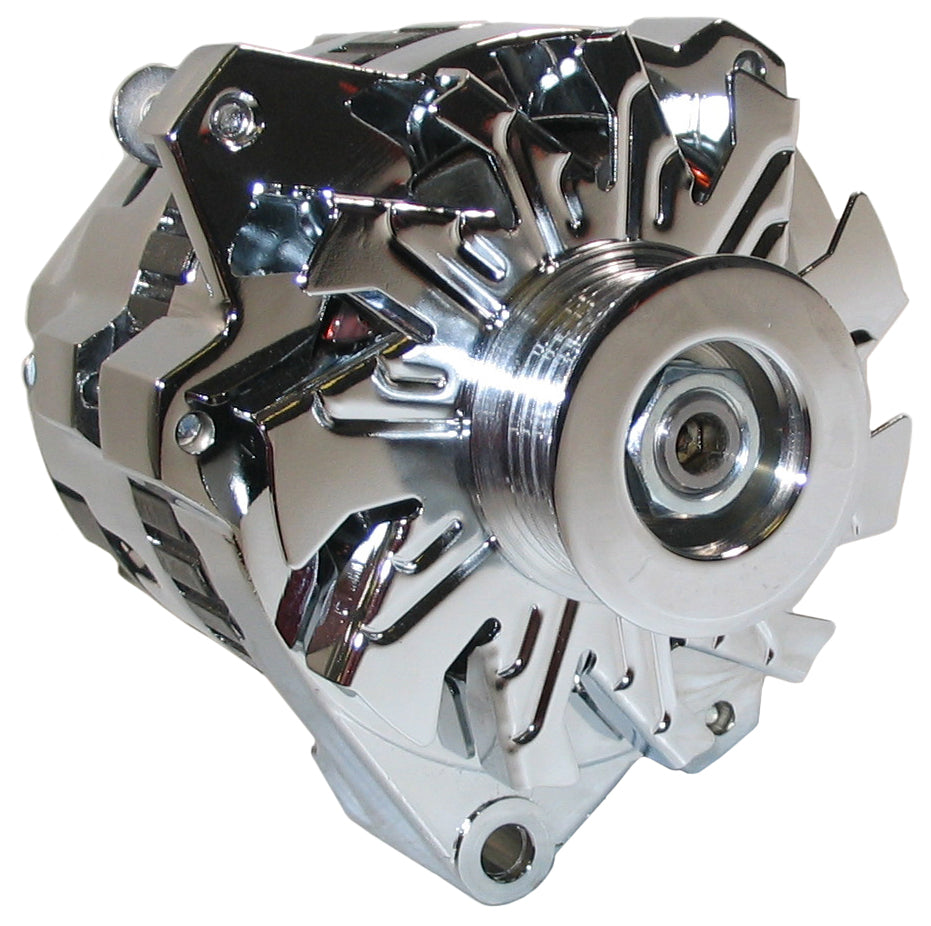

ALTERNATOR,CS130B LEFT,140AMP,SERPENTINE,CHROME

• BRAND NEW CHROME POWERMASTER CS130B STYLE, OFFSET LEFT MOUNT, ALTERNATOR, 140 AMP (PART #37861).

FEATURES:

• THESE POWERMASTER ALTERNATORS GIVE YOU THE ULTIMATE CUSTOM BILLET LOOK AT AN AFFORDABLE PRICE
• FEATURES A SMOOTH DIE CAST HOUSING WITH TEARDROP DESIGN
• SMOOTH BACK WITH SPECIAL POWERMASTER VENTS FOR PULL THROUGH COOLING
• GOLD BATTERY POST
• USES OE WIRING
• INCLUDES A 6 GROOVE SERPENTINE PULLEY & HIGH VOLUME FAN
• POWERMASTER INCLUDES A PROOF OF PERFORMANCE TAG WITH EACH ALTERNATOR
• SPECIFICATIONS:
  • 90 AMPS AT 2,400 RPM
  • 140 AMPS MAXIMUM
  • 13.2 VDC AT 77 DEGREES FAHRENHEIT
  • OPERATING RANGE: -40C TO 150C
  • MAXIMUM RPM: 18,000

FITS:

• CHEVY:
  • 1987-1993 ASTRO MINI VAN, 4.3L
  • 1993-1995 BERETTA, 2.2L
  • 1987-1988 BLAZER, HD OPTION ONLY
  • 1988-1993 BLAZER, 4.3L
  • 1989-1994 BLAZER, 5.7L
  • 1989-1994 BLAZER, 6.5L
  • 1988-1992 CAMARO, 5.0L
  • 1988-1992 CAMARO, 5.7L
  • 1989-1990 CAPRICE, 4.3L
  • 1991-1993 CAPRICE, ALL
  • 1994-1995 CAVALIER, 2.2L
  • 1993-1995 CORSICA, 2.2L
  • 1987 SILVERADO C,K SERIES, HD OPTION ONLY
  • 1988-1990 SILVERADO C,K SERIES, ALL EXCEPT 7.4L
  • 1991-1993 SILVERADO C,K SERIES, 4.3L
  • 1991-1993 SILVERADO C,K SERIES, 5.0L
  • 1991-1993 SILVERADO C,K SERIES, 5.7L
  • 1991-1993 SILVERADO C,K SERIES, 6.0L
  • 1991-1993 SILVERADO C,K SERIES, 6.2L DIESEL
  • 1994-1995 SILVERADO C,K SERIES, ALL EXCEPT 6.5L
  • 1990-1991 SILVERADO R,V SERIES, 5.7L RV1, RV2, RV3
  • 1987 SUBURBAN C,K SERIES, HD OPTION ONLY
  • 1988-1990 SUBURBAN C,K SERIES, ALL EXCEPT 7.4L
  • 1991-1993 SUBURBAN C,K SERIES, 4.3L
  • 1991-1993 SUBURBAN C,K SERIES, 5.0L
  • 1991-1993 SUBURBAN C,K SERIES, 5.7L
  • 1991-1993 SUBURBAN C,K SERIES, 6.0L
  • 1991-1993 SUBURBAN C,K SERIES, 6.2L DIESEL
  • 1994-1995 SUBURBAN C,K SERIES, ALL EXCEPT 6.5L
  • 1990-1991 SUBURBAN R,V SERIES, 5.7L RV1, RV2, RV3
  • 1987-1993 S-10 PICKUP, 4.3L
  • 1987-1993 S,T SERIES MINI-PICKUP, 4.3L
  • 1987-1990 CHEVY FULL SIZE VAN G SERIES, 4.3L
  • 1987-1990 CHEVY FULL SIZE VAN G SERIES, 5.0L
  • 1987-1990 CHEVY FULL SIZE VAN G SERIES, 5.7L
  • 1991-1993 CHEVY FULL SIZE VAN G SERIES, ALL EXCEPT 6.2L
  • 1994-1996 CHEVY FULL SIZE VAN G SERIES, ALL
• GMC:
  • 1989-1993 JIMMY, 4.3L
  • 1987-1993 SAFARI MINI VAN, 4.3L
  • 1987 GMC TRUCK C,K SERIES, HD OPTION ONLY
  • 1988-1990 GMC TRUCK C,K SERIES, ALL EXCEPT 7.4L
  • 1991-1993 GMC TRUCK C,K SERIES, 4.3L
  • 1991-1993 GMC TRUCK C,K SERIES, 5.0L
  • 1991-1993 GMC TRUCK C,K SERIES, 5.7L
  • 1991-1993 GMC TRUCK C,K SERIES, 6.0L
  • 1991-1993 GMC TRUCK C,K SERIES, 6.2L DIESEL
  • 1994-1995 GMC TRUCK C,K SERIES, ALL EXCEPT 6.5L
  • 1990-1991 GMC TRUCK R,V SERIES, 5.7L RV1, RV2, RV3
  • 1987 SUBURBAN C,K SERIES, HD OPTION ONLY
  • 1988-1990 SUBURBAN C,K SERIES, ALL EXCEPT 7.4L
  • 1991-1993 SUBURBAN C,K SERIES, 4.3L
  • 1991-1993 SUBURBAN C,K SERIES, 5.0L
  • 1991-1993 SUBURBAN C,K SERIES, 5.7L
  • 1991-1993 SUBURBAN C,K SERIES, 6.0L
  • 1991-1993 SUBURBAN C,K SERIES, 6.2L DIESEL
  • 1994-1995 SUBURBAN C,K SERIES, ALL EXCEPT 6.5L
  • 1990-1991 SUBURBAN R,V SERIES, 5.7L RV1, RV2, RV3
  • 1987-1993 S-15 PICKUP, 4.3L
  • 1987-1993 S,T SERIES MINI-PICKUP, 4.3L
  • 1987-1990 GMC FULL SIZE VAN G SERIES, 4.3L
  • 1987-1990 GMC FULL SIZE VAN G SERIES, 5.0L
  • 1987-1990 GMC FULL SIZE VAN G SERIES, 5.7L
  • 1991-1993 GMC FULL SIZE VAN G SERIES, ALL EXCEPT 6.2L
  • 1994-1996 GMC FULL SIZE VAN G SERIES, ALL
• HUMMER:
  • 1992-1994 HUMMER H1, 6.2L
• OLDSMOBILE:
  • 1991-1993 BRAVADA, 4.3L
  • 1993-1996 CUTLASS CIERA, 2.2L
• PONTIAC:
  • 1988-1992 FIREBIRD, 5.0L
  • 1988-1992 FIREBIRD, 5.7L
  • 1995 SUNBIRD, 2.2L
  • 1988-1992 TRANS AM, 5.0L
  • 1988-1992 TRANS AM, 5.7L

YOU CAN VIEW AND DOWNLOAD THE INSTRUCTION SHEETS FOR THIS ALTERNATOR HERE.
