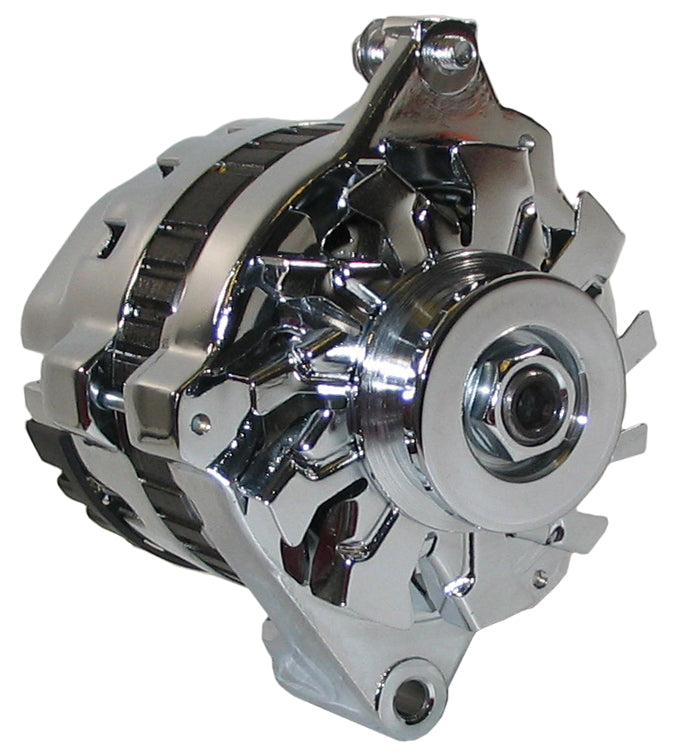

ALTERNATOR,CS121,DELCO,100A,ONE WIRE,CHROME

BRAND NEW POWERMASTER CHROME DELCO-LATE STYLE ONE WIRE ALTERNATOR, 100 AMP (PART #18062).

• TRUE ONE WIRE HOOKUP ALTERNATOR WITH 14.6 SET VOLTAGE
• HIGH OUTPUT TO WEIGHT RATIO
• INCLUDES A 1 GROOVE V-BELT DRIVE PULLEY
• 2 BOLT DELCO MOUNTING PATTERN
• POWERMASTER INCLUDES A PROOF OF PERFORMANCE TAG WITH EACH ALTERNATOR
• SPECIFICATIONS:
  • 60 AMPS AT 2,400 RPM
  • 100 AMPS MAXIMUM
  • 13.2 VDC AT 77 DEGREES FAHRENHEIT
  • OPERATING RANGE: -40C TO 150C
  • MAXIMUM RPM: 18,000
• VOLTAGE: 12 VOLT
• WEIGHT: APPROXIMATELY 8.5 LBS.

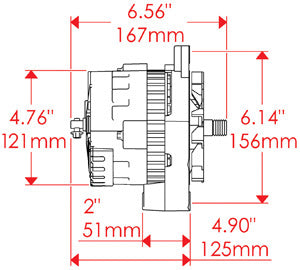

• YOU CAN SEE THE 2 BOLT PATTERN DIAGRAM BELOW

YOU CAN VIEW AND DOWNLOAD THE INSTRUCTION SHEETS FOR THIS ALTERNATOR HERE.
