ALTERNATOR,CS130E RIGHT,105AMP,SERPENTINE,CHROME

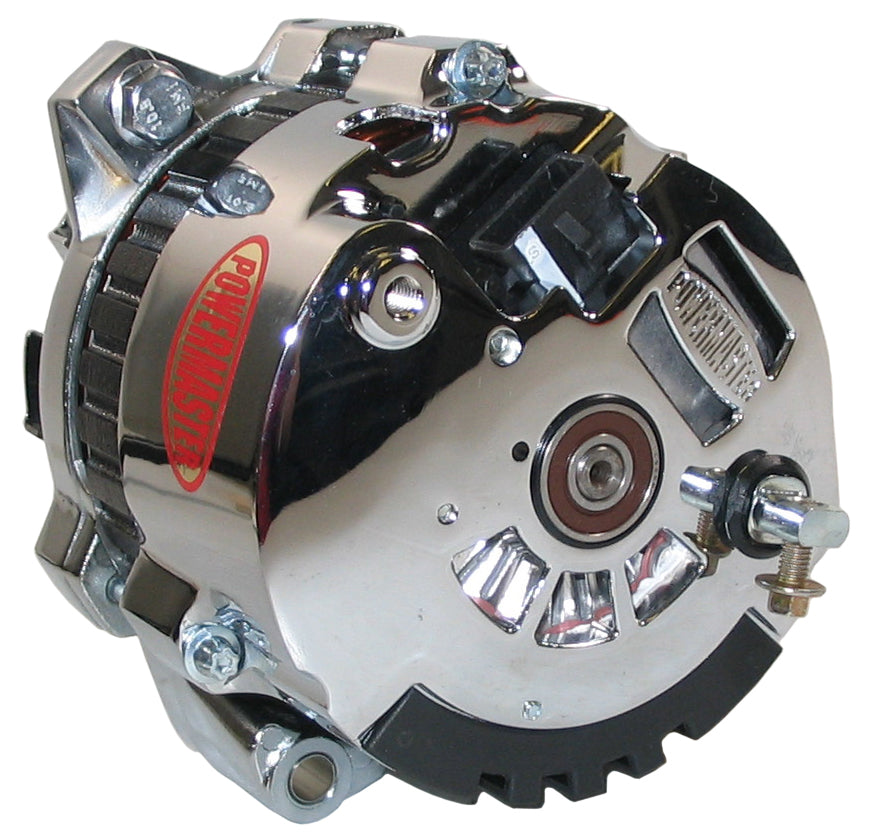

• BRAND NEW CHROME POWERMASTER CS130E STYLE, OFFSET RIGHT MOUNT, ALTERNATOR, 105 AMP (PART #17860).

FEATURES:

• THESE POWERMASTER ALTERNATORS GIVE YOU THE ULTIMATE CUSTOM BILLET LOOK AT AN AFFORDABLE PRICE
• FEATURES A SMOOTH DIE CAST HOUSING WITH TEARDROP DESIGN
• SMOOTH BACK WITH SPECIAL POWERMASTER VENTS FOR PULL THROUGH COOLING
• GOLD BATTERY POST
• USES OE WIRING
• INCLUDES A 6 GROOVE SERPENTINE PULLEY & HIGH VOLUME FAN
• POWERMASTER INCLUDES A PROOF OF PERFORMANCE TAG WITH EACH ALTERNATOR
• SPECIFICATIONS:
  • 80 AMPS AT 2,400 RPM
  • 105 AMPS MAXIMUM
  • 13.2 VDC AT 77 DEGREES FAHRENHEIT
  • OPERATING RANGE: -40C TO 150C
  • MAXIMUM RPM: 18,000

FITS:

• CHEVY:
• 1987-1993 ASTRO MINI VAN, 2.5L
• 1987-1995 BERETTA, 2.3L (138 C.I.) QUAD FOUR
• 1987-1992 BERETTA, 2.8L
• 1987-1993 BERETTA, 3.1L
• 1987-1988 BLAZER, 2.5L
• 1987-1988 BLAZER, 2.8L
• 1987-1995 CORSICA, 2.3L (138 C.I.) QUAD FOUR
• 1987-1992 CORSICA, 2.8L
• 1987-1993 CORSICA, 3.1L
• 1987-1992 CAMARO, 2.8L
• 1988-1992 CAMARO, 3.1L
• 1987-1993 CAVALIER, 2.8L
• 1987-1995 CAVALIER, 3.1L
• 1990-1993 LUMINA, 2.5L
• 1990-1993 LUMINA, 3.4L
• 1990-1995 LUMINA APV VAN, 3.1L
• 1987 SILVERADO C,K SERIES, 2.5L
• 1987 SILVERADO C,K SERIES, 2.8L
• 1987 SUBURBAN C,K SERIES, 2.5L
• 1987 SUBURBAN C,K SERIES, 2.8L
• 1987-1993 S-10 PICKUP, 2.5L
• 1987-1993 S-10 PICKUP, 2.8L
• 1987-1993 S,T SERIES MINI-PICKUP, 2.5L
• 1987-1993 S,T SERIES MINI-PICKUP, 2.8L
• GMC:
  • 1987-1989 JIMMY, 2.5L
  • 1987-1989 JIMMY, 2.8L
  • 1987-1993 SAFARI MINI VAN, 2.5L
  • 1987 GMC TRUCK C,K SERIES, 2.5L
  • 1987 GMC TRUCK C,K SERIES, 2.8L
  • 1987-1993 S-15 PICKUP, 2.5L
  • 1987-1993 S-15 PICKUP, 2.8L
  • 1987 SUBURBAN C,K SERIES, 2.5L
  • 1987 SUBURBAN C,K SERIES, 2.8L
• ISUZU:
  • 1991-1995 ISUZU PICKUP, 3.1L V-6
  • 1991-1992 RODEO, 3.1L V-6
  • 1989-1991 TROOPER, 2.8L V-6
• OLDSMOBILE:
  • 1988-1993 CUTLASS, 2.3L
  • 1988-1993 CUTLASS, 3.4L
  • 1986-1991 CUTLASS CALAIS, 2.3L (138 C.I.) QUAD FOUR
  • 1987-1992 CUTLASS CIERA, 2.5L
  • 1987-1992 CUTLASS CIERA, 2.8L
  • 1988-1993 CUTLASS SUPREME, 2.3L
  • 1988-1993 CUTLASS SUPREME, 3.4L
• PONTIAC:
  • 1987-1988 FIERO, 2.5L
  • 1987-1992 FIREBIRD, 2.8L
  • 1988-1992 FIREBIRD, 3.1L
  • 1986-1995 GRAND AM, 2.3L
  • 1988-1991 GRAND PRIX, 2.3L
  • 1988-1991 GRAND PRIX, 3.4L
  • 1991-1994 SUNBIRD, 3.1L
  • 1987-1992 TRANS AM, 2.8L
  • 1988-1992 TRANS AM, 3.1L

YOU CAN VIEW AND DOWNLOAD THE INSTRUCTION SHEETS FOR THIS ALTERNATOR HERE.
