ALTERNATOR,CS130C STR,105AMP,SERPENTINE,CHROME

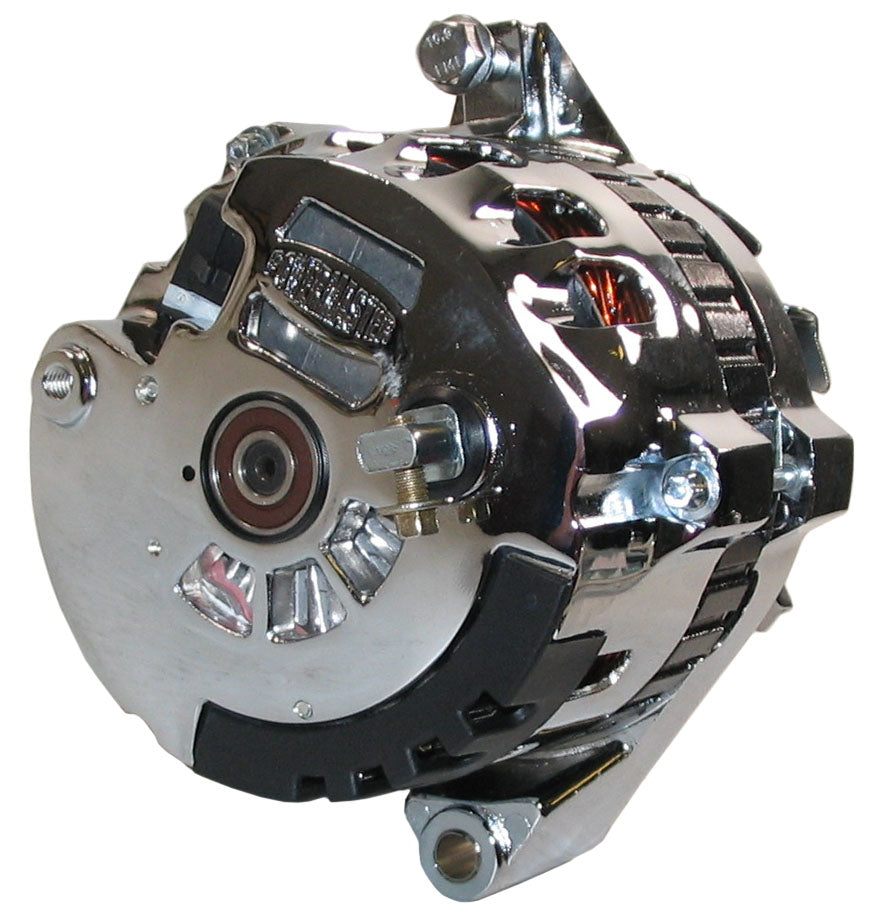

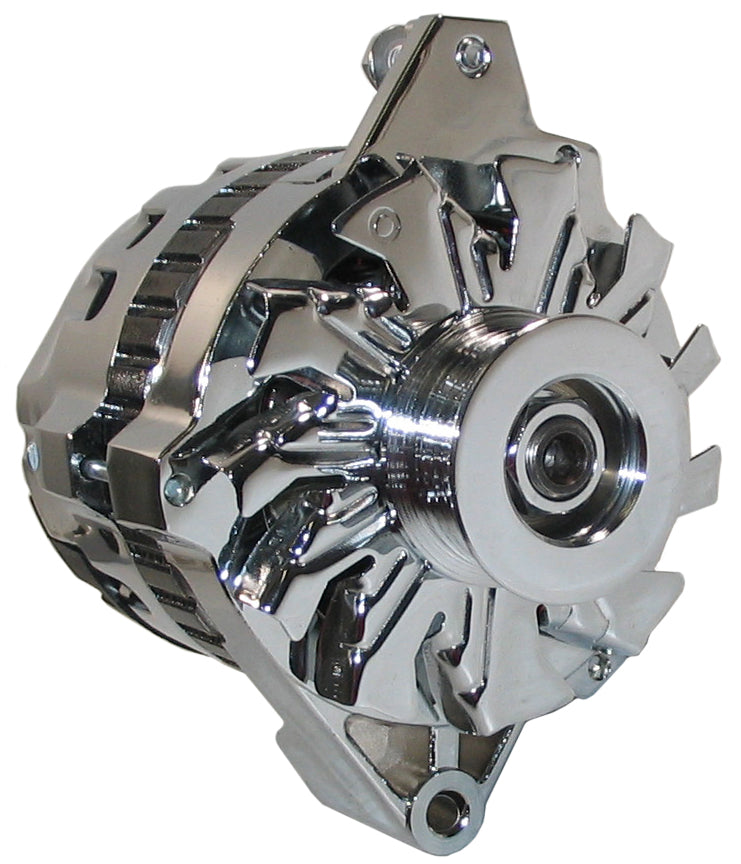

• BRAND NEW CHROME POWERMASTER CS130C STYLE, STRAIGHT MOUNT, ALTERNATOR, 105 AMP (PART #17802).

FEATURES:

• THESE POWERMASTER ALTERNATORS GIVE YOU THE ULTIMATE CUSTOM BILLET LOOK AT AN AFFORDABLE PRICE
• FEATURES A SMOOTH DIE CAST HOUSING WITH TEARDROP DESIGN
• SMOOTH BACK WITH SPECIAL POWERMASTER VENTS FOR PULL THROUGH COOLING
• GOLD BATTERY POST
• USES OE WIRING
• INCLUDES A 6 GROOVE SERPENTINE PULLEY & HIGH VOLUME FAN
• POWERMASTER INCLUDES A PROOF OF PERFORMANCE TAG WITH EACH ALTERNATOR
• SPECIFICATIONS:
  • 80 AMPS AT 2,400 RPM
  • 105 AMPS MAXIMUM
  • 13.2 VDC AT 77 DEGREES FAHRENHEIT
  • OPERATING RANGE: -40C TO 150C
  • MAXIMUM RPM: 18,000

FITS:

• CHEVY:
• 1985-1986 CAMARO, 2.5L (151 C.I.)
• 1987 CAMARO, 5.0L
• 1987 CAMARO, 5.7L
• 1988 CAPRICE, WITH HBL
• 1988 CAPRICE, 5.0L (305 C.I.)
• 1986 ASTRO MINI VAN, ALL
• 1987-1988 BLAZER, HD OPTION
• 1991 BLAZER, 6.2L
• 1987 SILVERADO C,K SERIES, HD OPTION
• 1988-1990 SILVERADO C,K SERIES, 7.4L
• 1991-1993 SILVERADO C,K SERIES, 7.4L (454 C.I.)
• 1990-1991 SILVERADO R,V SERIES, 6.2L RV1, RV2, RV3
• 1990-1991 SILVERADO R,V SERIES, 7.4L RV1, RV2, RV3
• 1986 S-10 PICKUP, 2.5L (151 C.I.) (LATE)
• 1986 S-10 PICKUP, 2.8L (173 C.I.)
• 1986 S,T SERIES MINI-PICKUP, 2.5L (151 C.I.) (LATE)
• 1986 S,T SERIES MINI-PICKUP, 2.8L (173 C.I.)
• 1987 SUBURBAN C,K SERIES, HD OPTION
• 1988-1990 SUBURBAN C,K SERIES, 7.4L
• 1991-1993 SUBURBAN C,K SERIES, 7.4L (454 C.I.)
• 1990-1991 SUBURBAN R,V SERIES, 6.2L RV1, RV2, RV3
• 1990-1991 SUBURBAN R,V SERIES, 7.4L RV1, RV2, RV3
• 1987-1990 CHEVY FULL SIZE VAN G SERIES, 7.4L (454 C.I)
• 1991-1993 CHEVY FULL SIZE VAN G SERIES, 6.2L DIESEL
• GMC:
  • 1986 SAFARI MINI VAN, ALL
  • 1987 GMC TRUCK C,K SERIES, HD OPTION
  • 1988-1990 GMC TRUCK C,K SERIES, 7.4L
  • 1991-1993 GMC TRUCK C,K SERIES, 7.4L (454 C.I.)
  • 1990-1991 GMC TRUCK R,V SERIES, 6.2L RV1, RV2, RV3
  • 1990-1991 GMC TRUCK R,V SERIES, 7.4L RV1, RV2, RV3
  • 1986 S-15 PICKUP, 2.5L (151 C.I.) (LATE)
  • 1986 S-15 PICKUP, 2.8L (173 C.I.)
  • 1987 SUBURBAN C,K SERIES, HD OPTION
  • 1988-1990 SUBURBAN C,K SERIES, 7.4L
  • 1991-1993 SUBURBAN C,K SERIES, 7.4L (454 C.I.)
  • 1990-1991 SUBURBAN R,V SERIES, 6.2L RV1, RV2, RV3
  • 1990-1991 SUBURBAN R,V SERIES, 7.4L RV1, RV2, RV3
  • 1987-1990 GMC FULL SIZE VAN G SERIES, 7.4L (454 C.I)
  • 1991-1993 GMC FULL SIZE VAN G SERIES, 6.2L DIESEL
• OLDSMOBILE:
  • 1986-1991 CUTLASS CALAIS, 3.0L (181)
• PONTIAC:
  • 1988 FIERO, 2.8L
  • 1986 FIREBIRD, 2.5L
  • 1987 FIREBIRD, 5.0L
  • 1987 FIREBIRD, 5.7L
  • 1986-1991 GRAND AM, 3.0L
  • 1986 TRANS AM, 2.5L
  • 1987 TRANS AM, 5.0L
  • 1987 TRANS AM, 5.7L

YOU CAN VIEW AND DOWNLOAD THE INSTRUCTION SHEETS FOR THIS ALTERNATOR HERE.
