N2O CONTROL,2-STAGE PROGRESSIVE,MINI TOUCH SCREEN

N2O CONTROL,2-STAGE PROGRESSIVE,MINI TOUCH SCREEN

SKU:NOS 25974NOS

Regular price $263.95
Regular price Sale price $263.95
View full details

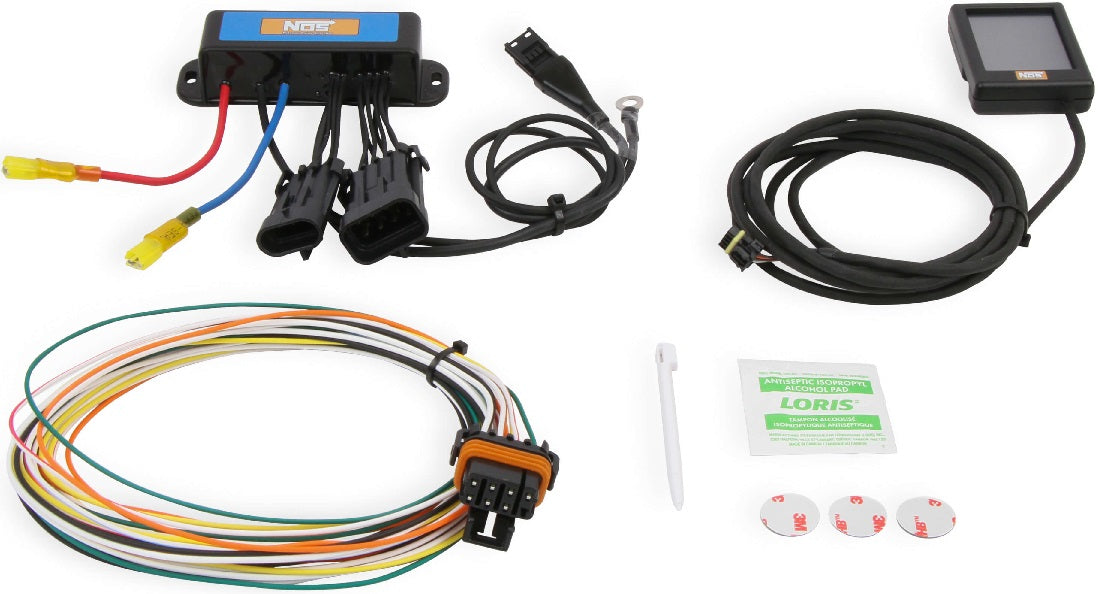

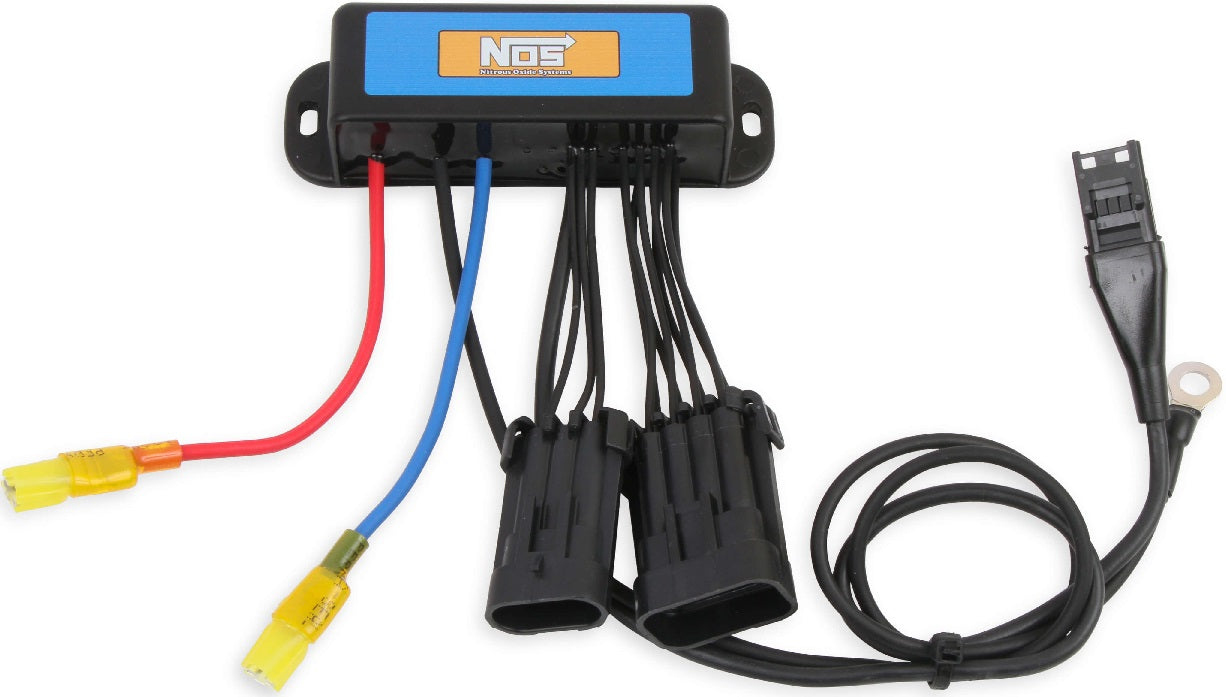

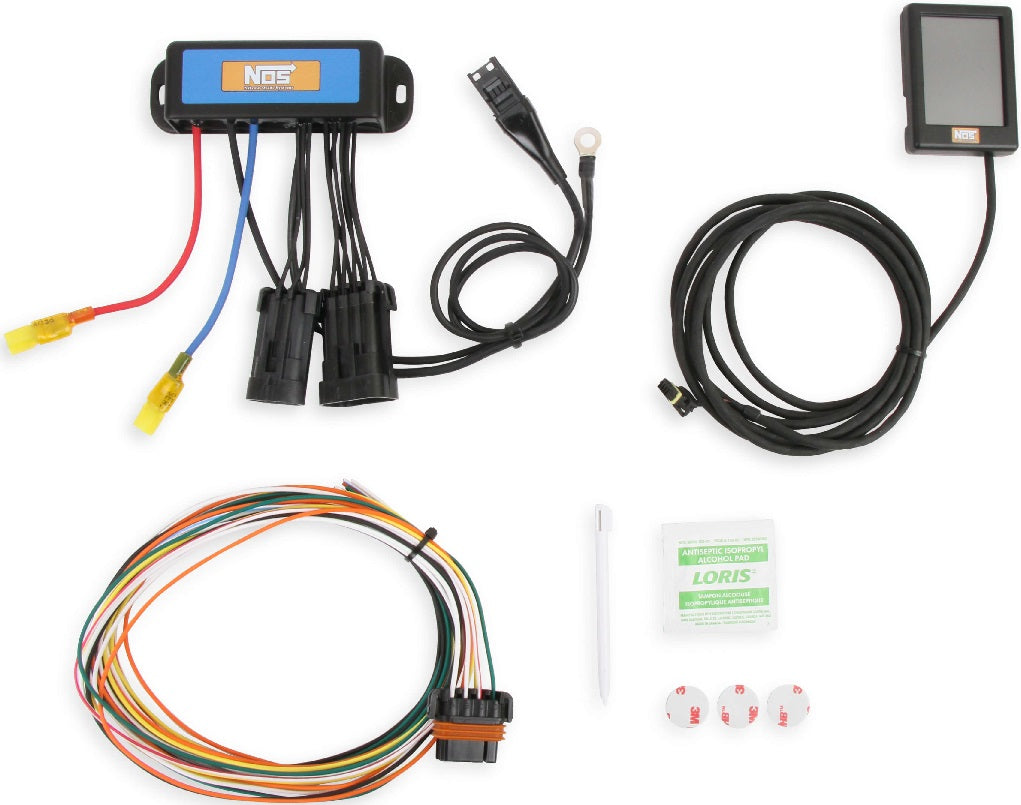

BRAND NEW NOS MINI 2-STAGE PROGRESSIVE NITROUS CONTROLLER WITH TOUCH SCREEN PROGRAMMER

GETTING THE MOST OUT OF YOUR NITROUS SYSTEM & PUTTING MORE POWER TO THE GROUND WHEN TRACTION IS AT ITS BEST IS THE GOAL WITH ANYONE USING NITROUS AS A POWER ADDER. THE NEW, UPDATED MINI 2-STAGE PROGRESSIVE NITROUS CONTROLLER FROM NOS IS PACKED WITH FEATURES THAT MAKES THAT CHALLENGE MUCH EASIER. THE LCD ALSO DISPLAYS RPM, BOTTLE PRESSURE (OPTIONAL) & STAGE ACTIVATION PROVIDING ROBUST MONITORING OF YOUR NITROUS SYSTEM.

2 COMPLETELY INDEPENDENT STAGES OF NITROUS/FUEL CONTROL, EACH WITH INDEPENDENT THROTTLE POSITION ACTIVATION SWITCH & PROGRESSIVE RAMPS. RPM ON/OFF CONTROL ELIMINATES NEED FOR A WINDOW SWITCH & ALLOWS TURNING NITROUS ON & OFF AT SET POINTS & CONDITIONS. 2 PROGRAMMABLE OUTPUTS, ALLOWING CONTROL OF TIMING RETARD OR OTHER DEVICES. THE HAND HELD 2.4" LCD TOUCH SCREEN DISPLAY (W/ INCLUDED STYLUS), MAKES PROGRAMMING QUICK & SIMPLE & ALLOWS YOU TO MOUNT THE MAIN CONTROLLER HOUSING OUT OF SIGHT.

FEATURES:

  • NEW MINI 2-STAGE PROGRESSIVE NITROUS CONTROLLER
  • NEW HAND HELD COLOR LCD 2.4" TOUCH SCREEN DISPLAY WITH MICRO SD MEMORY CARD TO STORE TUNES & SOFTWARE UPDATES
  • TOUCH SCREEN STYLUS INCLUDED
  • 2 FULLY INDEPENDENT STAGE OUTPUTS - ALLOWS PROGRAMMING IN ANY CURVE SHAPE OR WITH BUILT-IN RAMP BUILDER APPLICATION
  • PROGRESSIVE SOLENOID OPERATION BASED ON TIME, RPM &/OR TPS (THROTTLE POSITION SENSOR) INPUT & CAN SHUT NITROUS OFF AT A PROGRAMMED RPM CEILING
  • CONTROLLER HOUSING DESIGNED & CONSTRUCTED TO HANDLE HARSH CONDITIONS IN A RACING ENVIRONMENT
  • ALLOWS THE USER TO DRIVE THE SOLENOIDS AT DIFFERENT DUTY CYCLES TO TAILOR POWER DELIVERY TO THE ENGINE AS NEEDED
  • OPTIONAL BOTTLE PRESSURE TRANSDUCER INPUT ALLOWS PRECISE BOTTLE PRESSURE MONITORING WITHOUT LEAVING THE DRIVER SEAT

SPECS:

  • BRAND: NOS
  • EMISSION CODE: 4
  • FINAL PERCENTAGE: 0 - 100%
  • PRODUCT TYPE: NITROUS CONTROLLER
  • PROGRESSIVE TIME: 0 - 9.9 SECONDS
  • SETTING: TOUCH SCREEN
  • STAGES: 2

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS NITROUS CONTROLLER HERE, AND THE QUICK START GUIDE HERE.
