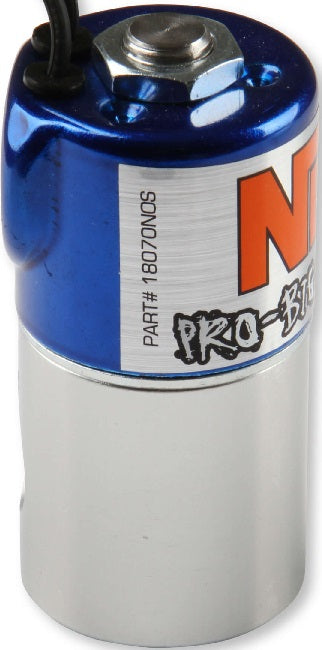

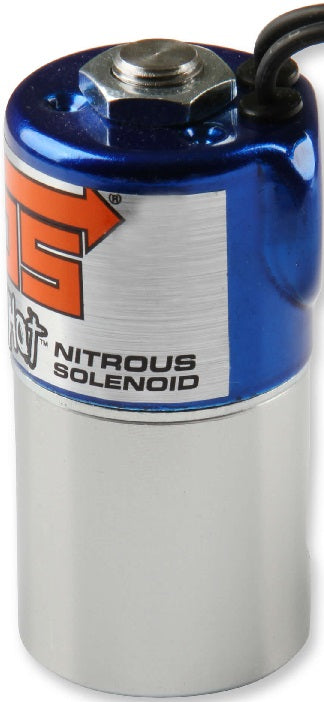

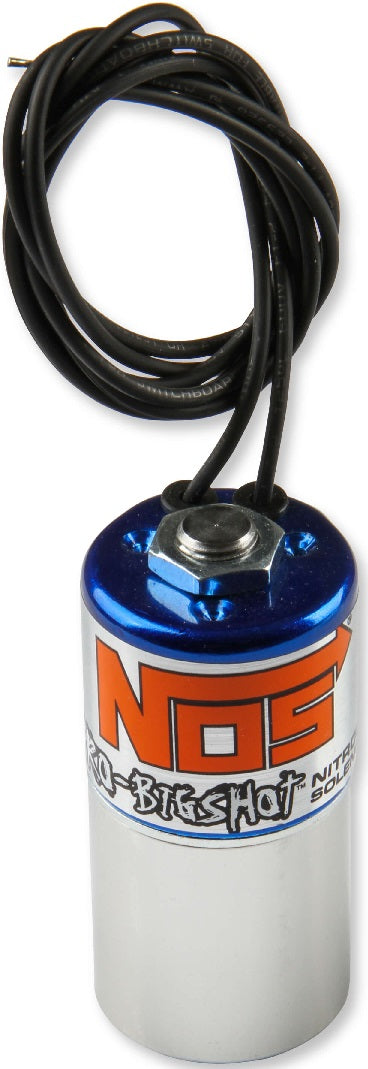

SOLENOID,NITROUS,PRO BIGSHOT,BLUE

SOLENOID,NITROUS,PRO BIGSHOT,BLUE

SKU:NOS 18070NOS

Regular price $366.95
Regular price Sale price $366.95
View full details

BRAND NEW NOS NITROUS PRO BIGSHOT SOLENOID, BLUE, 1/4" NPT FEMALE INLET & OUTLET, 1200 PSI MAX PRESSURE

NOS IS PROUD TO INTRODUCE A NEW NITROUS SOLENOID TO THE LINEUP. FEATURES A HUGE .250" ORIFICE ENCASED IN A LIGHTWEIGHT, CLEAR ANODIZED BILLET ALUMINUM BASE THAT PROVIDES MAXIMUM FLOW FOR EXTREME APPLICATIONS.

THE PRO-BIGSHOT IS A PRESSURE BALANCED DESIGN THAT GREATLY REDUCES POWER DRAW, REQUIRING ONLY 4-6 AMPS DURING OPERATION. ONLY 3.5" TALL & 1.63" IN DIAMETER, THE PRO-BIGSHOT NITROUS SOLENOID MAKES INSTALL EASIER ON MULTIPLE STAGE SYSTEMS COMPARED TO THE TRASH CAN STYLE SOLENOIDS.

NOTE: RECOMMENDED FOR NON-PROGRESSIVE NITROUS APPLICATIONS THAT REQUIRE ABSOLUTE MAXIMUM SOLENOID FLOW, AS WELL AS INSTALLATIONS THAT ARE TRYING TO REDUCE OVERALL ELECTRICAL CURRENT.

FEATURES:

  • EASIEST WAY TO ADD POWER TO ANY ENGINE
  • FEATURES .250" ORIFICE PROVIDING MAX FLOW FOR EXTREME APPLICATIONS
  • BLUE POWDER COATED HOUSING & CLEAR ANODIZED ALUMINUM BASE
  • PRESSURE BALANCED DESIGN REDUCES POWER DRAW
  • REQUIRES ONLY 4-6 AMPS DURING OPERATION
  • 1/4" NPT SIDE INLET & BOTTOM OUTLET
  • CANNOT BE USED W/PROGRESSIVE CONTROLLER

SPECS:

  • AMP DRAW: 4 TO 6A
  • BRACKET(S) INCLUDED: NO
  • FINISH: NATURAL
  • FITTINGS INCLUDED: NO
  • INLET: SIDE
  • INLET ATTACHMENT: FEMALE THREADS
  • INLET & OUTLET THREAD: 1/4" NPT
  • MATERIAL: STAINLESS STEEL
  • MAX PRESSURE: 1200 PSI
  • ORIFICE: 1/4" (0.250")
  • OUTLET: BOTTOM
  • OUTLET ATTACHMENT: FEMALE THREADS
  • PRODUCT LINE: PRO BIGSHOT
  • PRODUCT TYPE: NITROUS SOLENOID
  • PURGE PORT: NONE
  • SOLENOID TOP COVER COLOR: BLUE
