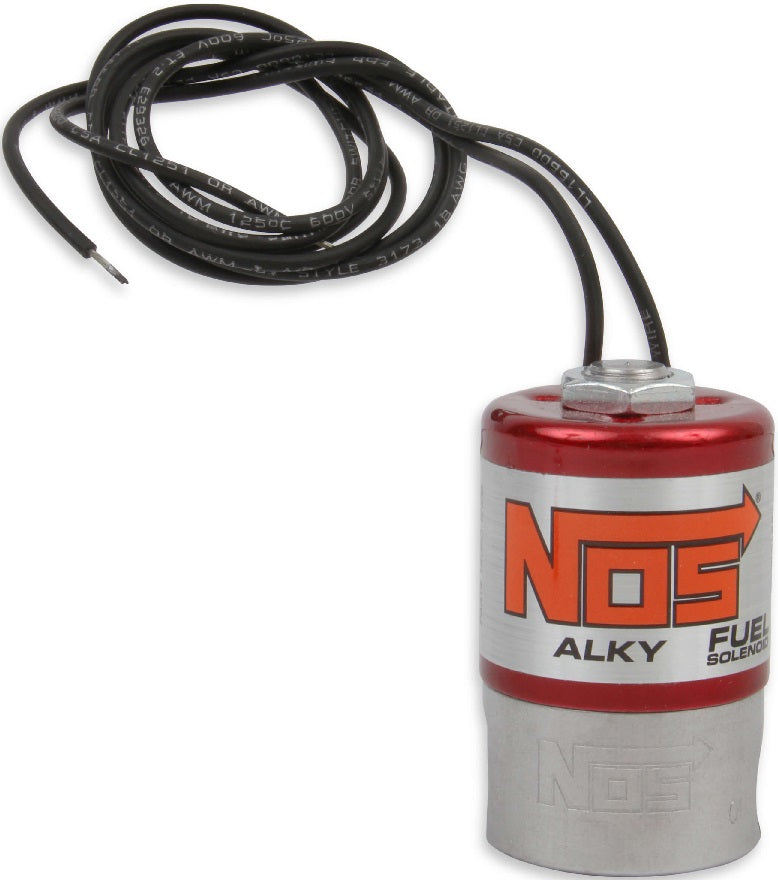

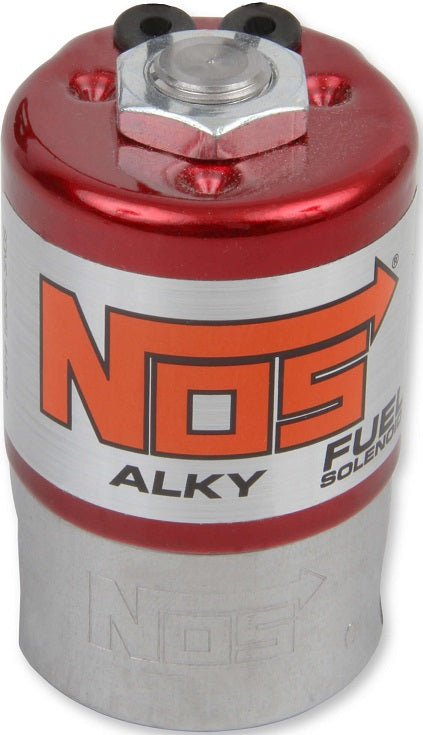

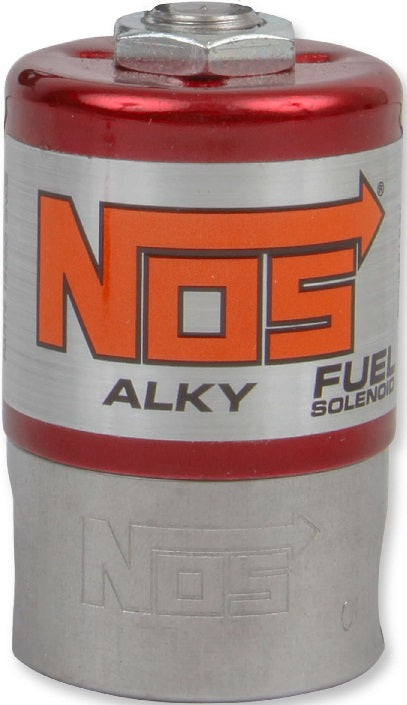

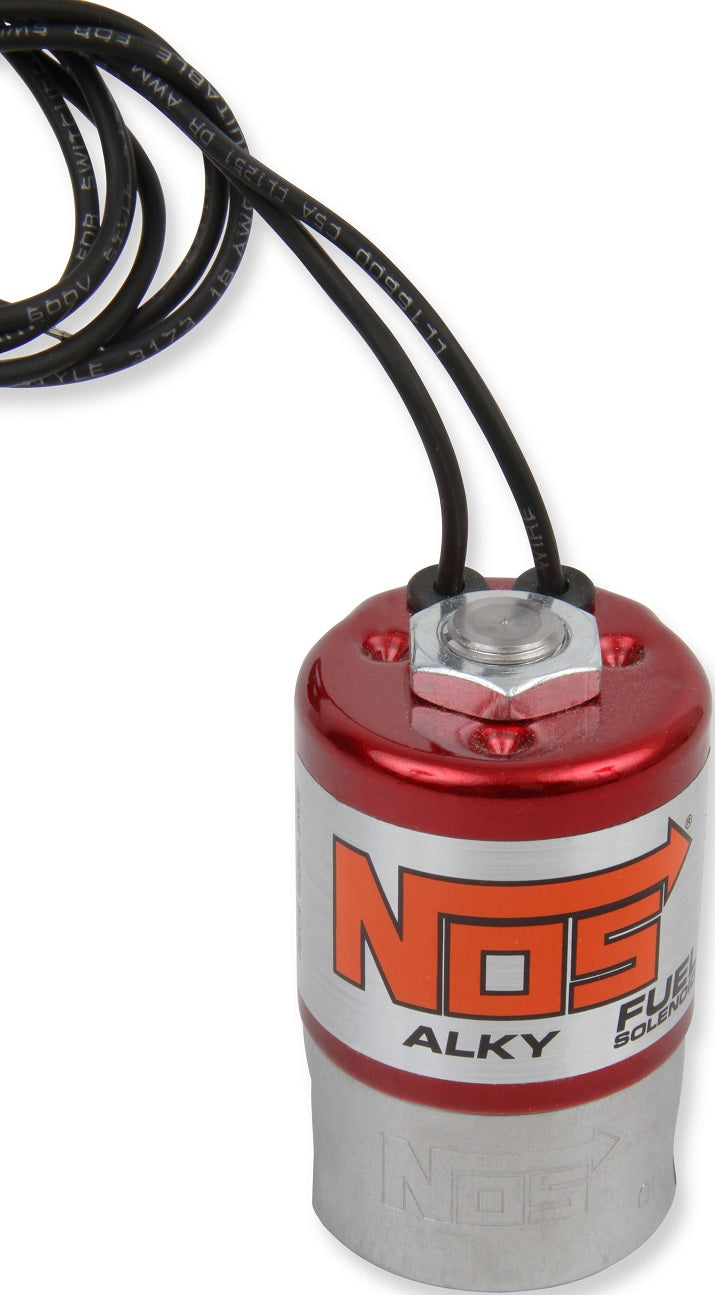

SOLENOID,FUEL,ALKY,RED

BRAND NEW NOS ALKY FUEL SOLENOID, RED TOP COVER, NATURAL FINISH, 600 MAX HORSEPOWER

NOS SOLENOIDS HAVE BEEN THE STANDARD IN THE PERFORMANCE & RACING WORLD FOR OVER 35 YEARS & ARE DESIGNED FOR OPTIMUM FLOW & OPERATION. NOS HAS OVERHAULED THE ENTIRE LINE WITH NEW FEATURES & NEW PART NUMBERS.

THE NOS FUEL SOLENOIDS FEATURE A RED POWDER COATED HOUSING, LARGE ORIFICE SIZES & FKM RUBBER PLUNGER PUCKS FOR DURABILITY & SEALING. ALL NOS SOLENOIDS FEATURE STAINLESS STEEL BASES WITH THE NOS LOGO ALONG WITH IN/OUT STAMPED IN SO YOU KNOW IT IS A QUALITY NOS SOLENOID.

FEATURES:

• INLET SIZE - 1/4" NPT
• OUTLET SIZE - 1/4" NPT
• OUTLET LOCATION - SIDE
• ORIFICE - 1/4" (0.250")
• PLUNGER - BUNA-N
• CURRENT DRAW @12VDC - 5.75 AMPS
• UP TO 600 HP

SPECS:

• AMP DRAW: 5.75A
• BRACKET(S) INCLUDED: NO
• BRAND: NOS
• COLOR: RED
• EMISSION CODE: 4
• FINISH: NATURAL
• FITTINGS INCLUDED: NO
• INLET: SIDE
• INLET ATTACHMENT: FEMALE THREADS
• INLET THREAD: 1/4" NPT
• MATERIAL: STAINLESS STEEL
• MAX HORSEPOWER: 600
• ORIFICE: 1/4" (0.250")
• OUTLET: SIDE
• OUTLET ATTACHMENT: FEMALE THREADS
• OUTLET THREAD: 1/4" NPT
• PLUNGER MATERIAL: BUNA-N
• PRODUCT LINE: ALKY
• PRODUCT TYPE: FUEL SOLENOID
• PURGE PORT: NONE
• SOLENOID TOP COVER COLOR: RED
