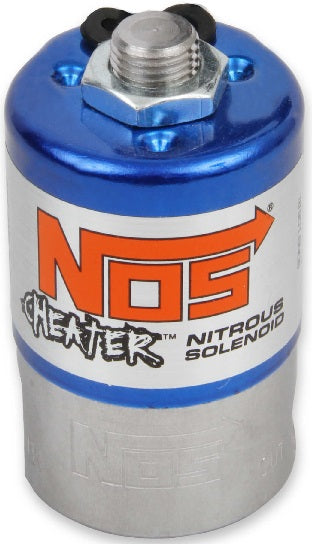

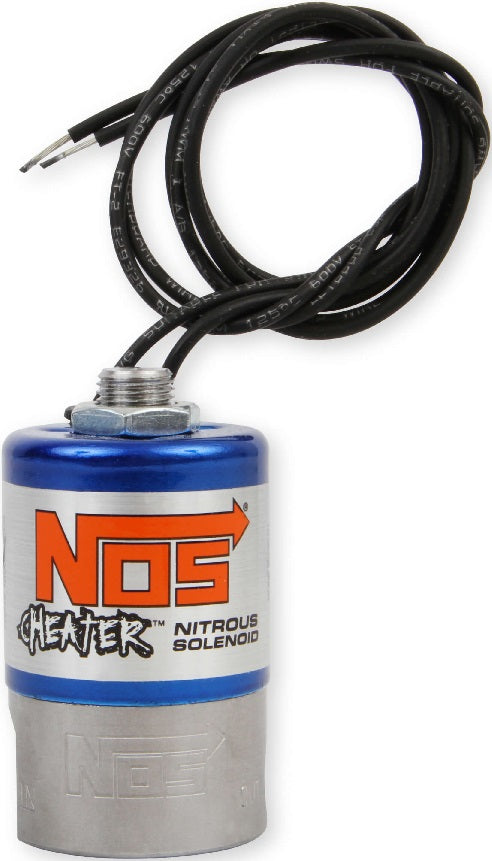

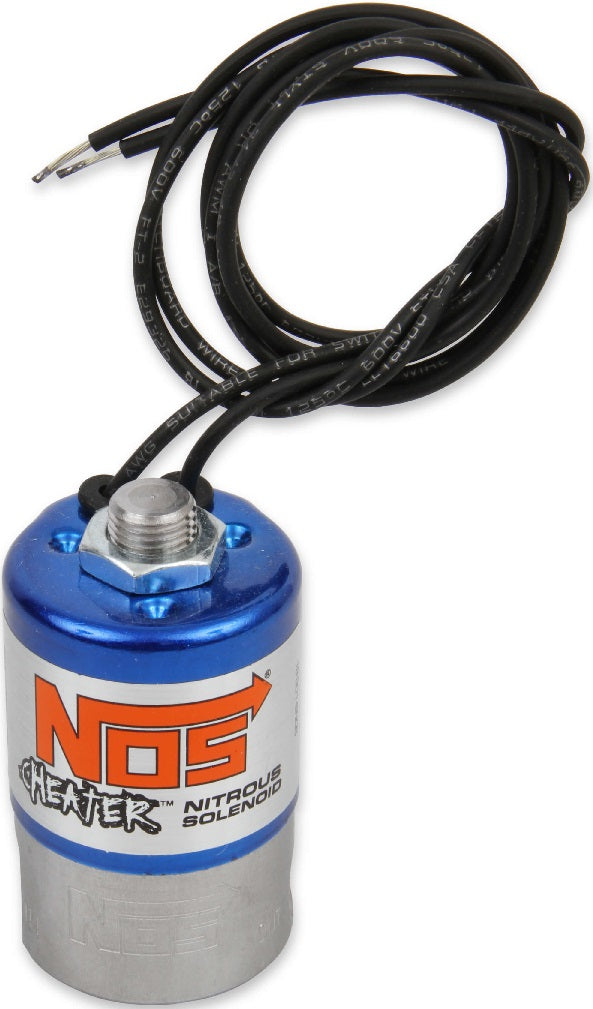

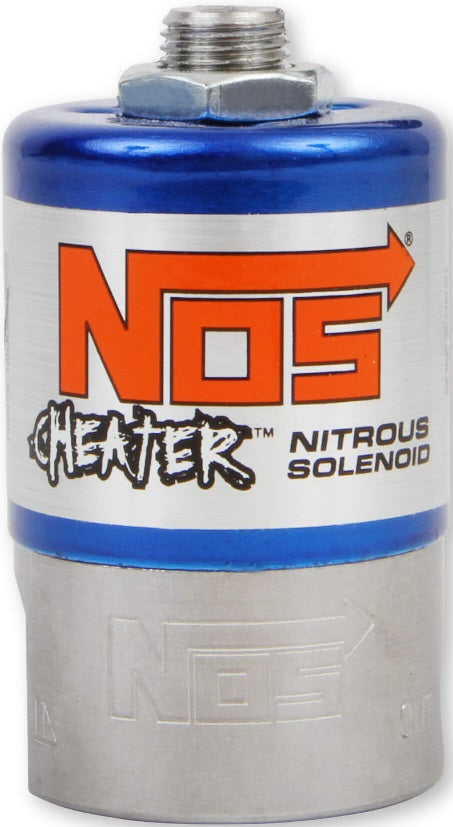

SOLENOID,NITROUS,CHEATER,BLUE

BRAND NEW NOS CHEATER NITROUS SOLENOID, BLUE TOP COVER, NATURAL FINISH, 250 MAX HORSEPOWER

NOS SOLENOIDS HAVE BEEN THE STANDARD IN THE PERFORMANCE AND RACING WORLD FOR OVER 35 YEARS AND ARE DESIGNED FOR OPTIMUM FLOW AND OPERATION. NOS HAS OVERHAULED THE ENTIRE LINE WITH NEW FEATURES AND NEW PART NUMBERS. THE NITROUS SOLENOIDS FEATURE A BLUE POWDER COATED HOUSING, LARGE ORIFICE SIZES AND PTFE PLUNGER PUCK MATERIAL FOR DURABILITY. ALL NOS SOLENOIDS FEATURE STAINLESS STEEL BASES WITH THE NOS LOGO ALONG WITH IN/OUT STAMPED IN SO YOU KNOW IT IS A QUALITY NOS SOLENOID.

NOTE: USE ONLY PTFE PASTE TO SEAL FITTINGS. DO NOT USE PTFE TAPE AS IT CAN DISLODGE & DAMAGE THE SOLENOID.

FEATURES:

• INLET SIZE - 1/4" NPT
• OUTLET SIZE - 1/8" NPT
• OUTLET LOCATION - SIDE
• ORIFICE - 3/32" (0.094")
• PLUNGER - PTFE
• CURRENT DRAW @ 12V DC - 8 AMPS

SPECS:

• AMP DRAW: 8A
• BRACKET(S) INCLUDED: NO
• BRAND: NOS
• COLOR: BLUE
• EMISSION CODE: 4
• FINISH: NATURAL
• FITTINGS INCLUDED: NO
• INLET: SIDE
• INLET ATTACHMENT: FEMALE THREADS
• INLET THREAD: 1/4" NPT
• MATERIAL: STAINLESS STEEL
• MAX HORSEPOWER: 250
• ORIFICE: 3/32" (0.094")
• OUTLET: SIDE
• OUTLET ATTACHMENT: FEMALE THREADS
• OUTLET THREAD: 1/8" NPT
• PLUNGER MATERIAL: PTFE
• PRODUCT LINE: CHEATER
• PRODUCT TYPE: NITROUS SOLENOID
• PURGE PORT: NONE
• SOLENOID TOP COVER COLOR: BLUE
