N2O CONTROL,WOT/RPM ACTIVATED WINDOW SWITCH

N2O CONTROL,WOT/RPM ACTIVATED WINDOW SWITCH

SKU:NOS 15982NOS

Regular price $266.95
Regular price Sale price $266.95
View full details

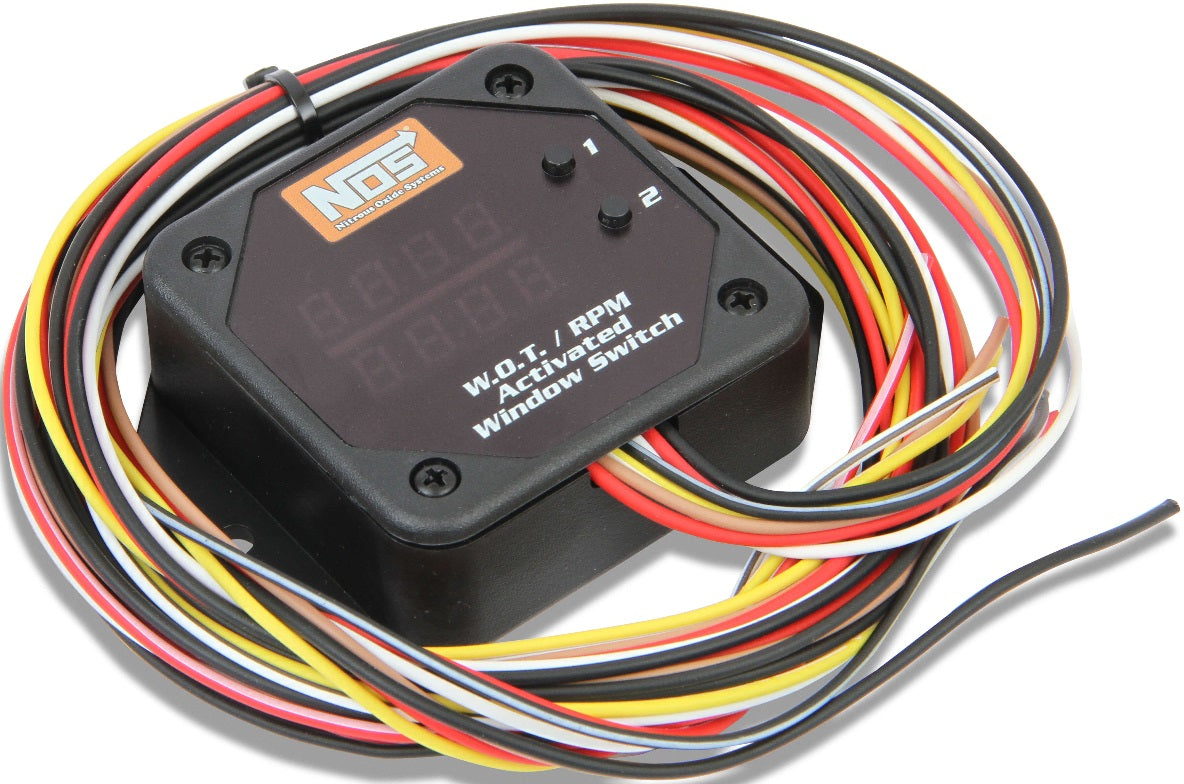

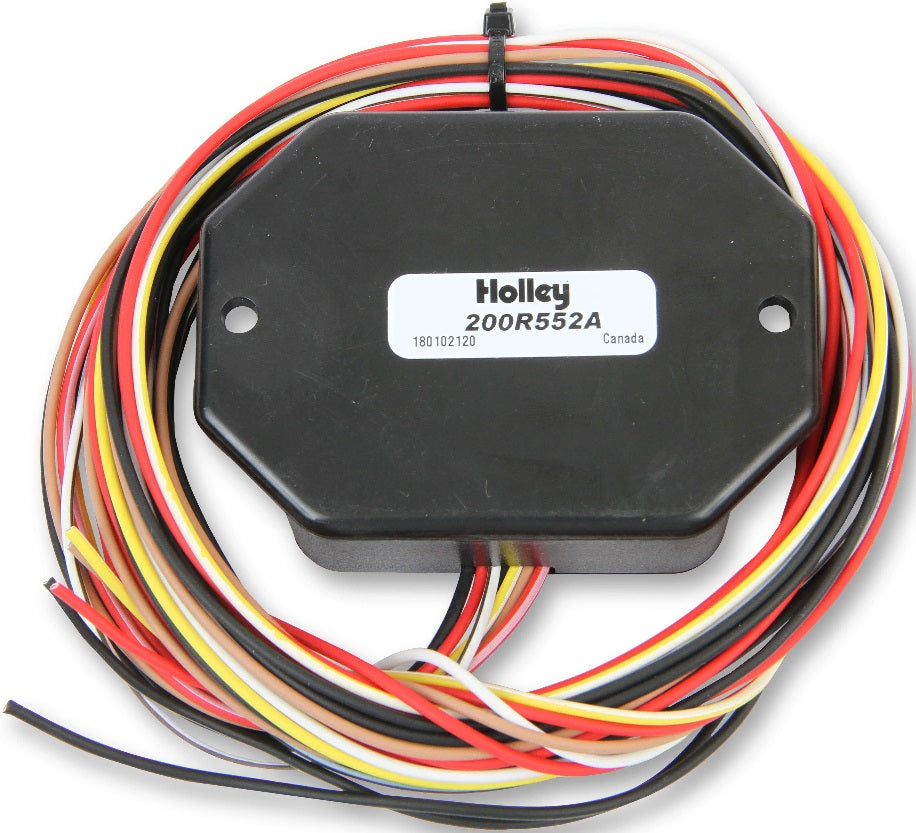

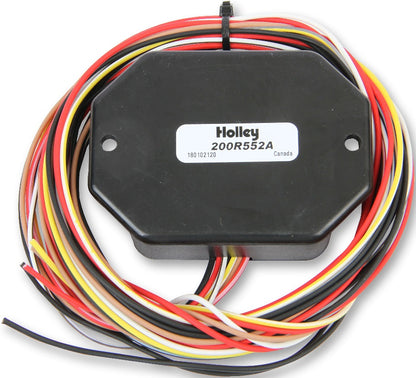

BRAND NEW NOS 2 STAGE WOT/RPM ACTIVATED WINDOW SWITCH

NITROUS OXIDE SYSTEMS IS PROUD TO PRESENT OUR 2 STAGE WIDE OPEN THROTTLE/ RPM ACTIVATED WINDOW SWITCH WITH SHIFT LIGHT CONTROL. THE WOT/RPM ACTIVATED WINDOW SWITCH IS A SMALL, COMPACT, USER FRIENDLY UNIT WITH FEATURES LIKE, 2 FULLY PROGRAMMABLE INDEPENDENT RPM WINDOW SWITCHES THAT CAN OPERATE FROM 0-20,000 RPM FOR ANYTHING FROM A LOW RPM ENGINE TO A HIGH REVVING SPORT BIKE.

IT HAS THE CAPABILITY TO READ A RISING OR FALLING THROTTLE POSITION SENSOR FOR ACCURATE ACTIVATIONS EVERY TIME. IT ALSO FEATURES A PROGRAMMABLE OUTPUT TO ACTIVATE A SHIFT LIGHT FOR ON-TIME GEAR POUNDING SHIFTS & A HANDY RECALL FEATURE THAT SHOWS MAX RPM & TPS VOLTAGE FOR EASY SET-UP.

FEATURES:

  • SMALL, COMPACT, USER FRIENDLY UNIT WITH BRIGHT EASY TO READ DISPLAY
  • 2 FULLY PROGRAMMABLE RPM WINDOW SWITCHES FOR EASY ADJUSTMENTS WITHOUT THE NEED FOR RPM PILLS
  • WINDOW SWITCH OFF/ON RPM CAN BE PROGRAMMED FROM 0 TO 9,999 RPM IN RPM INCREMENTS FOR PRECISE CONTROL (READING IS X10 FOR APPLICATIONS OVER 9,999 RPM)
  • WORKS WITH ANY 4-CYCLE ENGINE FROM 1 TO 12 CYLINDERS
  • RPM INPUT CAN BE CONNECTED TO A DIS COIL "DRIVER" WIRE OR A TACHOMETER OUTPUT CIRCUIT
  • WILL READ FROM 0 TO 20,000 RPM FOR USE ON A LOW RPM ENGINE TO HIGH REVVING SPORT BIKES
  • CAN READ A RISING OR FALLING TPS SIGNAL FOR A WIDE RANGE OF APPLICATIONS & PRECISE ACTIVATIONS
  • TPS TRIGGER VOLTAGE IS ADJUSTABLE FROM 0 TO 5.0 VOLTS IN 1 TENTH INCREMENT
  • PERFECT FOR A DRIVE-BY-WIRE VEHICLE THAT HAS NO THROTTLE CABLE TO MOUNT A TRADITIONAL ACTIVATION SWITCH
  • WINDOW SWITCHES WORK INDEPENDENT OF TPS SO THE WINDOW SWITCH IS AT HOME JUST AS MUCH ON A CARBURETED VEHICLE AS IT IS ON A EFI CAR
  • SHIFT LIGHT CONTROL IS ADJUSTABLE FROM 0 TO 9,999 RPM FOR ON-TIME GEAR POUNDING SHIFTS EVERY TIME
  • LIVE RPM & TPS READINGS ARE DISPLAYED ON THE BRIGHT, EASY-TO-SEE DISPLAY
  • HANDY RECALL FEATURE ALLOWS THE MAX RPM & TPS VOLTAGE TO BE VIEWED AFTER A RUN
  • BRIGHT COLORED LEDS LIGHT UP WHEN STAGES ARE ACTIVE FOR EASY VERIFICATION OF ACTIVATION
  • REPLACES PART #15879NOS RPM SWITCH
  • INCLUDED IN POPULAR NOS DRIVE-BY-WIRE NITROUS KITS
  • CAN ALSO BE USED TO ACTIVATE OTHER ACCESSORIES, NOT JUST NITROUS
  • PRICED ATTRACTIVELY AS COMPARED TO TRADITIONAL SWITCHES

SPECS:

  • BRAND: NOS
  • EMISSION CODE: 4
  • PRODUCT TYPE: WINDOW SWITCH

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS WINDOW SWITCH HERE.
