LS3 NOS PLATE KIT,10-15 CAMARO LS3

LS3 NOS PLATE KIT,10-15 CAMARO LS3

SKU:NOS 13436NOS

Regular price $271.95
Regular price Sale price $271.95
View full details

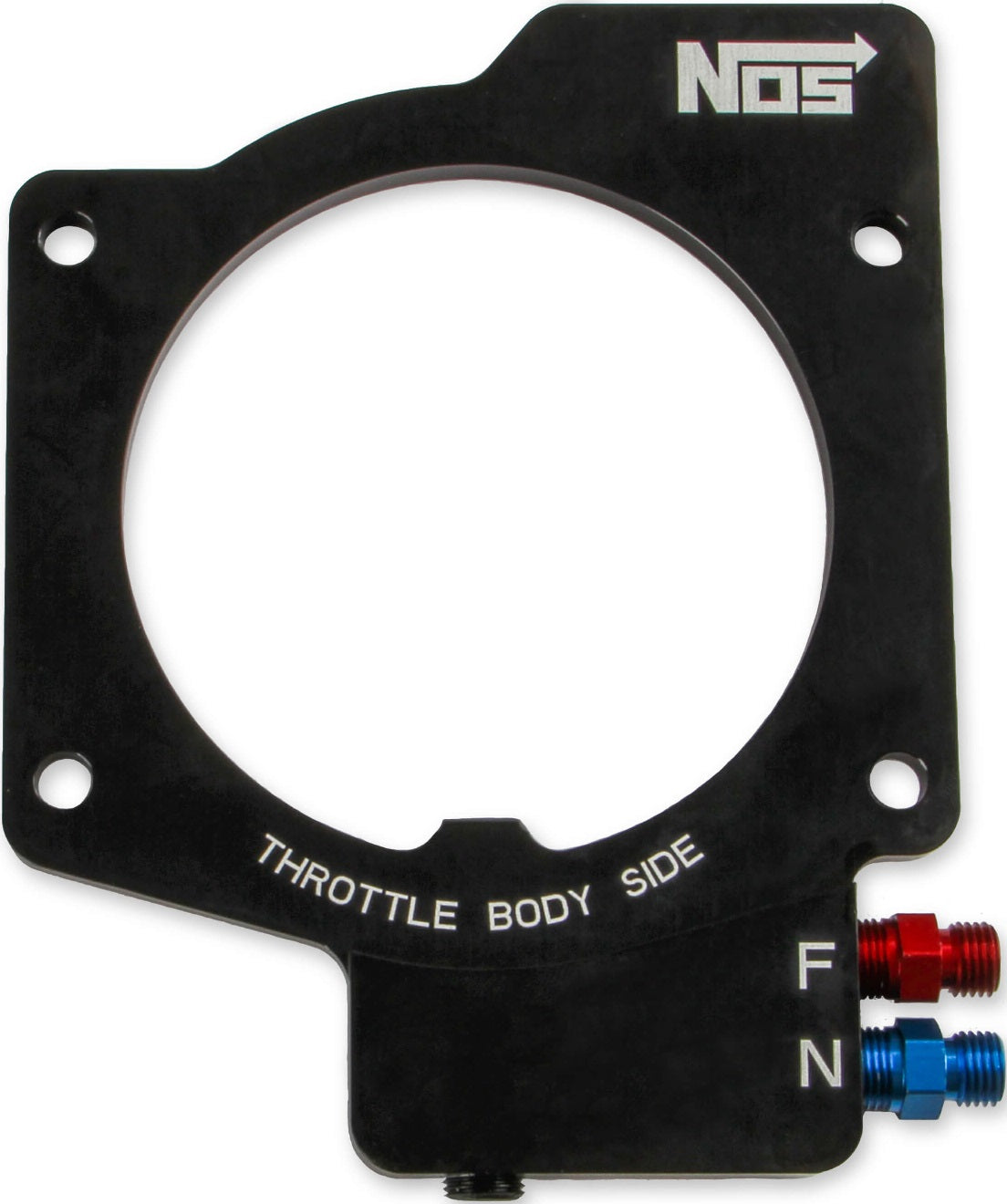

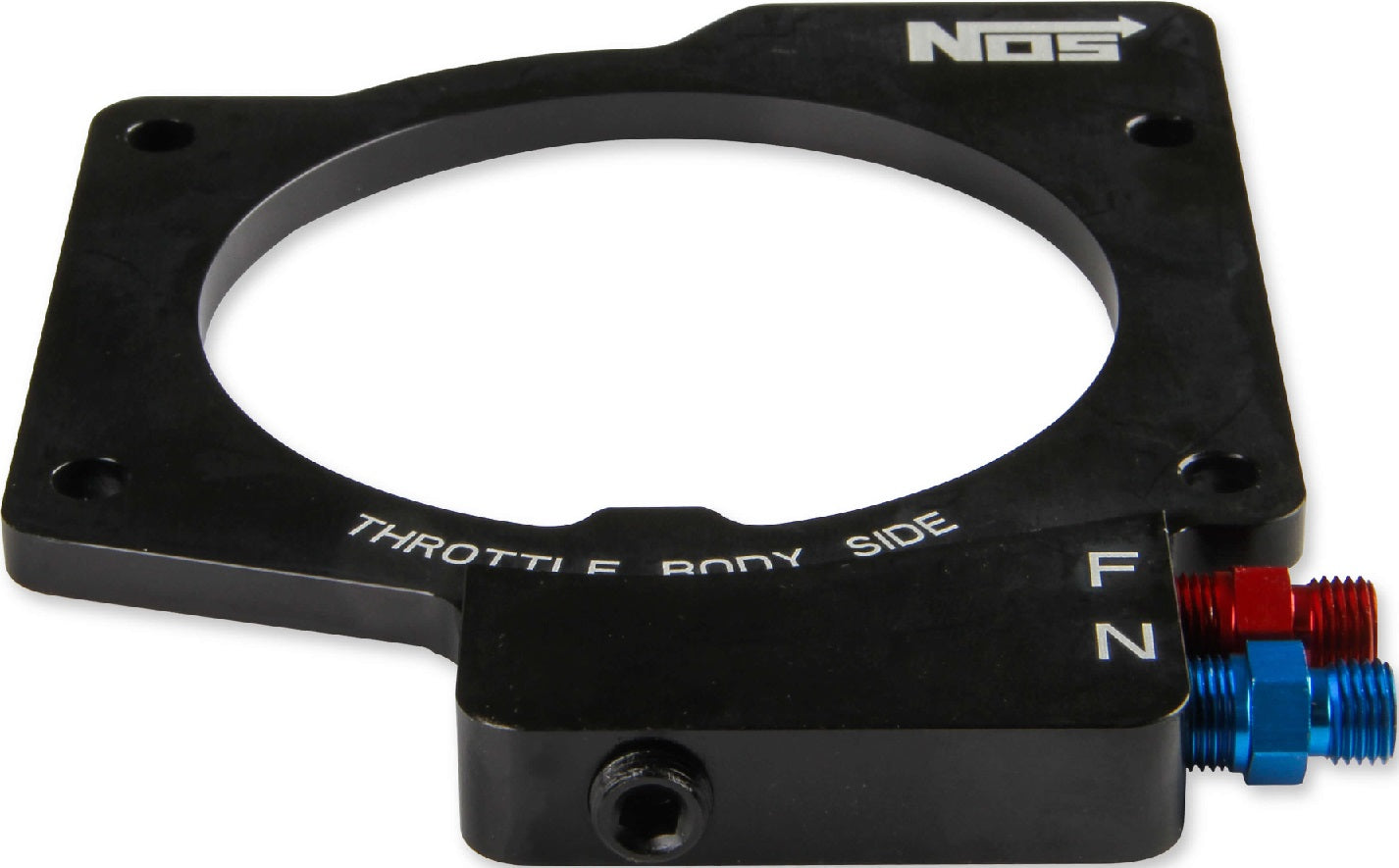

BRAND NEW NOS EFI NITROUS WET PLATE, BLACK, 90MM 4-BOLT, UP TO 250 HP, COMPATIBLE WITH 2010-2015 CHEVROLET CAMARO LS3

THE NOS "PLATE ONLY" KIT ALLOWS OUR CUSTOMERS TO BUILD A CUSTOM NITROUS SYSTEM FOR THEIR 2010-2015 CHEVROLET CAMARO, OR ANY APPLICATION USING A GM LS STYLE, 90MM, 4-BOLT THROTTLE BODY. THIS ULTRA-SLIM DESIGN IS ONLY 1/4" THICK AT THE THROTTLE BODY MOUNTING FLANGE. THIS ALLOWS MAXIMUM ROOM FORWARD OF THE THROTTLE BODY TO CLEAR ACCESSORY DRIVES, TENSIONER BRACKETS OR OTHER OBSTACLES THAT MAY INTERFERE WITH A MORE FORWARD MOUNTED THROTTLE BODY.

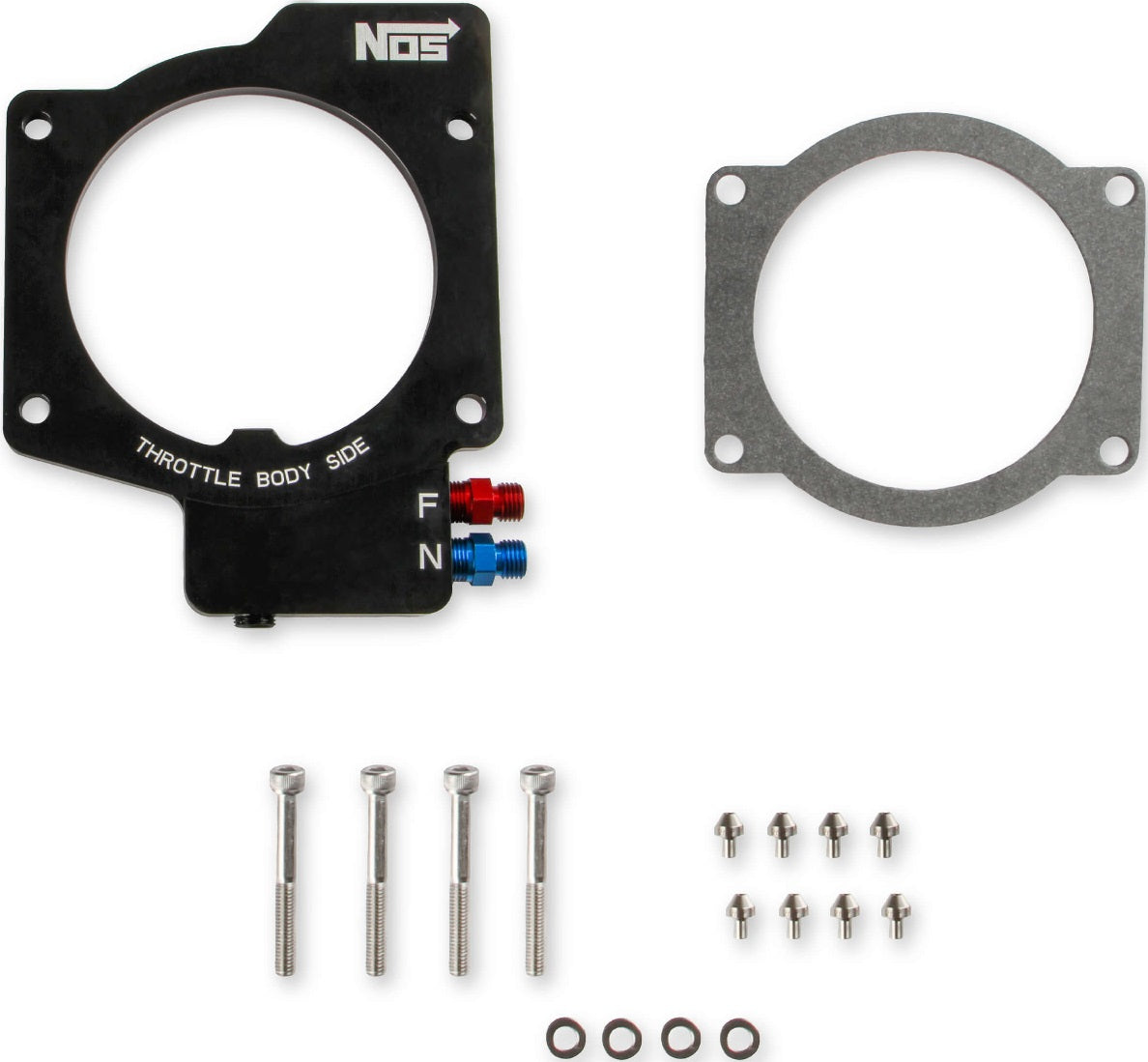

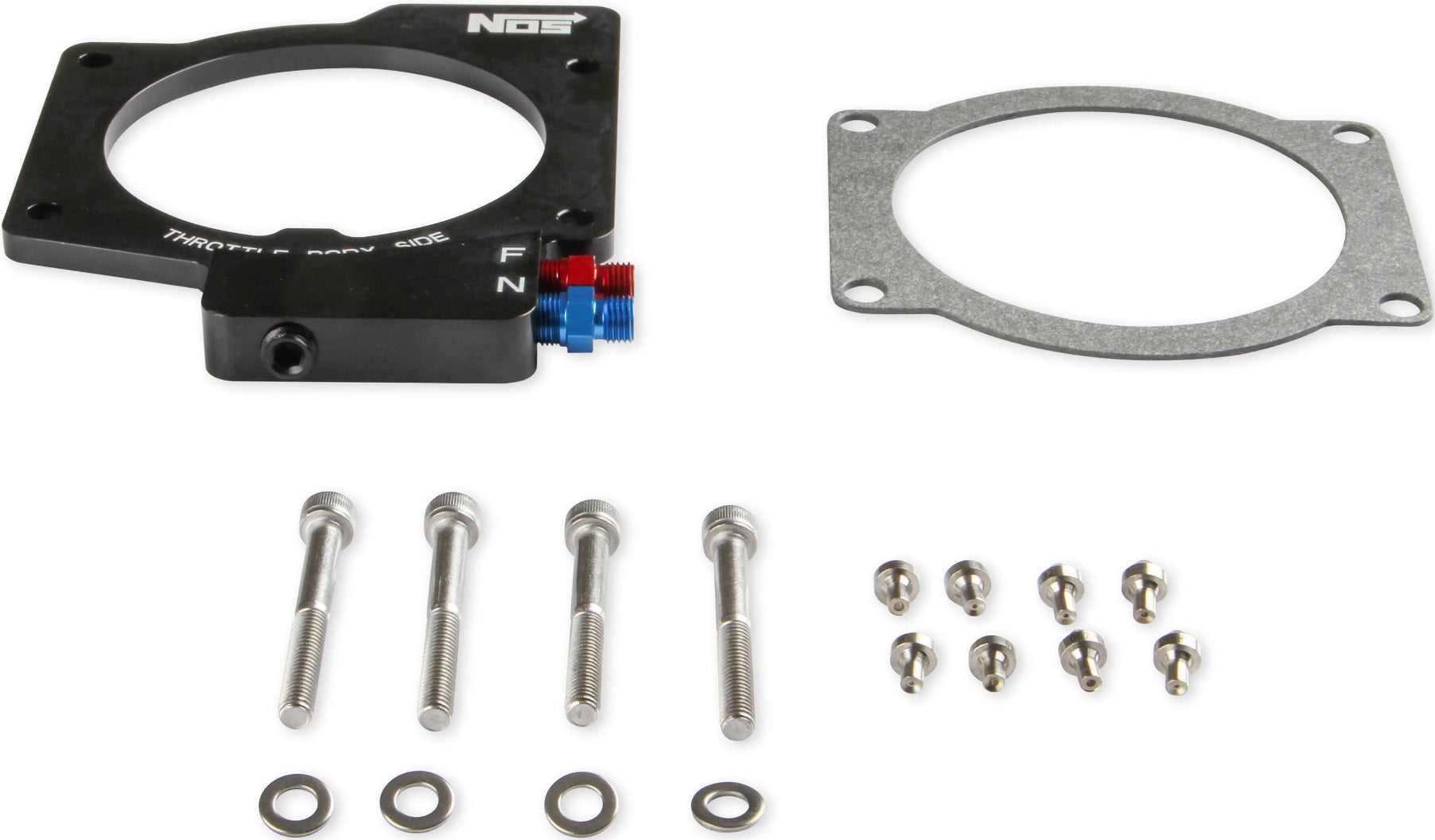

THIS KIT INCLUDES A 6061 BILLET ALUMINUM, BLACK ANODIZED NITROUS PLATE, ASSEMBLED & READY TO BOLT ON, STAINLESS SOCKET HEAD BOLTS, 8 NOS STAINLESS JETS TO SUPPORT POWER LEVELS OF 75, 100, 125 & 150 REAR WHEEL HP INCREASES.

NOTE: RETAINS STOCK THROTTLE BODY LOCATION & ORIENTATION USING A 1/4" BILLET ALUMINUM PLATE. IDEAL FOR ANY LS, 90MM, 4-BOLT APPLICATION. SUPPORTS UP TO 250 HP.

FEATURES:

  • SINGLE 1/4" PLATE BETWEEN THE THROTTLE BODY & MANIFOLD
  • THROTTLE BODY MOUNTS IN STOCK ORIENTATION
  • SUPPORTS UP TO 250 RWHP (REAR WHEEL HORSE POWER)
  • INCLUDES JETTING FOR 75, 100, 125, & 150 RWHP
  • NEW PLATE OUTLET DESIGN MAXIMIZES DISTRIBUTION
  • 6061 BILLET ALUMINUM, CNC MACHINED PLATE

SPECS:

  • ADJUSTABLE: YES
  • BOTTLE INCLUDED: NO
  • BRAND: NOS
  • COLOR: BLACK
  • DELIVERY STYLE: EFI SPACER PLATE
  • INCLUDED JETTING HORSEPOWER: 75,100,125,150
  • JET SIZES INCLUDED: 75,100,125,150 HP
  • JET STYLE: FLARE
  • MATERIAL: 6061 T-6 ALUMINUM
  • MAX HORSEPOWER: 250
  • PLATE BOLT PATTERN: 4 BOLT
  • PLATE DIAMETER: 90 MM
  • PLATE FLANGE: GM 4-BOLT LS3
  • PLATE HEIGHT: 1/4"
  • PLATE HEIGHT: 1/4"
  • PLATE INCLUDED: YES
  • PLATE THICKNESS: 1/4"
  • PRODUCT TYPE: NOS PLATE KIT
  • STYLE: WET
  • SYSTEM STYLE: WET
