SNIPER N20,175HP,WET,10LB OR,97-12 GM LS,80MM 3 BOLT

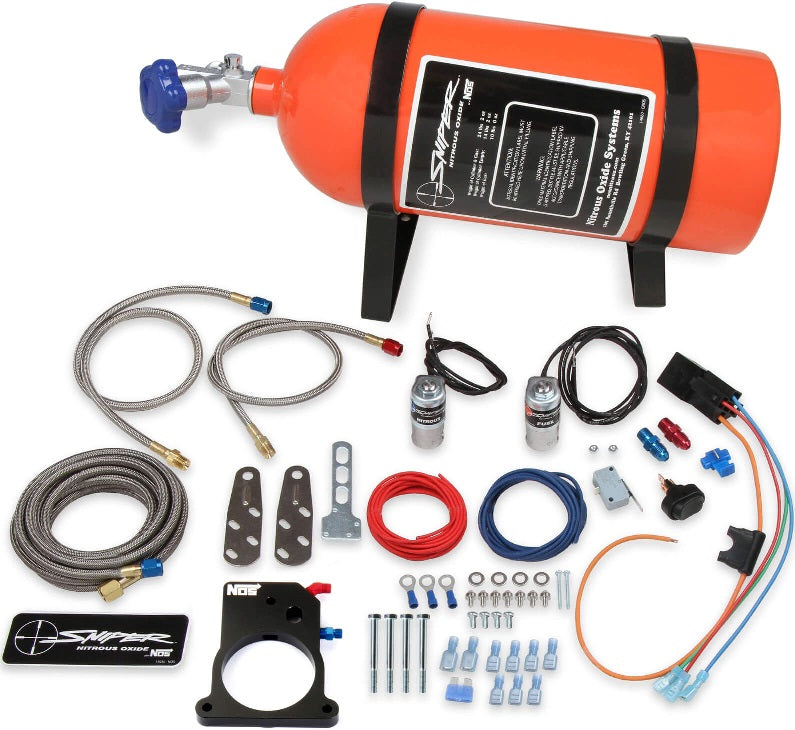

BRAND NEW NOS SNIPER PLATE WET NITROUS SYSTEM, 10 LB. ORANGE BOTTLE, COMPATIBLE WITH 1997-2012 GM LS 80MM 3-BOLT THROTTLE BODY

SNIPER WET EFI NITROUS PLATE KITS GIVE ONE OF THE MOST POWERFUL BANG-FOR-THE-BUCK POWER ADDING SOLUTIONS. SNIPER NITROUS KITS ARE GREAT FOR THE BUDGET MINDED BUILDER THAT WANTS THE POWER NITROUS IS FAMOUS FOR.

THESE ARE WET PLATE KITS, MEANING THE ADDITIONAL FUEL IS ADDED THOUGH THE NITROUS SYSTEM, SO THERE ARE NO REQUIREMENTS FOR AN INJECTOR UPGRADE. ALL OF THE NEEDED ITEMS ARE INCLUDED IN THE KIT FOR A COMPLETE INSTALLATION.

NOTE: DESIGNED SPECIFICALLY FOR CARS EQUIPPED WITH AN LS ENGINE. TRUCK ENGINES WILL REQUIRE A FOGGER SYSTEM SUCH AS 07006NOS.

NOTE: RECOMMEND 1-2 STEPS COLDER SPARK PLUGS. NO PROJECTED TIP, FINE WIRE OR IRIDIUM SPARK PLUGS. POWER LEVELS IN EXCESS OF 75 HP SHOULD USE A RACING/HIGH OCTANE RATED FUEL.

FEATURES:

• OFFERS A LOW COST EFI NITROUS KIT SOLUTION
• DIRECT BOLT-ON 80 MM 1/2" THICK BLACK BILLET ALUMINUM PLATE FITS BETWEEN 3-BOLT THROTTLE BODY & INTAKE MANIFOLD
• SUPPORTS UP TO 175 HP
• INCLUDED JETTING FOR 100, 125 & 150 HP
• INCLUDES ORANGE SNIPER 10 LB. NITROUS BOTTLE WITH BRACKETS
• STAINLESS STEEL BRAIDED LINES
• HARDWARE INCLUDED
• IDEAL FOR USE WITH TERMINATOR X - FOR NITROUS CONTROL

SPECS:

• ADJUSTABLE: YES
• BOTTLE COLOR: ORANGE
• BOTTLE SIZE: 10 LB
• BOTTLE VALVE: HI-FLO
• BRACKET MATERIAL: STEEL
• BRACKETS INCLUDED: YES
• DELIVERY STYLE: EFI SPACER PLATE
• FEED LINE SIZE: 4AN

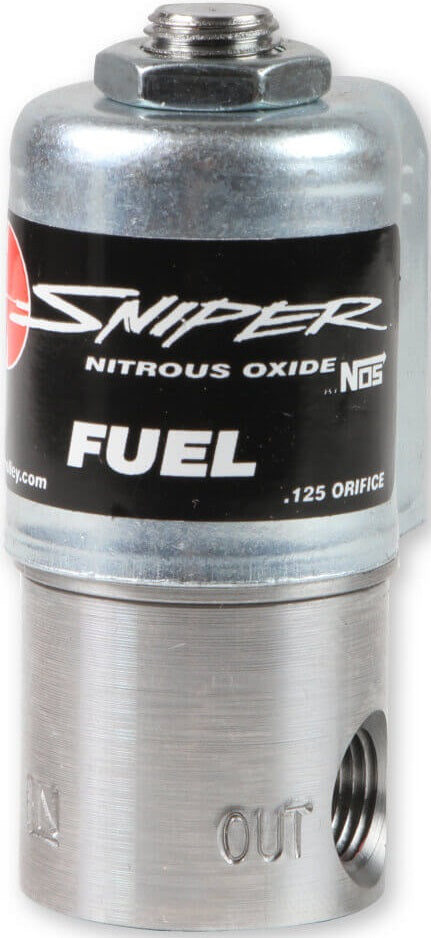

• FUEL SOLENOID: SNIPER FUEL
• INCLUDED JETTING HORSEPOWER: 100, 125 & 150HP
• JET STYLE: FLARE
• MATERIAL: 6061 T-6 ALUMINUM
• MAX HORSEPOWER: 175

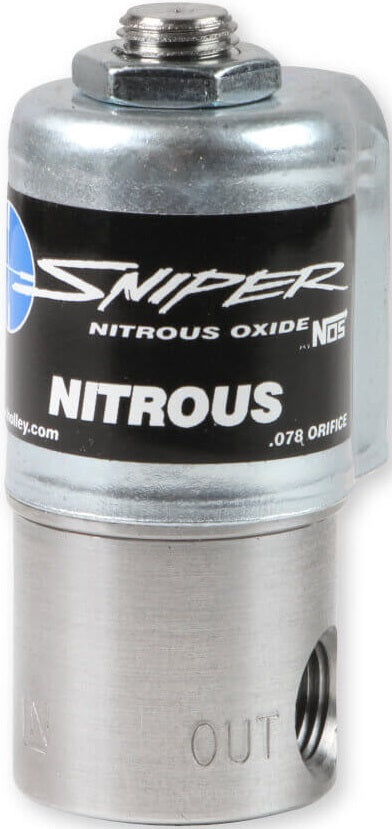

• NITROUS SOLENOID: SNIPER NITROUS
• NUMBER OF SOLENOIDS: 2
• PLATE BOLT PATTERN: 3 BOLT
• PLATE DIAMETER: 80 MM
• PLATE FLANGE: GM 3-BOLT LS
• PLATE HEIGHT: 1/2 INCH
• PLATE INCLUDED: YES
• PLATE THICKNESS: 1/2 INCH
• PRODUCT TYPE: NITROUS SYSTEM
• SYSTEM STYLE: WET

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS NOS SYSTEM HERE.
