N2O KIT,10LB BLACK,15-20 HELLCAT/TRKHWK

BRAND NEW NOS WET NITROUS SYSTEM, BLACK 10 LB BOTTLE, 94MM PLATE, COMPATIBLE WITH 2015-2020 6.2L HEMI DODGE CHALLENGER & CHARGER SRT8 HELLCAT, 2018-2020 JEEP GRAND CHEROKEE TRACKHAWK

ADD 200+ REAR WHEEL HORSEPOWER (RWHP) TO THE ALREADY POTENT GEN III HEMI 6.2L SUPERCHARGED HELLCAT ENGINE. ENGINEERED & DYNO TESTED NITROUS SYSTEM INCLUDES EVERYTHING NEEDED FOR AN EASY BOLT-ON INSTALL (94MM BILLET WET PLATE, MINI 2-STAGE NITROUS CONTROLLER, 10 LB. BOTTLE, PRO-RACE SOLENOIDS & ALL REQUIRED HARDWARE).

NOTE: TO SUPPLY THE PROPER AMOUNT OF FUEL TO THE CARBURETOR & POWERSHOT SYSTEM, FUEL PUMP MUST BE USED THAT IS DESIGNED TO OPERATE BETWEEN 4.5 & 7 PSI, WITH FLOW RATE OF 0.1 GALLONS PER HORSEPOWER AT 6 PSI. EXAMPLE: AN ENGINE THAT PRODUCES 350 HP WHEN POWERSHOT SYSTEM IS ACTIVATED WILL REQUIRE FUEL PUMP THAT FLOWS AT LEAST 35 GPH AT 6 PSI. ACTUAL PERFORMANCE GAINS WILL VARY DEPENDING ON ENGINE CONDITION & CONFIGURATION.

NOTE: SYSTEM IS NOT ADJUSTABLE.

FEATURES:

• NOS SYSTEM ADDS 200 REAR WHEEL HORSEPOWER (RWHP) TO THE ALREADY POTENT 6.2L SUPERCHARGED HELLCAT
• INCLUDES JETTING FOR 75,100,125 & 150 RWHP
• MAXIMUM HP 250+, BUT ANYTHING OVER 200 HP REQUIRES FUEL SYSTEM UPGRADE, SPECIAL TUNING,
• RACE FUEL, OPTIONAL JETS & OTHER MODIFICATIONS
• INCLUDES NOS MINI 2-STAGE PROGRESSIVE CONTROLLER THAT PROVIDES PRECISE CONTROL OF THE NITROUS TO GET MORE POWER TO THE GROUND
• WET KIT PROVIDES EXCEPTIONALLY SMOOTH POWER DELIVERY

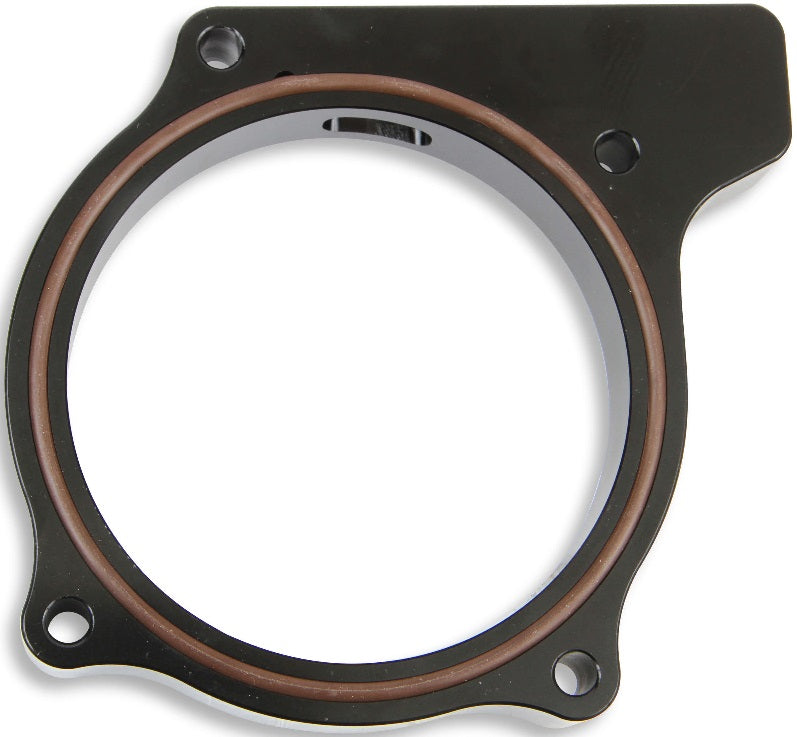

• 94MM 3/4" THICK WET PLATE ALLOWS EASY INSTALL BETWEEN THE THROTTLE BODY & SUPERCHARGER
• WET NITROUS PLATE IS AVAILABLE SEPARATELY (PART # 15185NOS)

SPECS:

• ADJUSTABLE: YES
• BOTTLE COLOR: BLACK
• BOTTLE INCLUDED: YES
• BOTTLE MATERIAL: 6061 T-6 ALUMINUM
• BOTTLE SIZE: 10 LB
• BOTTLE VALVE: SUPER HI-FLO
• BRACKET MATERIAL: STEEL
• BRACKETS INCLUDED: YES
• BRAND: NOS
• COLOR: BLACK
• DELIVERY STYLE: EFI SPACER PLATE
• EMISSION CODE: 4
• FEED LINE SIZE: 6AN
• FUEL SOLENOID: PRO RACE
• INCLUDED JETTING HORSEPOWER: 75,100,125,150
• JET SIZES INCLUDED: 75,100,125,150 HP
• JET STYLE: FLARE
• MATERIAL: 6061 T-6 ALUMINUM
• MAX HORSEPOWER: 250
• NITROUS BOTTLE CAPACITY: 10 LBS
• NITROUS SOLENOID: PRO RACE
• NUMBER OF SOLENOIDS: 2
• PLATE BOLT PATTERN: 4 BOLT
• PLATE DIAMETER: 94MM
• PLATE FLANGE: GEN LLL HEMI
• PLATE HEIGHT: 3/4"
• PLATE INCLUDED: YES
• PLATE THICKNESS: 3/4"
• PRODUCT TYPE: NITROUS SYSTEM
• SOLENOID TOP COVER COLOR: BLACK
• STYLE: WET
• SYSTEM STYLE: WET

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS NITROUS KIT HERE, AND THE BOTTLE NOTIFICATION HERE.
