POWERSHOT,10LB BLUE,HOL 4150,CARTER AFB

BRAND NEW NOS POWERSHOT WET NITROUS SYSTEM, BLUE 10 LB BOTTLE, FIXED 125 HP, COMPATIBLE WITH 4150 4-BARREL & CARTER AFB-LATE

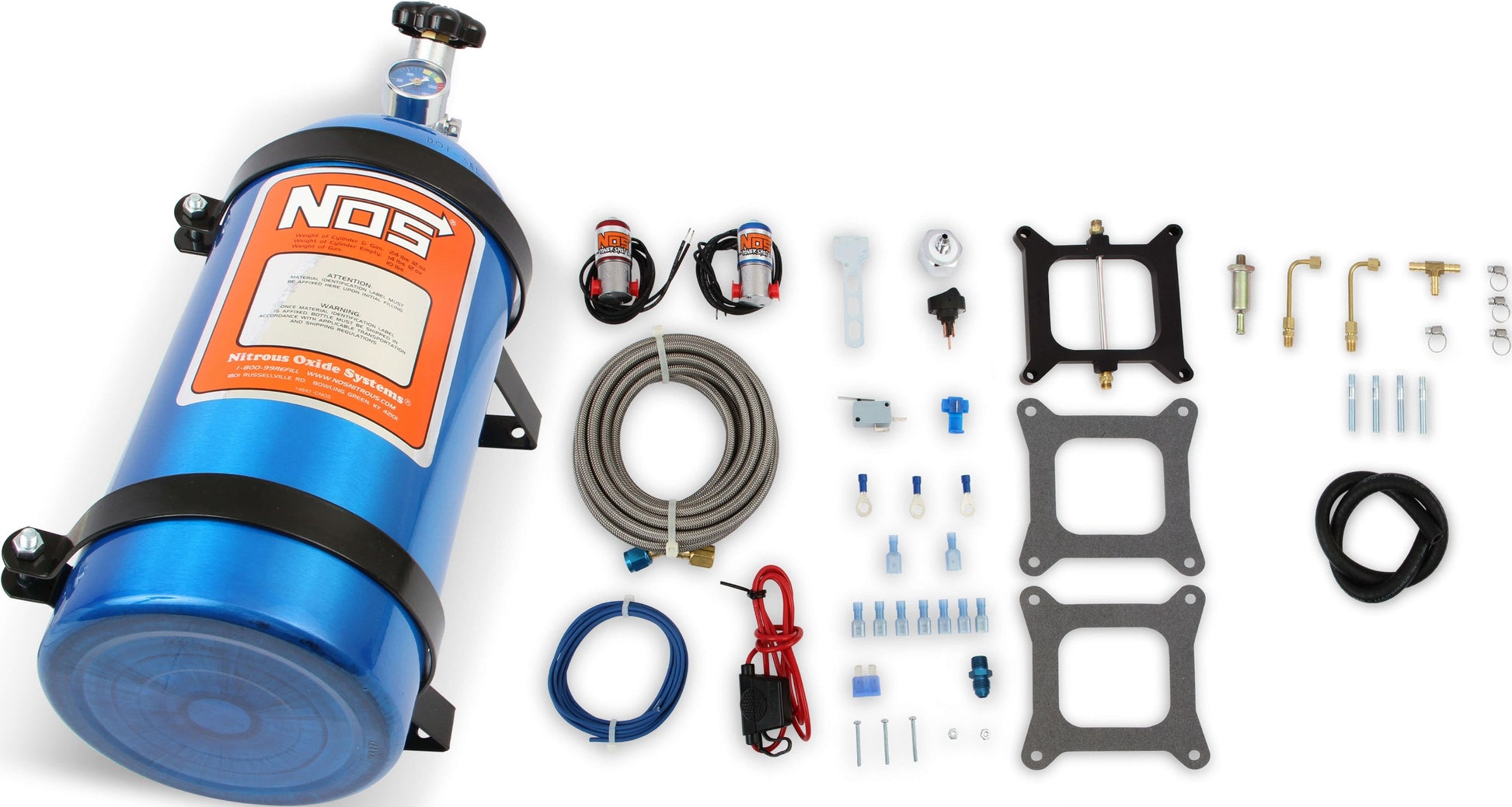

NOS SINGLE STAGE SYSTEMS INCLUDE EVERYTHING NEEDED INCLUDING 4AN FEED LINE, 1/2" ALUMINUM INJECTOR PLATE, BLUE 10 LB BOTTLE, SOLENOIDS, HARDWARE & INSTRUCTIONS TO COMPLETE THE INSTALL.

NOTE: TO SUPPLY THE PROPER AMOUNT OF FUEL TO THE CARBURETOR & POWERSHOT SYSTEM, FUEL PUMP MUST BE USED THAT IS DESIGNED TO OPERATE BETWEEN 4.5 & 7 PSI, WITH FLOW RATE OF 0.1 GALLONS PER HORSEPOWER AT 6 PSI. EXAMPLE: AN ENGINE THAT PRODUCES 350 HP WHEN POWERSHOT SYSTEM IS ACTIVATED WILL REQUIRE FUEL PUMP THAT FLOWS AT LEAST 35 GPH AT 6 PSI. ACTUAL PERFORMANCE GAINS WILL VARY DEPENDING ON ENGINE CONDITION & CONFIGURATION.

NOTE: SYSTEM IS NOT ADJUSTABLE.

FEATURES:

• INCLUDES 1/2" THICK ALUMINUM PLATE OFFERING EXCELLENT NITROUS & FUEL DISTRIBUTION
• INCLUDES FIXED JETTING FOR 125 HORSEPOWER
• THIS WET SYSTEM PROVIDES EXCEPTIONALLY SMOOTH POWER DELIVERY
• BOTTLE IS MADE FROM 6061-T6 ALUMINUM
• INCLUDES 10 LB. BLUE NITROUS BOTTLE WITH BRACKETS
• INCLUDES MOUNTING HARDWARE AND INSTRUCTIONS

SPECS:

• ACTIVATION: MICROSWITCH
• ADJUSTABLE: NO
• BOTTLE COLOR: BLUE
• BOTTLE INCLUDED: YES
• BOTTLE SIZE: 10 LB
• BRACKETS INCLUDED: YES
• BRAND: NOS
• DELIVERY STYLE: SQUARE BORE PLATE
• EMISSION CODE: 4
• FEED LINE SIZE: 4AN
• INCLUDED JETTING HORSEPOWER: 125
• JET STYLE: FLARE
• MAX HORSEPOWER: 125
• NITROUS SOLENOID: POWERSHOT
• NUMBER OF SOLENOIDS: 2
• PLATE FLANGE: 4150
• PLATE HEIGHT: 1/2"
• PLATE INCLUDED: YES
• PRODUCT TYPE: NOS KIT
• SYSTEM STYLE: WET

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS NITROUS KIT HERE, AND THE BOTTLE NOTIFICATION HERE.
