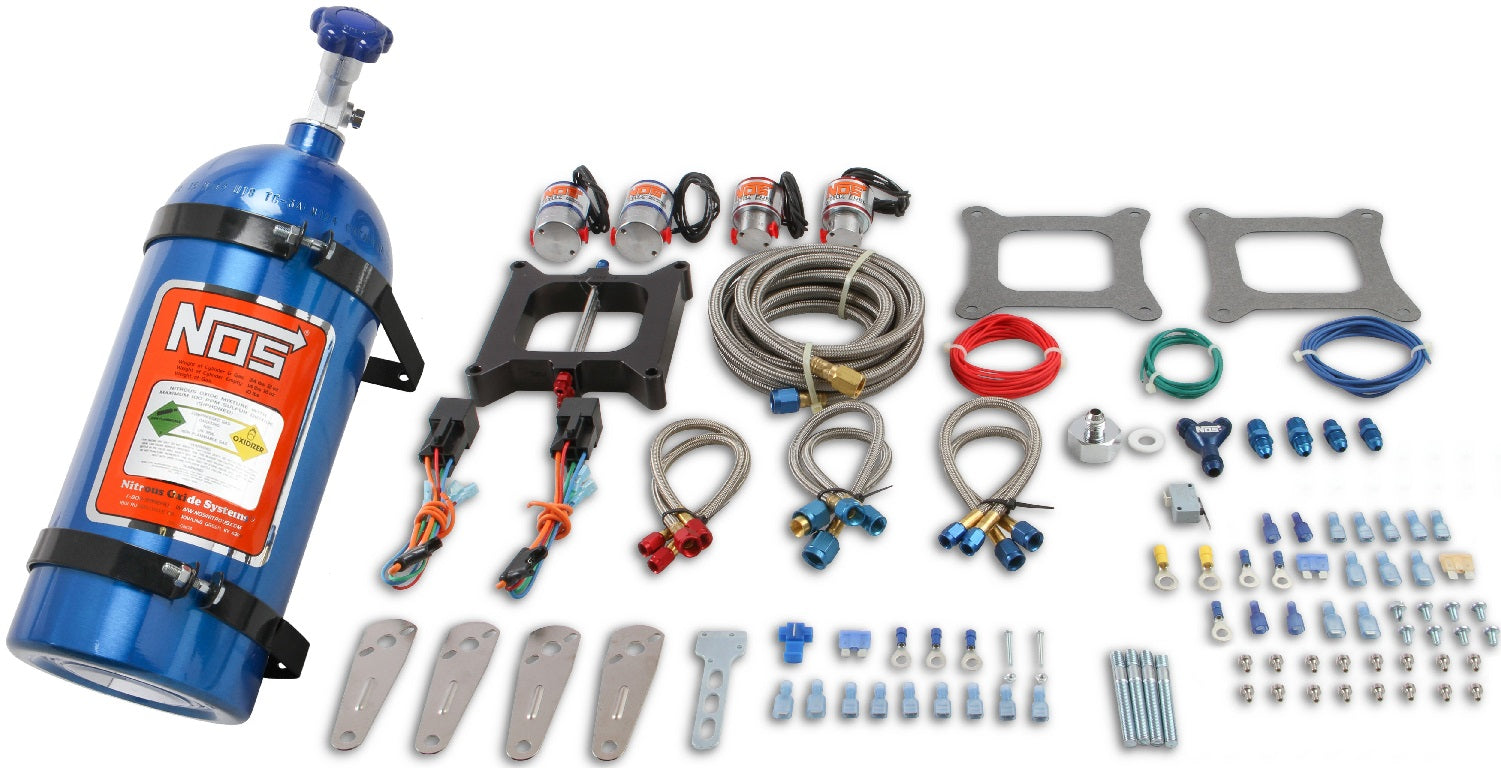

N20 KIT,200-500HP,PRO 2STAGE,10LB BLUE,4150

BRAND NEW NOS PRO 2 STAGE PLATE SYSTEM, 10LB BLUE BOTTLE, COMPATIBLE WITH V8 HOLLEY 4 BBL 4150 FLANGE

NOS PRO TWO-STAGE NITROUS OXIDE SYSTEMS GIVE YOU A MODERATE SHOT OF JUICE AT THE LINE TO GET A SOLID START. THEN, WITH THE TIRES PROPERLY HOOKED UP, A SECOND SHOT GIVES YOU SERIOUS MUSCLE THROUGH MID-TRACK AND ON INTO THE TOP END. THESE SYSTEMS ARE FULLY TUNABLE JUST BY RE-JETTING. RACING FUEL, A RACING IGNITION SYSTEM WITH TIMING CONTROL, AND INTERNAL ENGINE MODIFICATIONS ARE REQUIRED.

NOTE: TO SUPPLY PROPER AMOUNT OF FUEL TO CARBURETOR & BIG SHOT SYSTEM, A FUEL PUMP MUST BE USED THAT IS DESIGNED TO OPERATE BETWEEN 4.5-7 PSI, WITH A FLOW RATE OF 0.1 GALLONS PER HP AT 6 PSI. FOR EXAMPLE, AN ENGINE THAT PRODUCES 350 HP WHEN THE BIG SHOT SYSTEM IS ACTIVATED WILL REQUIRE A FUEL PUMP THAT FLOWS AT LEAST 35 GALLONS PER HOUR AT 6 PSI.

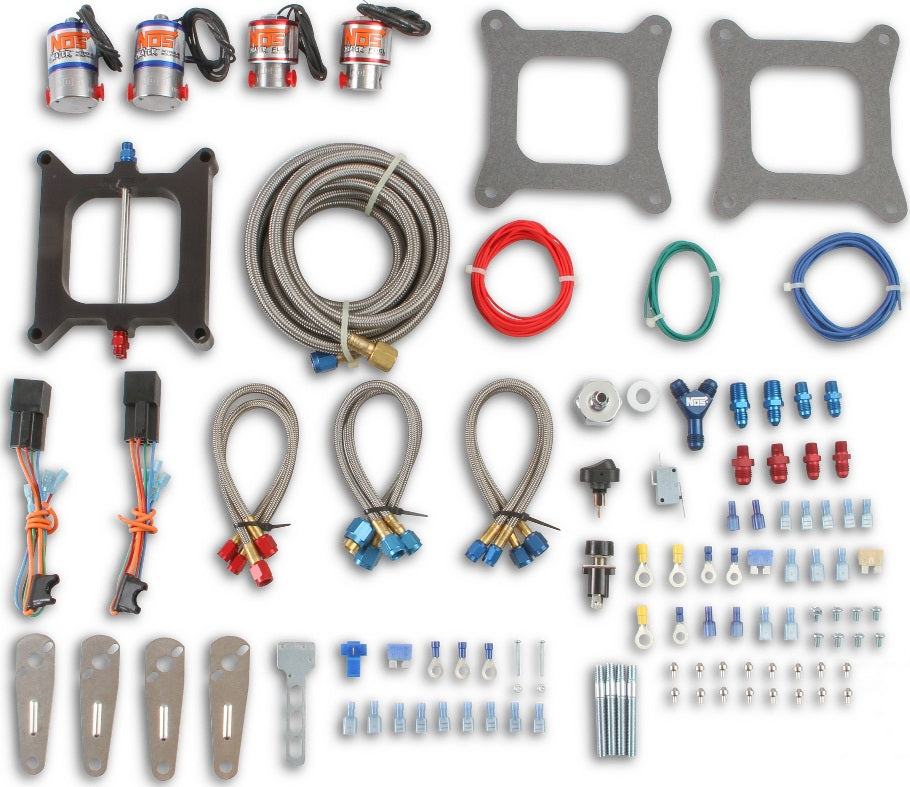

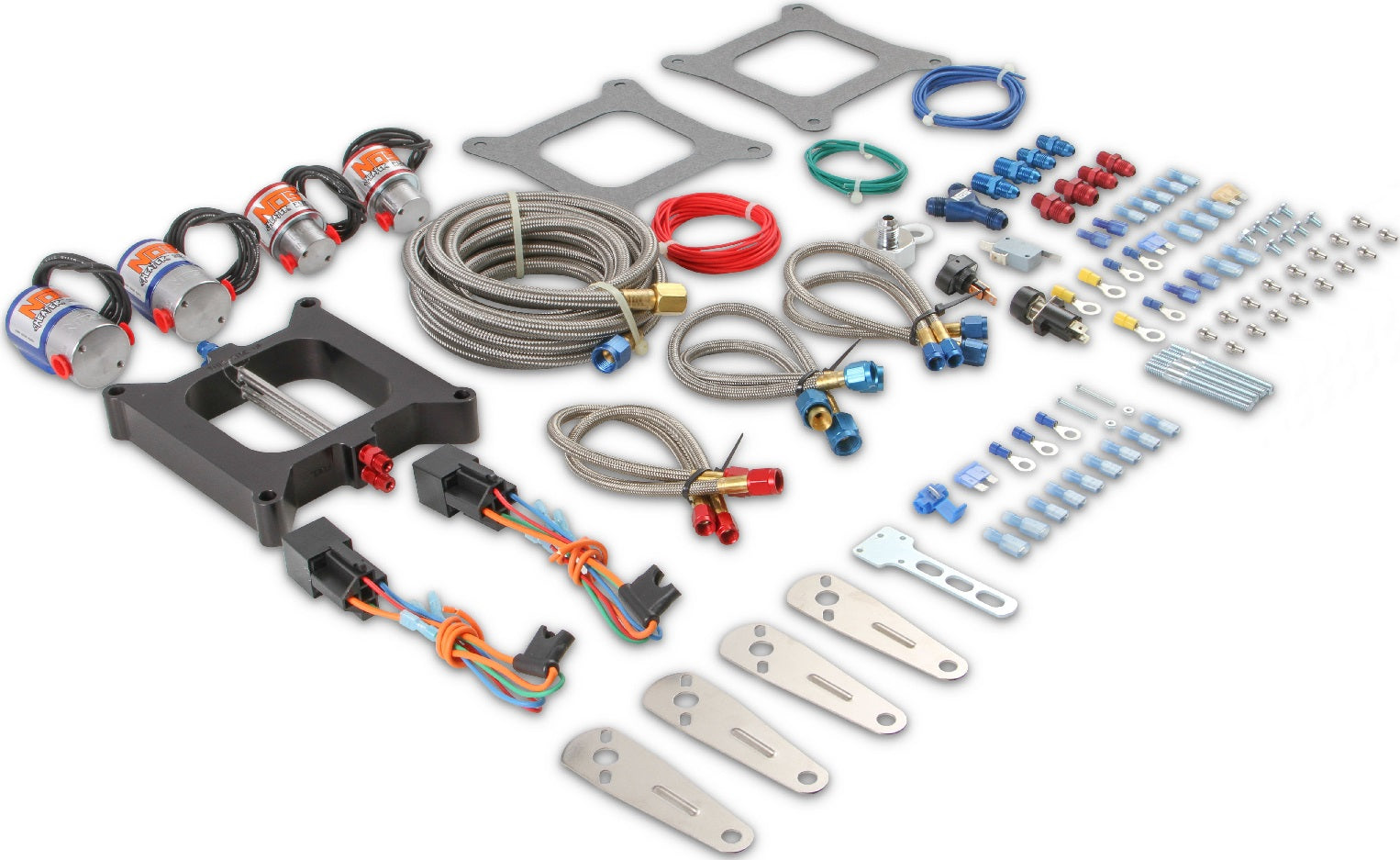

INCLUDES:

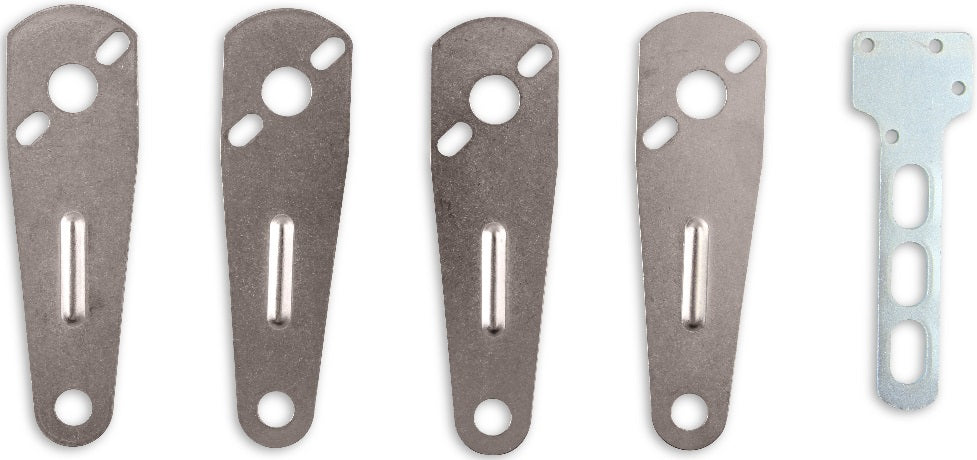

• BOTTLE & MOUNTING BRACKETS
• INJECTOR PLATE
• JETS
• SOLENOIDS
• SWITCHES
• WIRING
• STAINLESS STEEL BRAIDED SUPPLY LINES
• FITTINGS
• MOUNTING HARDWARE

FEATURES:

• 2 SETS NITROUS/FUEL SOLENOIDS
• INCLUDES 2 CHEATER SOLENOIDS
• INCLUDES SUPERPROSHOT NITROUS SOLUTION
• MORE GRADUAL POWER APPLICATION

SPECS:

• BOTTLE COLOR: NOS BLUE
• BOTTLE SIZE: 10 LB
• BRAND: NOS
• FUEL SOLENOID: CHEATER
• INCLUDED JETTING HORSEPOWER: 150, 200, 225, 250
• JET STYLE: FLARE
• MAX HORSEPOWER: 500
• NITROUS SOLENOID: CHEATER
• NUMBER OF SOLENOIDS: 4
• NUMBER OF STAGES: 2
• PLATE FLANGE: 4150
• PRODUCT TYPE: NOS SYSTEM
• SYSTEM STYLE: WET

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS KIT HERE.
