N2O KIT,250HP,CHEATER V-8,10LB BLUE,4150

BRAND NEW NOS CHEATER SERIES NITROUS SYSTEM, 150-250 HP, INCLUDES BLUE 10 LB BOTTLE, COMPATIBLE WITH HOLLEY 4150 & CARTER AFB LATE

THE NOS CHEATER SYSTEM USES LARGE NITROUS & FUEL SOLENOIDS THAT CAN BE ADJUSTED FOR POWER LEVELS UP TO 250 HORSEPOWER, IN A MATTER OF SECONDS. CHEATER SYSTEMS ARE EASY TO INSTALL & UTILIZE A 1/2" THICK INJECTOR PLATE WHICH FITS BETWEEN THE CARBURETOR & INTAKE MANIFOLD TO PROVIDE AMPLE HOOD CLEARANCE.

THESE SYSTEMS ARE AVAILABLE IN BOTH SINGLE-STAGE & DUAL-STAGE MODELS. DUAL-STAGE MODELS ARE BEST SUITED TO THOSE APPLICATIONS WHERE FULL POWER CANNOT BE APPLIED AT ONCE, DUE TO TRACTION LIMITATIONS. HOWEVER, EVEN GREATER CONTROL CAN BE REALIZED BY USING AN NOS PROGRESSIVE NITROUS CONTROLLER, SHOWN ELSEWHERE IN THIS CATALOG.

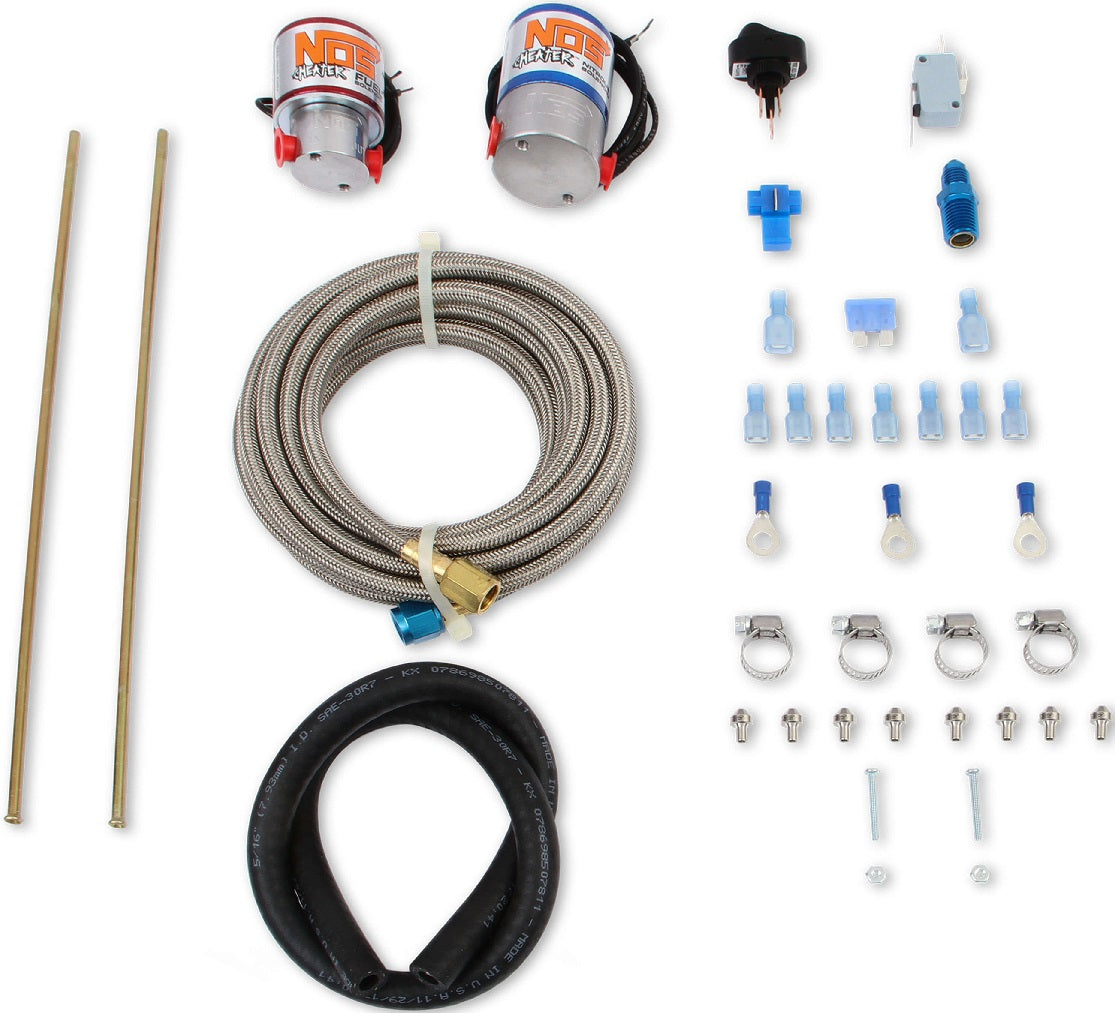

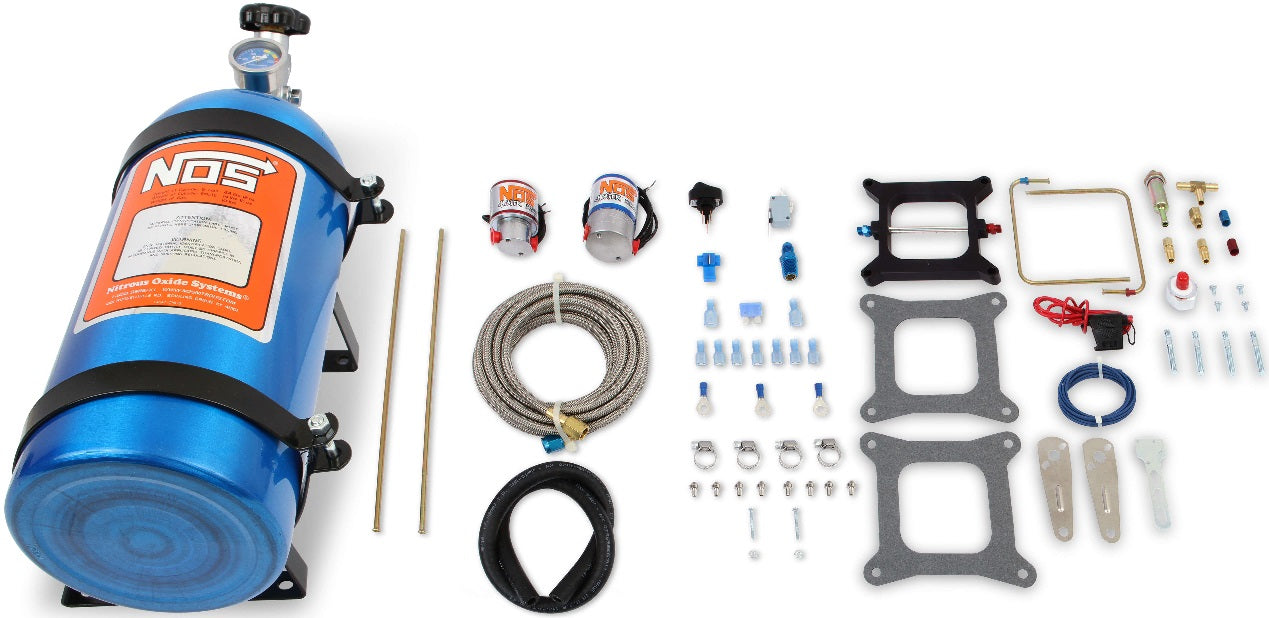

CHEATER SYSTEMS INCLUDE A 10 LB NITROUS BOTTLE, 4 STAGES OF JETS, AIRCRAFT-QUALITY STEEL BRAIDED LINES & ALL NECESSARY ELECTRICAL & MOUNTING HARDWARE FOR A COMPLETE INSTALLATION. EACH SINGLE CARBURETOR CHEATER SYSTEM INCLUDES JET PACK #13725 THAT ALLOWS JETTING TO 4 DIFFERENT HORSEPOWER LEVELS: 150, 180, 210 & 250. EACH MULTIPLE CARBURETOR CHEATER SYSTEM INCLUDES JET PACK #13735 THAT ALLOWS JETTING TO 4 DIFFERENT HORSEPOWER LEVELS: 150, 175, 200 & 250.

NOTE: TO SUPPLY THE PROPER AMOUNT OF FUEL TO THE CARBURETOR & CHEATER SYSTEM, A FUEL PUMP MUST BE USED THAT IS DESIGNED TO OPERATE BETWEEN 5 & 10 PSI, WITH A FLOW RATE OF 0.1 GALLONS PER HOUR PER HORSEPOWER AT 6 PSI. FOR EXAMPLE, AN ENGINE THAT PRODUCES 450 HORSEPOWER WHEN THE CHEATER SYSTEM IS ACTIVATED WILL REQUIRE A FUEL PUMP THAT FLOWS AT LEAST 45 GALLONS PER HOUR AT 6 PSI.

NOTE: THIS NITROUS SYSTEM INCLUDES THE 12500NOS NITROUS PLATE THAT IS LEGAL FOR USE IN DXP STREET RACING CLASS.

FEATURES:

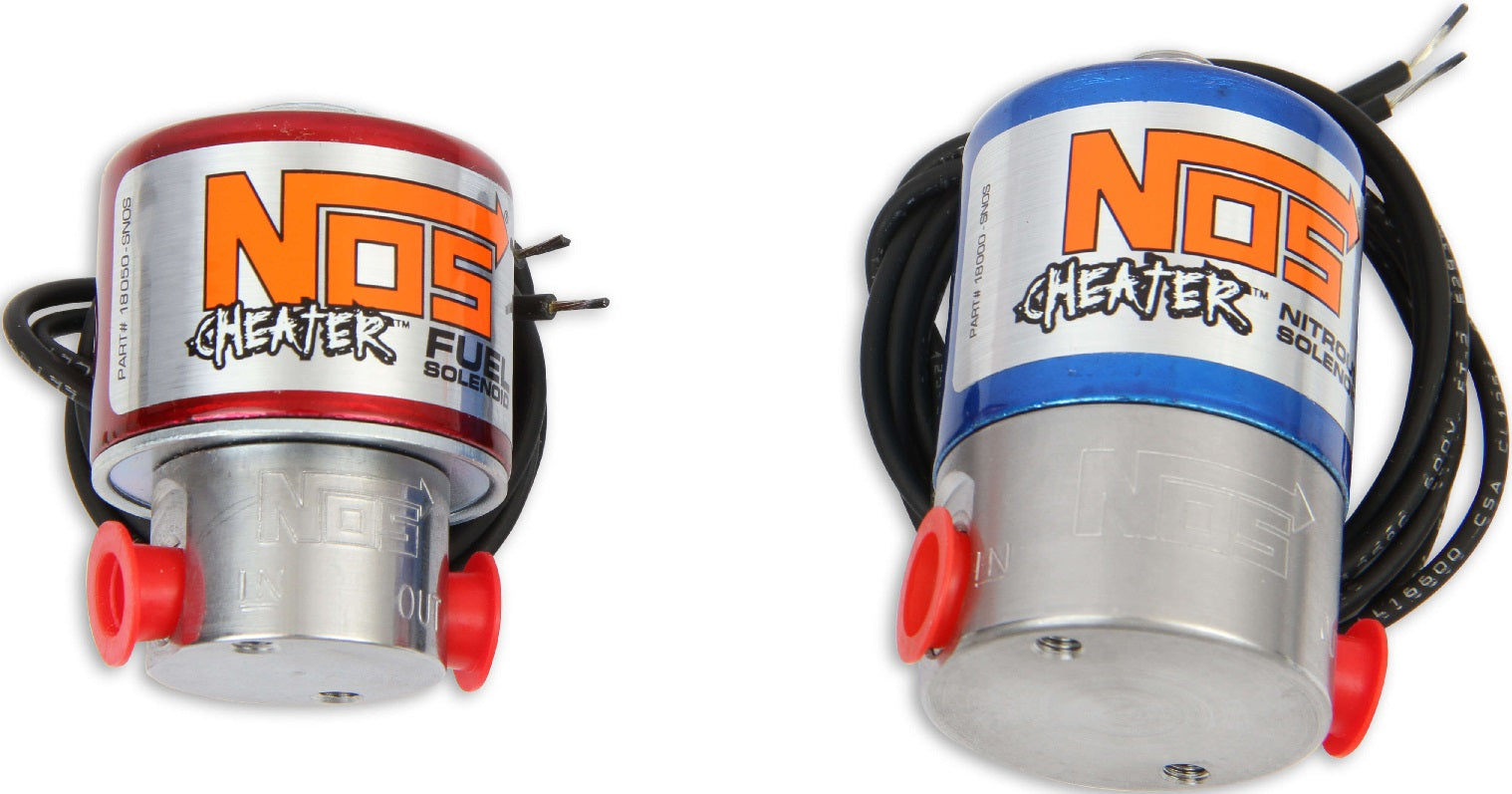

• LARGE NITROUS & FUEL SOLENOIDS
• ADJUSTABLE IN A MATTER OF SECONDS
• EASY TO INSTALL
• THIN 1/2" INJECTOR PLATE
• GIVES AMPLE HOOD CLEARANCE

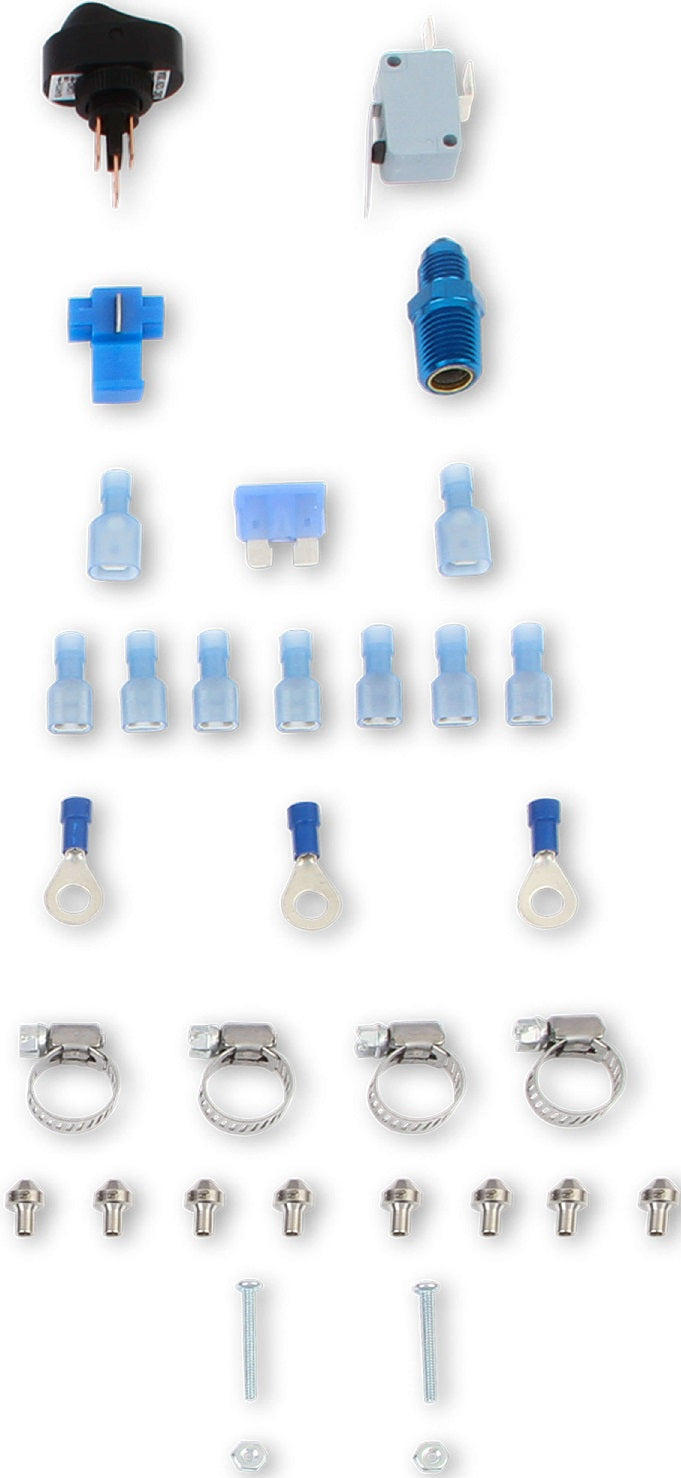

• INCLUDES NECESSARY ELECTRICAL HARDWARE

SPECS:

• BOTTLE COLOR: NOS BLUE
• BOTTLE SIZE: 10 LB
• BRAND: NOS
• EMISSION CODE: 4
• FUEL SOLENOID: CHEATER
• INCLUDED JETTING HORSEPOWER: 150, 180, 210, 250
• JET STYLE: FLARE
• MAX HORSEPOWER: 250
• NITROUS SOLENOID: CHEATER
• NUMBER OF SOLENOIDS: 2
• PLATE FLANGE: 4150
• PRODUCT TYPE: NOS KIT
• SYSTEM STYLE: WET

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS NITROUS KIT HERE, AND THE BOTTLE NOTICE HERE.
