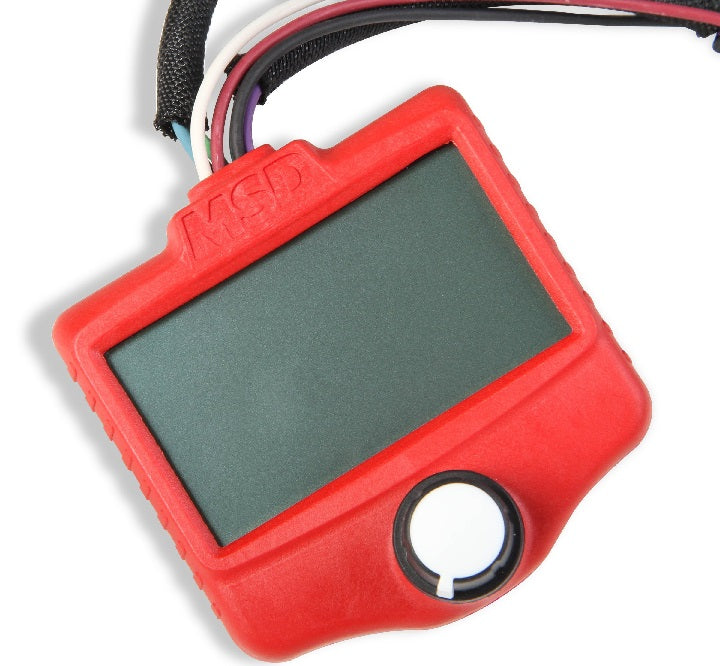

IGNITION TESTER,UNIVERSAL

Brand New MSD Universal Ignition Tester, Single Channel & Coil Per Cylinder Ignitions, Includes Power Grid Adapter Harness (Holley Part #89981).

As engine technology changes so does the need for ignition systems and a way to test them. MSD's ignition tester now has the ability to test not only traditional single coil ignition systems but also coil-per-cylinder applications. The 89981 tester even gives you the ability to create an RPM run and let the tester run through the RPM range. This allows you to see the ignition activate any accessories you may be running such as shifters, nitrous solenoids and more.

Features:

• Backlit, large and easy to read display
• Settings for 10 different crank types - 1-cyl, 4-cyl, 6-cyl, 6-cyl odd-fire, 8-cyl, 12-cyl, 24x, 58x, 12-1 & 36-1
• Electronic / Points, and Magnetic Trigger Inputs
• Cam Sync Output for testing DIS / EFI systems
• Engine speed sweep test mode
• Battery Voltage display
• Adjustable dwell / duty-cycle output
• Single knob controls all functions
• Compact design
• Easy hookup
• Power Grid adapter harness included
• Spark Plug tester included

Specs:

• Brand: MSD
• Product Type: Test Tool

You can view and download the complete assembly instruction booklet here.
