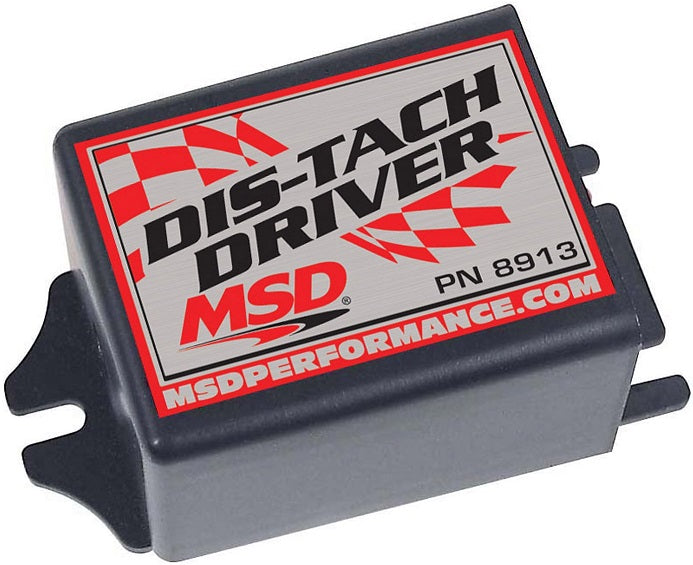

TACH DRIVER,12V,DISTRIBUTORLESS IGNITIONS

BRAND NEW MSD DISTRIBUTORLESS TACH DRIVER, COMPATIBLE WITH 4, 6 OR 8-CYLINDER ENGINES

EVER WONDER HOW YOU CAN INSTALL AN AFTERMARKET TACHOMETER ON A VEHICLE WITH NO DISTRIBUTOR AND MULTIPLE COIL PACKS? MSD HAS THE ANSWER WITH THE DISTRIBUTORLESS TACH DRIVER!

THE COMPACT TACH DRIVER MEASURES ONLY 1.5" X 3.5" X 2" AND IS POTTED WITH A POLYURETHANE COMPOUND FOR VIBRATION AND WATER PROTECTION SO IT CAN EASILY BE MOUNTED UNDER THE HOOD. IT WIRES INLINE ON THE COILS 12 VOLT SUPPLY WIRE WHERE IT SENSES THE CURRENT GOING THROUGH THIS WIRE AND CONVERTS THIS INFORMATION INTO A 12 VOLT OUTPUT SIGNAL THAT MOST AFTERMARKET TACHOMETERS USE AS A TRIGGER SIGNAL. IT CAN BE USED ON 4, 6 OR 8-CYLINDER ENGINES

NOTE: NOT COMPATIBLE WITH ODD-FIRE ENGINES

FEATURES:

• EASILY CONNECT A TACHOMETER TO A COIL-PER-CYLINDER IGNITION
• ALSO CAN BE USED TO DRIVE OTHER RPM CONTROLLED DEVICES
• COMPACT HOUSING IS EASY TO MOUNT

SPECS:

• BRAND: MSD
• PRODUCT TYPE: TACH DRIVER

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS TACH DRIVER HERE.
