CRANK TRIGGER KIT,LS GEN III/IV,HALL EFFECT,7 1/4"

CRANK TRIGGER KIT,LS GEN III/IV,HALL EFFECT,7 1/4"

SKU:MSD 8619

Regular price $644.95
Regular price Sale price $644.95
View full details

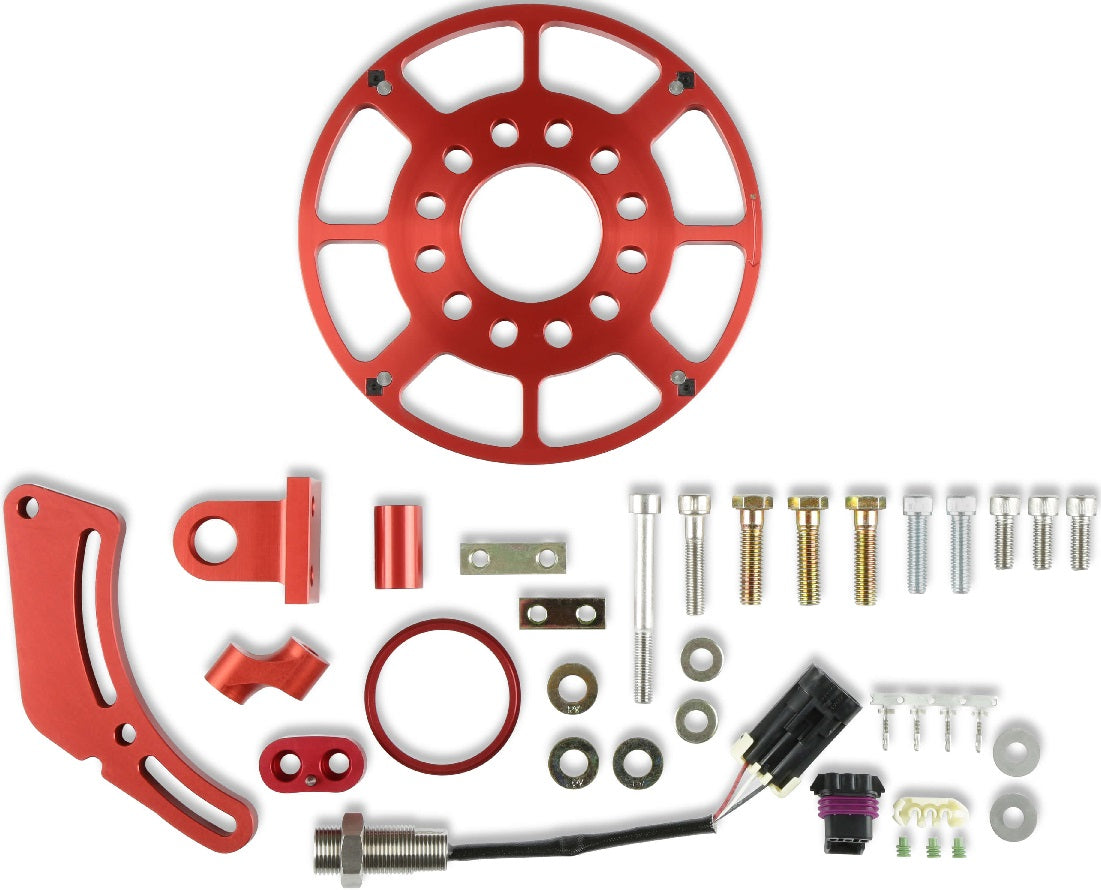

BRAND NEW MSD CRANK TRIGGER WHEEL KIT, RED, FLYING MAGNET, HALL EFFECT, 7.25" DIAMETER, COMPATIBLE WITH GEN III & IV SMALL BLOCK CHEVROLET

UPGRADING TO AN MSD FLYING MAGNET CRANK TRIGGER KIT WILL DELIVER THE PRECISE AND RELIABLE SIGNAL THAT A HIGH PERFORMANCE ENGINE REQUIRES. THIS KIT GIVES YOU THE ABILITY TO CONTROL TIMING ELECTRONICALLY THROUGH A HOLLEY EFI ECU (OR OTHER STANDALONE ENGINE MANAGEMENT SYSTEM / IGNITION CONTROLLER).

INCLUDES A 3-WIRE HALL-EFFECT SENSOR THAT IS EASIER TO SET UP, LESS SUSCEPTIBLE TO EMI/RFI INTERFERENCE/NOISE, AND LESS LIKELY TO HAVE FALSE SIGNALS THAN OTHER METHODS (DISTRIBUTORS AND VR MAGNETIC SENSORS). THEY ARE LESS PRONE TO MECHANICAL FAILURE SINCE THERE ARE NO WEAR PARTS. WITH THE INCLUDED HIGH QUALITY TIMING POINTER AND THE USE OF A DIRECT BOLT-ON, DEGREED BALANCER (ATI 917777 OR 917211), IT ALLOWS ADJUST TIMING IN THE PRECISE INCREMENTS REQUIRED FOR YOUR LS ENGINE.

FEATURES:

  • MOST ACCURATE WAY TO TRIGGER YOUR ELECTRONIC FUEL INJECTION (EFI)
  • POWERFUL MAGNETS EMBEDDED IN A 3/8" THICK BILLET 6061-T6 ALUMINUM TRIGGER WHEEL
  • 3-WIRE HALL-EFFECT SENSOR THAT IS NOT EASILY SUSCEPTIBLE TO EMI/RFI INTERFERENCE
  • ALLOWS PRECISE INDEXING BY UTILIZING THE 10 DEGREE RANGE ON INCLUDED TIMING POINTER
  • EASY TO INSTALL MUCH LIKE TRADITIONAL MSD CRANK TRIGGER KITS (USE WITH ATI BALANCER - 917777 OR 917211)
  • RIGID MOUNTING THAT WILL NOT FLEX AND CAUSE TIMING FLUCTUATION

SPECS:

  • BRAND: MSD
  • COLOR: RED
  • DIAMETER: 7.25"
  • MAKE: CHEVROLET
  • OPERATING VOLTAGE: 5-20 VOLTS
  • PRODUCT TYPE: CRANK TRIGGER KIT
  • SENSOR TYPE: HALL EFFECT

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CRANK TRIGGER KIT HERE.
