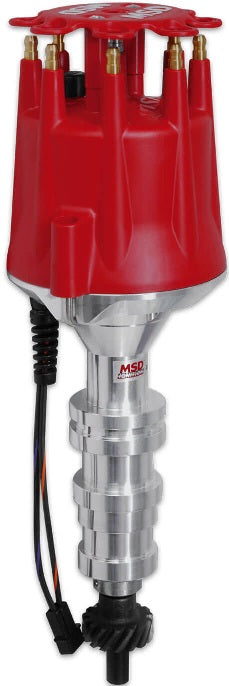

DISTRIBUTOR,PRO BILLET,FORD FE

BRAND NEW MSD PRO BILLET DISTRIBUTOR, RED FINISH, MSD 6-7-8 SERIES, COMPATIBLE WITH FORD 332, 352, 360, 390, 406, 410, 427 & 428 FE ENGINES

RACERS AND NOSTALGIC FORD ENTHUSIASTS USING THE FAMOUS FORD FE ENGINE NOW HAVE ACCESS TO A DISTRIBUTOR THAT IS TRULY EQUAL TO THE PERFORMANCE LEVEL OF THEIR ENGINE.

A MAGNETIC PICK-UP TRIGGERS YOUR MSD IGNITION CONTROL ACCURATELY AT ANY RPM. ABOVE THIS PICK-UP THE MECHANICAL ADVANCE ASSEMBLY IS POSITIONED SO IT CAN BE ADJUSTED WITHOUT DISASSEMBLING THE DISTRIBUTOR. THE SPECIALLY GROUND ADVANCE CAM IS TIG-WELDED TO THE 9/16" HARDENED SHAFT AND THE WEIGHT PINS ARE STAKED AND TIG-WELDED TO THE ADVANCE PLATE.

NOTE: MUST BE USED WITH AN MSD 6, 7 OR 8-SERIES IGNITION.

FEATURES:

• CNC MACHINED BILLET ALUMINUM HOUSING AND BILLET ALUMINUM BASE
• WILL NOT ACCEPT A VACUUM ADVANCE OR MSD CAP-A-DAPT
• SUPPLIED WITH AN HEI STYLE DISTRIBUTOR CAP & ROTOR
• MUST BE USED WITH AN MSD IGNITION CONTROL
• MECHANICAL ADVANCE ASSEMBLY CAN BE LOCKED OUT FOR CRANK TRIGGER SYSTEMS
• NYLON PADS ENSURE SMOOTH OPERATION OF THE ADVANCE WEIGHTS
• ADVANCE WEIGHT PINS ARE STAKED & TIG WELDED TO THE PLATE
• ADVANCE PLATE & WEIGHTS ARE FINE BLANKED FROM CHROME MOLY STEEL & QPQ COATED FOR FRICTION REDUCTION
• POLISHED STEEL SHAFT IS QPQ COATED & GUIDED BY A SEALED BALL BEARING
• MAGNETIC PICKUP & PRECISION RELUCTOR CREATE STABLE TRIGGER SIGNALS THROUGHOUT RPM RANGE
• EASY-TO-ADJUST MECHANICAL ADVANCE WITH SUPPLIED SPRINGS & STOP BUSHINGS

SPECS:

• BRAND: MSD
• COLOR: RED
• DISTRIBUTOR TYPE: MAGNETIC PICKUP
• ENGINE: FORD FE BLOCK
• GEAR: CAST IRON
• PRODUCT TYPE: DISTRIBUTOR

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS DISTRIBUTOR HERE.
