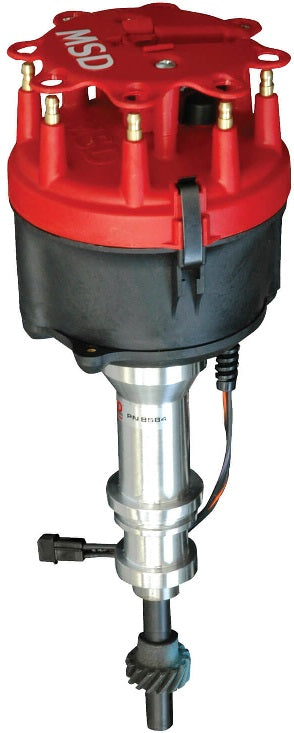

DISTRIBUTOR,PRO BILLET,FORD 289/302W

BRAND NEW MSD BILLET DISTRIBUTOR, RED, IRON GEAR, SMALL BLOCK FORD 289/302, COMPATIBLE WITH MSD 6-7-8 SERIES IGNITION

JUST UNDER THE BRASS TERMINALS OF THE MSD CAP & ROTOR IS A MECHANICAL ADVANCE ASSEMBLY, FINE BLANKED FROM CHROMOLY STEEL, TIG-WELDED FOR STRENGTH. THE PRECISION WEIGHTS GLIDE ON NYLON BUSHINGS FOR SMOOTH ADVANCEMENT & DIFFERENT SPRINGS & STOP BUSHINGS ARE SUPPLIED SO A VARIETY OF ADVANCE CURVES CAN BE TUNED. THE ADJUSTABLE MECHANICAL ADVANCE ASSEMBLY ALLOWS YOU TO ACCURATELY & EASILY MODIFY THE ADVANCE CURVE TO MATCH YOUR SPECIFIC APPLICATION.

THE STEEL SHAFT THAT SPINS THE ADVANCE & RELUCTOR RECEIVES A FRICTION-REDUCING COATING PLUS IS GUIDED BY A SEALED BALL BEARING & LONG SINTERED BUSHING. THIS COMBINATION PROVIDES STABLE TIMING SIGNALS & SPARK DELIVERY AT ANY RPM. TRIGGERING CHORES ARE HANDLED BY MSD RACE-PROVEN, MAINTENANCE-FREE MAGNETIC PICK-UP. COMES COMPLETE WITH A RACE ROTOR & ALKYD CAP.

NOTE: MUST BE USED WITH MSD 6-7-8 SERIES IGNITION.

FEATURES:

• CNC MACHINED BILLET ALUMINUM HOUSING
• SUPPLIED WITH CAP-A-DAPT & ROTOR (ACCEPTS MSD SOCKET STYLE CAPS)
• MECHANICAL ADVANCE ASSEMBLY CAN BE LOCKED OUT FOR CRANK TRIGGER SYSTEMS
• NYLON PADS ENSURE SMOOTH OPERATION OF THE ADVANCE WEIGHTS
• ADVANCE WEIGHT PINS ARE STAKED & TIG WELDED TO THE PLATE
• ADVANCE PLATE & WEIGHTS ARE FINE BLANKED FROM CHROME MOLY STEEL & QPQ COATED FOR FRICTION REDUCTION
• POLISHED STEEL SHAFT IS QPQ COATED & GUIDED BY A SEALED BALL BEARING
• MAINTENANCE-FREE MAGNETIC PICKUP & PRECISION RELUCTOR CREATE STABLE TRIGGER SIGNALS THROUGHOUT THE RPM RANGE
• EASY-TO-ADJUST MECHANICAL ADVANCE WITH SUPPLIED SPRINGS & STOP BUSHINGS

SPECS:

• DISTRIBUTOR TYPE: MAGNETIC PICKUP
• ENGINE: FORD SMALL BLOCK V8
• GEAR: CAST IRON
• PRODUCT TYPE: DISTRIBUTOR

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS DISTRIBUTOR HERE.
