DISTRIBUTOR,CORVETTE V8,TACH DRV W/VAC

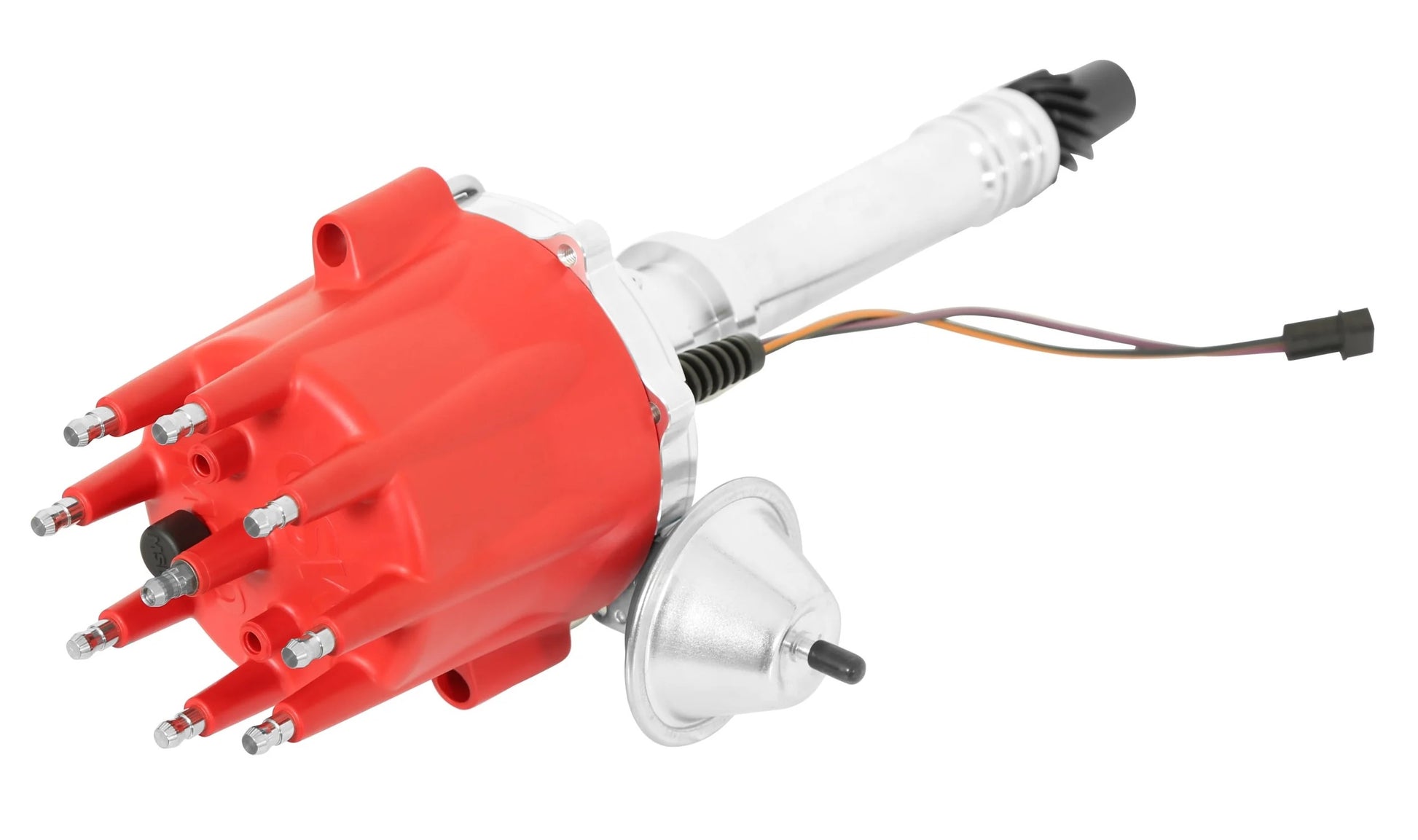

Brand New MSD Tach Drive Distributor with Vacuum Advance for Corvette V8 (Part #8572).

An adjustable mechanical advance assembly allows you to get the most performance out of your Vette's engine by custom tailoring a timing curve to fit your application. Corvette owners can now replace their worn out Magna-Pulse distributors with this precision Pro-Billet Tach Drive Distributor. Advantages such as an accurate magnetic pick-up, oversized shaft, vacuum advance and a billet aluminum housing are just a few of the MSD advantages.

Inside the billet housing, a sealed ball bearing and long sintered bushing guide a 0.500" steel shaft for high rpm accuracy. A special reluctor is mounted to this shaft and is responsible for triggering the magnetic pick-up. The tach drive assembly is compact to clear the firewall and linkage. It can be repositioned easily to fit different applications plus has a grease fitting for lubrication.

Compatible with:

• Chevrolet:
  • 1962-1974 Corvette

Notes:

• Must be used with an MSD 6, 7 or 8-series ignition.
• The kit includes a tube of camshaft and lifter lubricant that should be applied liberally to the distributor drive gear before installing the MSD Distributor in the engine.

Features:

• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range

• Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)

• Advance plate and weights are fine blanked from chrome moly steel and
• QPQ coated for friction reduction

• Nylon pads ensure smooth operation of the advance weights

• Polished steel shaft is QPQ coated and guided by a sealed ball bearing

• Advance weight pins are staked and TIG welded to the plate

• Will not accept a vacuum advance canister

• CNC machined billet aluminum housing and billet aluminum base

• No CARB Exemption Order Number

• Easy-to-adjust mechanical advance with supplied springs and stop bushings

• Mechanical advance assembly can be locked out for crank trigger systems

Specs:

• Brand: MSD
• Color: Red
• Distributor Type: Mechanical Tach Drive
• Engine: 1962-1974 Corvette V8
• Gear: Cast Iron
• Ignition Box Required: Yes

• Ignition Coil Included: No

• Ignition Rotor Included: Yes
• Product Type: Distributor

You can view and download the instructions here.
