DISTRIBUTOR,PRO BILLET,CHEVY V-8,SMALL

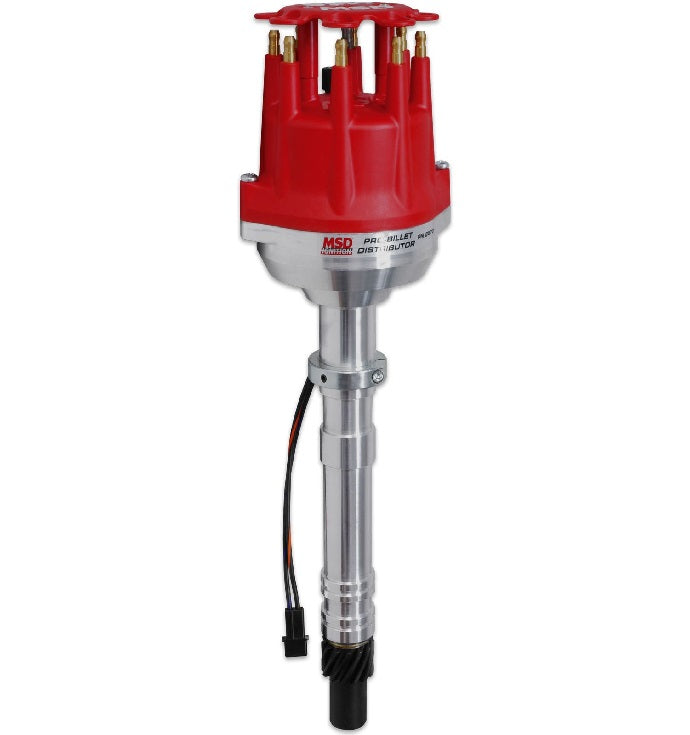

BRAND NEW MSD PRO BILLET SMALL DIAMETER DISTRIBUTOR, RED FINISH, MSD 6-7-8-10 SERIES IGNITION, COMPATIBLE WITH CHEVY V8 ENGINES

THIS DISTRIBUTOR WAS DESIGNED FOR RACERS AND STREET RODDERS THAT HAVE SPACE LIMITATIONS DUE TO FIREWALL INTERFERENCE, BLOWERS OR OVERSIZED INTAKE MANIFOLDS SUCH AS TUNNEL RAMS. THE DISTRIBUTOR IS 3/8" NARROWER & ALMOST 1" SHORTER THAN A STANDARD DISTRIBUTOR.

PROVEN PERFORMANCE FEATURES INCLUDE A HIGH OUTPUT MAGNETIC PICK-UP AND PRECISION MACHINED RELUCTOR FOR ACCURATE IGNITION TRIGGERING. A FULLY ADJUSTABLE MECHANICAL ADVANCE ALLOWS YOU TO TAILOR THE ADVANCE CURVE TO YOUR SPECIFIC APPLICATION. TOPPING IT ALL OFF IS OUR OWN SMALL DIAMETER CAP. THIS IS MOLDED OUT OF DURABLE RYNITE MATERIAL AND COMES WITH AN OPTIONAL WIRE RETAINER.

NOTE: SLIP COLLAR ADJUSTMENT IS .750" FROM STANDARD COLLAR HEIGHT.

FEATURES:

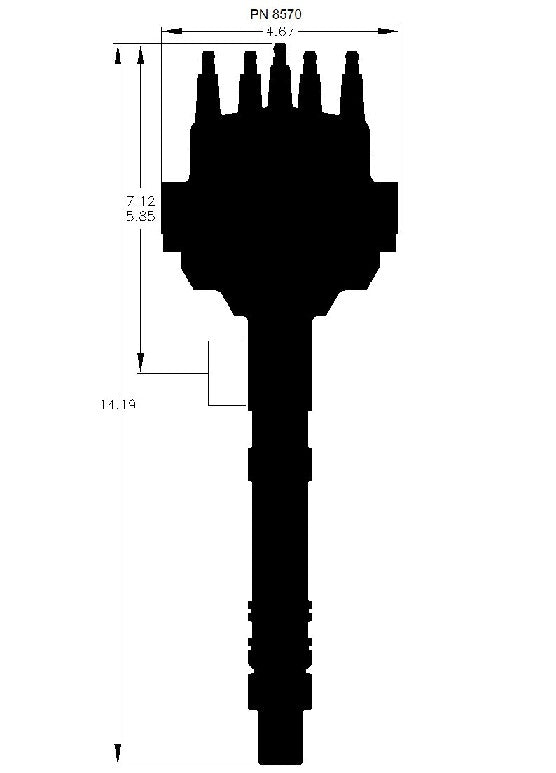

• CNC MACHINED BILLET ALUMINUM HOUSING IS 3/8" SMALLER IN DIAMETER AND 7/8" SHORTER THAN CONVENTIONAL CHEVY V-8 DISTRIBUTORS WITH THE POINTS TYPE CAP
• SMALL DIAMETER HEI STYLE DISTRIBUTOR CAP & ROTOR (WILL ACCEPT 8441 CAP-A-DAPT)
• WILL NOT ACCEPT A VACUUM ADVANCE CANISTER
• O-RING SEALS CAN BE ADDED TO MODIFIED BLOCKS TO IMPROVE OIL PRESSURE CONTROL
• ONLY COMPATIBLE WITH MSD 6, 7, 8, OR 10 SERIES IGNITION
• SPECIAL OIL TRACT IMPROVES LUBRICATION TO THE DISTRIBUTOR AND CAM GEAR
• MAGNETIC PICKUP & PRECISION RELUCTOR CREATE STABLE TRIGGER SIGNALS THROUGHOUT RPM RANGE
• EASY-TO-ADJUST MECHANICAL ADVANCE WITH SUPPLIED SPRINGS AND STOP BUSHINGS
• ADJUSTABLE SLIP COLLAR MOUNTING FLANGE FOR ENGINES WITH MODIFIED DECK HEIGHTS
• POLISHED STEEL SHAFT IS QPQ COATED AND GUIDED BY A SEALED BALL BEARING AND EXTRA LONG SINTERED BUSHING
• ADVANCE PLATE & WEIGHTS FINE BLANKED FROM CHROME MOLY STEEL & QPQ COATED FOR FRICTION REDUCTION
• ADVANCE WEIGHT PINS ARE STAKED AND TIG WELDED TO THE PLATE
• NYLON PADS ENSURE SMOOTH OPERATION OF THE ADVANCE WEIGHTS
• MECHANICAL ADVANCE ASSEMBLY CAN BE LOCKED OUT FOR CRANK TRIGGER SYSTEMS

SPECS:

• BRAND: MSD
• COLOR: RED
• DISTRIBUTOR TYPE: MAGNETIC PICKUP
• PRODUCT TYPE: DISTRIBUTOR

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS DISTRIBUTOR HERE.
