PONTIAC DIST.,V8,350,455

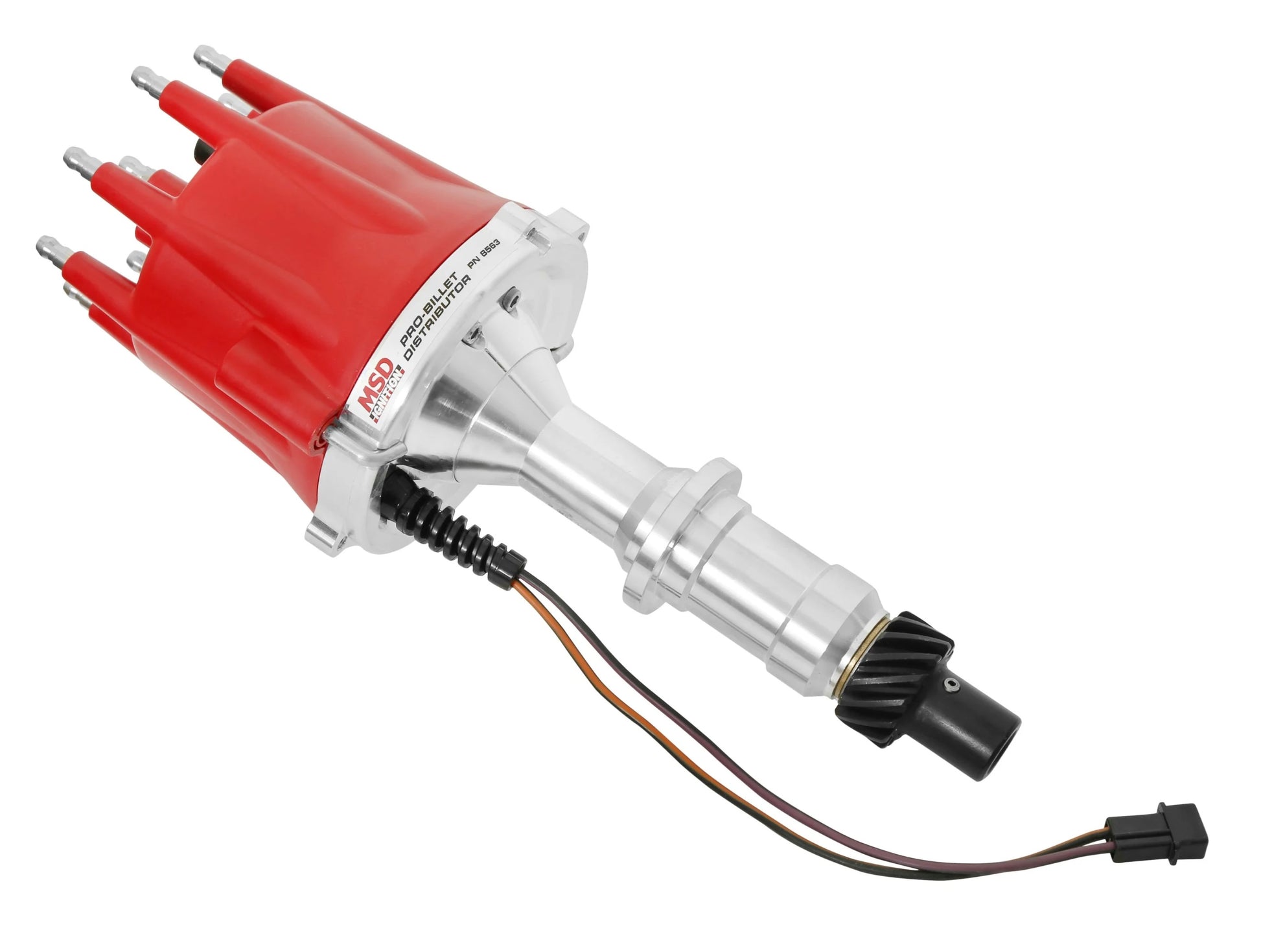

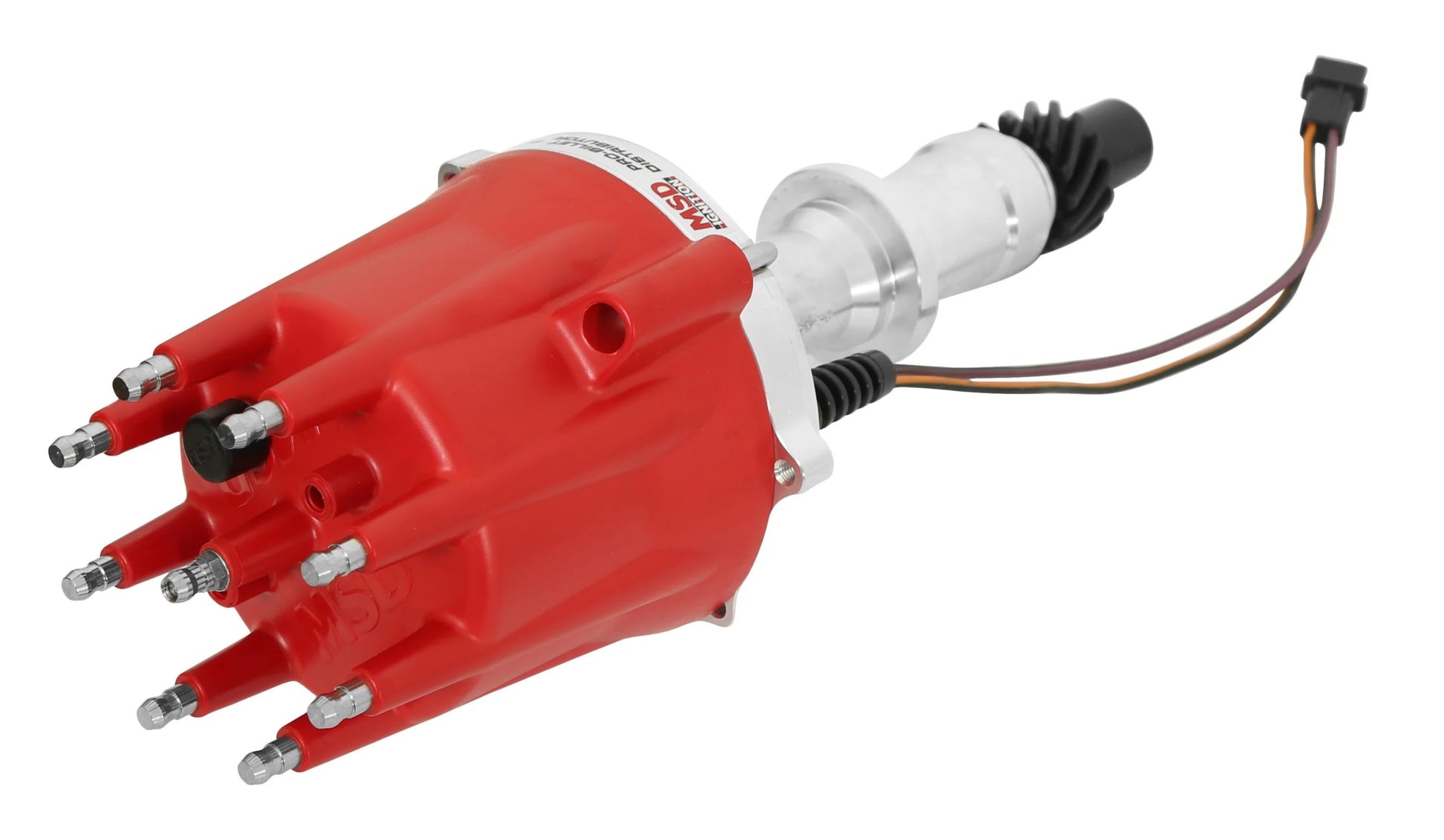

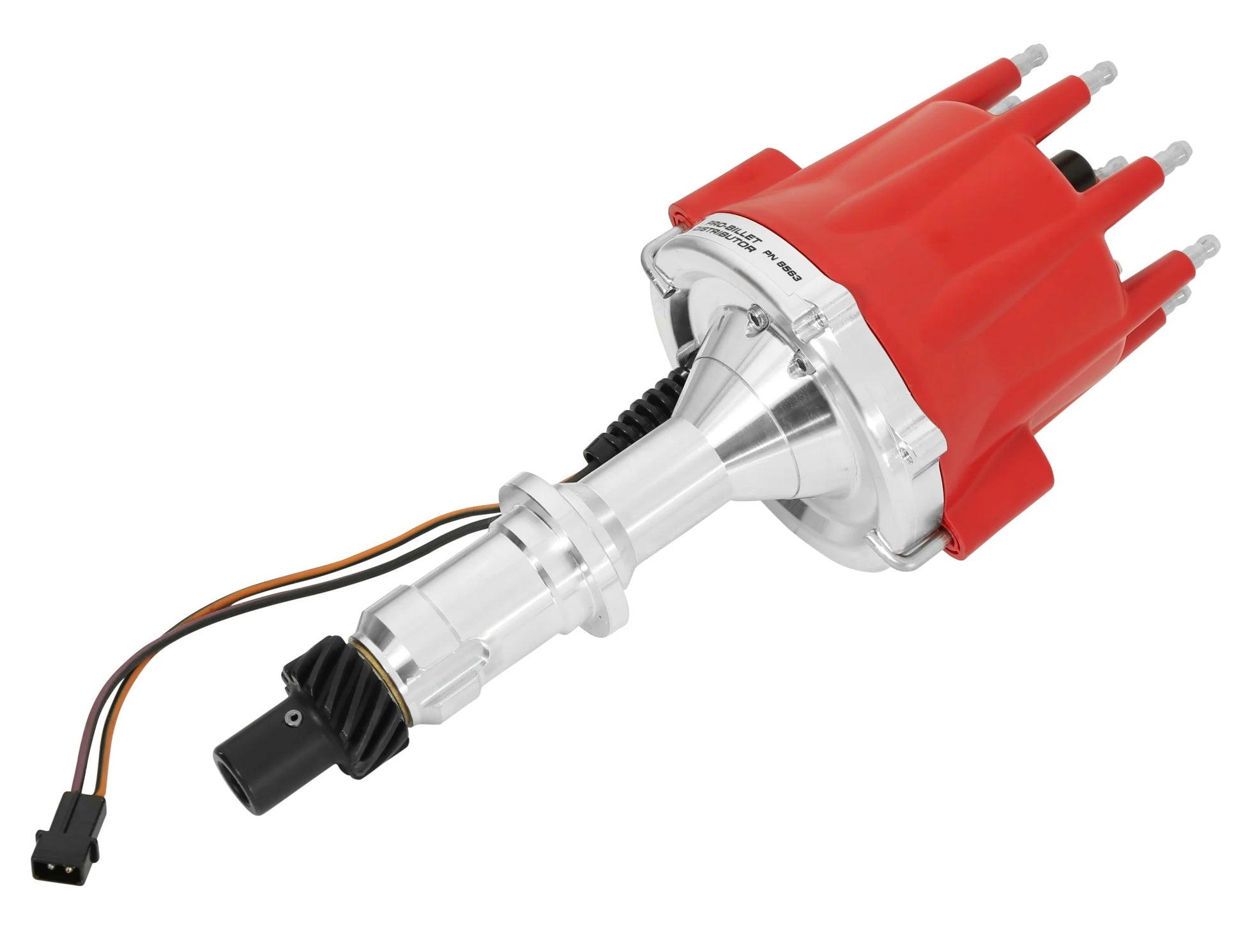

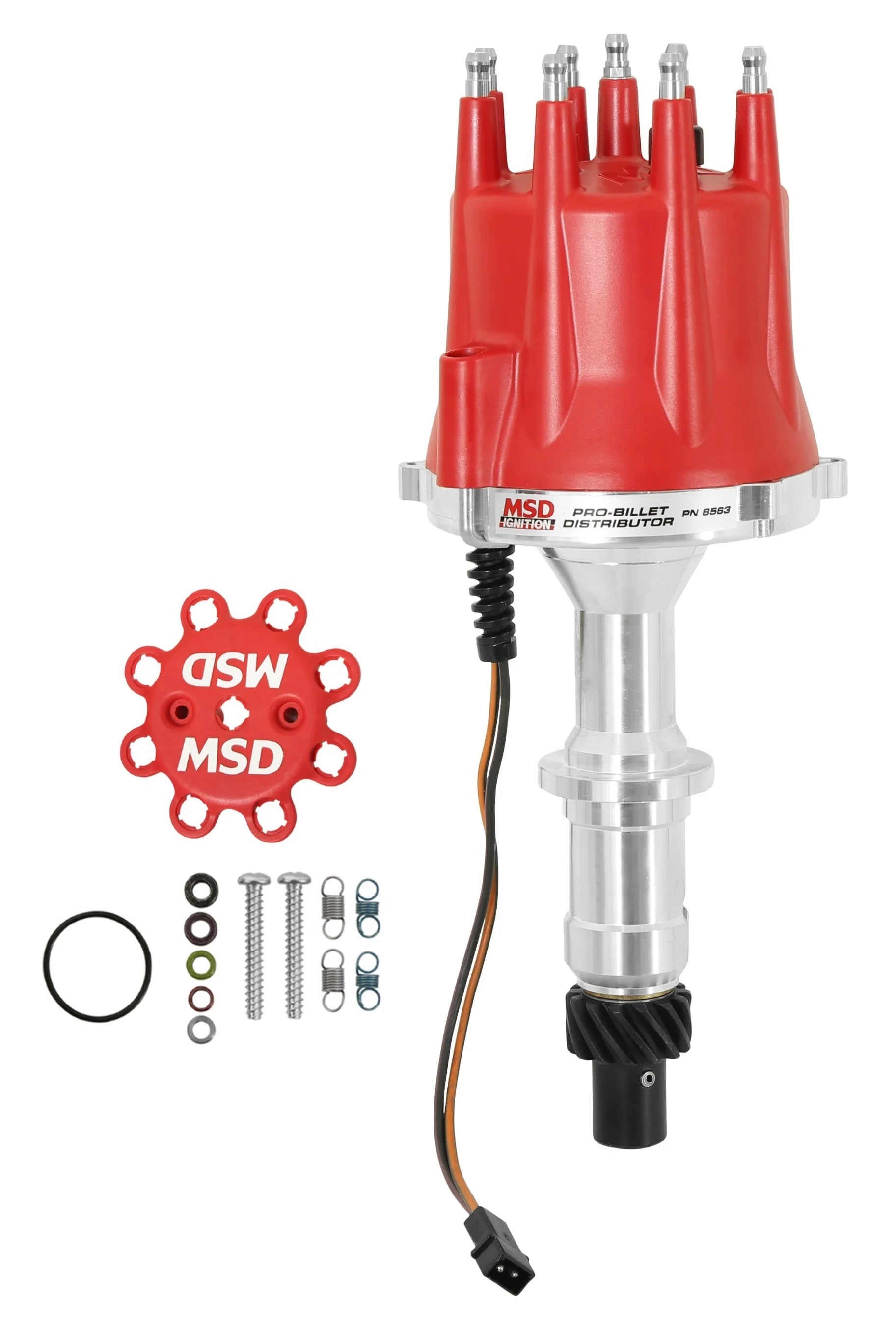

Brand New MSD Pro-Billet Distributor for Pontiac 326-455 V8 (Part #8563).

Special features include a fully adjustable mechanical advance assembly. For all-out racing, the advance mechanism can also easily be locked-out. For stable timing, a high-output magnetic trigger pick-up is used to supply the ignition with a trigger signal. Additional stability is achieved via the 0.500" hardened distributor shaft that is supported by sealed ball bearings. MSD's Pro-Billet Pontiac V8 Distributor for Pontiac engines built for either street performance or hard core racing applications.

Compatible with:

• Pontiac 326, 350, 389, 400, 421, 428, and 455 V8 Engines

Notes:

• Must be used with an MSD 6, 7 or 8-series ignition.
• The kit includes a tube of camshaft and lifter lubricant that should be applied liberally to the distributor drive gear before installing the MSD Distributor in the engine.

Features:

• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range

• Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)

• Advance plate and weights are fine blanked from chrome moly steel and
• QPQ coated for friction reduction

• Nylon pads ensure smooth operation of the advance weights

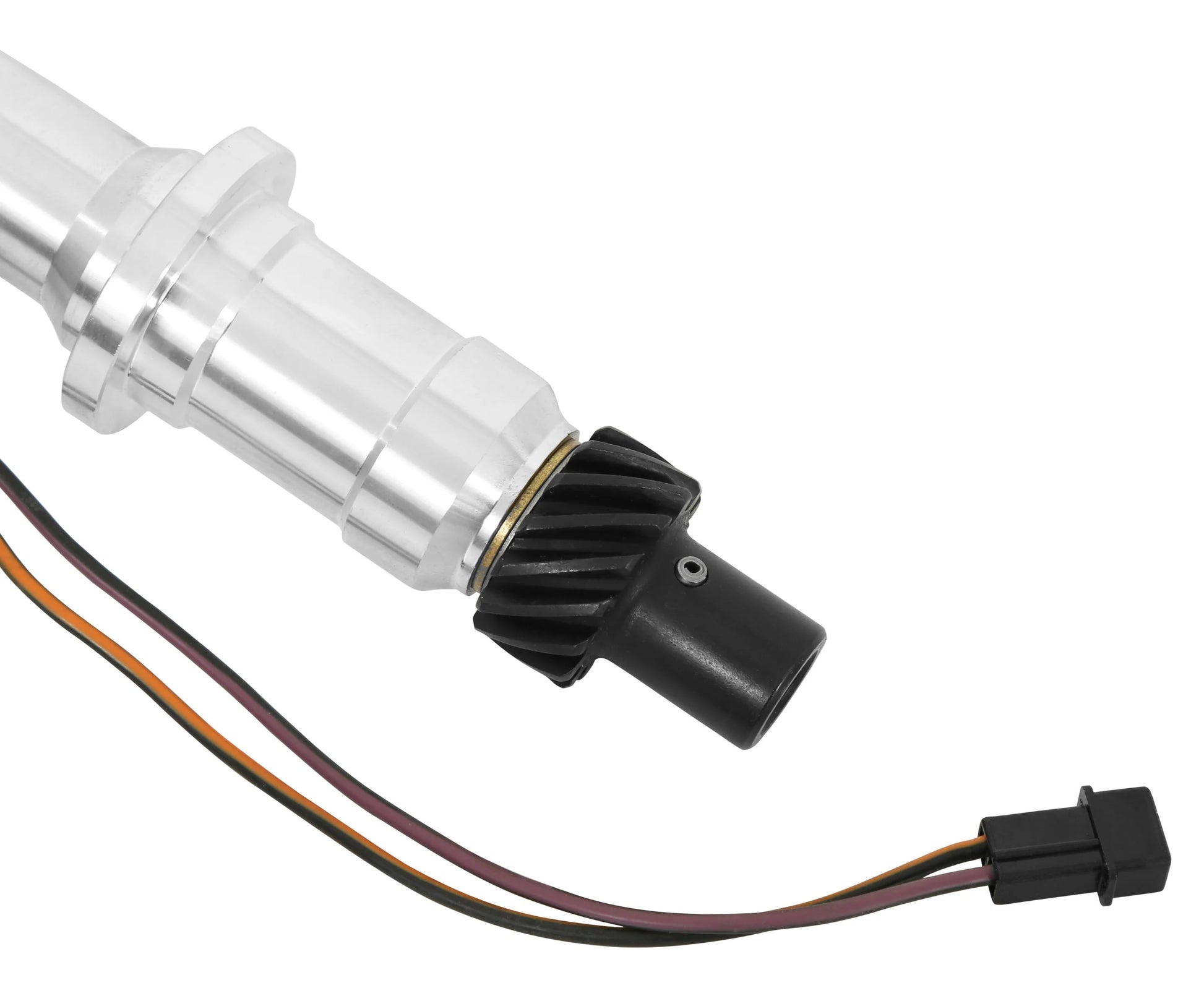

• Polished steel shaft is QPQ coated and guided by a sealed ball bearing

• Advance weight pins are staked and TIG welded to the plate

• Will not accept a vacuum advance canister

• CNC machined billet aluminum housing and billet aluminum base

• No CARB Exemption Order Number

• Easy-to-adjust mechanical advance with supplied springs and stop bushings

• Mechanical advance assembly can be locked out for crank trigger systems

Specs:

• Brand: MSD
• Color: Red
• Distributor Type: Magnetic Pickup
• Engine: Pontiac V8 326-455
• Gear: Steel
• Ignition Box Required: Yes

• Ignition Coil Included: No

• Ignition Rotor Included: Yes
• Product Type: Distributor

You can view and download the instructions here.
