DISTRIBUTOR,PRO BILLET,CHEVY V-8,SLIP COLLAR

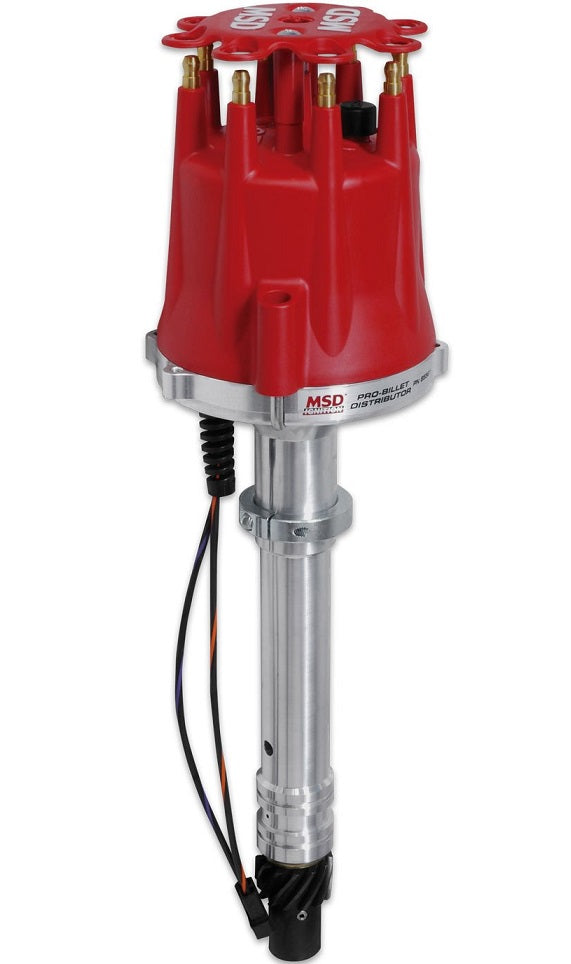

BRAND NEW MSD PRO BILLET DISTRIBUTOR WITH SLIP COLLAR, RED FINISH, MSD 6-7-8 SERIES IGNITION, COMPATIBLE WITH CHEVY V8 ENGINES

IF YOU HAVE A SLIGHTLY TALLER BLOCK OR HAVE DECKED THE HEADS, THE DISTANCE BETWEEN THE DISTRIBUTOR MOUNTING PAD AND THE CAM GEAR/OIL PUMP DRIVE MAY BE DIFFERENT. MSD OFFERS THESE DISTRIBUTOR WITH AN ADJUSTABLE SLIP COLLAR WITH 1.5" OF ADJUSTMENT SO YOU CAN BE SURE THE DISTRIBUTOR IS INSTALLED CORRECTLY.

THE DISTRIBUTOR SHARES THE SAME FEATURES OF THE STANDARD PRO-BILLET CHEVY MODEL INCLUDING A BALL BEARING GUIDE, LONG SINTERED LOWER BUSHING & AN OIL SEAL. TO TRIGGER THE MSD IGNITION A MAINTENANCE-FREE MAGNETIC PICK-UP IS SECURED IN THE BILLET BASE OF THE DISTRIBUTOR. JUST ABOVE THIS PICK-UP ASSEMBLY IS AN ADJUSTABLE MECHANICAL ADVANCE ASSEMBLY.

NOTE: SLIP COLLAR ADJUSTMENT IS .750" FROM STANDARD COLLAR HEIGHT.

FEATURES:

• ADJUSTABLE SLIP COLLAR FOR ENGINES WITH MODIFIED DECK HEIGHTS
• CNC MACHINED BILLET ALUMINUM HOUSING AND BILLET ALUMINUM BASE
• WILL NOT ACCEPT A VACUUM ADVANCE CANISTER
• ONLY COMPATIBLE WITH AN MSD IGNITION CONTROL
• SUPPLIED WITH AN HEI STYLE DISTRIBUTOR CAP & ROTOR (ACCEPTS CAP-A-DAPTS)
• O-RING SEALS CAN BE ADDED TO MODIFIED BLOCKS TO IMPROVE OIL PRESSURE CONTROL
• SPECIAL OIL TRACT IMPROVES LUBRICATION TO THE DISTRIBUTOR AND CAM GEAR
• NYLON PADS ENSURE SMOOTH OPERATION OF THE ADVANCE WEIGHTS
• ADVANCE WEIGHT PINS ARE STAKED & TIG WELDED TO THE PLATE
• MECHANICAL ADVANCE ASSEMBLY CAN BE LOCKED OUT FOR CRANK TRIGGER SYSTEMS
• ADVANCE PLATE & WEIGHTS ARE FINE BLANKED FROM CHROME MOLY STEEL & QPQ COATED FOR FRICTION REDUCTION
• POLISHED STEEL SHAFT IS QPQ COATED & GUIDED BY A SEALED BALL BEARING & EXTRA LONG SINTERED BUSHING
• MAGNETIC PICKUP & PRECISION RELUCTOR CREATE STABLE TRIGGER SIGNALS THROUGHOUT RPM RANGE
• EASY-TO-ADJUST MECHANICAL ADVANCE WITH SUPPLIED SPRINGS & STOP BUSHINGS

SPECS:

• BRAND: MSD
• COLOR: RED
• DISTRIBUTOR TYPE: MAGNETIC PICKUP
• PRODUCT TYPE: DISTRIBUTOR

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS DISTRIBUTOR HERE.
