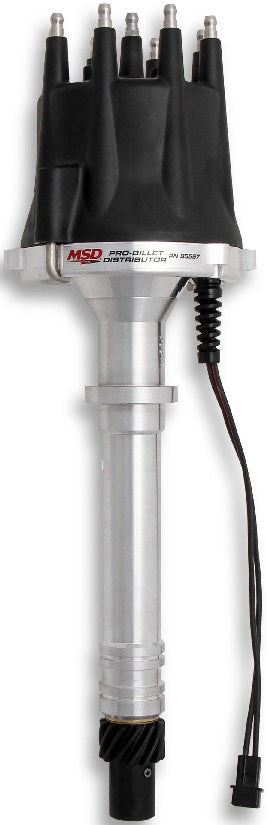

DISTRIBUTOR,PRO BILLET,CHEVY V-8,BLACK CAP

BRAND NEW MSD PRO BILLET DISTRIBUTOR, BLACK CAP AND ALUMINUM FINISH, MSD 6, 7, OR 8 SERIES IGNITION, COMPATIBLE WITH CHEVY V8 ENGINES

MSD MOST POPULAR PERFORMANCE DISTRIBUTOR IS NOW AVAILABLE WITH A BLACK CAP THAT INCLUDES 316 STAINLESS STEEL TERMINALS. THE HOUSING IS MACHINED FROM A BILLET OF 6061-T6 ALUMINUM ON A STATE OF THE ART CNC MACHINE PRODUCING EXACT TOLERANCES. FOR HIGH RPM STABILITY, A .500" STEEL SHAFT IS SUPPORTED BY A SEALED BALL BEARING AND A LONG SINTERED BUSHING.

NOTE: MAKE SURE TO APPLY A LIBERAL AMOUNT OF CAMSHAFT LUBRICANT TO DISTRIBUTOR GEAR (SUPPLIED).

FEATURES:

• CNC MACHINED BILLET ALUMINUM HOUSING & BILLET ALUMINUM BASE
• WILL NOT ACCEPT VACUUM ADVANCE CANISTER
• MUST BE USED WITH MSD 6, 7 OR 8 SERIES IGNITION CONTROL

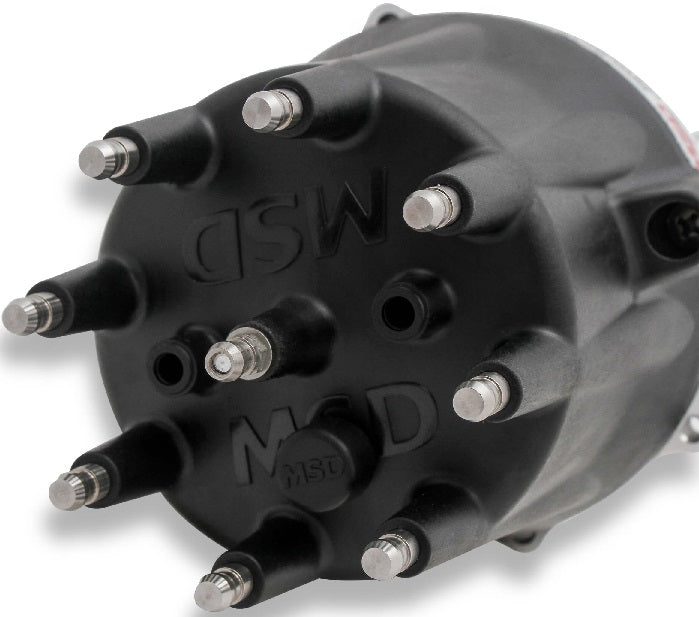

• HEI STYLE BLACK CAP WITH 316 STAINLESS STEEL TERMINALS & ROTOR (ACCEPTS CAP-A-DAPTS)
• O-RING SEALS CAN BE ADDED TO MODIFIED BLOCKS TO IMPROVE OIL PRESSURE CONTROL
• SPECIAL OIL TRACT IMPROVES LUBRICATION TO THE DISTRIBUTOR & CAM GEAR
• NYLON PADS ENSURE SMOOTH OPERATION OF THE ADVANCE WEIGHTS
• ADVANCE WEIGHT PINS ARE STAKED & TIG WELDED TO THE PLATE
• MECHANICAL ADVANCE ASSEMBLY CAN BE LOCKED OUT FOR CRANK TRIGGER SYSTEMS
• ADVANCE PLATE & WEIGHTS ARE FINE BLANKED FROM CHROME MOLY STEEL & QPQ COATED FOR FRICTION REDUCTION
• POLISHED STEEL SHAFT IS QPQ COATED AND GUIDED BY A SEALED BALL BEARING & EXTRA LONG SINTERED BUSHING

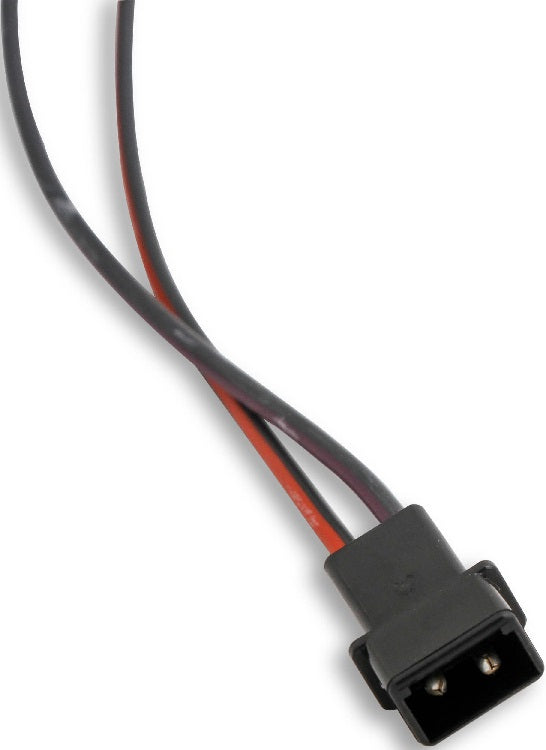

• MAGNETIC PICKUP & PRECISION RELUCTOR CREATE STABLE TRIGGER SIGNALS THROUGHOUT THE RPM RANGE
• EASY TO ADJUST MECHANICAL ADVANCE WITH SUPPLIED SPRINGS & STOP BUSHINGS

SPECS:

• BRAND: MSD
• DISTRIBUTOR TYPE: MAGNETIC PICKUP
• PRODUCT TYPE: DISTRIBUTOR

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS DISTRIBUTOR HERE.
