CHEVROLET V-8 PRO-BILLET IGNITION BUNDLE

Brand New MSD Pro-Billet Distributor Bundle for Chevy V8 (Part #85551K).

The housing is machined from a billet of 6061-T6 aluminum on a state-of-the-art CNC machine producing exact tolerances. For high rpm stability, a .500" steel shaft is supported by a sealed ball bearing and a long sintered bushing. This shaft also receives a QPQ coating for friction reduction and resistance to corrosion. A precision machined reluctor is attached to the shaft which triggers the magnetic pick-up mounted in the housing. This high output magnetic pick-up is the most accurate way to trigger your ignition. Plus, with no moving parts to wear or adjust, the pick-up is maintenance free! Just above the pick-up is MSD's adjustable mechanical advance assembly.

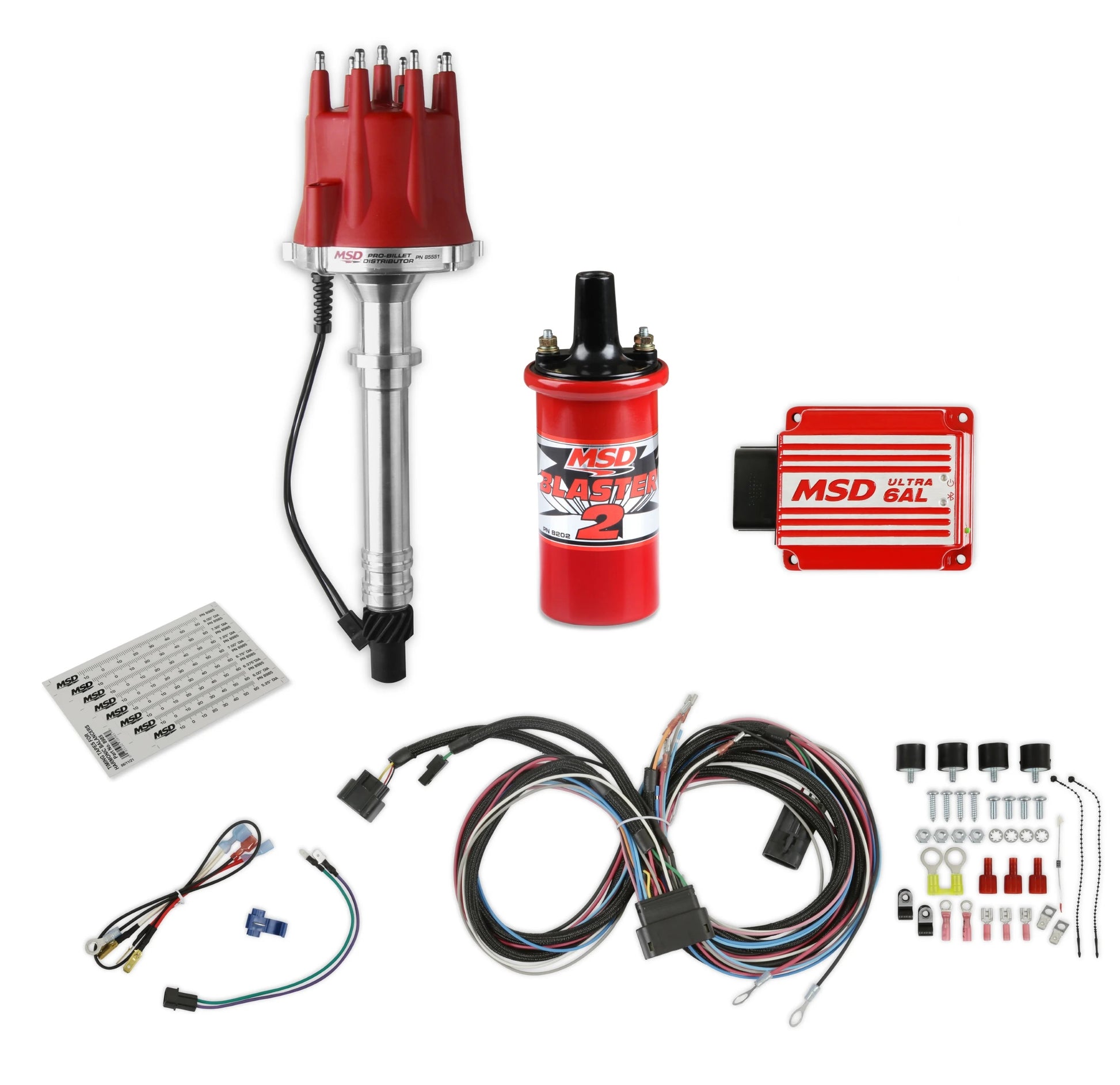

These packages include Pro-Billet distributor, the new Ultra 6AL ignition box, plus a Blaster 2 coil. Kits also include timing tape for trouble-free installation. A complete ignition upgrade is one click away with MSD Pro-Billet Ignition Bundles! Different springs and stop bushings are supplied so you can tune an advance curve to match your application.

Compatible with:

• Chevrolet:
  • 265, 267, 283, 302, 305, 307, 327, 350, & 400 Small Block V8 Engines
  • 366, 396, 402, 427, & 454 Big Block V8 Engines

Kit Includes:

• Pro-Billet Distributor

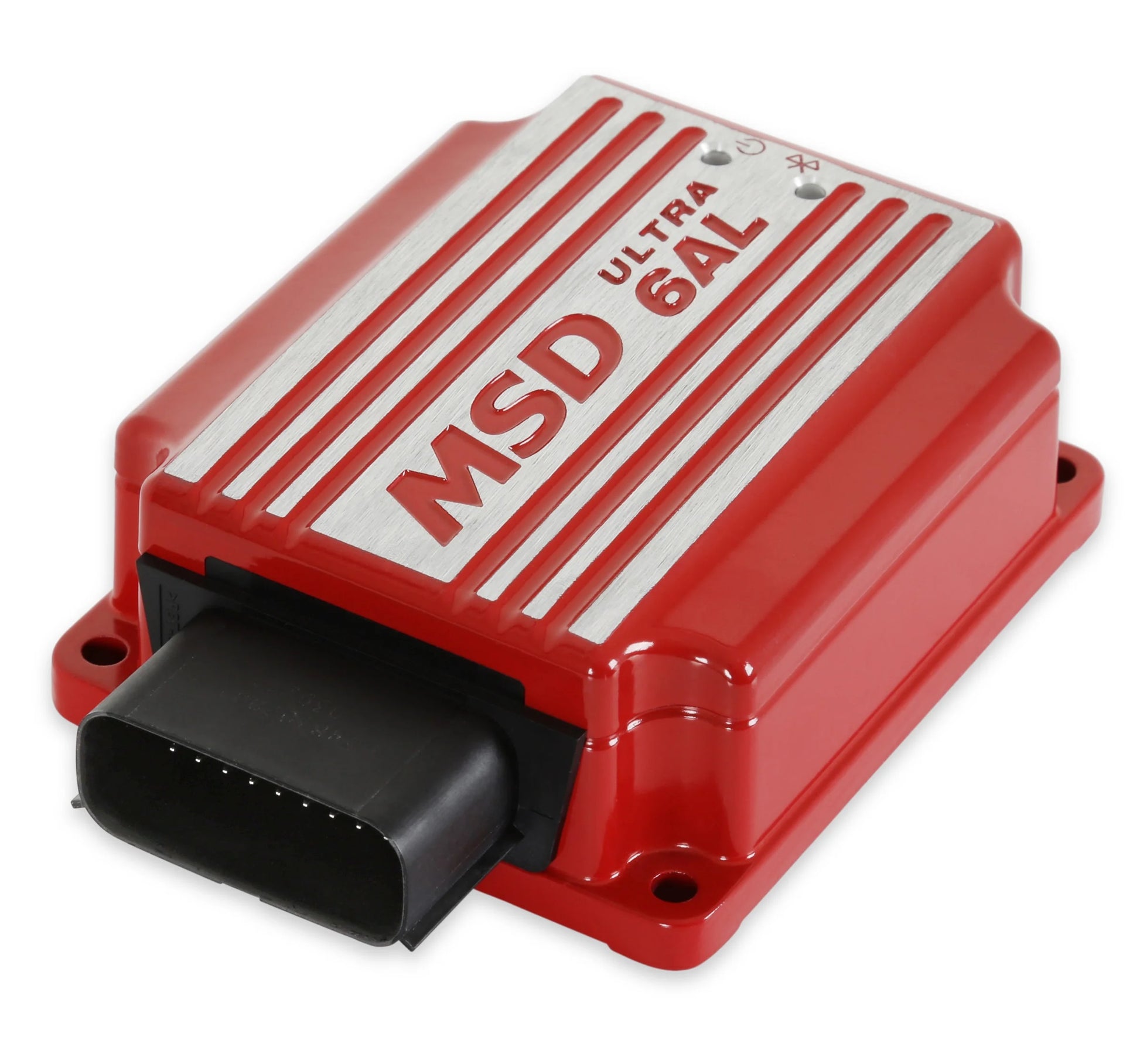

• Ultra 6AL ignition Box
• Blaster 2 Ignition Coil


Features:

• Special oil tract improves lubrication to the distributor and cam gear

• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range

• Easy-to-adjust mechanical advance with supplied springs and stop bushings

• No CARB Exemption Order Number

• CNC machined billet aluminum housing and billet aluminum base

• Polished steel shaft is QPQ coated and guided by a sealed ball bearing and extra long sintered bushing

• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction

• Mechanical advance assembly can be locked out for crank trigger systems

• Will not accept a vacuum advance canister

• O-ring seals can be added to modified blocks to improve oil pressure control

• Nylon pads ensure smooth operation of the advance weights

• Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)

• Advance weight pins are staked and TIG welded to the plate

Specs:

• Brand: MSD
• Color: Red
• Distributor Type: Magnetic Pickup
• Engine: Big Block & Small Block Chevy V8
• Product Type: Distributor
