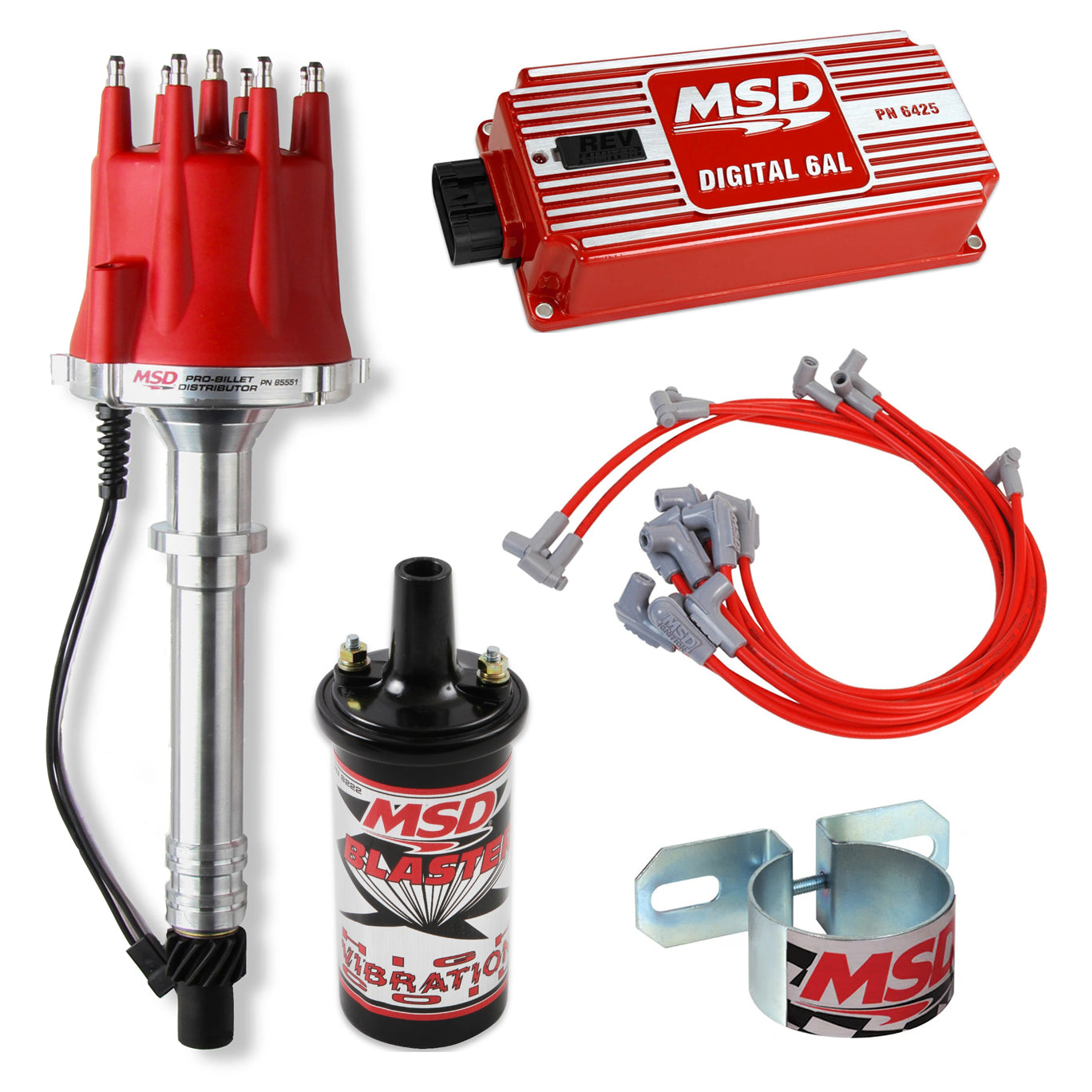

MSD IGNITION BOX,DISTRIBUTOR,WIRE,COIL SET,PRO BILLET,DIGITAL 6AL

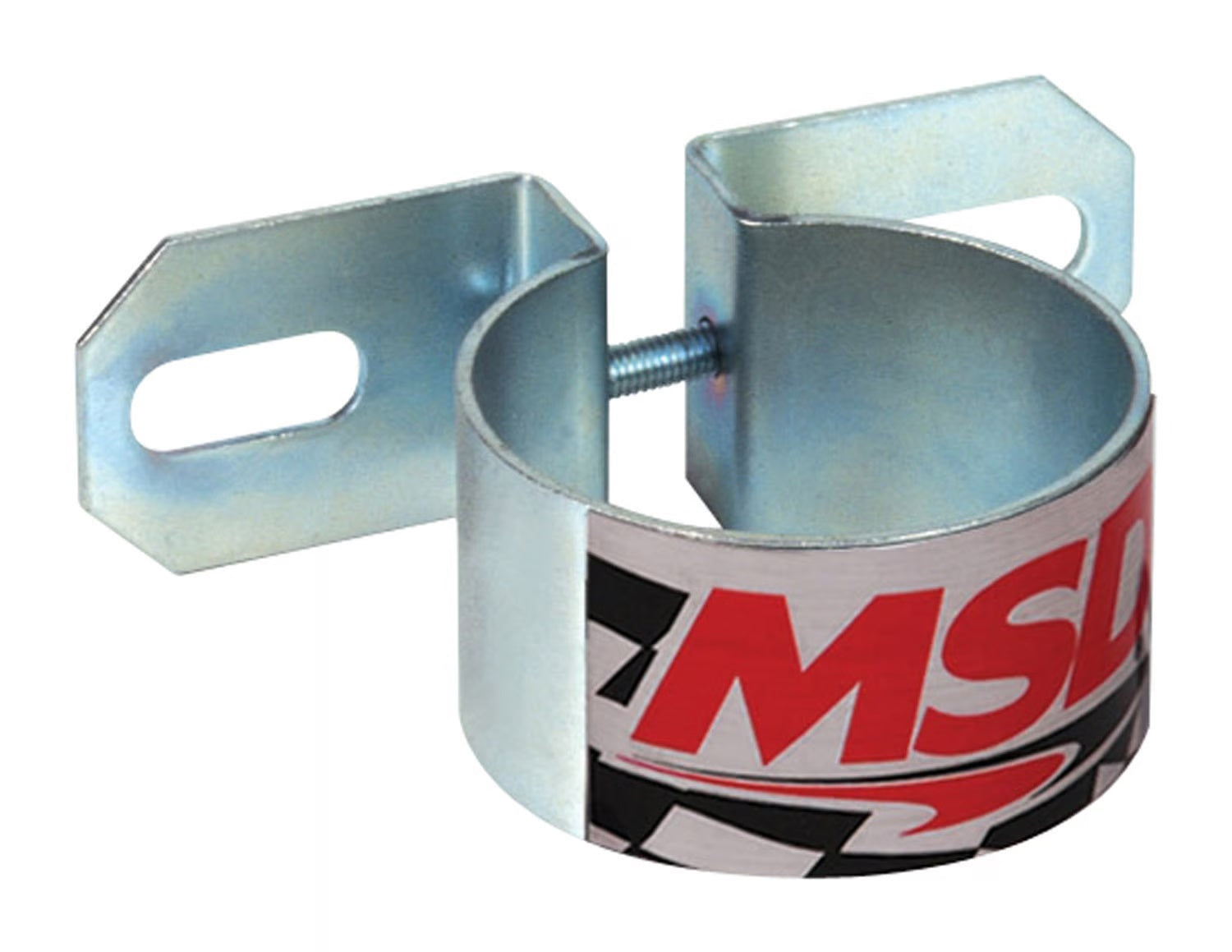

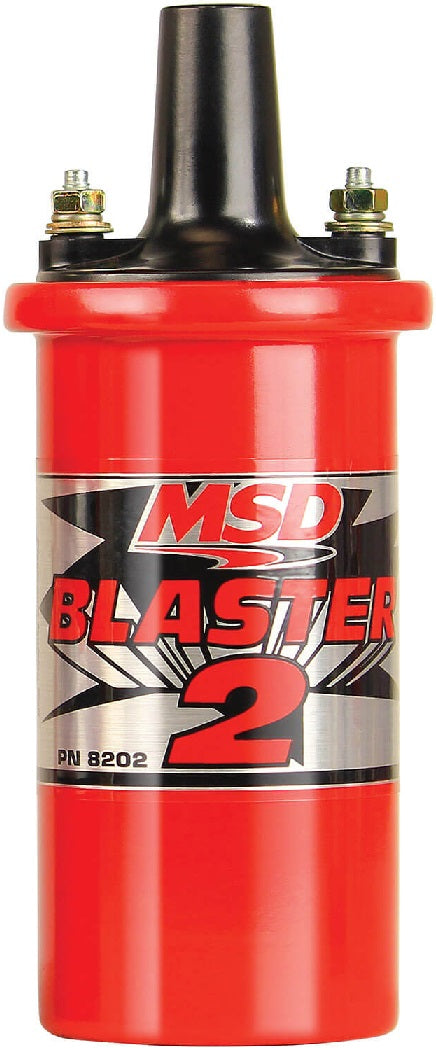

Brand New MSD Digital 6AL Ignition Control Box, Pro-Billet Distributor, Super Conductor Spark Plug Wire Set, Blaster Series Ignition Coil, and Ignition Coil Bracket (Part #85551-12).

Kit Includes:

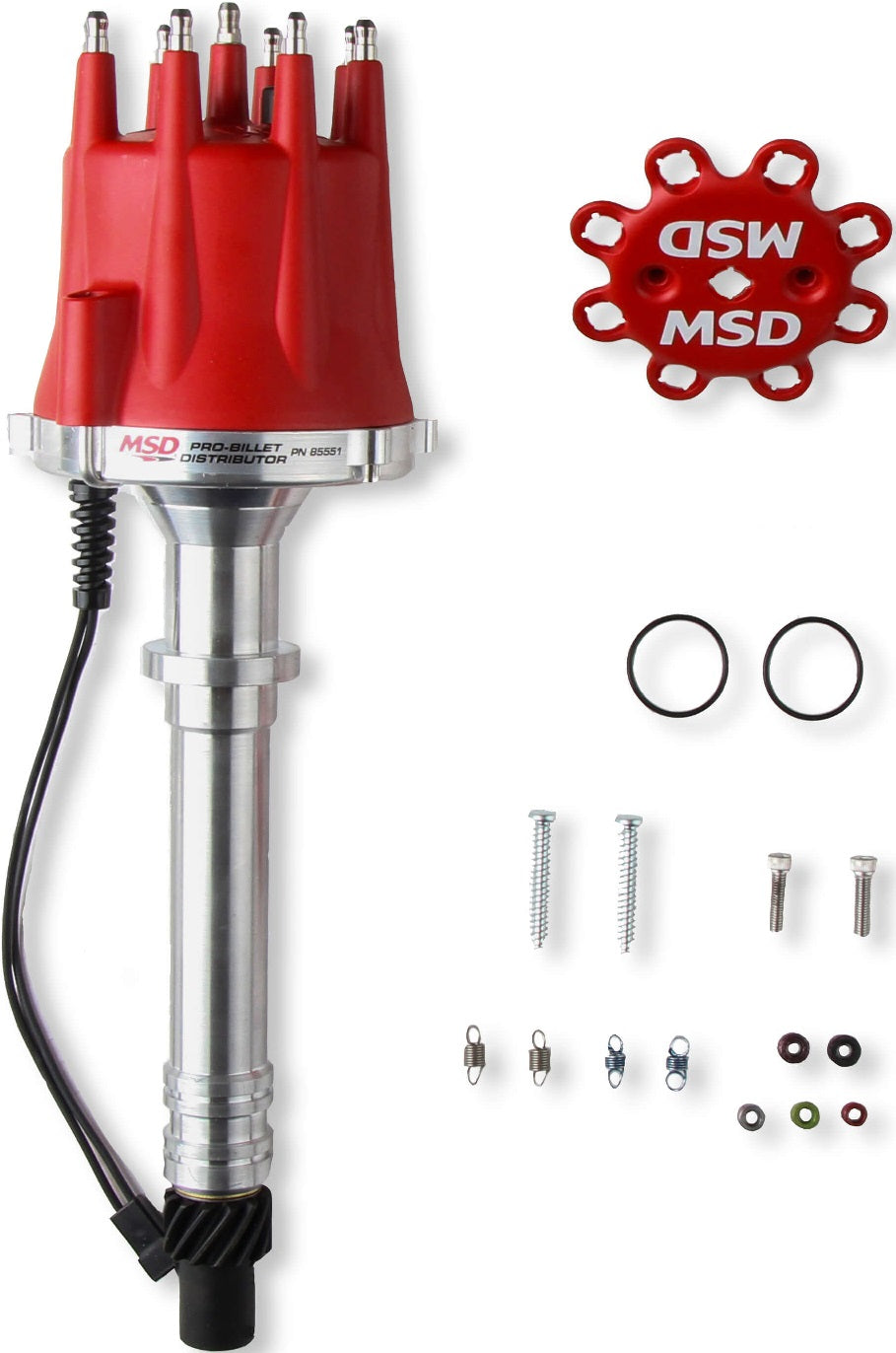

• MSD Pro-Billet Distributor:
• CNC machined billet aluminum housing and billet aluminum base
• Will not accept a vacuum advance canister
• Must be used with an MSD Ignition Control
• Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
• O-ring seals can be added to modified blocks to improve oil pressure control
• Special oil tract improves lubrication to the distributor and cam gear
• Nylon pads ensure smooth operation of the advance weights
• Advance weight pins are staked and tig welded to the plate
• Mechanical advance assembly can be locked out for crank trigger systems
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing and extra long sintered bushing
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Easy-to-adjust mechanical advance with supplied springs and stop bushings

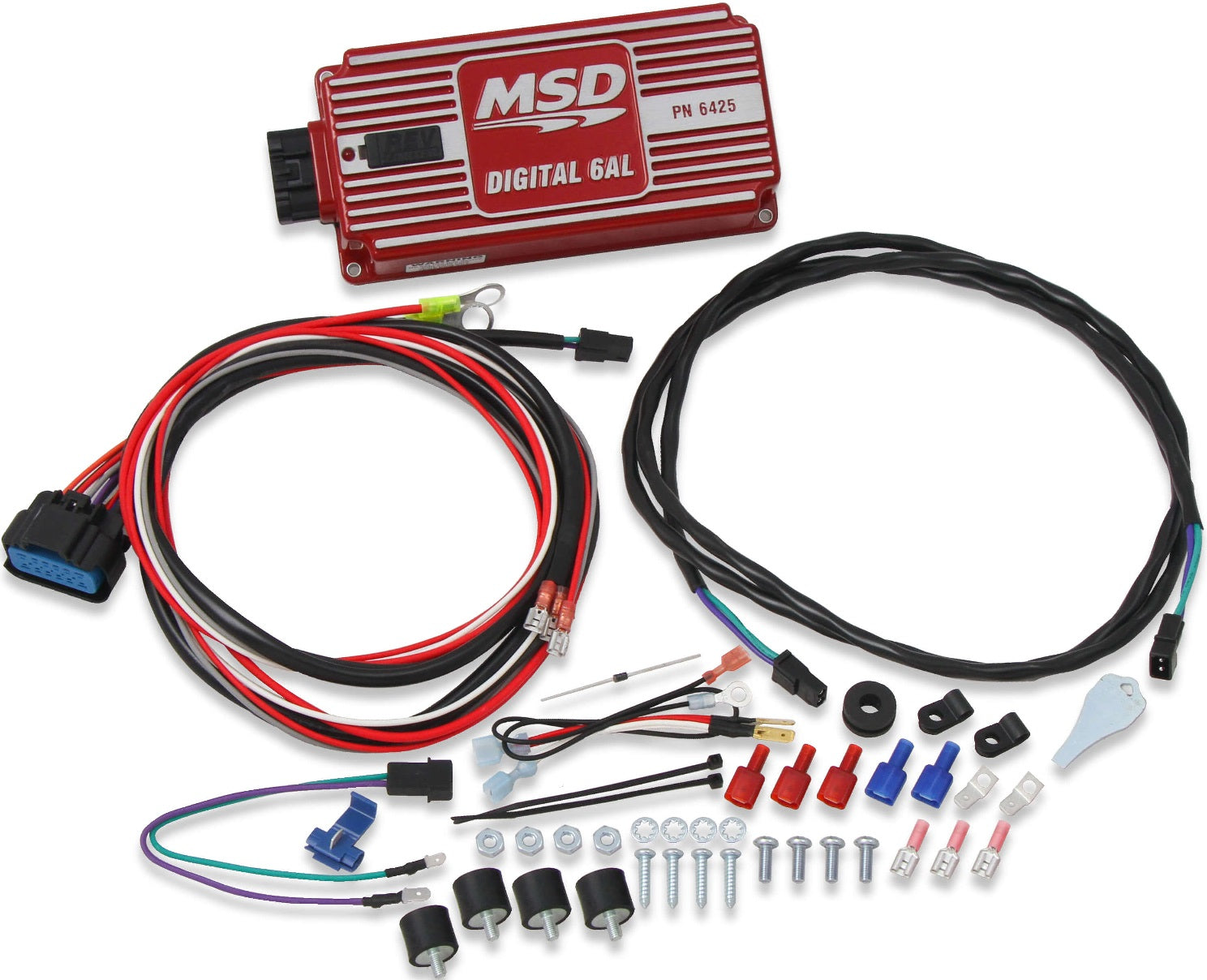

• MSD Digital 6AL Ignition Control Box:
• High output with 530 volts & 135mJ of spark energy
• Efficient components use less current to produce more power
• Set an RPM limit with 2 rotary dials in 100 RPM increments
• Built-in LED for system checks
• All wires exit through a locked, sealed connector
• Built-In Rev Limiter

• Compatible with 4, 6 or 8-cylinder engines
• Current Draw: 1.1 Amp per 1,000 RPM
• Primary Voltage: 520-540 Volts
• RPM Range: 11,000 RPM
• Secondary Voltage: 45,000 Volts
• Spark Energy: 135-145 mJ per spark
• Voltage Required: 12-15 Volts, 7 Volt Start
• Weight & Size: 1.7 lbs., 8"L x 4"W x 1.825"H

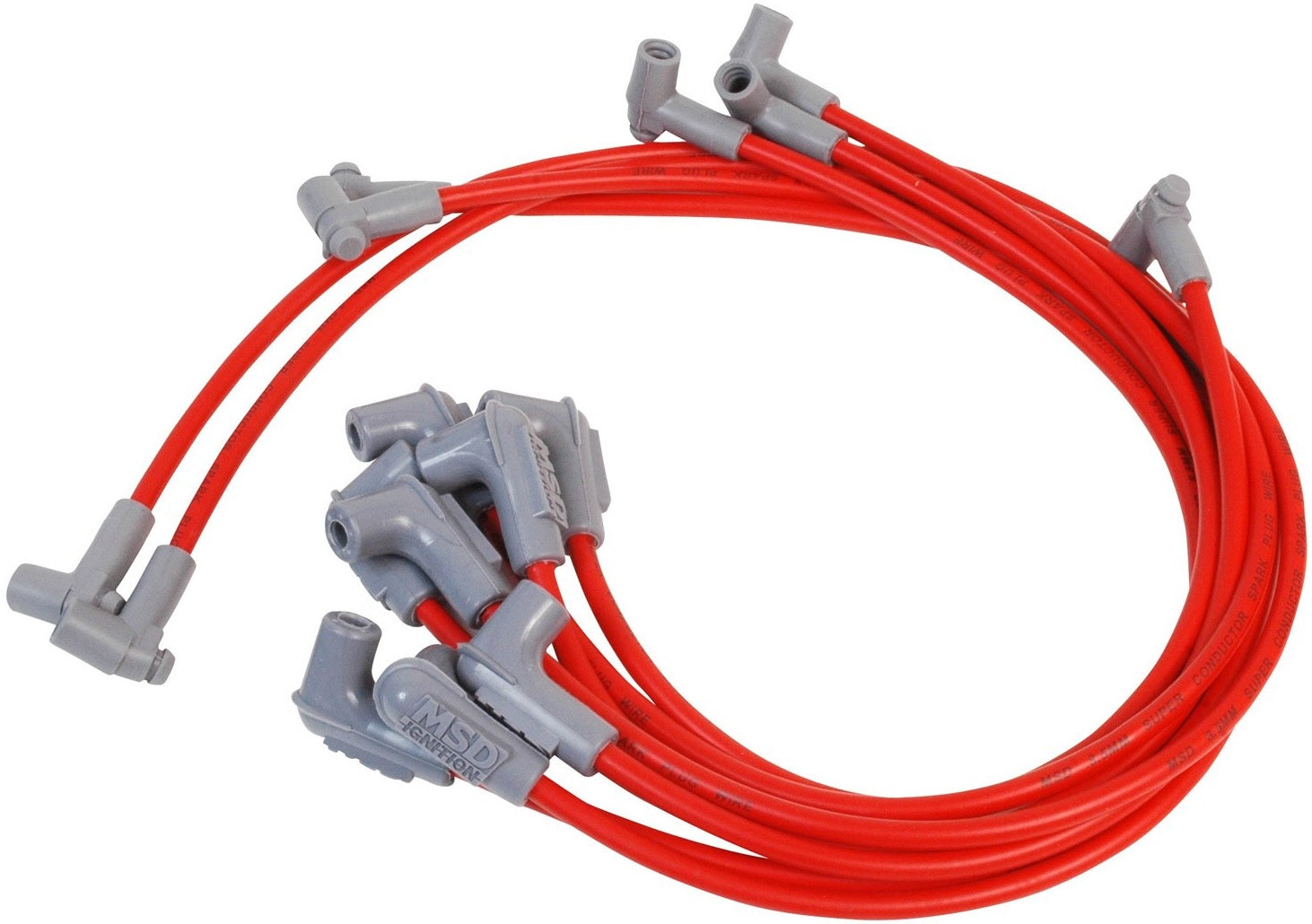

• MSD Super Conductor 8.5mm Spark Plug Wire Set:
• Incredibly low resistance without electronic interference

• Features Dual Crimp terminals

• Resistant to high heat as well as abrasion and tears

• Wires are precut to exact specifications
• Bolt-on performance
