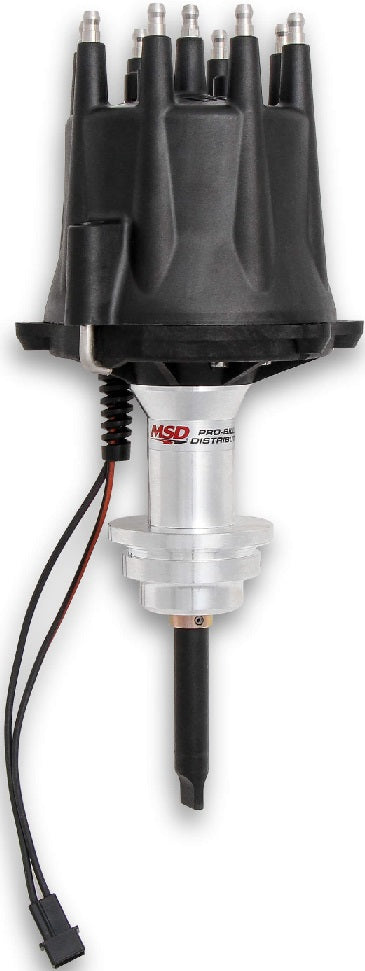

DISTRIBUTOR,PRO BILLET,MOPAR 318/340/360,BLACK CAP

BRAND NEW MSD CHRYSLER 318-360 PRO-BILLET DISTRIBUTOR, BLACK FINISH, COMPATIBLE WITH MSD 6, 7, OR 8 SERIES IGNITION CONTROL

ALL THE PERFORMANCE OF OUR PRO-BILLET LINE FOR YOUR SMALL BLOCK CHRYSLER. MSD BLACK CAP INCLUDES 316 STAINLESS STEEL TERMINALS & RACE ROTOR. UNDERNEATH YOU WILL FIND ACCESS TO THE ADJUSTABLE MECHANICAL ADVANCE ASSEMBLY FOR EASY ADJUSTMENTS. DESIGNED FOR ACCURACY & STRENGTH WITH TIG-WELDED WEIGHT PINS, NYLON PADS FOR SMOOTH MOVEMENT OF THE WEIGHTS & QPQ COATING FOR FRICTION REDUCTION.

SUPPORTING THE ADVANCE ASSEMBLY IS A HARDENED, POLISHED STEEL SHAFT. 2 BALL BEARING GUIDES USED TO SUPPORT SHAFT FOR STABILITY. PRECISION PADDLES OF ZINC-PLATED RELUCTOR PASS A MAGNETIC PICKUP CREATING A TRIGGER SIGNAL THAT TELLS THE MSD TO FIRE. DIFFERENT SPRINGS & STOP BUSHINGS SUPPLIED SO YOU CAN TUNE AN ADVANCE CURVE TO MATCH YOUR APPLICATION.

NOTE: MUST BE USED WITH AN MSD 6, 7 OR 8-SERIES IGNITION.

FEATURES:

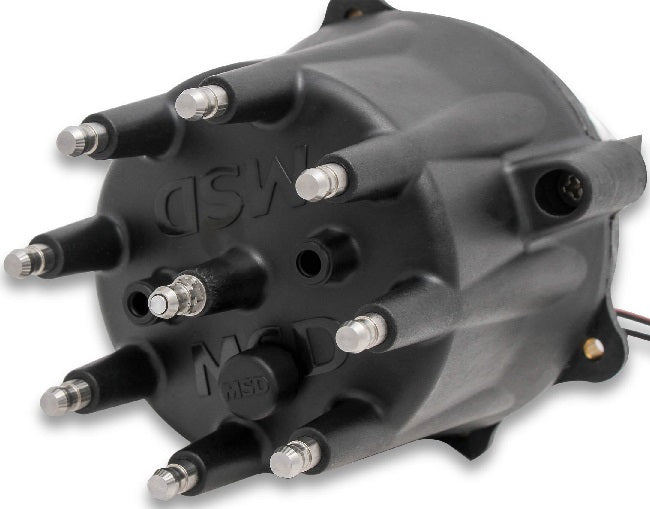

• SUPPLIED WITH BLACK CAP WITH 316 STAINLESS STEEL TERMINALS

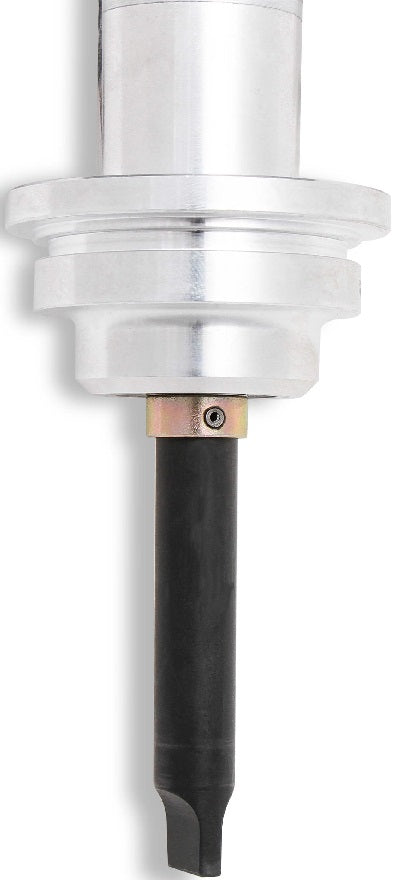

• POLISHED STEEL SHAFT IS QPQ COATED & GUIDED BY SEALED BALL BEARING FOR SMOOTH OPERATION AT ALL RPMS
• MAGNETIC PICKUP & PRECISION RELUCTOR CREATE STABLE TRIGGER SIGNALS THROUGHOUT RPM RANGE
• CNC MACHINED BILLET ALUMINUM HOUSING & BILLET ALUMINUM BASE PROVIDING SUPERIOR STRENGTH
• MECHANICAL ADVANCE WITH SUPPLIED SPRINGS & STOP BUSHINGS (EXCEPT LOCKED OUT VERSIONS)
• ADVANCE PLATE & WEIGHTS ARE FINE BLANKED FROM CHROME MOLY STEEL & QPQ COATED FOR FRICTION REDUCTION
• ADVANCE WEIGHT PINS ARE STAKED & TIG WELDED TO THE PLATE
• NYLON PADS ENSURE SMOOTH OPERATION OF ADVANCE WEIGHTS
• MECHANICAL ADVANCE ASSEMBLY CAN BE LOCKED OUT FOR CRANK TRIGGER SYSTEMS OR RACING APPLICATIONS

SPECS:

• BRAND: MSD
• COLOR: BLACK
• DISTRIBUTOR TYPE: MAGNETIC PICKUP
• PRODUCT TYPE: DISTRIBUTOR

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS DISTRIBUTOR HERE.
