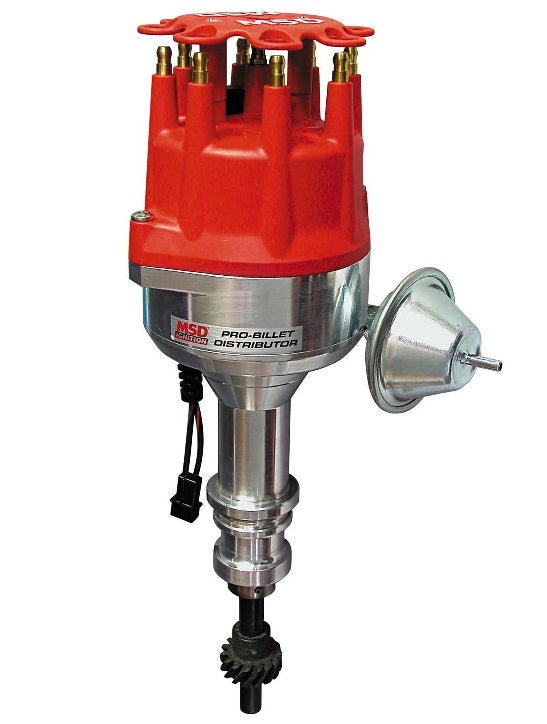

DISTRIBUTOR,PRO BILLET,FORD 289/302W,SMALL,VACUUM ADVANCE,STEEL GEAR

BRAND NEW MSD FORD 289/302 STREET PRO-BILLET DISTRIBUTOR WITH STEEL GEAR, RED, COMPATIBLE WITH MSD 6, 7 OR 8 SERIES IGNITION

THE STREET PRO-BILLET DISTRIBUTORS ARE THE PERFECT CHOICE FOR POWERFUL ENGINES THAT SEE PLENTY OF STREET TIME. THIS CANISTER PROVIDES IMPROVED ECONOMY AND AN ACCURATE MECHANICAL ADVANCE LETS YOU DIAL-IN AN ADVANCE CURVE TO MATCH YOUR DRIVING NEEDS. A MAGNETIC PICK-UP PRODUCES ACCURATE TRIGGER SIGNALS THAT REMAIN STABLE THROUGHOUT THE ENTIRE RPM RANGE OF YOUR ENGINE AND IS COMPLETELY MAINTENANCE-FREE.

FEATURES:

• INCLUDES STEEL GEAR, COMPATIBLE WITH HYDRAULIC ROLLER CAMSHAFTS
• MUST BE USED WITH AN MSD IGNITION CONTROL
• SUPPLIED WITH SMALL DIAMETER CAP WITH HEI STYLE TERMINALS AND RACE ROTOR (WILL ACCEPT 8441 CAP-A-DAPT)
• NYLON PADS ENSURE SMOOTH OPERATION OF THE ADVANCE WEIGHTS
• ADVANCE WEIGHT PINS ARE STAKED AND TIG WELDED TO THE PLATE
• MECHANICAL ADVANCE ASSEMBLY CAN BE LOCKED OUT FOR CRANK TRIGGER SYSTEMS
• ADVANCE PLATE AND WEIGHTS ARE FINE BLANKED FROM CHROME MOLY STEEL AND QPQ COATED FOR FRICTION REDUCTION
• POLISHED STEEL SHAFT IS QPQ COATED AND GUIDED BY A SEALED BALL BEARING
• MAINTENANCE-FREE MAGNETIC PICKUP AND PRECISION RELUCTOR CREATE STABLE TRIGGER SIGNALS THROUGHOUT THE RPM RANGE
• CNC MACHINED BILLET ALUMINUM HOUSING AND BILLET ALUMINUM BASE
• VACUUM ADVANCE CANISTER FOR IMPROVED ECONOMY (CAN BE LOCKED OUT)
• EASY-TO-ADJUST MECHANICAL ADVANCE WITH SUPPLIED SPRINGS AND STOP BUSHINGS

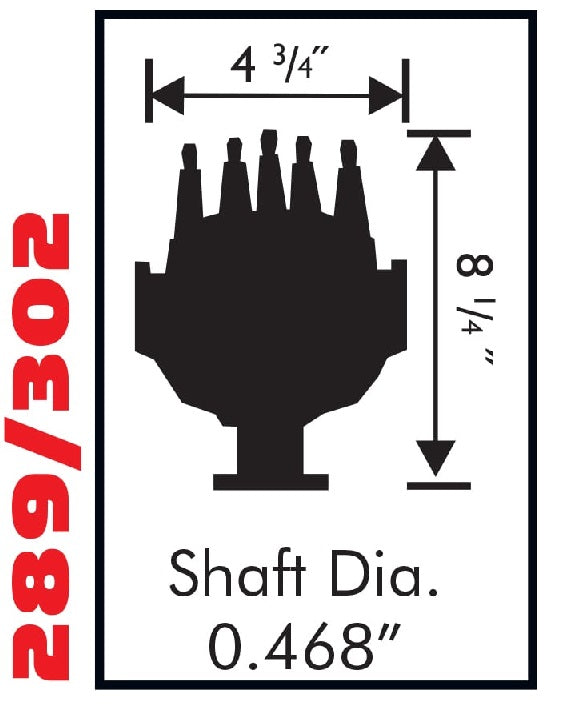

• BILLET HOUSING IS 5/8" SMALLER IN DIAMETER THAN STOCK FORD DISTRIBUTORS

SPECS:

• BRAND: MSD
• COLOR: RED
• DISTRIBUTOR TYPE: MAGNETIC PICKUP
• ENGINE: FORD SMALL BLOCK V8
• GEAR: STEEL
• PRODUCT TYPE: DISTRIBUTOR

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS DISTRIBUTOR HERE.
