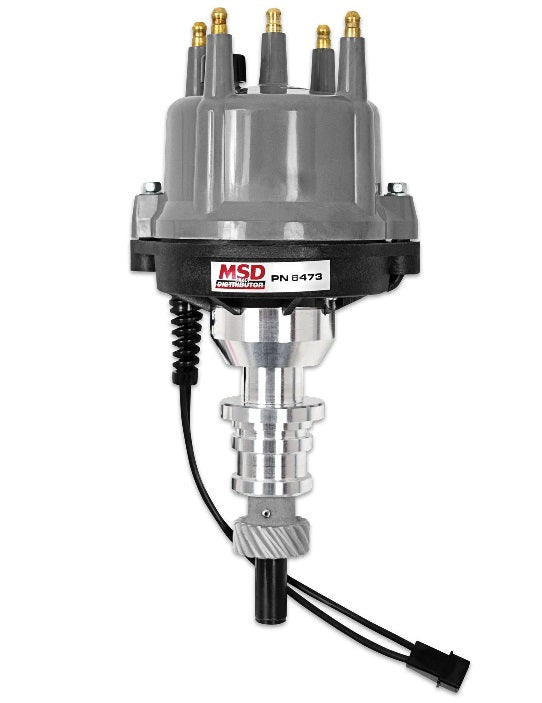

DISTRIBUTOR,4 CYLINDER,2.3L FORD

BRAND NEW MSD PRO BILLET DISTRIBUTOR, GRAY FINISH, MSD 6-7-8 SERIES, COMPATIBLE WITH FORD 4-CYLINDER 2.3L ENGINES

FEATURES AN ALUMINUM HOUSING THAT IS CNC-MACHINED FOR CLOSER TOLERANCES THAN ANY CONVENTIONAL CAST DISTRIBUTOR. PLUS YOU GET AN ADJUSTABLE MECHANICAL ADVANCE WHICH CAN BE EASILY TAILORED TO ANY ENGINE BY CHANGING THE STOP BUSHING AND ADVANCE SPRINGS.

TRIGGERING THE MSD IGNITION SYSTEM IS THE SAME HIGH-OUTPUT MAGNETIC PICKUP THAT IS USED IN OUR RACING DISTRIBUTORS. THIS PICKUP PRODUCES AN EXTREMELY ACCURATE TRIGGER SIGNAL AND IS MAINTENANCE-FREE.

FEATURES:

• CNC MACHINED BILLET ALUMINUM HOUSING & DUPONT RYNITE BASE
• MUST BE USED WITH AN MSD IGNITION CONTROL
• SUPPLIED WITH A CAP WITH HEI STYLE TERMINALS AND ROTOR
• NYLON PADS ENSURE SMOOTH OPERATION OF THE ADVANCE WEIGHTS
• ADVANCE WEIGHT PINS ARE STAKED & TIG WELDED TO THE PLATE
• MECHANICAL ADVANCE ASSEMBLY CAN BE LOCKED OUT FOR CRANK TRIGGER SYSTEMS
• ADVANCE PLATE AND WEIGHTS ARE FINE BLANKED FROM CHROME MOLY STEEL AND QPQ COATED FOR FRICTION REDUCTION
• POLISHED STEEL SHAFT IS QPQ COATED AND GUIDED BY A SEALED BALL BEARING
• MAINTENANCE-FREE MAGNETIC PICKUP AND PRECISION RELUCTOR CREATE STABLE TRIGGER SIGNALS THROUGHOUT THE RPM RANGE
• CNC MACHINED BILLET ALUMINUM HOUSING AND DUPONT RYNITE BASE
• SUPPLIED SPRINGS AND STOP BUSHINGS TO CREATE A VARIETY OF TIMING CURVES
• EASY-TO-ADJUST MECHANICAL ADVANCE IS MOUNTED ON TOP OF THE SHAFT

SPECS:

• BRAND: MSD
• COLOR: GRAY
• DISTRIBUTOR TYPE: MAGNETIC PICKUP
• ENGINE: FORD 2.3L
• GEAR: CAST IRON
• PRODUCT TYPE: DISTRIBUTOR

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS DISTRIBUTOR HERE.
