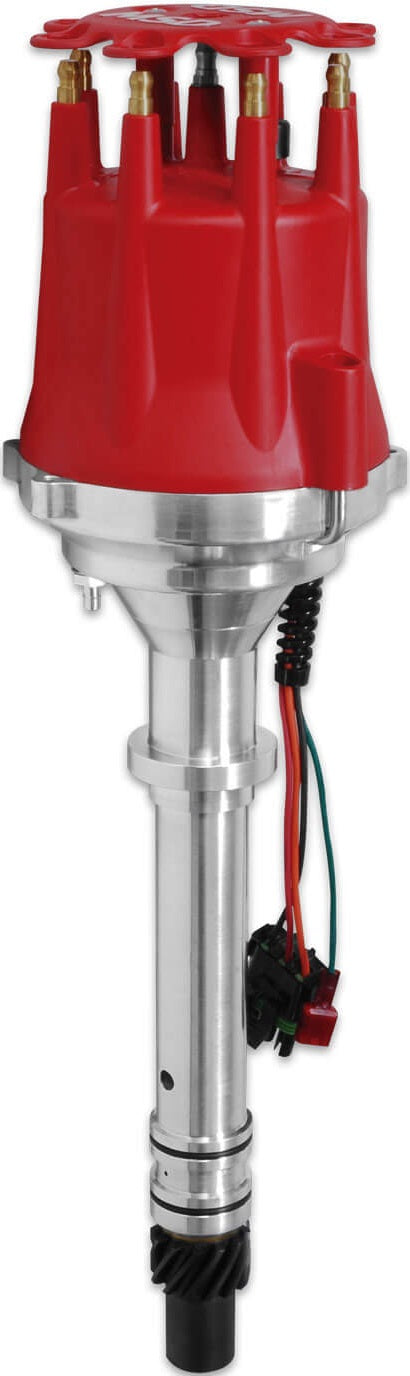

DISTRIBUTOR,READY-TO-RUN,CHEVY V-8,DIGITAL E-CURVE

BRAND NEW MSD PRO-BILLET DIGITAL E-CURVE DISTRIBUTOR, RED, COMPATIBLE WITH SMALL & BIG BLOCK CHEVROLET ENGINES

DIGITAL E-CURVE DISTRIBUTOR WILL DROP RIGHT IN YOUR ENGINE, EASILY CONNECT TO THE COIL AND FIRE UP! THERE ARE NO EXTERNAL CONTROLS OR BOXES TO MOUNT AND CONNECT, AND YOU CAN SET A TIMING CURVE WITH THE TWIST OF A ROTARY DIAL!

NO MORE SPRINGS OR STOP BUSHINGS TO CHANGE. A NEW DIGITAL MODULE LETS YOU SELECT FROM NEARLY 100 DIFFERENT ADVANCE CURVES, INCLUDING A VACUUM ADVANCE! SIMPLY REMOVE THE CAP AND ROTOR TO ACCESS THE ROTARY DIALS AND SELECT A CURVE TO MATCH YOUR APPLICATION. YOU CAN ALSO SET AN RPM LIMIT THAT WILL PROTECT YOUR ENGINE FROM OVERREV DAMAGE CAUSED BY A MISSED SHIFT OR DRIVELINE FAILURE. THIS LIMIT IS ADJUSTABLE FROM 5,000-10,000 RPM.

NOTE: FITS CONVENTIONAL SMALL & BIG BLOCK CHEVROLET ENGINES.

FEATURES:

• DIGITALLY CONTROLLED STAND-ALONE DISTRIBUTOR WITH ADJUSTABLE ELECTRONIC ADVANCE
• SET A CENTRIFUGAL ADVANCE AND VACUUM ADVANCE CURVE ELECTRONICALLY
• HIGH OUTPUT IGNITION MODULE PRODUCES A POWERFUL SPARK FOR IMPROVED PERFORMANCE
• SIMPLE THREE WIRE CONNECTION AND YOU ARE READY-TO-RUN
• DIAL-IN A REV LIMIT TO PROTECT YOUR ENGINE FROM OVERREV DAMAGE

SPECS:

• COLOR: RED
• DISTRIBUTOR TYPE: READY TO RUN
• PRODUCT TYPE: DISTRIBUTOR

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS DISTRIBUTOR HERE.
