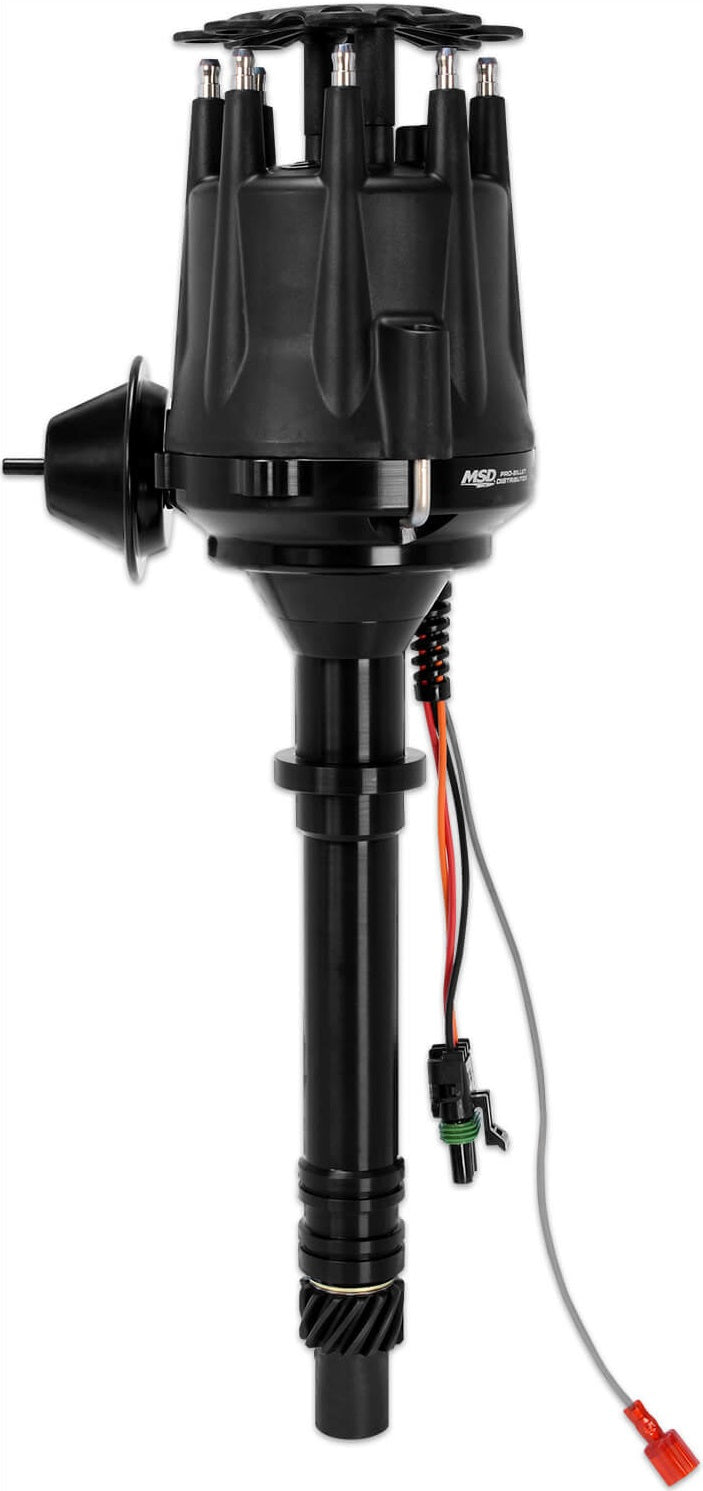

DISTRIBUTOR,READY-TO-RUN,CHEVY V-8,BLACK

BRAND NEW MSD PRO BILLET READY TO RUN INTERNAL MODULE DISTRIBUTOR, BLACK FINISH, COMPATIBLE WITH CHEVY V8 ENGINES

THIS BLACK PRO-BILLET READY-TO-RUN DISTRIBUTOR IS THE PERFECT UPGRADE FOR OUTDATED POINTS DISTRIBUTORS OR BULKY HEIS. SIMPLY INSTALL THE DISTRIBUTOR IN THE ENGINE, CONNECT THREE WIRES, THE COIL AND FIRE IT UP! INCLUDES A SEPARATE TACH CIRCUIT THAT IS IDEAL TO TRIGGER AN AFTERMARKET EFI SUCH AS AN ATOMIC EFI SYSTEM.

FEATURES:

• SIMPLE & CLEAN INSTALLATION WITH ONLY 3 WIRES TO CONNECT
• HEI STYLE DISTRIBUTOR CAP & ROTOR (ACCEPTS CAP-A-DAPTS)
• DOES NOT REQUIRE AN MSD IGNITION CONTROL
• BUILT-IN REV LIMITER
• O-RING SEALS CAN BE ADDED TO MODIFIED BLOCKS TO IMPROVE OIL PRESSURE CONTROL
• SPECIAL OIL TRACT IMPROVES LUBRICATION TO THE DISTRIBUTOR & CAM GEAR
• NYLON PADS ENSURE SMOOTH OPERATION OF THE ADVANCE WEIGHTS
• POWERFUL BUILT-IN MODULE PRODUCES A 7.5 AMP SINGLE SPARK THROUGH HIGH RPM
• EASY-TO-ADJUST MECHANICAL ADVANCE WITH SUPPLIED SPRINGS AND STOP BUSHINGS
• VACUUM ADVANCE CANISTER FOR IMPROVED ECONOMY (CAN BE LOCKED OUT)
• CNC MACHINED BILLET ALUMINUM HOUSING & BILLET ALUMINUM BASE
• MAGNETIC PICKUP AND PRECISION RELUCTOR CREATE STABLE TRIGGER SIGNALS THROUGHOUT THE RPM RANGE
• POLISHED STEEL SHAFT IS QPQ COATED AND GUIDED BY A SEALED BALL BEARING
• ADVANCE PLATE AND WEIGHTS ARE FINE BLANKED FROM CHROME MOLY STEEL AND QPQ COATED FOR FRICTION REDUCTION
• MECHANICAL ADVANCE ASSEMBLY CAN BE LOCKED OUT FOR CRANK TRIGGER SYSTEMS
• ADVANCE WEIGHT PINS ARE STAKED AND TIG WELDED TO THE PLATE

SPECS:

• BRAND: MSD
• COLOR: BLACK ANODIZED
• DISTRIBUTOR TYPE: READY TO RUN
• PRODUCT TYPE: DISTRIBUTOR

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS DISTRIBUTOR HERE.
