DISTRIBUTOR,CHEVY V-8,DUAL PICKUP

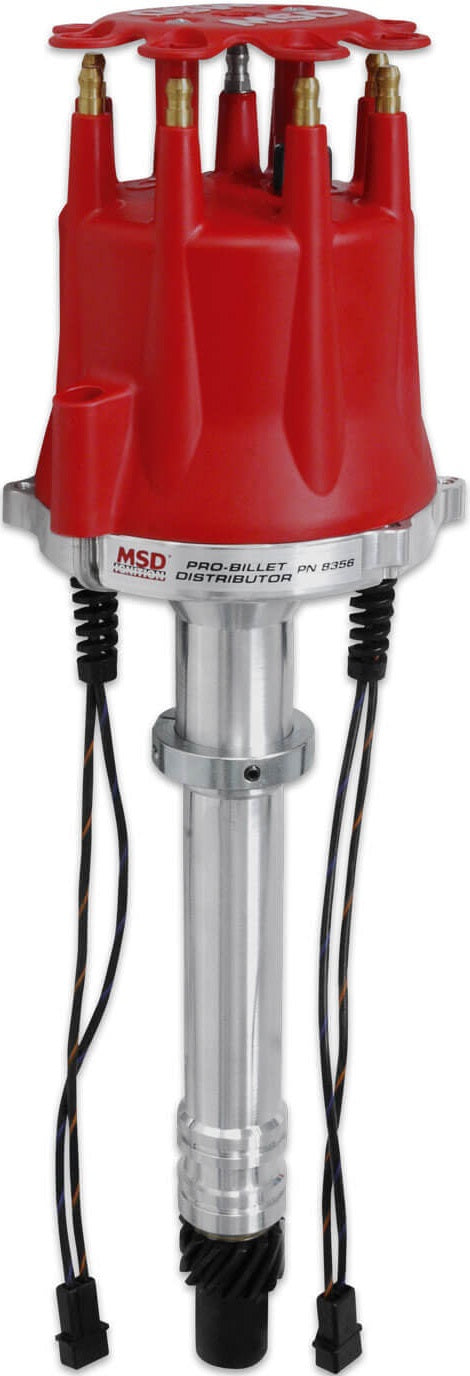

BRAND NEW MSD DUAL PICKUP BILLET DISTRIBUTOR, RED, COMPATIBLE WITH CHEVROLET V8 ENGINES

CHEVROLET HOUSING HAS SEVERAL RACING FEATURES THAT RACERS WILL APPRECIATE. AT THE BASE OF THE CNC MACHINED HOUSING THERE ARE 2 O-RING GROOVES. THESE SEALS PREVENT OIL IN THE LIFTER GALLERY FROM LEAKING THROUGH THE OIL PASSAGE. IF THE ENGINE DECK, HEADS OR INTAKE HAVE BEEN MODIFIED, THERE IS AN ADJUSTABLE SLIP COLLAR WHICH ALLOWS YOU TO SET THE CORRECT INSTALL DEPTH.

A FINE-BLANKED ADVANCE CAM IS TIG-WELDED ON TOP OF THE 0.500" QPQ-COATED SHAFT. ADDED TO THE ADVANCE PLATE ARE CHROMOLY WEIGHT PINS WHICH ARE STAKED & TIG-WELDED IN PLACE. THE ADVANCE WEIGHTS ARE SPECIALLY COATED TO REDUCE FRICTION & NYLON PADS ARE MOUNTED ON THE ADVANCE PLATE TO ALLOW THE WEIGHTS TO REACT QUICKLY TO RPM CHANGES.

THIS STYLE ADVANCE ASSEMBLY IS FULLY ADJUSTABLE OR CAN EASILY BE LOCKED OUT. WITH 2 MAG PICK-UPS, RACERS CAN HAVE A COMPLETE REDUNDANT IGNITION SYSTEM WHICH CAN BE ACTIVATED AT THE FLIP OF A SWITCH. PICKUPS ARE PLACED PRECISELY 180 DEGREES APART SO WHEN YOU SWITCH TO THE SECONDARY IGNITION, THE TIMING REMAINS CONSTANT!

FEATURES:

• MUST BE USED WITH AN MSD 6, 7, OR 8-SERIES IGNITION
• ADJUSTABLE SLIP COLLAR MOUNTING FLANGE FOR ENGINES WITH MODIFIED DECK HEIGHTS
• MECHANICAL ADVANCE ASSEMBLY CAN BE LOCKED OUT FOR CRANK TRIGGER SYSTEMS
• O-RING SEALS CAN BE INSTALLED FOR OIL PRESSURE CONTROL (MODIFIED BLOCKS ONLY)
• SPECIAL OIL TRACT IMPROVES LUBRICATION TO THE DISTRIBUTOR & CAM GEAR
• 0.500" STEEL SHAFT IS QPQ COATED & GUIDED BY A SEALED BALL BEARING & AN EXTRA LONG SINTERED BUSHING
• CNC MACHINED BILLET ALUMINUM HOUSING & BILLET ALUMINUM BASE
• ADVANCE WEIGHT PINS ARE STAKED & TIG-WELDED TO THE PLATE
• NYLON PADS ENSURE SMOOTH OPERATION OF THE ADVANCE WEIGHTS
• ADVANCE PLATE & WEIGHTS ARE FINE BLANKED FROM CHROME MOLY STEEL & QPQ COATED FOR FRICTION REDUCTION
• EASY-TO-ADJUST MECHANICAL ADVANCE WITH SUPPLIED SPRINGS & STOP BUSHINGS
• DUAL MAGNETIC PICKUPS ARE PLACED 180 DEGREES APART TO PROVIDE A COMPLETE REDUNDANT IGNITION SYSTEM FOR RACING APPLICATIONS

SPECS:

• BRAND: MSD
• EMISSION CODE: 4
• PRODUCT TYPE: DISTRIBUTOR

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS DISTRIBUTOR HERE.
