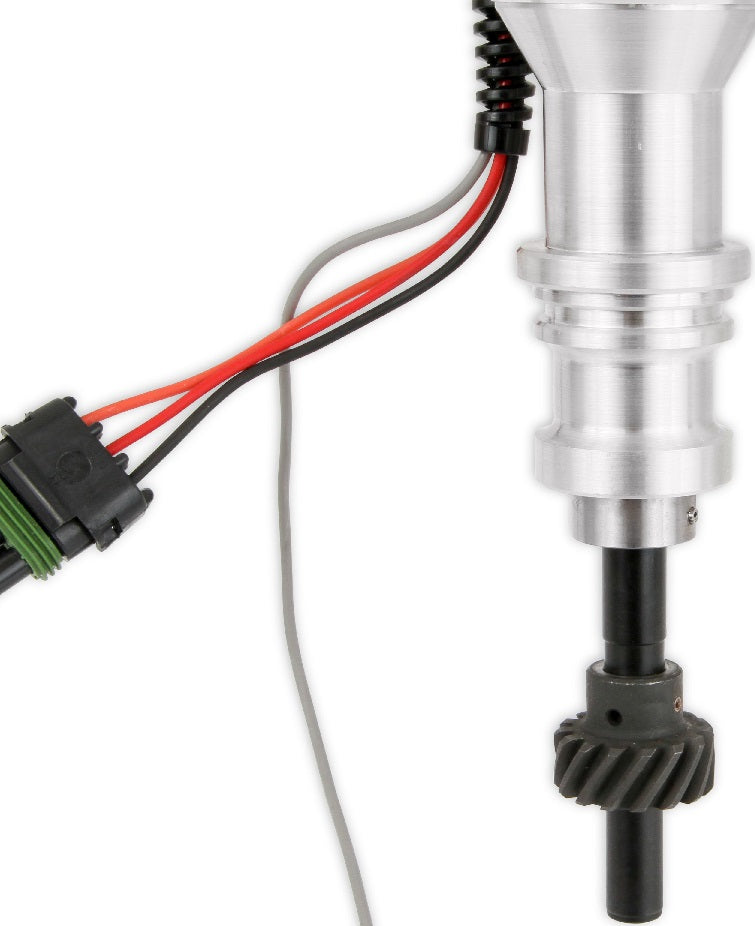

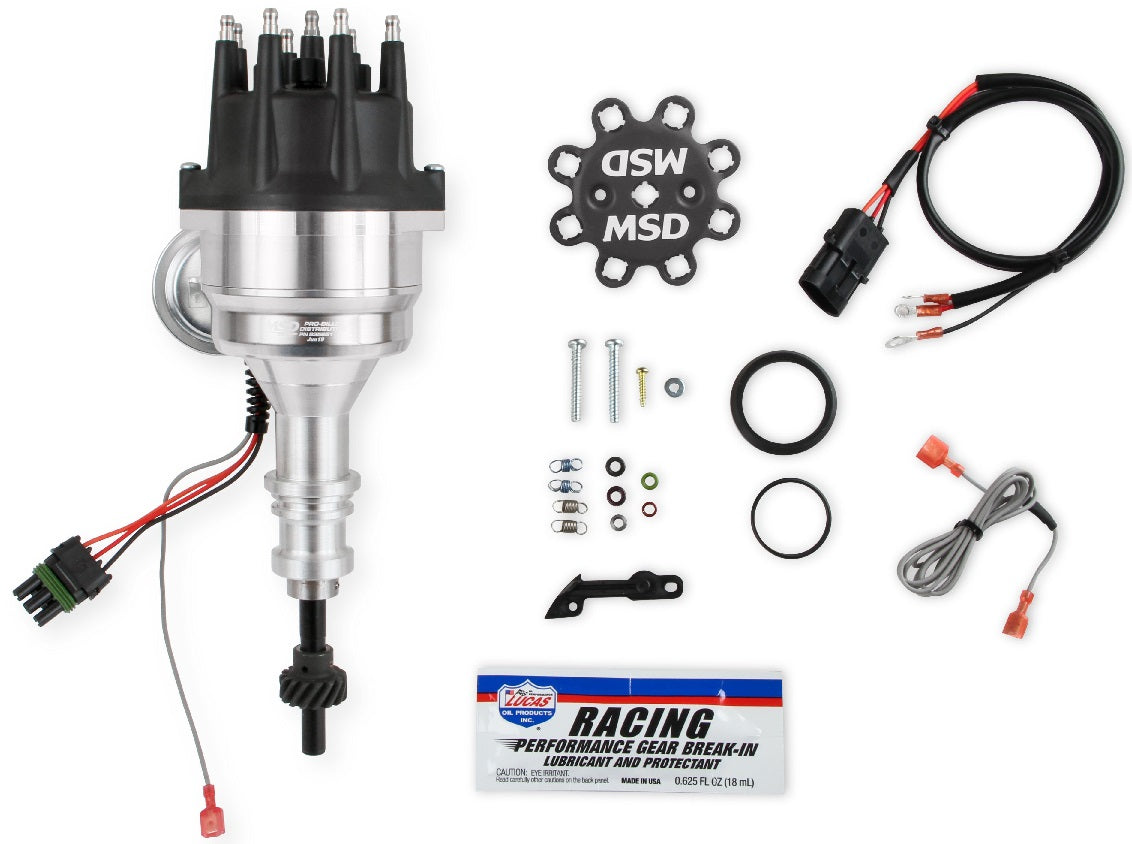

DISTRIBUTOR,SBF 289/302,READY-TO-RUN,BLACK CAP,IRON GEAR

BRAND NEW MSD PRO BILLET READY TO RUN DISTRIBUTOR WITH BUILT-IN REV LIMITER, BLACK CAP, STEEL GEAR, COMPATIBLE WITH FORD 289 & 302 SMALL BLOCK V8 ENGINES

MSD NOW OFFERS FORD DISTRIBUTORS WITH STEEL GEARS FOR USE WITH HYDRAULIC ROLLER CAMS. FORD DISTRIBUTORS PRESENT A CHALLENGE WHEN CHANGING THE DISTRIBUTOR GEAR DUE TO THEIR PRESSED FIT, THE NEED TO CROSS DRILL THE DISTRIBUTOR SHAFT AND SET THE GEAR TO A SPECIFIC HEIGHT.

MSD HAS TAKEN THE TROUBLE OUT OF THE MIX WITH THEIR LINE OF POPULAR FORD DISTRIBUTOR APPLICATIONS THAT COME WITH A STEEL GEAR INSTALLED READY FOR HYDRAULIC ROLLER CAMS. WHETHER YOU ARE WORKING WITH A CRATE ENGINE OR BUILDING YOUR OWN COMBINATION, MSD HAS THE PERFORMANCE DISTRIBUTOR READY.

FEATURES:

• CNC MACHINED BILLET ALUMINUM HOUSING AND BILLET ALUMINUM BASE
• STEEL GEAR INSTALLED
• POLISHED STEEL SHAFT IS QPQ COATED AND GUIDED BY A SEALED BALL BEARING
• ADVANCE PLATE & WEIGHTS ARE FINE BLANKED FROM CHROME MOLY STEEL & QPQ COATED FOR FRICTION REDUCTION
• ADVANCE WEIGHT PINS ARE STAKED & TIG WELDED TO THE PLATE
• EASY-TO-ADJUST MECHANICAL ADVANCE WITH SUPPLIED SPRINGS AND STOP BUSHINGS
• NYLON PADS ENSURE SMOOTH OPERATION OF THE ADVANCE WEIGHTS
• MECHANICAL ADVANCE ASSEMBLY CAN BE LOCKED OUT FOR CRANK TRIGGER SYSTEMS
• MAINTENANCE-FREE MAGNETIC PICKUP & PRECISION RELUCTOR CREATE STABLE TRIGGER SIGNALS THROUGHOUT THE RPM RANGE

SPECS:

• BRAND: MSD
• DISTRIBUTOR TYPE: READY TO RUN
• ENGINE: FORD SMALL BLOCK V8
• GEAR: STEEL
• PRODUCT TYPE: DISTRIBUTOR

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS DISTRIBUTOR HERE.
