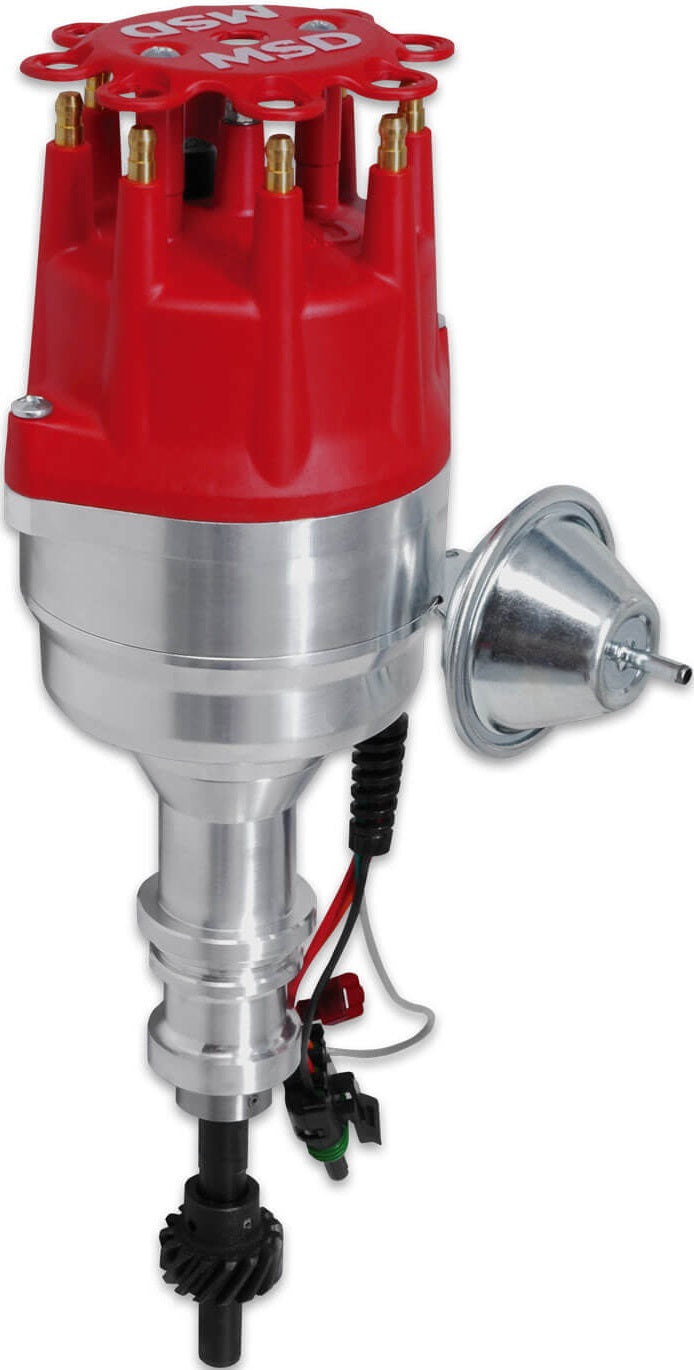

DISTRIBUTOR,FORD 351C>460,READY-TO-RUN,IRON GEAR

BRAND NEW MSD READY TO RUN BILLET DISTRIBUTOR, RED, COMPATIBLE WITH FORD 351C-460 ENGINES

MSD READY-TO-RUN FORD DISTRIBUTORS ARE THE PERFECT UPGRADE FOR BULKY DURASPARK SYSTEMS OR ANCIENT BREAKER POINT MODELS. THESE DISTRIBUTORS COME COMPLETE & READY-TO-RUN. ALL YOU NEED TO DO IS DROP IT IN THE ENGINE, CONNECT THREE WIRES & FIRE THE ENGINE. EACH DISTRIBUTOR FEATURES AN IGNITION MODULE THAT PRODUCES A POWERFUL INDUCTIVE SPARK TO IMPROVE COMBUSTION OF THE FUEL MIXTURE RESULTING IN QUICK STARTS, SMOOTH IDLE & INCREASED PERFORMANCE.

THE BILLET ALUMINUM HOUSINGS OF THESE DISTRIBUTORS ARE 5/8" SMALLER IN DIAMETER TO ACCOMMODATE INDUCTION SETUPS & TIGHT ENGINE COMPARTMENTS. A MAINTENANCE-FREE MAGNETIC PICKUP IS RESPONSIBLE FOR TRIGGERING THE HIGH VOLTAGE SPARKS WHILE A SEALED BALL BEARING GUIDES AN OVERSIZED SHAFT.

BENEATH THE BOLT DOWN CAP & MSD RACE ROTOR YOU WILL FIND MSD ACCURATE MECHANICAL ADVANCE ASSEMBLY. DIFFERENT ADVANCE SPRINGS & STOP BUSHINGS ARE SUPPLIED SO YOU CAN EASILY TUNE A CURVE TO MATCH YOUR NEEDS. VACUUM ADVANCE CANISTER TO INCREASE ECONOMY ON LONG DRIVES.

FEATURES:

• SIMPLE & CLEAN INSTALL WITH ONLY 3 WIRES TO CONNECT
• POWERFUL BUILT-IN MODULE PRODUCES A 7.5 AMP SINGLE SPARK THROUGH HIGH RPM
• EASY-TO-ADJUST MECHANICAL ADVANCE WITH SUPPLIED SPRINGS & STOP BUSHINGS
• VACUUM ADVANCE CANISTER FOR IMPROVED ECONOMY (CAN BE LOCKED OUT)
• CNC MACHINED BILLET ALUMINUM HOUSING & BILLET ALUMINUM BASE
• HOUSING IS 5/8" SMALLER IN DIAMETER THAN STOCK FORD DISTRIBUTORS
• MAINTENANCE-FREE MAGNETIC PICKUP & PRECISION RELUCTOR CREATE STABLE TRIGGER SIGNALS THROUGHOUT THE RPM RANGE
• POLISHED STEEL SHAFT IS QPQ COATED & GUIDED BY A SEALED BALL BEARING
• ADVANCE PLATE & WEIGHTS ARE FINE BLANKED FROM CHROME MOLY STEEL & QPQ COATED FOR FRICTION REDUCTION
• MECHANICAL ADVANCE ASSEMBLY CAN BE LOCKED OUT FOR CRANK TRIGGER SYSTEMS
• ADVANCE WEIGHT PINS ARE STAKED & TIG WELDED TO THE PLATE
• NYLON PADS ENSURE SMOOTH OPERATION OF THE ADVANCE WEIGHTS
• SUPPLIED WITH SMALL DIAMETER CAP WITH HEI STYLE TERMINALS & RACE ROTOR (WILL ACCEPT 8441 CAP-A-DAPT)
• DOES NOT REQUIRE AN MSD IGNITION CONTROL
• CARB E.O. APPROVED
• NOW INCLUDES BUILT-IN REV LIMITER!

SPECS:

• BRAND: MSD
• C.A.R.B. EO #: D-40-39
• COLOR: RED
• DISTRIBUTOR TYPE: READY TO RUN
• EMISSION CODE: 1
• ENGINE: FORD 351C-460
• GEAR: CAST IRON
• PRODUCT TYPE: DISTRIBUTOR

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS DISTRIBUTOR HERE.
