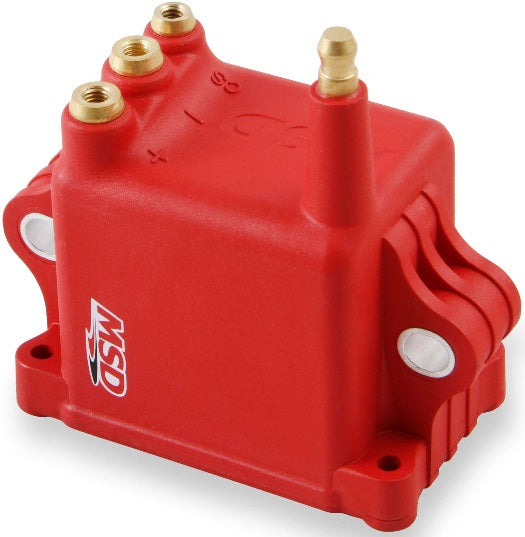

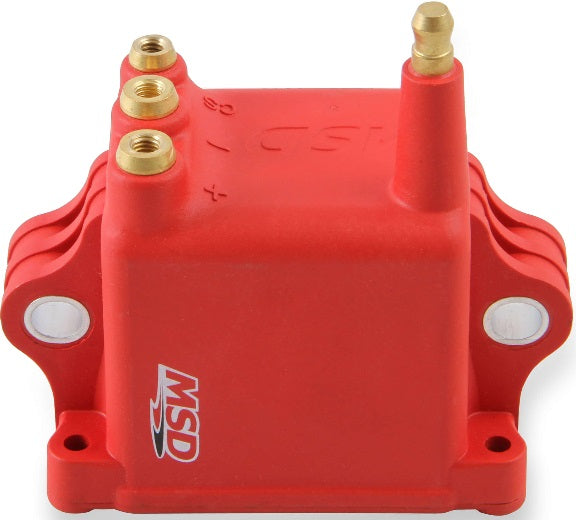

IGNITION COIL,HIGH OUTPUT,FOR PRO 600,8PK,RED

BRAND NEW MSD RED IGNITION COIL, HIGH OUTPUT FOR PRO CDI, 8 PACK

THE PRO 600 (CAPACITIVE DISCHARGE IGNITION) COIL IS THE SOLUTION WITH THE HIGHEST CURRENT AND VOLTAGE AVAILABLE IN A SMALL COMPACT DESIGN. WITH THE UNRIVALED OUTPUT OF THE PRO 600 CDI, COMBINED WITH THESE HIGH-OUTPUT COILS, EVERYTHING FROM PRO MOD TO PULLING TRUCKS CAN PERFORM AT A WHOLE NEW LEVEL!

WHEN YOU ARE MAKING EXTREME CYLINDER PRESSURE WITH BOOST OR NITROUS ON AN INDUCTIVE COIL-PER-PLUG IGNITION, LACK OF SPARK ENERGY MEANS YOU ARE LEAVING HORSEPOWER ON THE TABLE. TO ANSWER THIS NEED, MSD DEVELOPED THIS POWERFUL COIL FOR THE PRO 600 CAPACITIVE DISCHARGE IGNITION TO PROVIDE UNRIVALED SPARK ENERGY AND DEPENDABILITY.

NOTE: THIS COIL COMES WITH A 3RD TERMINAL, AND HIGHLY RECOMMENDED TO GROUND TO CYLINDER HEADS, FAILURE TO PROPERLY GROUND CAN RESULT IN IGNITION UNIT FAILURE

FEATURES:

• DESIGNED FOR EXTREME RACING FOR THE PRO 600 CAPACITIVE DISCHARGE IGNITION, PART #8000
• CAPABLE OF UP TO 50,000 VOLTS TO IGNITE EXTREME CYLINDER PRESSURES
• OVER 200 MILLIJOULES OF SPARK ENERGY MAKES THEM IDEAL FOR USE WITH METHANOL, ETHANOL, E85 AND FORCED INDUCTION AND POWER ADDER COMBINATIONS

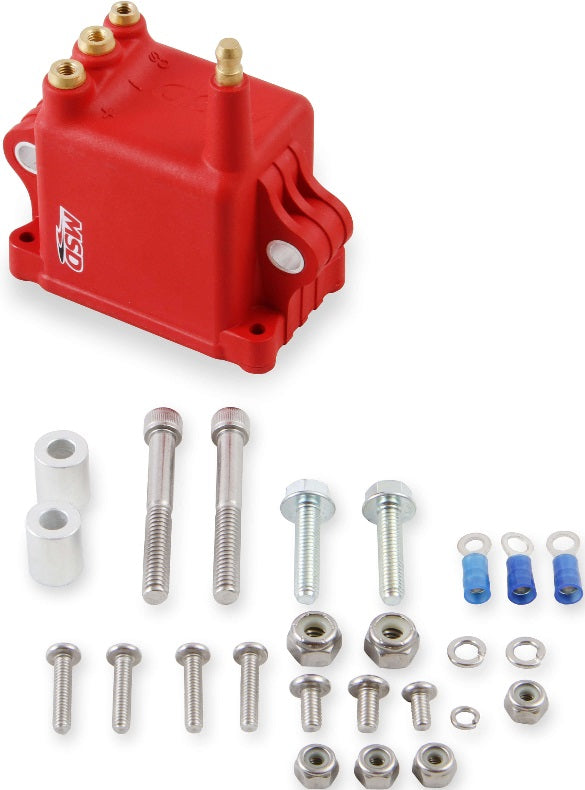

• SUPPLIED WITH HARDWARE TO MOUNT HORIZONTAL OR VERTICAL POSITION
• COILS ARE DESIGNED TO BE MOUNTED ON HOLLEY LS VALVE COVERS, OR ORIGINAL EQUIPMENT LS PASSENGER CAR COIL BRACKETS USING 72MM BOLT SPACING
• HEI STYLE SECONDARY TOWER FOR SECURE COIL WIRE CONNECTION

SPECS:

• BRAND: MSD
• COLOR: RED
• EMISSION CODE: 4
• INDUCTANCE: 500MH
• MAXIMUM VOLTAGE: 50,000 VOLTS
• PEAK CURRENT: 1700 MA
• PRIMARY RESISTANCE: .064 OHMS
• PRODUCT TYPE: IGNITION COILS
• QUANTITY: 8-PACK
• SECONDARY RESISTANCE: 466 OHMS
• SPARK DURATION: 345 US
• SPARK ENERGY: 208 MJ
• TURNS RATIO: 56:1
• TYPE: DRAG RACE / SHORT DURATION USE

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THESE IGNITION COILS HERE.
