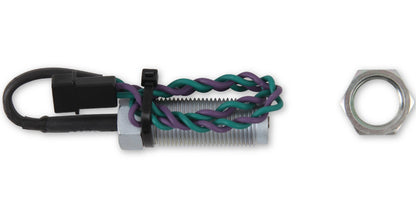

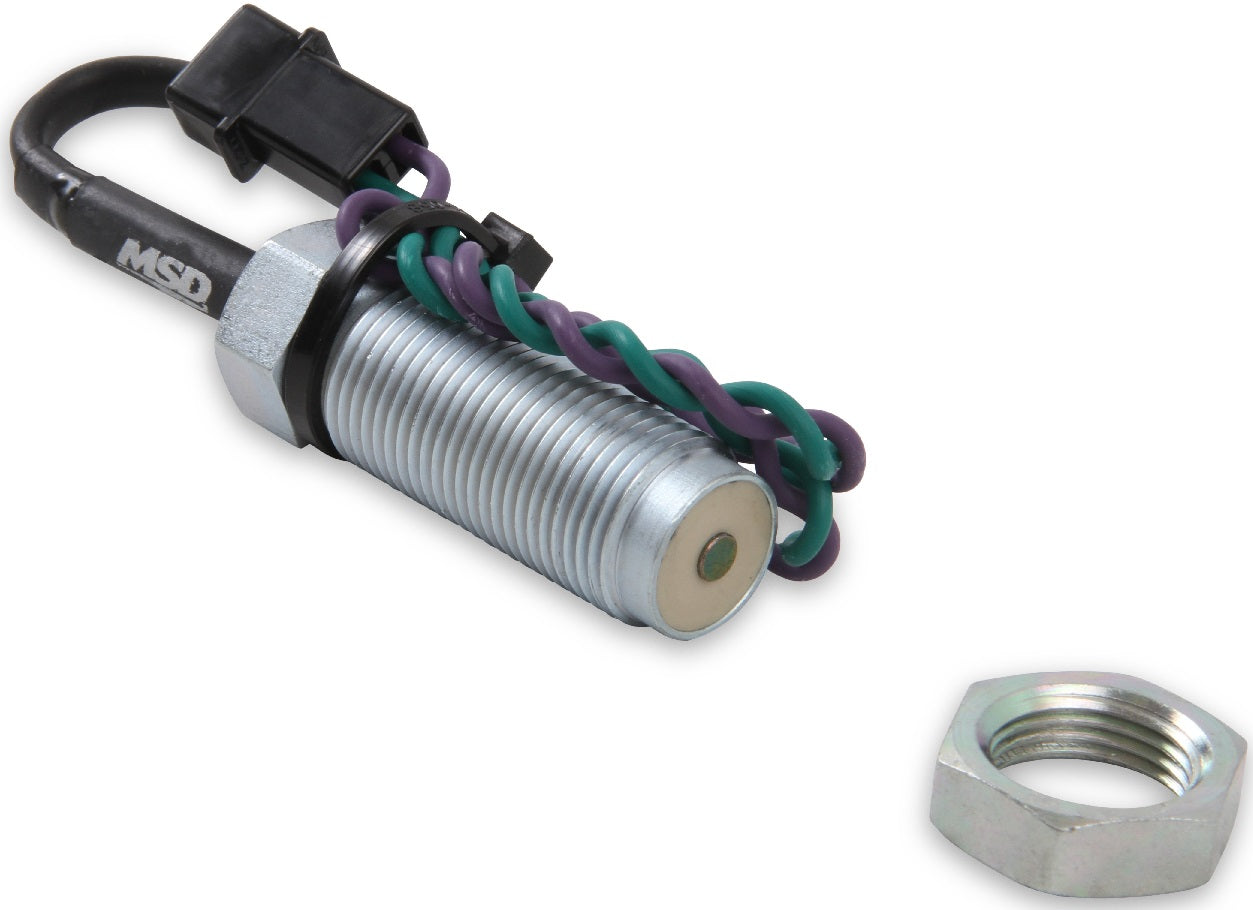

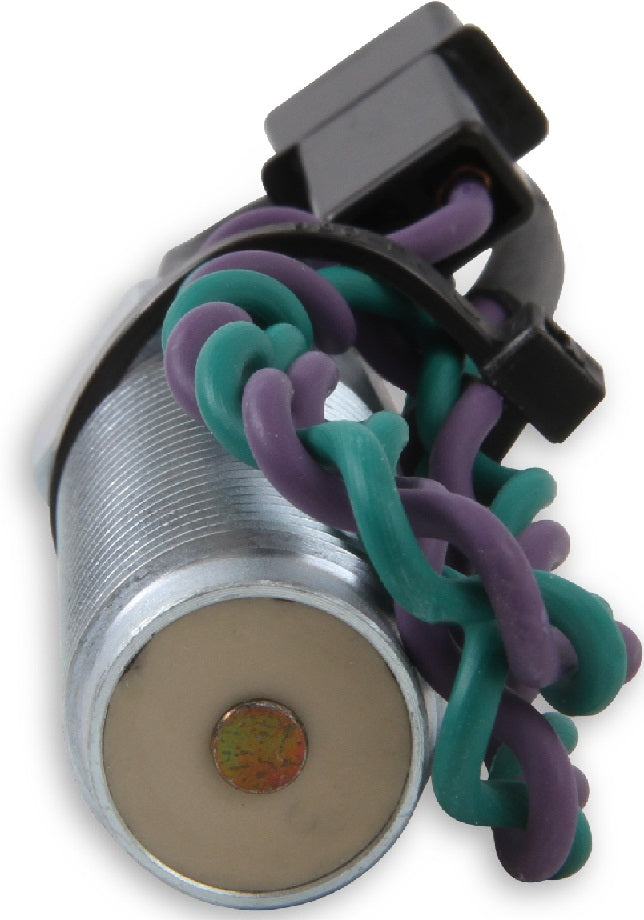

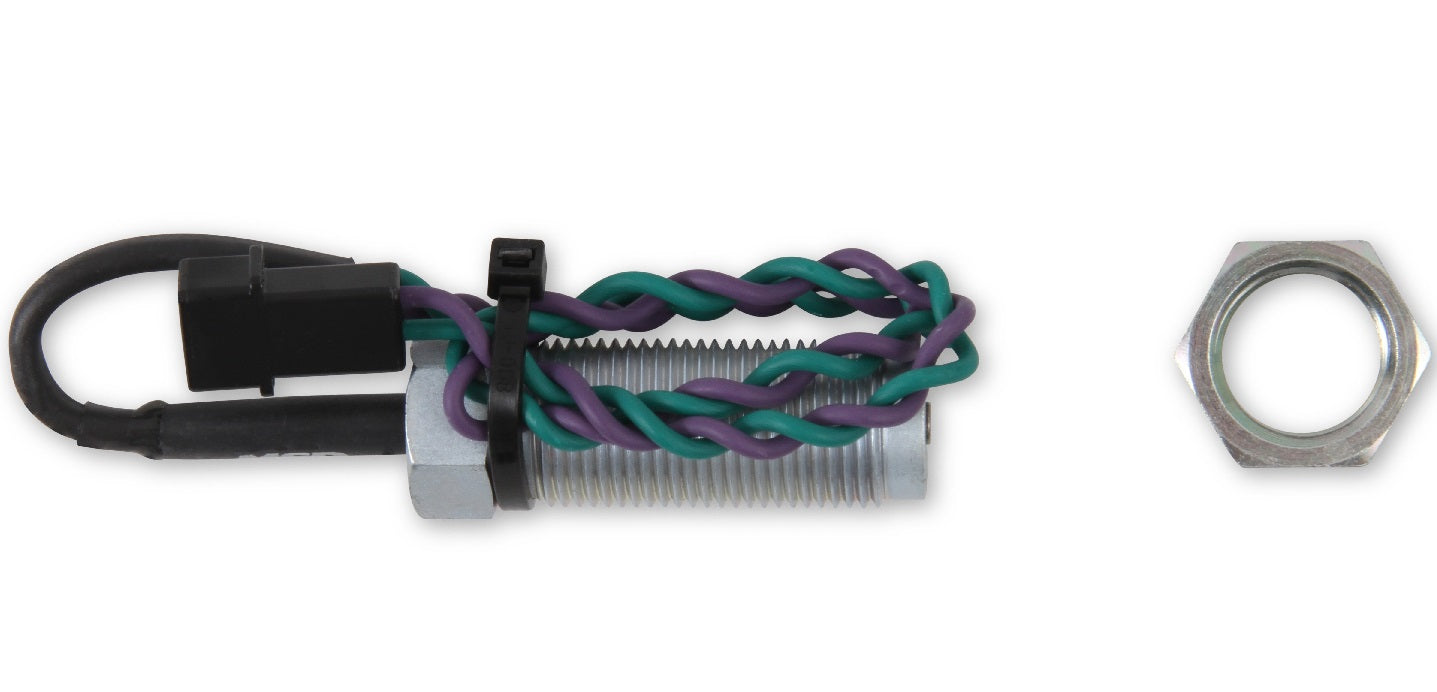

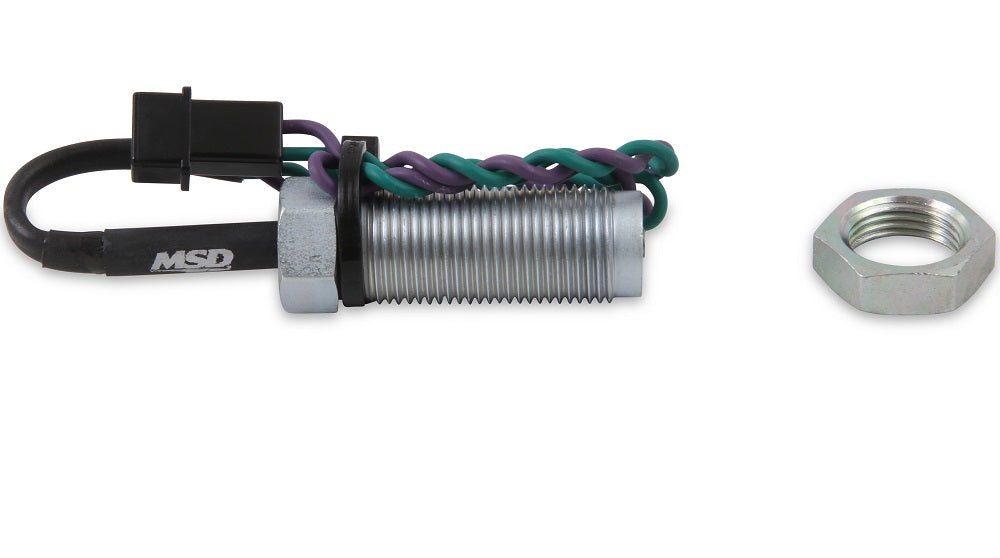

CRANK TRIGGER PICKUP,NON-MAGNETIC,3/4-16

BRAND NEW MSD CRANK TRIGGER PICKUP, NON-MAGNETIC, 3/4"-16 - UNF, 6" HARNESS, COMPATIBLE WITH MSD FLYING MAGNET CRANK TRIGGER KITS

MSD NON-MAGNETIC PICK-UPS ARE ENGINEERED FOR EXTREME APPLICATIONS. THIS PICK-UP WAS DESIGNED AND TESTED ON 300+ MPH TOP FUEL DRAGSTERS! MSD DESIGNED AND BUILT THE PICK-UPS IN-HOUSE FOR CONTROL EVERY ASPECT OF THE ASSEMBLY AND QUALITY.

EACH PICK-UP IS HAND WOUND ON A SPECIAL BOBBIN AND TERMINATED TO OUR TINNED CONDUCTOR, TEFLON JACKETED WIRING. THESE WIRES ARE ALSO ROUTED THROUGH A STRAIN RELIEF FOR PROTECTION. THIS ASSEMBLY IS THEN INSTALLED INTO THE PRECISION HOUSING AND IS POTTED WITH A FRACTURE RESISTANT EPOXY COMPOUND. TO ENSURE THAT THE WINDINGS ARE ENTIRELY ENCASED IN EPOXY, THE PICK-UPS UNDERGO A VACUUM PROCEDURE TO REMOVE ANY AIR INSIDE THE HOUSING.

ALL OF THESE PROCEDURES ARE NECESSARY TO PRODUCE THE STRONGEST, MOST RELIABLE NON-MAGNETIC PICK-UP AVAILABLE.

NOTE: NON-MAGNETIC PICKUP RESISTANCE 65-85 OHMS

FEATURES:

• REPLACEMENT PICK-UP

SPECS:

• BRAND: MSD
• DISTRIBUTOR TYPE: ACCESSORIES
• PRODUCT TYPE: PICKUP ASSEMBLY
