COIL,HVC PRO POWER II, 7 & 8 SERIES,BLACK

COIL,HVC PRO POWER II, 7 & 8 SERIES,BLACK

SKU:MSD 82613

Regular price $307.95
Regular price Sale price $307.95
View full details

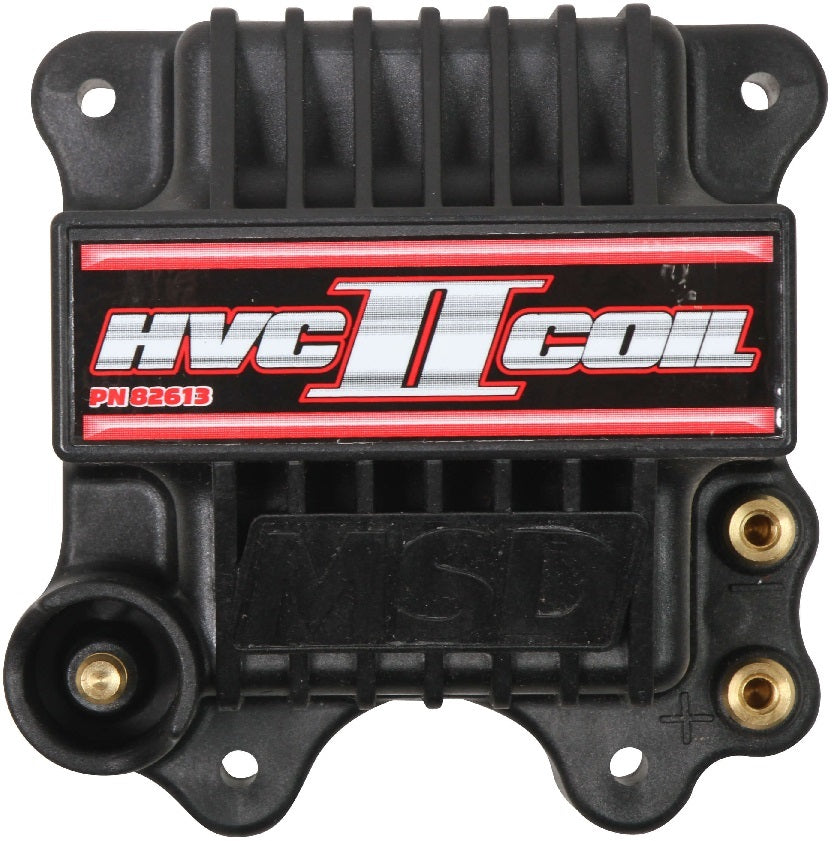

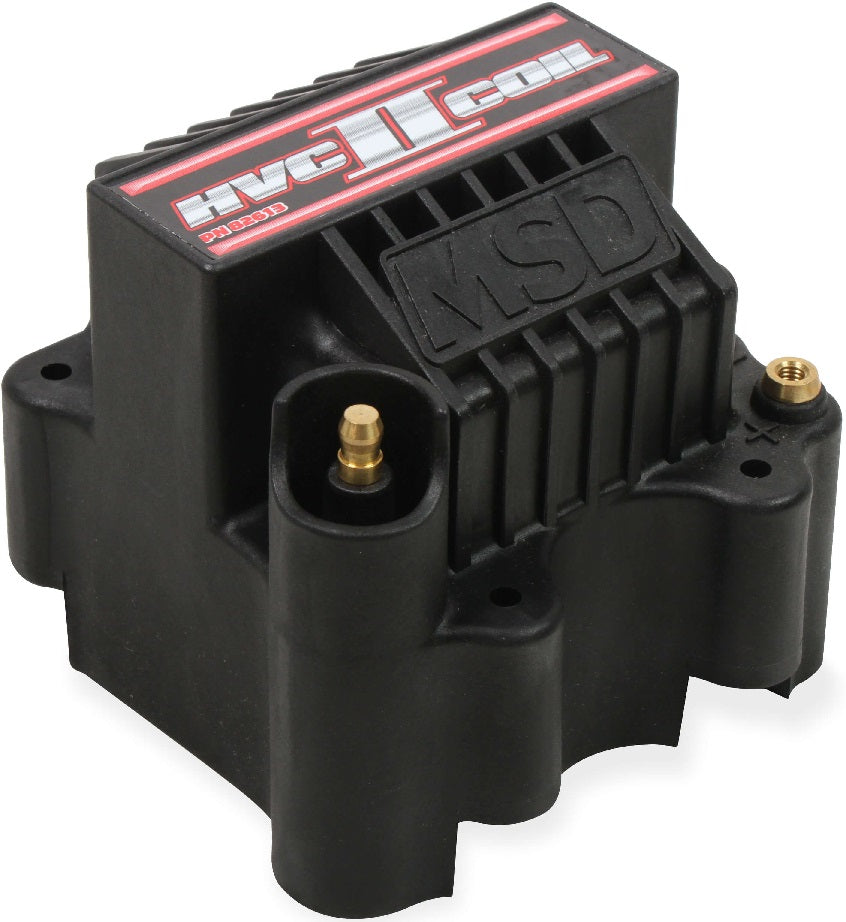

BRAND NEW MSD IGNITION COIL HVC-2 SERIES, BLACK, COMPATIBLE WITH 7 OR 8 SERIES IGNITION CONTROL

THE HVC II COIL IS COMPLETELY BUILT IN-HOUSE SO OUR ENGINEERS HAVE EXCLUSIVE CONTROL OVER THEIR PERFORMANCE & QUALITY. THE COIL UTILIZES AN IRON U-CORE DESIGN WITH A SEGMENTED BOBBIN FOR IMPROVED VOLTAGE DISTRIBUTION. THE BOBBIN IS MOLDED FROM DUPONT RYNITE FR946 MATERIAL WHICH HAS INCREDIBLE DIELECTRIC CAPABILITIES AT HIGH TEMPERATURES.

MSD ALSO INCORPORATED A CUTTING EDGE WINDING MATERIAL THAT HAS AN IMPROVED INSULATION & IS ALSO CAPABLE OF ENDURING EXTREME VOLTAGES. TOGETHER, THESE MATERIALS CREATE A DURABLE COIL WITH INCREDIBLE VOLTAGE CAPABILITIES, LIGHTNING QUICK RISE TIME & LENGTHY SPARK DURATION.

FEATURES:

  • DESIGNED FOR RACING APPLICATIONS WITH AN MSD 7 OR 8 SERIES IGNITION CONTROL
  • NEW U-CORE WINDING DESIGN PRODUCES MORE VOLTAGE & CURRENT
  • 70:1 TURNS RATIO & LOWER PRIMARY RESISTANCE PRODUCE HIGH VOLTAGE OUTPUT
  • WINDINGS ARE ENCASED IN FRACTURE RESISTANT COMPOUND FOR VIBRATION RESISTANCE
  • DUPONT RYNITE HOUSING WITH ISOLATED TOWER & BRASS PRIMARY TERMINALS

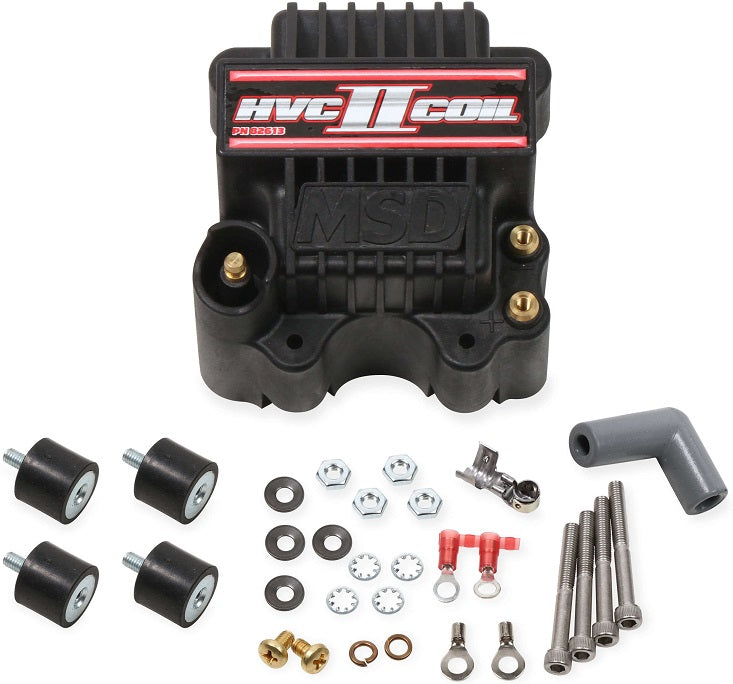

  • SUPPLIED WITH RUBBER SHOCK MOUNTS

SPECS:

  • BRAND: MSD
  • COLOR: BLACK
  • INDUCTANCE: .250 MH
  • MAXIMUM VOLTAGE: 45,000 VOLTS
  • PEAK CURRENT: 2 AMPS
  • PRIMARY RESISTANCE: .016 OHMS
  • PRODUCT TYPE: COIL
  • SECONDARY RESISTANCE: 30 OHMS
  • SPARK DURATION: 150 US
  • TURNS RATIO: 70:1
  • TYPE: DRAG RACE / LONG DURATION USE

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS IGNITION CONTROL HERE.
