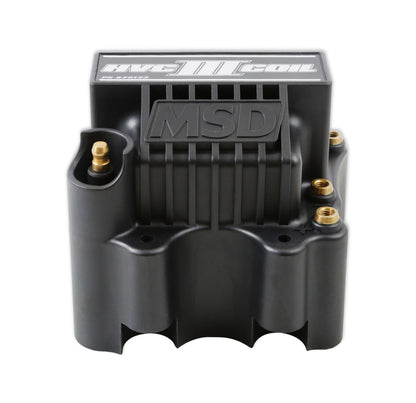

IGNITION COIL,HVC-3,CURRENT SENSING,BLACK

IGNITION COIL,HVC-3,CURRENT SENSING,BLACK

SKU:MSD 826123

Regular price $319.95
Regular price Sale price $319.95
View full details

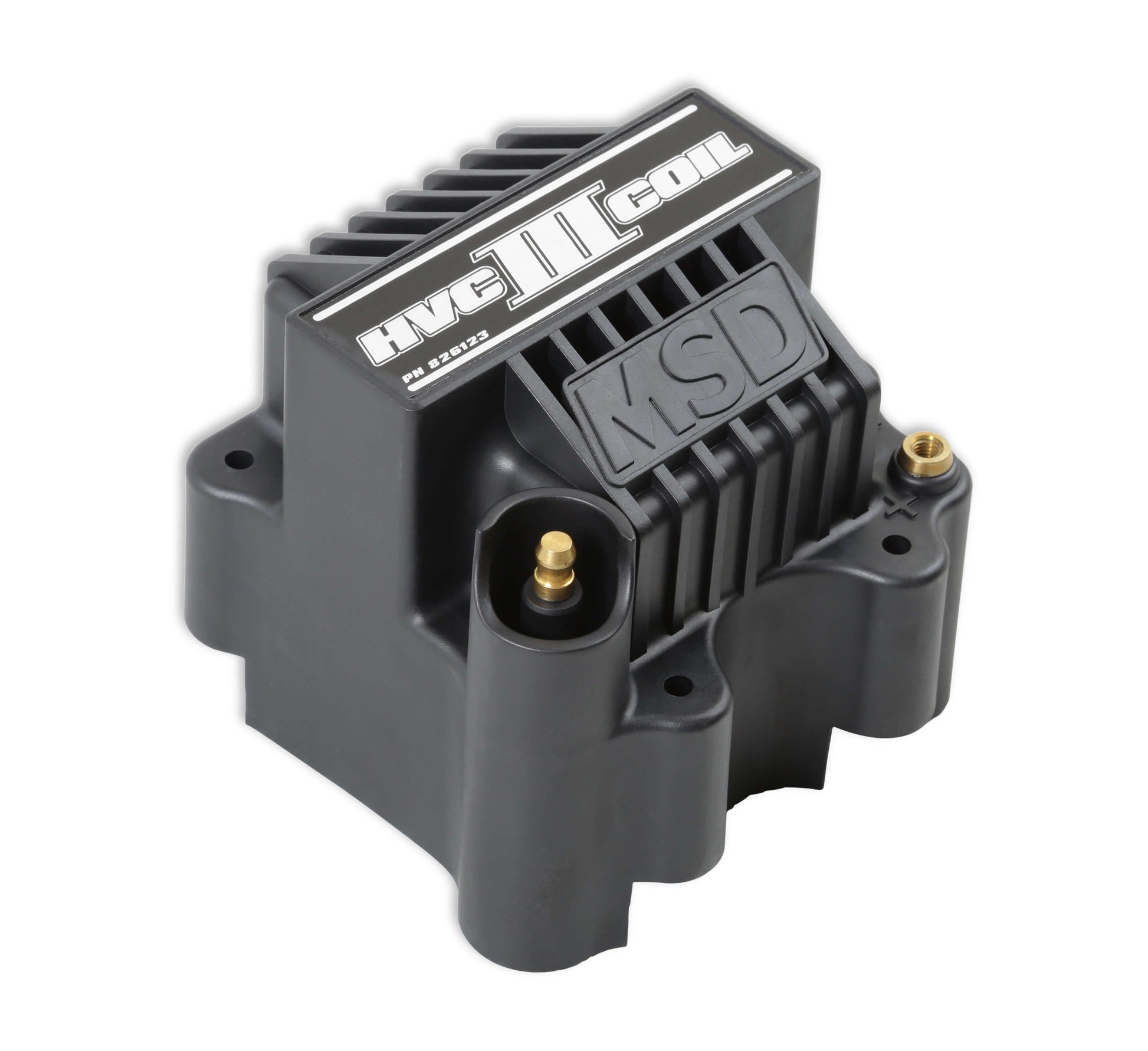

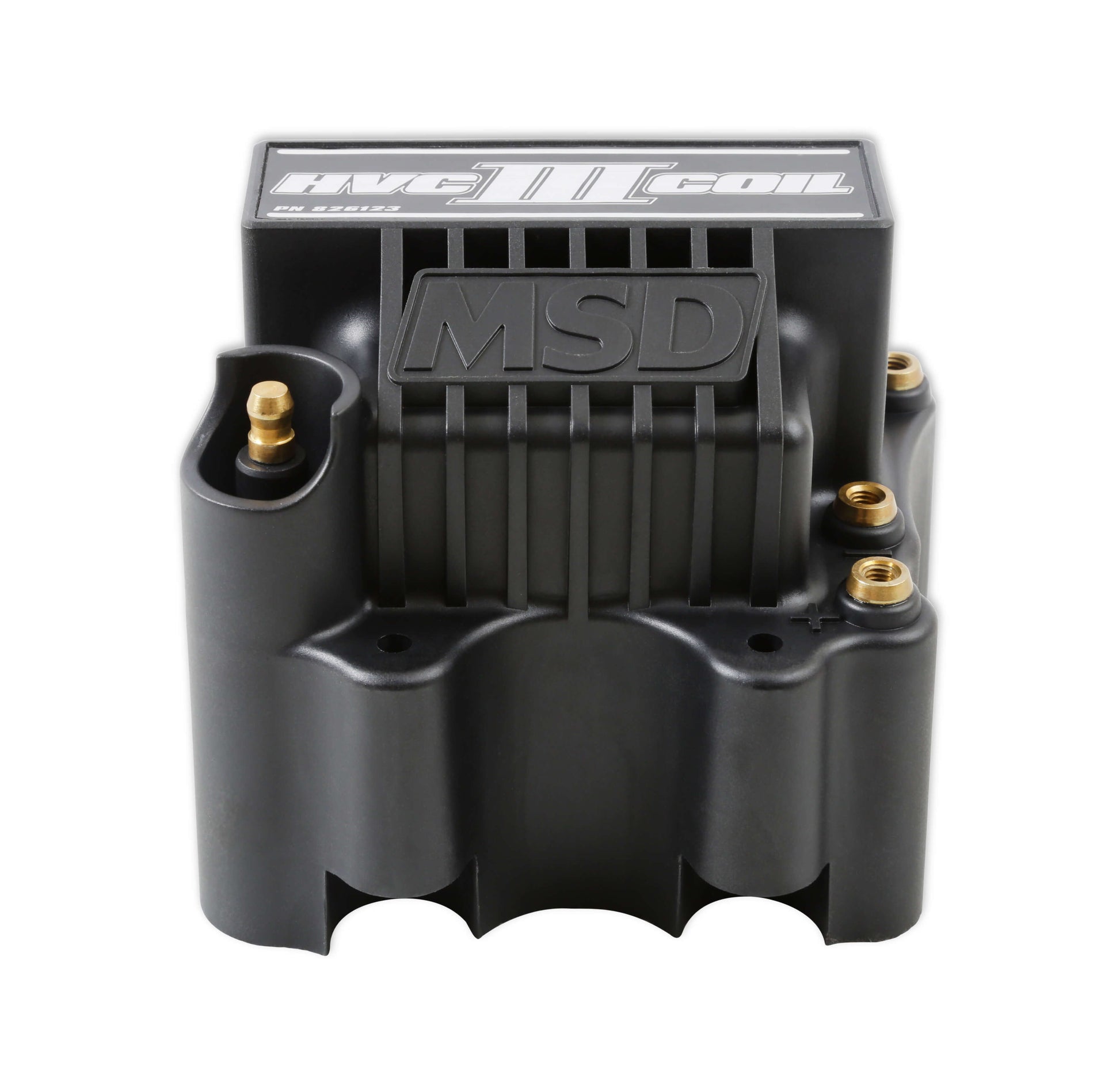

BRAND NEW MSD HVC-3 SERIES IGNITION COIL, BLACK, COMPATIBLE WITH POWER GRID 600 SINGLE CHANNEL (HOLLEY PART #826123).

THE HVC III COIL IS COMPLETELY BUILT IN-HOUSE SO OUR ENGINEERS HAVE EXCLUSIVE CONTROL OVER THEIR PERFORMANCE AND QUALITY. THE COIL UTILIZES AN IRON U-CORE DESIGN WITH A SEGMENTED BOBBIN FOR IMPROVED VOLTAGE DISTRIBUTION. THE BOBBIN IS MOLDED FROM FR946 MATERIAL WHICH HAS INCREDIBLE DIELECTRIC CAPABILITIES AT HIGH TEMPERATURES. MSD ALSO INCORPORATED A CUTTING-EDGE WINDING MATERIAL THAT HAS IMPROVED INSULATION AND IS ALSO CAPABLE OF ENDURING EXTREME VOLTAGES. TOGETHER, THESE MATERIALS CREATE A DURABLE COIL WITH INCREDIBLE VOLTAGE CAPABILITIES, LIGHTNING-QUICK RISE TIME, AND LONGER SPARK DURATION. EQUIPPED WITH AN INDUSTRY-FIRST THIRD TERMINAL TO ALLOW SECONDARY CURRENT SENSING, FOR EACH SPARK, WHEN USED IN CONJUNCTION WITH THE MSD 8001 PRO 600 SINGLE CHANNEL IGNITION.

FEATURES:

  • DESIGNED FOR RACING APPLICATIONS WITH AN MSD 7 OR 8 SERIES IGNITION CONTROL OR PRO 600 SINGLE CHANNEL - P/N 8001
  • NEW U-CORE WINDING DESIGN PRODUCES MORE VOLTAGE AND CURRENT
  • 70:1 TURNS RATIO AND LOWER PRIMARY RESISTANCE PRODUCE HIGH VOLTAGE OUTPUT
  • WINDINGS ARE ENCASED IN FRACTURE RESISTANT COMPOUND FOR VIBRATION RESISTANCE

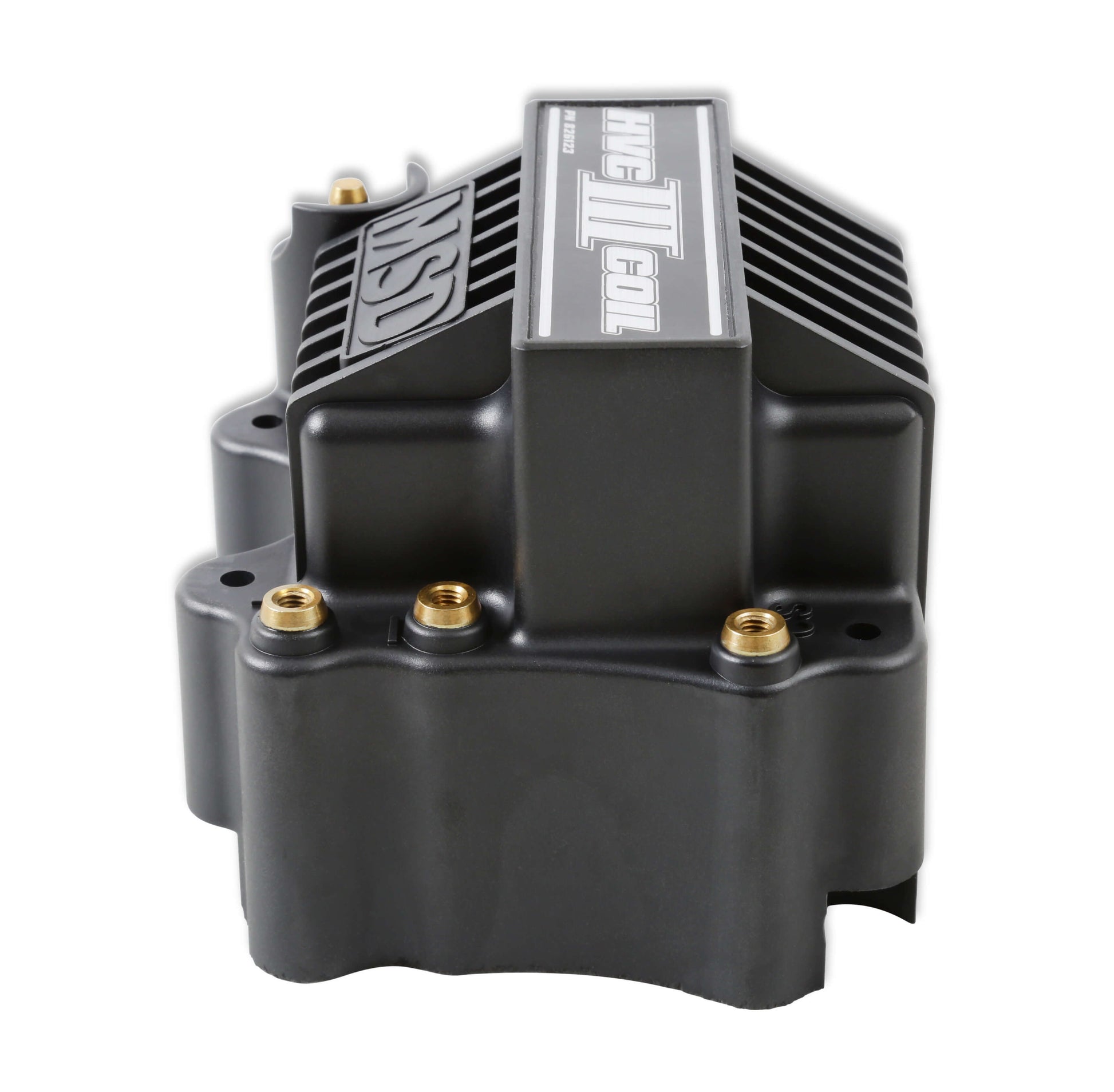

  • ISOLATED TOWER AND BRASS PRIMARY TERMINALS

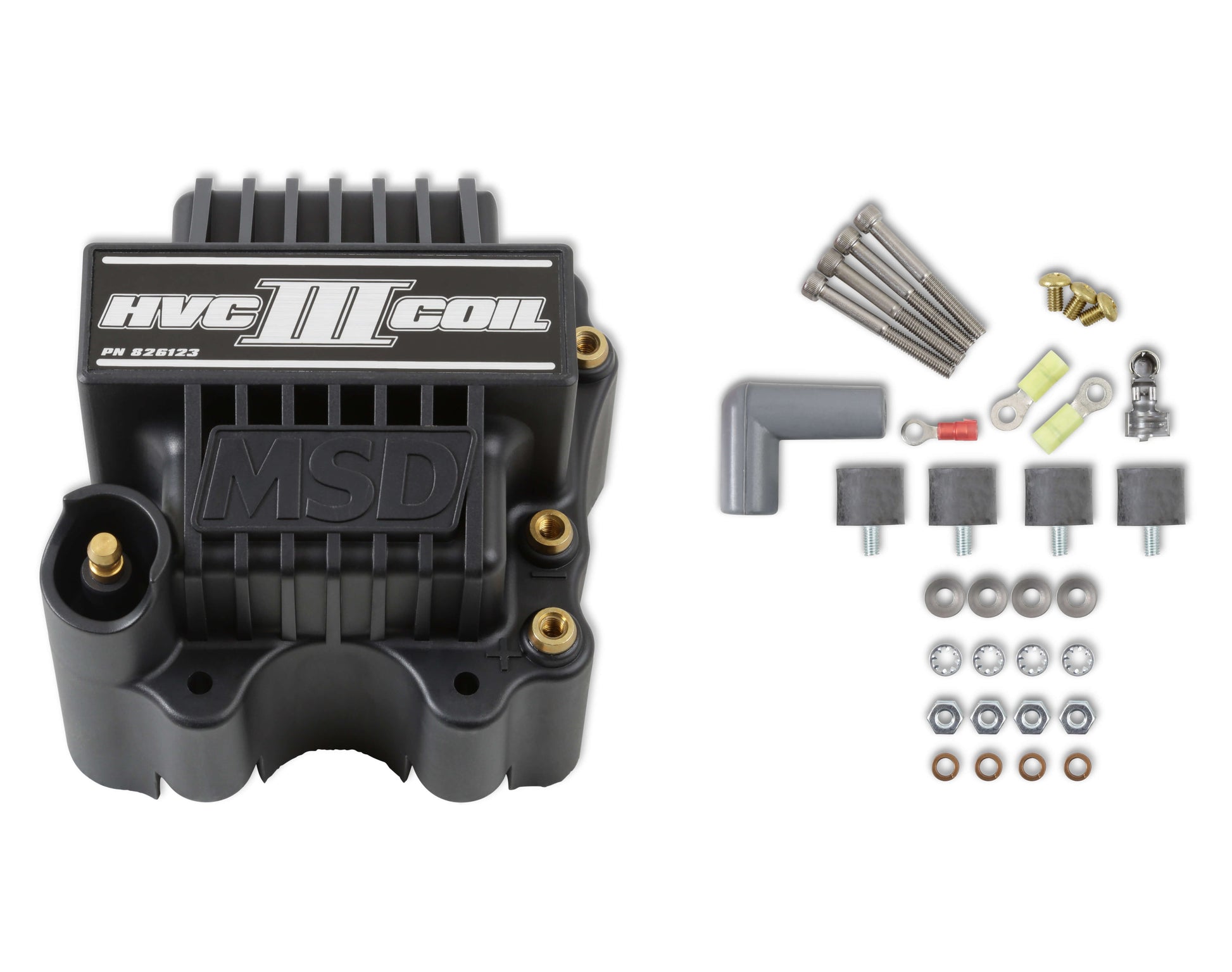

  • SUPPLIED WITH MOUNTING HARDWARE AND RUBBER SHOCK MOUNTS
  • BUILT-IN CURRENT SENSING WHEN USED WITH MSD PRO 600 SINGLE CHANNEL (8001)

SPECS:

  • BRAND: MSD
  • COLOR: BLACK
  • INDUCTANCE: .250 MH
  • MAXIMUM VOLTAGE: 45,000 VOLTS
  • PEAK CURRENT: 2 AMPS
  • PRIMARY RESISTANCE: .016 OHMS
  • PRODUCT TYPE: COIL
  • SECONDARY RESISTANCE: 30 OHMS
  • SPARK DURATION: 150 US
  • TURNS RATIO: 70:1
  • TYPE: DRAG RACE / LONG DURATION USE
  • WEIGHT: 3.75 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET HERE.
