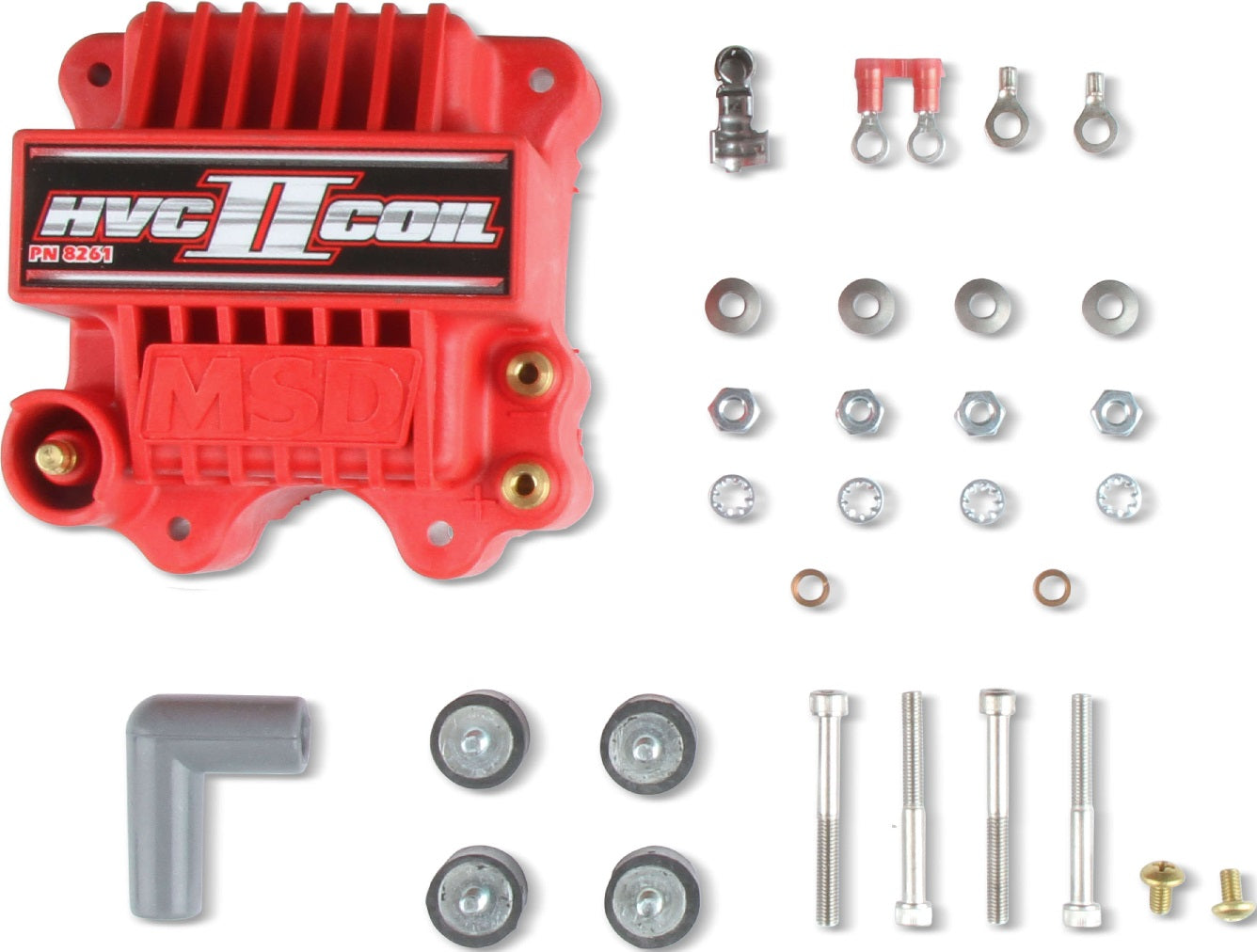

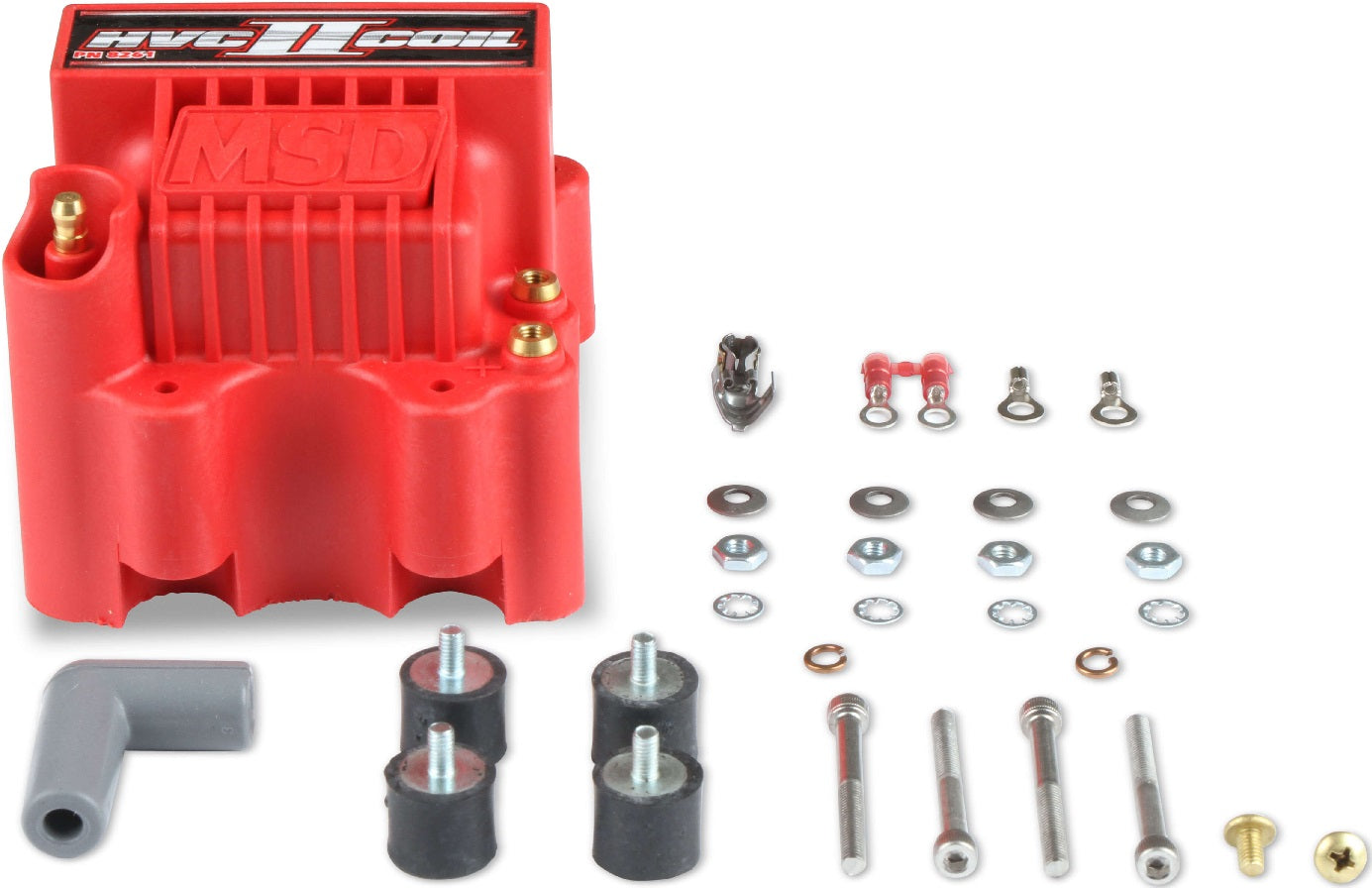

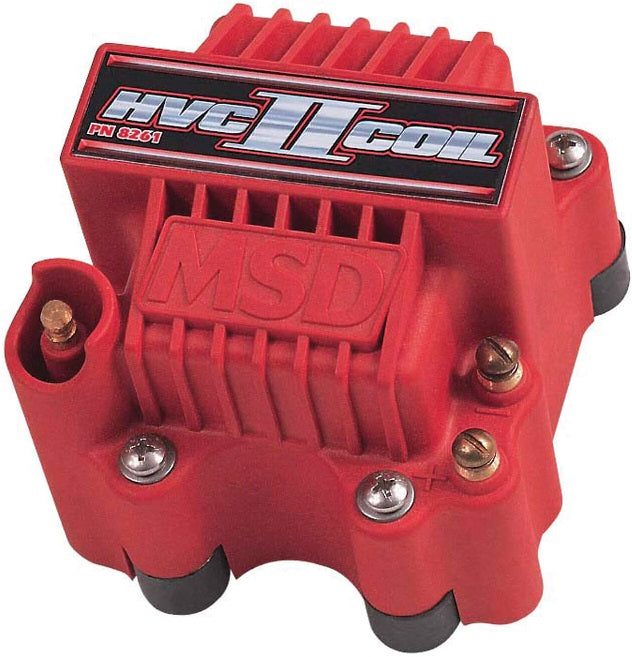

COIL,HVC PRO POWER II, 7 & 8 SERIES,RED

BRAND NEW MSD IGNITION COIL HVC-2 SERIES, RED, COMPATIBLE WITH 7 OR 8 SERIES IGNITION CONTROL

THE HVC II COIL IS COMPLETELY BUILT IN-HOUSE SO OUR ENGINEERS HAVE EXCLUSIVE CONTROL OVER THEIR PERFORMANCE & QUALITY. THE COIL UTILIZES AN IRON U-CORE DESIGN WITH A SEGMENTED BOBBIN FOR IMPROVED VOLTAGE DISTRIBUTION. THE BOBBIN IS MOLDED FROM DUPONT RYNITE FR946 MATERIAL WHICH HAS INCREDIBLE DIELECTRIC CAPABILITIES AT HIGH TEMPERATURES.

MSD ALSO INCORPORATED A CUTTING EDGE WINDING MATERIAL THAT HAS AN IMPROVED INSULATION & IS ALSO CAPABLE OF ENDURING EXTREME VOLTAGES. TOGETHER, THESE MATERIALS CREATE A DURABLE COIL WITH INCREDIBLE VOLTAGE CAPABILITIES, LIGHTNING QUICK RISE TIME & LENGTHY SPARK DURATION.

FEATURES:

• DESIGNED FOR RACING APPLICATIONS WITH AN MSD 7 OR 8 SERIES IGNITION CONTROL
• NEW U-CORE WINDING DESIGN PRODUCES MORE VOLTAGE & CURRENT
• 70:1 TURNS RATIO & LOWER PRIMARY RESISTANCE PRODUCE HIGH VOLTAGE OUTPUT
• WINDINGS ARE ENCASED IN FRACTURE RESISTANT COMPOUND FOR VIBRATION RESISTANCE
• DUPONT RYNITE HOUSING WITH ISOLATED TOWER & BRASS PRIMARY TERMINALS
• SUPPLIED WITH RUBBER SHOCK MOUNTS

SPECS:

• BRAND: MSD
• COLOR: RED
• INDUCTANCE: .250 MH
• MAXIMUM VOLTAGE: 45,000 VOLTS
• PEAK CURRENT: 2 AMPS
• PRIMARY RESISTANCE: .016 OHMS
• PRODUCT TYPE: COIL
• SECONDARY RESISTANCE: 30 OHMS
• SPARK DURATION: 150 US
• TURNS RATIO: 70:1
• TYPE: DRAG RACE / LONG DURATION USE

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS IGNITION CONTROL HERE.
